Description
The SP4020-01FTG-C from Little Fuse integrate low capacitance steering diodes with one or two zener diodes for unidirectional protection, respectively, to protect against ESD and lightning induced surge events. These devices can safely absorb up to 30A per IEC61000-4-5 (tp=8/20?s) without performance degradation and a minimum ?30kV ESD per IEC61000-4-2 International Standard. The low loading capacitance and high surge capability make it ideal for protecting telecommunication ports such as Ethernet and other high speed data interfaces.
- ESD, IEC61000-4-2, ?30kV contact, ?30kV air
- EFT, IEC61000-4-4, 40A (5/50ns)
- Lightning, IEC61000-4-5, 30A (tP=8/20us)
- Low capacitance of 2.5pF (@ VR=0V)
- Low leakage current of 0.1?A at 3.3V
Medical
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | LITTELFUSE |
| Part Number | SP4020-01FTG-C |
| Quantity | |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

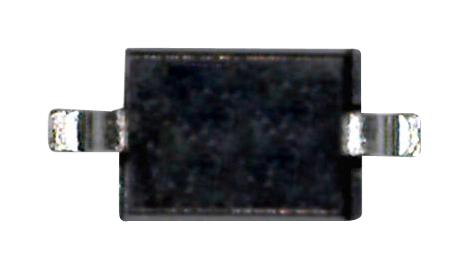

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
