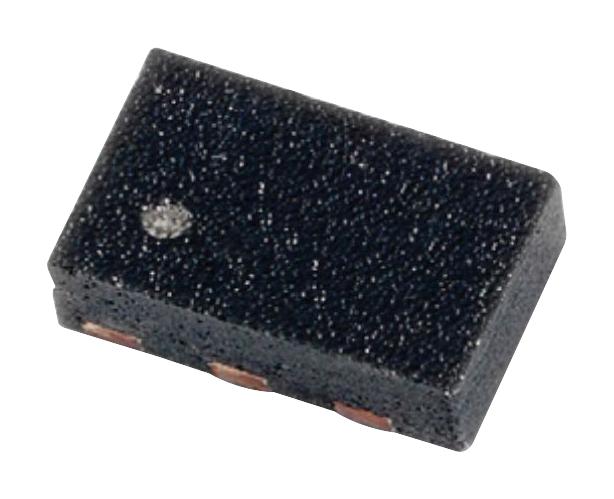

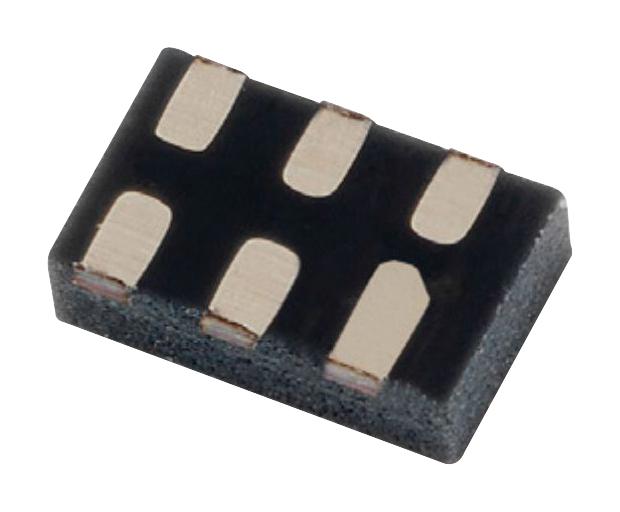

SP3423, 0.2pF, +/-10KV SPA® diode array. The SP3423 integrates 2 channels of low capacitance steering diodes and an avalanche breakdown diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). It is also suitable for use in LCD/PDP TVs, external storages, DVD/Blu-ray players, set top boxes, smartphones, ultrabooks/notebooks, digital cameras, portable medical, automotive electronics, wearable technology, USB 2.0/3.0, Ethernet up to 10GbE applications.
- ESD, IEC 61000-4-2, ±10kV contact, ±15kV air
- EFT, IEC 61000-4-4, 80A (tP=5/50ns)
- Lightning, 2A (8/20µs as defined in IEC 61000-4-5 2nd edition)
- Low capacitance of 0.2pF (TYP) per I/O
- Low leakage current of 0.01µA (TYP) at 5V
- AEC-Q101 qualified
Other details
| Brand |
LITTELFUSE |
| Part Number |
SP3423-02UTG |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
