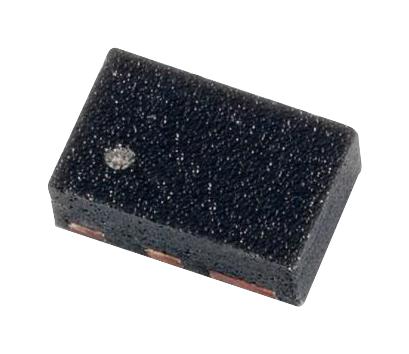

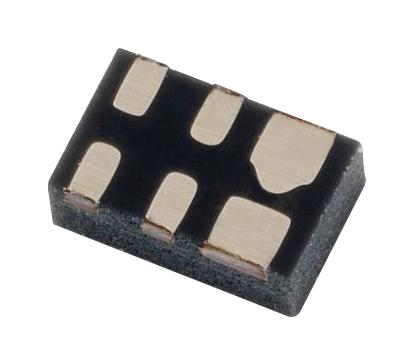

SP3401 series low capacitance ESD protection TVS diode array. SP3401 is specifically designed to protect high-speed interfaces against Electro Static Discharge (ESD) such as DisplayPort� interfaces and USB 3.1 Gen 1. Excellent low capacitance, clamping capability, low leakage and fast response time make this parts an ideal solution for protecting high speed data lines. It is also suitable for use in S-ATA, NFC, 1G/2.5G/10G Ethernet, HDBaseT applications.
- ESD, IEC 61000-4-2, ±18kV contact, ±30kV air
- EFT, IEC 61000-4-4, 80A (tP=5/50ns)
- Lightning, IEC 61000-4-5 2nd edition, 10A (tP=8/20µs)
- Low capacitance of 0.35pF (TYP) per I/O
- Low leakage current of 1nA (TYP) at 3.3V
- AEC-Q101 qualified
Other details
| Brand |
LITTELFUSE |
| Part Number |
SP3401-02UTG |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
