Littelfuse SP1004U-ULC-04UTG ESD Protection Device 9.2 V 1004 [2510 Metric] 10 Pins 7 SPA Series

Ultra-low capacitance diode array series provides signal integrity-preserving unidirectional ESD protection for the world's most challenging high speed serial interfaces. It is suitable for use in USB 3.1, 3.0, 2.0, HDMI 2.0, 1.4a, 1.3, DisplayPort(�), V-by-One®, thunderbolt (light peak), LVDS interfaces, consumer, mobile and portable electronics, Tablet PC and external storage with high speed interfaces, applications requiring high ESD performance in small packages.

• 0.20pF typ capacitance
• ESD, IEC 61000-4-2, ±20KV contact, ±20KV air
• Low clamping voltage of 9.2V at IPP=2.0A (tP=8/20µs)
• Low profile DFN array packages
• Facilitates excellent signal integrity
• ELV compliant

Other details

Brand	LITTELFUSE
Part Number	SP1004U-ULC-04UTG
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN

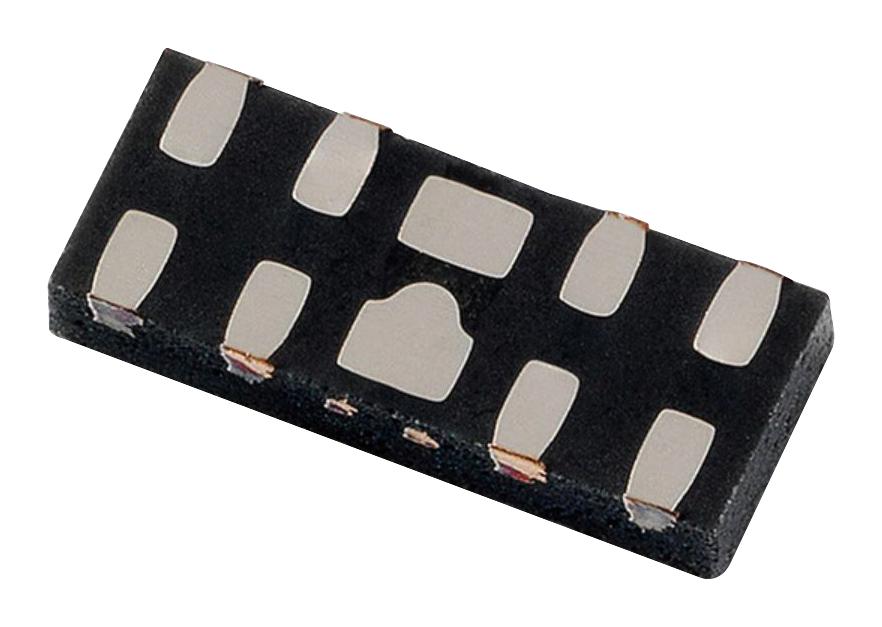

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
