₹ 78.48 includes GST and import duties. | |
B2B customers can avail ₹ 11.97 ITC on this product | |
100% Secure Payments | 100% Genuine product |
Description
The SMCJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
- 1500W Peak pulse power capability at 10/1000µs waveform
- Built-in strain relief
- Glass passivated junction
- Low inductance
- Excellent clamping capability
- 0.05% Repetition rate (duty cycle)
- <1ps from 0V to V(BR) Minimum fast response time
- <1µA above 10V Current IR
- Available in unidirectional and bidirectional
- ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
- EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
- -65 to 150°C Operating temperature range
Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
Brand | LITTELFUSE |
Part Number | SMCJ78A |
Quantity | Each |
Technical Data Sheet EN | |
Product Change Notice EN |

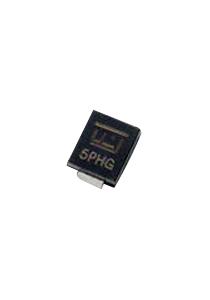

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
Quantity | Price |
2 | ₹ 76.91 |
3-5 | ₹ 76.13 |
5-10 | ₹ 74.56 |
10+ | ₹ 72.99 |
Bulk discount will be automatically applied during checkout based on quantity.
