SLVU2.8-4BTG is a SLVU2.8-4 series 2.8V 40A TVS array. It is designed to protect low voltage, CMOS devices from ESD and lightning induced transients. There is a compensating diode in series with each low voltage TVS to present a low loading capacitance to the line being protected. Typical applications include 10/100/1000 Ethernet, WAN/LAN equipment, switching systems, desktops, servers, and notebooks, analogue Inputs and base stations.
- ESD, IEC 61000-4-2, ±30KV contact, ±30KV air
- EFT, IEC 61000-4-4, 40A (5/50ns)
- Lightning, IEC 61000-4-5 2nd edition, 40A (8/20µs)
- Low capacitance of 2pF per line
- Low leakage current of 1µA (MAX) at 2.8V

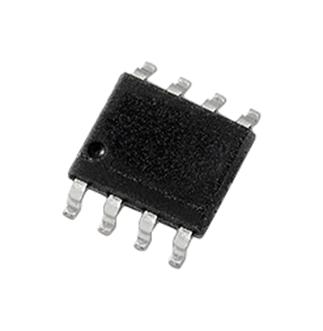

- SOIC-8 (JEDEC MO-012) pin configuration allows for simple flow-through layout
- Operating temperature range from -40 to 125°C
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
LITTELFUSE |
| Part Number |
SLVU2.8-4BTG |
| Quantity |
|
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
| Manufacturer Catalogue EN |
|
