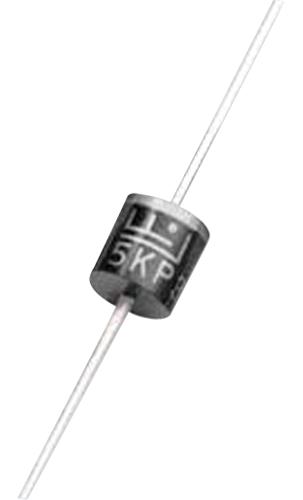

AEC-Q101 qualified SLD series TVS diode in a highly reliable industry standard P600 axial leaded package and is designed to provide precision overvoltage protection for sensitive electronics.
- Fast response time: typically less than 1.0ps from 0V to VBR min
- Uni-directional
- Excellent clamping capability
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30KV(Air), 30KV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Low incremental surge resistance
- UL recognized case material meeting flammability rating V-0
Other details
| Brand |
LITTELFUSE |
| Part Number |
SLD30U-017 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
