Description

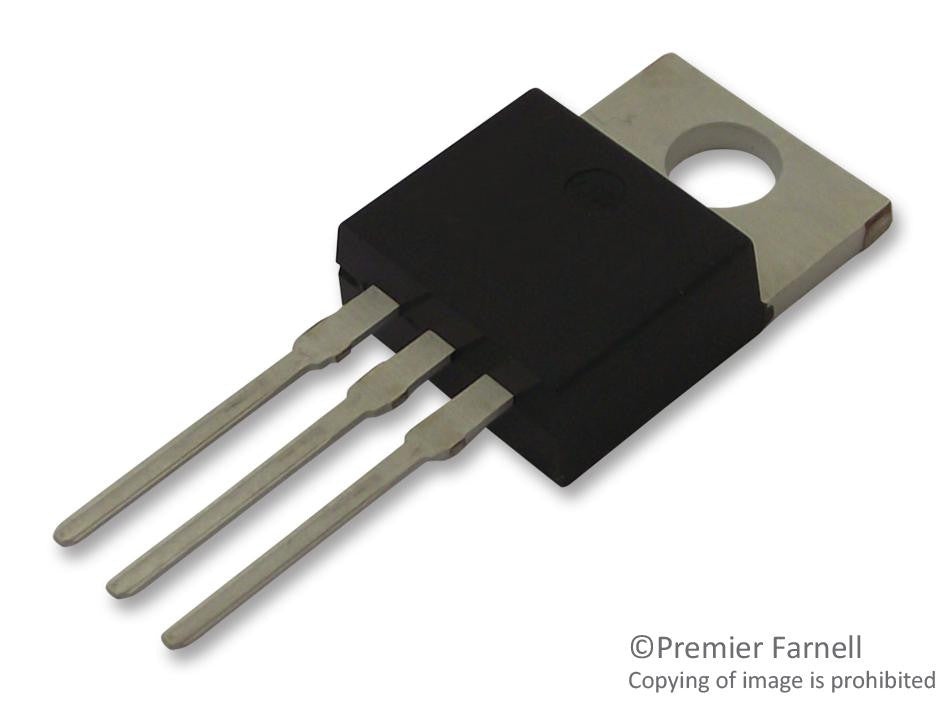

This is a Thyristor, 1 kV, 40 mA, 25 A, 40 A, TO-220AB, 3 Pins product from LITTELFUSE with the model number SK040RTP
Product details
| Peak Repetitive Off-State Voltage, Vdrm | 1kV |
| Gate Trigger Current Max, Igt | 40mA |
| Current It av | 25A |
| On State RMS Current IT(rms) | 40A |
| Thyristor Case Style | TO-220AB |
| No. of Pins | 3Pins |
| Peak Non Rep Surge Current Itsm 50Hz | 430A |
| Holding Current Max Ih | 60mA |
| Gate Trigger Voltage Max Vgt | 1.5V |
| Operating Temperature Max | 125°C |
| Product Range | Sxx40x Series |
| MSL | - |
Other details
| Brand | LITTELFUSE |
| Part Number | SK040RTP |
| Quantity | Each |
| Technical Data Sheet EN |  |
