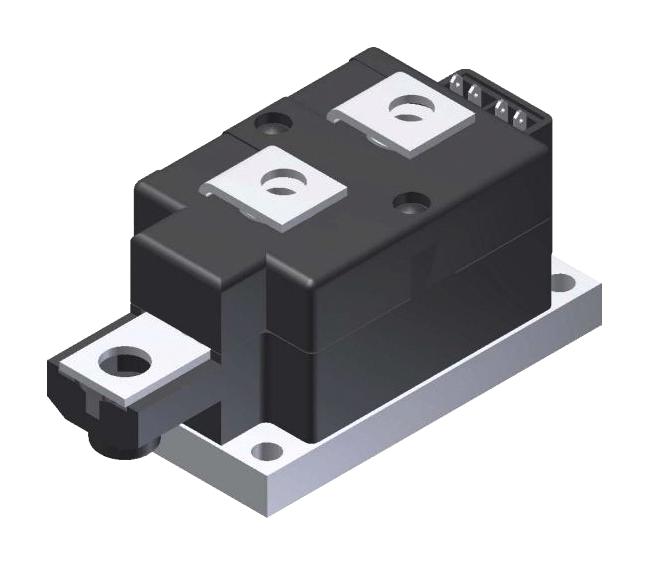

Phase leg thyristor module. It is suitable for use in motor control, soft starter, power converter, heat and temperature control for industrial furnaces and chemical processes, lighting control, solid state switches applications.
- International standard package
- Direct copper bonded Al2O3-ceramic with copper base plate
- Planar passivated chip
- Soldering pins for PCB mounting
- Keyed gate/cathode twin pins
Product details
| SCR Module Type:
Series Connected - SCRs
|
| Peak Repetitive Off State Voltage:
1.8kV
|
| Gate Trigger Current Max:
150mA
|
| Average Forward Current:
320A
|
| On State RMS Current:
520A
|
| Gate Trigger Voltage Max:
2V
|
| Operating Temperature Max:
140°C
|
| Repetitive Peak Reverse Voltage:
1.8kV
|
| Thyristor Case Style:
Y1
|
| No. of Pins:
7Pins
|
| Thyristor Mounting:
Panel
|
| Product Range:
-
|
Other details
| Brand |
LITTELFUSE |
| Part Number |
MCC312-18IO1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
