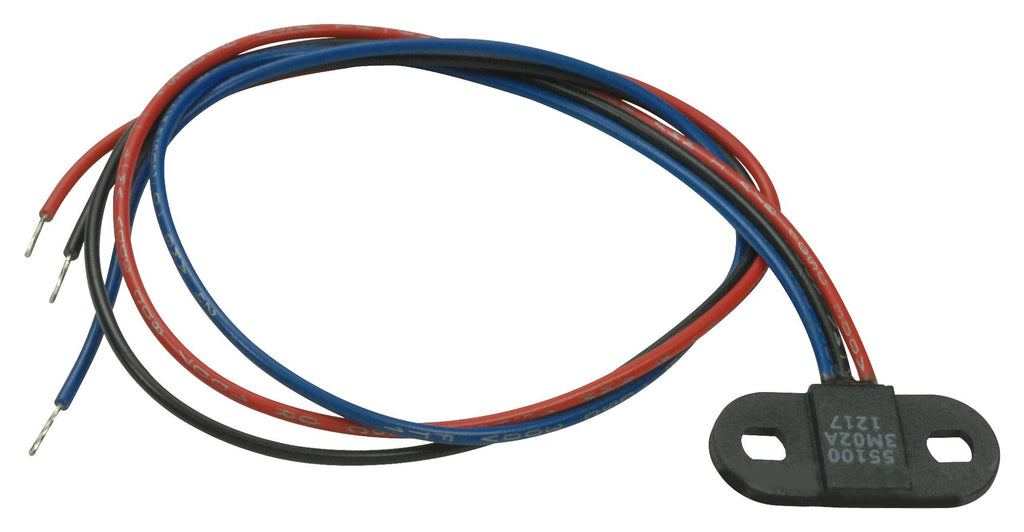

55100-3M-02-A is a 55100 miniature flange mounting hall effect sensor. It's case design enables screw or adhesive mounting and capable of switching up to 24VDC and 20mA. Typical applications include position and limit sensing, RPM measurement, flow metering, commutation of brushless DC motors, angle sensing and magnetic encoders.
- Magnetically operated position sensor
- Digital switch 3 - wire (voltage output)
- Reverse/over voltage protection
- Built in temperature compensation
- Vibration 50g maximum at 50- 2,000Hz, shock 150g maximum at 11ms ½ sine
- High switching speed up to 12KHz
- Long life - up to 20 billion operations
- Operates in static or dynamic magnetic field
- 25.5mm x 11.00mm and only 3.00mm high
- 300mm cable length
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
LITTELFUSE |
| Part Number |
55100-3M-02-A |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| EOL Notices EN |
|
| Application Note 2 EN |
|
| Product Change Notice EN |
|
