Description
The 03420006Z is a 20A/250V panel mount Cartridge Fuse Holder with black thermoplastic moulded construction, tin-plated copper/copper alloy solder terminals and straight mounting. Withstands 15lbs-inch mounting torque. This 342-series fuse holder is compatible with 3AG fuses.
- 0.25" Panel thickness
- 2400V Minimum dielectric strength
- -40 to 85°C Ambient temperature range
- UL94V-0 Flammability rating
Applications
Safety
Contents

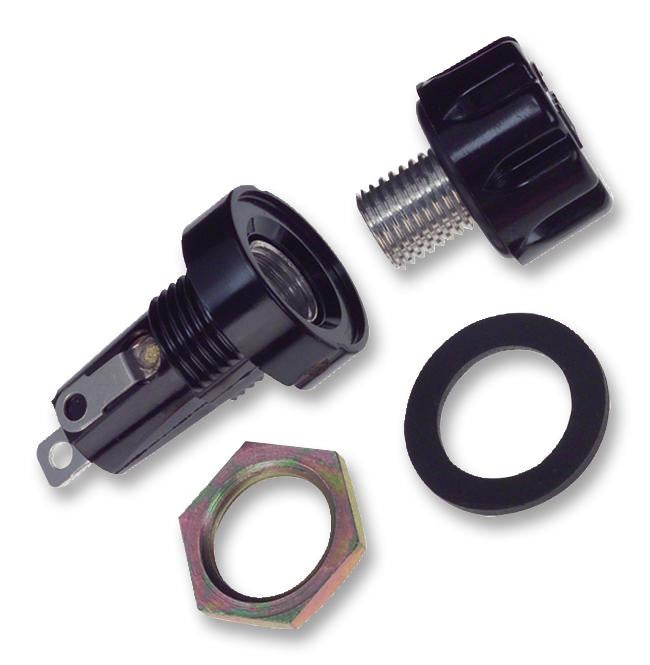

Cartridge fuse holder, Neoprene washer and metal hex nut.
Product details
| Fuse Holder Type | Cartridge Fuse Holder |
| Voltage Rating V AC | 250V |
| Fuse Current | 20A |
| No. of Fuses | 1Fuses |
| Product Range | 342 Series |
| Holder Terminals | Solder |
| Voltage Rating V DC | 250V |
| Fuse Size Held | 1/4" x 1-1/4", 6.3mm x 32mm, 3AB, 3AG, 0 |
Other details
| Brand | LITTELFUSE |
| Part Number | 03420006Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
