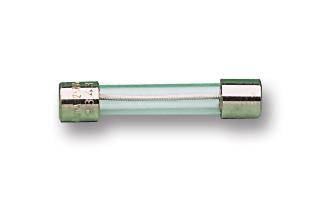

The 0313002.MXP is a 2A 3AG Cartridge Fuse with glass body, nickel plated brass cap and tin plated copper leads. The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance circuit protection. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo® Fuse design. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- Guesswork and time-consuming circuit testing is eliminated
- 0.11685R Nominal cold resistance
- -55 to 125°C Temperature range
Applications
Safety
Product details
| Blow Characteristic |
Slow Blow |
| Fuse Current |
2A |
| Voltage Rating VAC |
250V |
| Fuse Size Metric |
6.3mm x 32mm |
| Fuse Size Imperial |
1/4" x 1-1/4" |
| Product Range |
- |
| Breaking Capacity Current AC |
100A |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
LITTELFUSE |
| Part Number |
0313002.MXP |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
