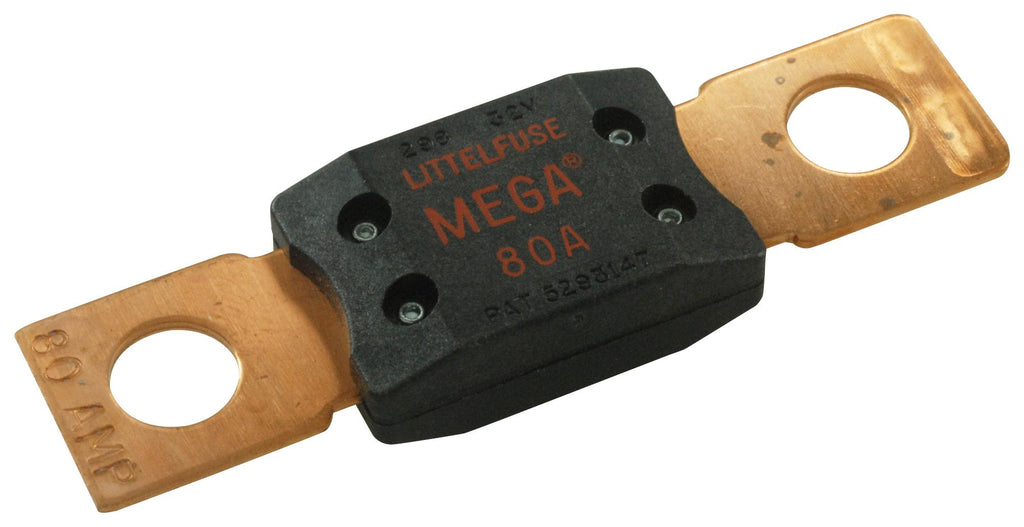

The 0298080.ZXEH is a MEGA®-series 80A, 32V time delay Fuse is designed for high current circuit protection up to 500A with diffusion pill technology and patented, the MEGA fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
- 87mV Voltage drop
- 0.72mR Cold resistance
- 2000A at 32VDC Interrupting rating
- Red color
Applications
Automotive
Product details
| Blow Characteristic |
Time Delay |
| Fuse Current |
80A |
| Voltage Rating V DC |
32V |
| Auto Blade Fuse Size |
68.58mm x 16.2mm x 10.67mm |
| Product Range |
- |
Other details
| Brand |
LITTELFUSE |
| Part Number |
0298080.ZXEH |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Technical Data Sheet EN |
|
| Product Change Notice EN |
|
