Description

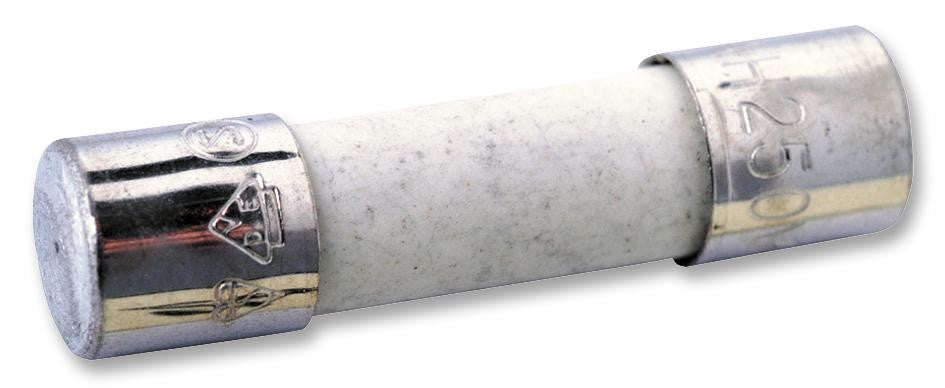

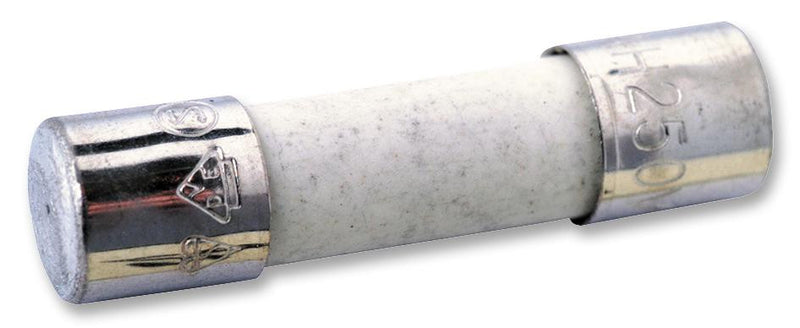

The 0215001.HXP is a 1A/250VAC slow blow Cartridge Fuse with ceramic body, tin-plated copper leads and nickel-plated brass cap. Provides remarkable interrupting capacity. The 215-series cartridge fuse designed to International (IEC ) standards for use globally. Meets the IEC 60127-2, sheet 5 specification for time-lag fuses. Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- 350mV Maximum voltage drop
- 2.5W Maximum power dissipation at 1.5ln
- 0.1515R Nominal cold resistance
- -55 to 125°C Operating temperature range
Applications
Safety
Product details
| Voltage Rating V AC | 250V |
| Fuse Current | 1A |
| Fuse Size Imperial | 0.2" x 0.79" |
| Blow Characteristic | Slow Blow |
| Product Range | 215 Series |
| Breaking Capacity Current AC | 1.5kA |
| Fuse Size Metric | 5mm x 20mm |
Other details
| Brand | LITTELFUSE |
| Part Number | 0215001.HXP |
| Quantity | Each |
| Technical Data Sheet EN |  |
