Description

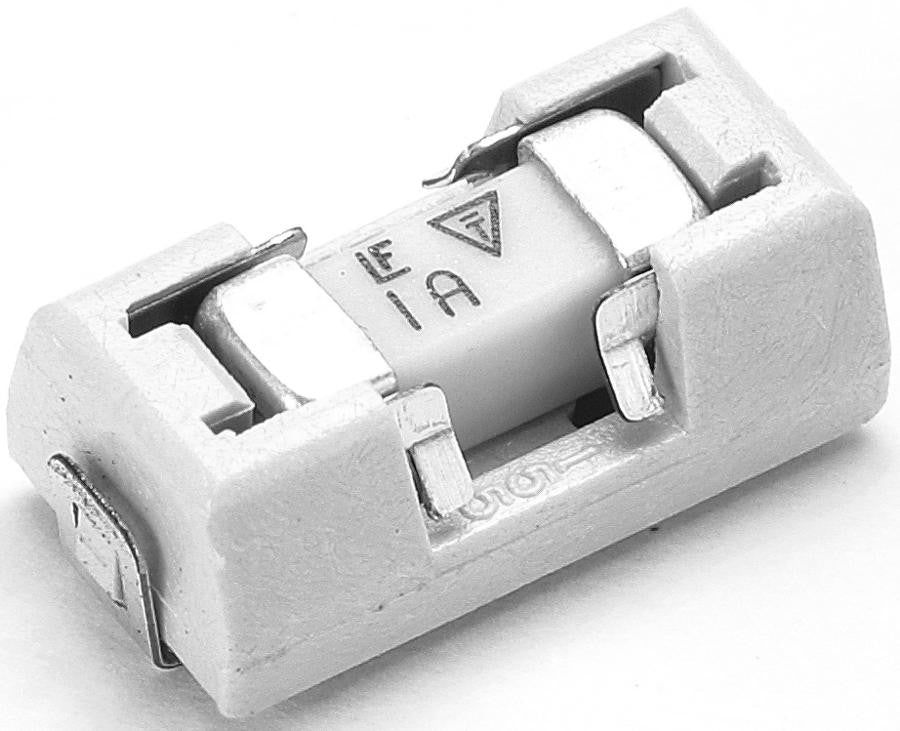

The 154 series from Littlefuse are surface mount, OMNI-BLOK fuse and holder assemblies. These fuses offer a solution for efficient installation and easy replacement of miniature Nano2 surface mount fuses. 154 series fuse and holder combination can be installed easily on PC board. Fuse replacement can be accomplished without exposing PC board to detrimental effects of solder heat. Wide range of current rating available for fast acting (62mA to 10A) and Slo-Blo (375mA to 5A) types.
- Available in tan and black colour bases
- CSA, METI approved
- Very fast acting and time Lag options available
- Holder sized to fit a range of Nano2 type fuses
- Wide operating temperature range from -55°C to 125°C
- UL94 V-0 recognized and 260°C reflow capable heat resistant fuse holder
Applications
Industrial, Safety
Product details
| Breaking Capacity Current DC | - |
| Fuse Case Style | SMD |
| Voltage Rating V DC | 125VDC |
| Breaking Capacity Current AC | - |
| Blow Characteristic | Very Fast Acting |
| Product Range | OMNI-BLOK Series |
| Fuse Current | 1A |
| Voltage Rating V AC | 125VAC |
Other details
| Brand | LITTELFUSE |
| Part Number | 0154001.DR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
| Product Change Notice EN | |
