Description
- 6x Brighter than Original 1x1
- Dual Cooling Modes
- Approximately 5,600K
- Optional DMX Module
- 100-240 VAC with Included AC Adapter
- 13-24 VDC with Optional Battery
- Optional Gold Mount and V-Mount Plates
- TIR Optics, High CRI
Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra 6X Daylight LED Panel that offers 6x the brightness as the original Daylight 1x1. As in previous versions of the 1x1 form factor, the Astra boasts a stable daylight color balance, 0-100% dimming with negligible color shift and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate.
The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. Another addition is the Astra Daylight's Dual Cooling. Choose the fan/convection mode or run silent with the field-replaceable fan off. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra 6X Daylight comes with both US and EU power cables and a removable 5/8" TVMP connecter for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points.
- Output is up to 6x Brighter than Original Daylight 1x1
-
- High performance LEDs with custom paired optics
- Higher intensity equals longer throw with wider effective beam spread
- Superior Color Reproduction
-
- High color rendition (CRI)
- Efficient Thermal Management
-
- Ultra-quiet active cooling or fan off
- Smooth Dimming from 0-100%
-
- No noticeable color shift throughout the entire range
- Flicker-free at any frame rate or shutter angle
- Flexible, Modular Concept
-
- Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development)
- Optional yoke mounted Gold Mount or V-Mount battery plates
- External power supply

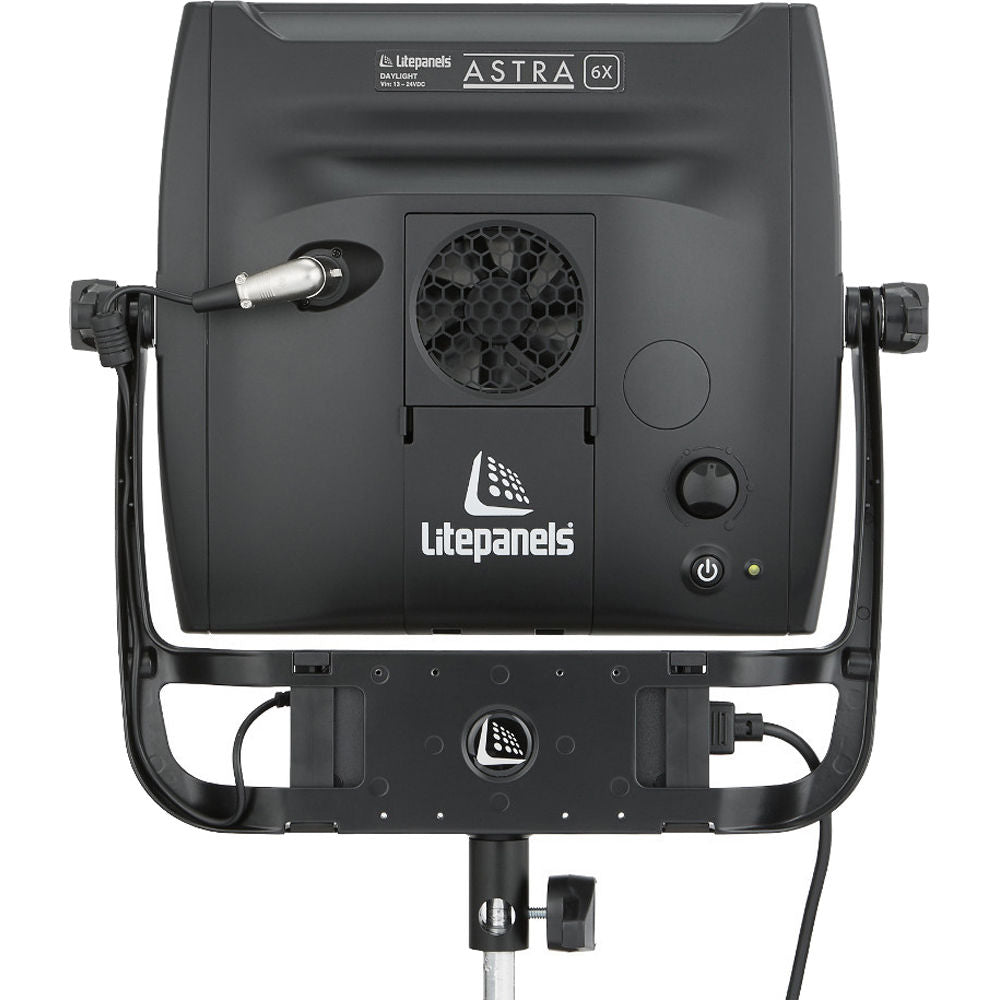

- Modern Fixture Design
-
- Easily identifiable and ergonomic manual controls for dimming, color, and power status
- Aluminum I-beam core construction to provide maximum durability and superior thermal management
- Aluminum accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector

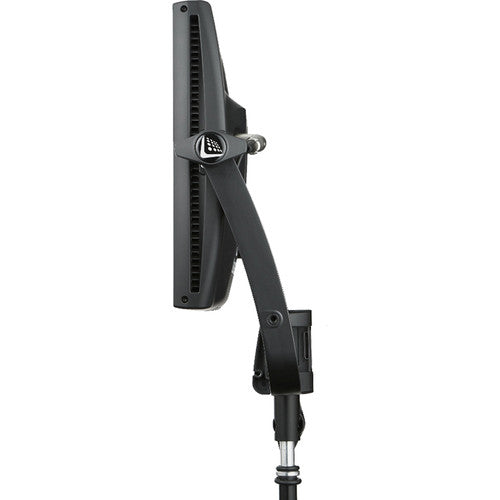

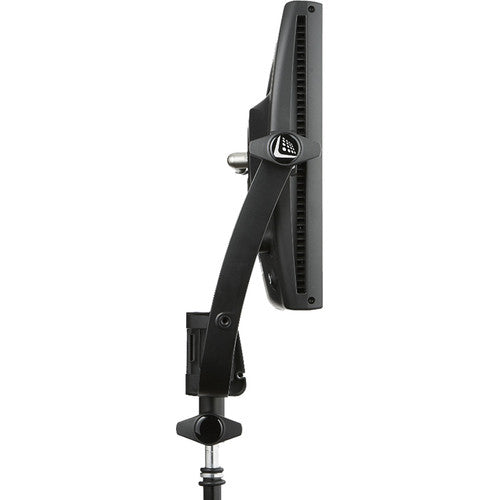

- Custom Curved Yoke Design
-
- Wide, unobstructed tilt range
- Yoke mounted power supply and optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate 1/4"-20 mounting points
- AC Adapter (100-240 VAC)
- Yoke with 5/8" Receiver
- US Power Cable
- EU Power Cable
- Limited 1-Year Warranty
- Limited 1-Year Warranty Extension for Total of 2-Years after Online Registration
Litepanels Astra specs
| Material | Aluminum |
| Light Source | LED |
| Color Range | Approximately 5600K |
| CRI | 95 |
| Beam Angle | Beam angle: 46° |
| Photometrics | 614 fc / 6612 lux @ 5.0' (1.5 m) 154 fc / 1653 lux @ 10' (3.0 m) 68 fc / 735 lux @ 15' (4.6 m) |
| Dimming | 0-100% |
| Fan Cooled | Ultra-quiet active cooling mode or fan off |
| Operating Voltage | 100-240 VAC 50/60 Hz with included AC adapter 13-24 VDC with optional battery |
| Power Draw | 105 |
| DMX | Yes, with optional adapter |
| Power Connector | 3-Pin XLR |
| Mount | Yoke with 5/8" (16 mm) receiver |
| Dimensions | 17.7 x 16.3 x 5.3" (45 x 41.4 x 13.4 cm) |
| Weight | 7.0 lb (3.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 11.7 lb |
| Box Dimensions (LxWxH) | 21.2 x 20.4 x 6.0" |
