| ₹ 89580.0 includes GST and import duties. | |
| B2B customers can avail ₹ 13660.95 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- Variable Tungsten to Daylight Balance
- 588 fc / 6330 lux @ 5.0' at 5600K
- Dual Cooling Modes
- Optional DMX Module, TIR Optics,
- 100-240 VAC with Included AC Adapter
- 13-24 VDC with Optional Battery
- Optional Gold Mount and V-Mount Plates
- High CRI: Daylight 95, Tungsten

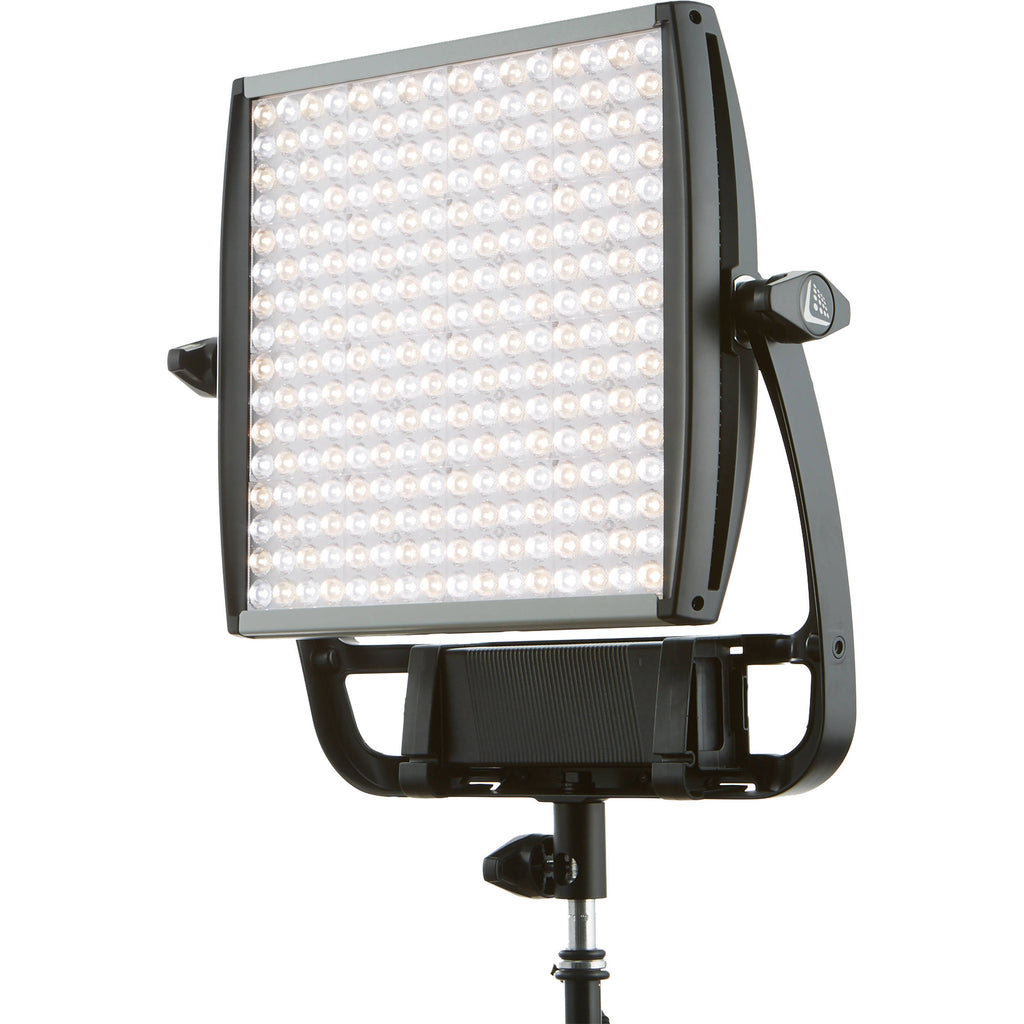

Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra 6X Bi-Color LED Panel that is 6x the brightness of the original Bi-Color 1x1. As in previous versions of the 1x1 form factor, the Astra has variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate.
The technological advancement and enhancement is evident in the high CRI and significantly increased brightness due to the use of tightly-binned LEDs and fine-tuned TIR (Total Internal Reflection) optics, resulting in a longer throw over a wider field. Another addition is the Astra Bi-Color's Dual Cooling. Choose the fan/convection mode or run silent with the field-replaceable fan off. You can control the Astra's functions locally or remotely with separate purchase of a DMX module. The Astra 6X Bi-Color comes with both US and EU power cables and a removable 5/8" TVMP connecter for hanging or stand mounting. Two 1/4"-20 female taps offer alternate mounting points.
- High Output
-
- High performance LEDs with custom paired optics
- Higher intensity equals longer throw with wider effective beam spread
- Superior Color Reproduction
-
- High color rendition (CRI)
- Efficient Thermal Management
-
- Ultra-quiet active cooling mode
- Smooth Dimming from 0-100%
-
- No noticeable color shift throughout the entire range
- Flicker-free at any frame rate or shutter angle
- Flexible, Modular Concept
-
- Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX512 protocol (additional module options under development)
- Optional yoke mounted Gold Mount or V-Mount battery plates
- External power supply
- Field-replaceable fan module
- Modern Fixture Design
-
- Easily identifiable and ergonomic manual controls for dimming, color, and power status
- Aluminum I-beam core construction to provide maximum durability and superior thermal management
- Aluminum accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector
- Custom Curved Yoke Design
-
- Wide, unobstructed tilt range
- Yoke mounted power supply and optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate 1/4"-20 mounting points
- Yoke with TVMP Adapter
- US Power Cable
- EU Power Cable
- Power Supply
- Limited 1-Year Warranty
- Limited 1-Year Extension to 2-Years with Online Registration
Litepanels Astra specs
| Material | Aluminum |
| Light Source | LED |
| Color Range | Approximately 3200-5600K |
| CRI | CRI: Daylight 95, Tungsten 98 |
| Beam Angle | Beam angle: 46° |
| Dimming | 0-100% |
| Fan Cooled | Yes, Ultra-quiet active/convection cooling or fan off |
| Photometrics | Daylight: 588 fc / 6330 lux @ 5.0' (1.5 m) Tungsten: 528 fc / 5685 lux @ 5.0' (1.5 m) |
| Operating Voltage | 100-240 VAC 50/60 Hz with included AC adapter 13-24 VDC with optional battery |
| Power Draw | 105 W |
| DMX | Yes, with optional adapter |
| Power Connector | 3-Pin XLR |
| Mount | Yoke with 5/8" (16 mm) receiver |
| Dimensions | 17.7 x 16.3 x 5.3" (45 x 41.4 x 13.4 cm) |
| Weight | 7.0 lb (3.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 11.9 lb |
| Box Dimensions (LxWxH) | 21.4 x 20.3 x 6.0" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 87788.4 |
| 3-5 | ₹ 86892.6 |
| 5-10 | ₹ 85101.0 |
| 10+ | ₹ 83309.4 |
Bulk discount will be automatically applied during checkout based on quantity.
