- Adjustable Output Level
- SMPTE 310 Serial Digital Input
- 6 Serial Outputs
- Fault Indication
- Re-Shaped
- Equalized
- ASI Compatible

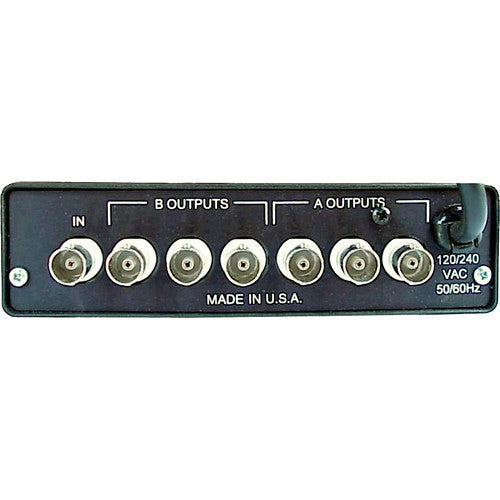

The Link Electronics SMPTE 310 Serial Digital Distribution Amplifier restores the incoming signal to its proper amplitude. The signal is reshaped with automatic equalization, re-sliced, and DC restored. This amplifier offers 6 outputs on the rear panel.

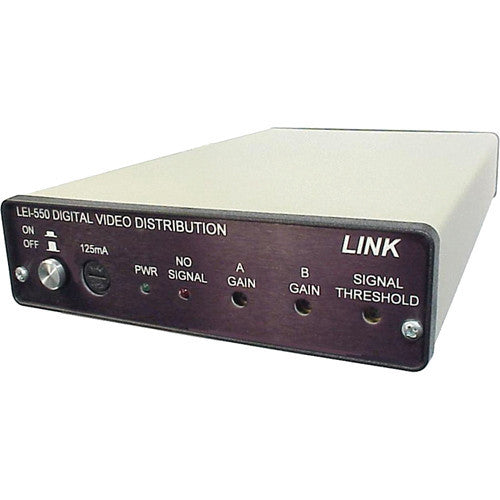

A fault LED on the front panel of the amplifier indicates that the input signal level is below a pre-set threshold. A power LED indicates that the amplifier is running at a proper voltage.
The SMPTE 310 Serial Digital Distribution Amplifier accepts composite 143 Mb/s, 177 Mb/s, component 270 Mb/s, 16:9 aspect ratio 360 Mb/s standards, SMPTE 310, and ASI. The signal is transparent to the incoming signal data rate. You can adjust the output level from the front panel. This compact amplifier is suitable for portable operation or fixed studio use.
UPC: 705641990122
In the Box
Link Electronics SMPTE 310 Serial Digital Distribution Amplifier
- Limited 10-Year Warranty on Parts & Labor
| Digital Video Input |
| Standard | SMPTE 259M-C, ASI, SMPTE 310 |
| Impedance | 75 ? |
| Return Loss | >20 dB |
| Signal Level | 800 mV ± 10%, adjustable |
| CMR | 30 Vpp, up to 60 Hz |
| Connector | BNC |
| Video Outputs |
| Number of Outputs | 6 |
| Standard | SMPTE 259M-C, ASI, SMPTE 310 |
| Connector | BNC |
| Impedance | 75 ? |
| Return Loss | >15 dB |
| Signal Level | 800 to 1,000 mV |
| DC Offset | ± 0.5 V |
| Rise / Fall time | 1 nS ± 250 ps |
| Equalization | Automatic up to >30 dB |
| Overshoot | <10% of amplitude |
| Delay | 10 nS |
| Indicator |
| Power | Green LED |
| Signal | No Signal: Red LED |
| Environmental |
| Temperature | 32 to 122°F (0 to 50°C) ambient |
| Humidity | 10 to 90% non-condensing |
| Power | 2.5 W |
| Mechanical |
| Dimensions (H x W x D) | 1.00 x 5.50 x 9.25" (2.54 x 13.97 x 23.50 cm) |
| Weight | 2.5 lb (1.1 kg) |
| Packaging Info |
| Package Weight | 2.0 lb |
| Box Dimensions (LxWxH) | 14.0 x 11.0 x 6.0" |
