Description
The Link Bridge Multi-Format Video Scaler supports input VGA/DVI resolutions up to 1920 x 1200 @ 60 Hz. It consolidates different video formats into one unified DVI format and comes with an OSD Menu Control.
- Multi-format video scaler with OSD Menu Control
- RS-232 Control/ USB port for firmware upgrade
- Auto-sensing NTSC/PAL, S-Video, VGA, or DVI video inputs
| Video Output | |
|---|---|
| Signal Format | DVI |
| Graphic Resolution | Up to 1920 x 1200, 60 Hz |
| Supported Resolutions | Resolution, Type, Vertical Refresh Rate (Hz) 720 x 480, NTSC, 59.9 Hz 640 x 480, 480p, 59.94 Hz 720 x 480, 480p, 59.94 Hz 720 x 480, 480p, 60 Hz 720 x 576, PAL I, 50 Hz 1280 x 720, 720p, 50 Hz 1280 x 720, 720p, 59.94 Hz 1280 x 720, 720p, 60 Hz 1920 x 1080, 1080i, 50 Hz 1920 x 1080, 1080i, 59.94 Hz 1920 x 1080, 1080i, 60 Hz 1920 x 1080, 1080p, 25 Hz 1920 x 1080, 1080p, 29.97 Hz 1920 x 1080, 1080p, 30 Hz 1920 x 1080, 1080p, 50 Hz 1920 x 1080, 1080p, 59.94 Hz 1920 x 1080, 1080p, 60 Hz 640 x 480, VGA, 60 Hz 640 x 480, VGA, 72.809 Hz 640 x 480, VGA, 75 Hz 800 x 600, SVGA, 56.25 Hz 800 x 600, SVGA, 60.317 Hz 800 x 600, SVGA, 72.188 Hz 800 x 600, SVGA, 75 Hz 1024 x 768, XGA, 60.004 Hz 1024 x 768, XGA, 70.069 Hz 1024 x 768, XGA, 75.029 Hz 1152 x 864, XGA+, 75 Hz 1280 x 1024, SXGA, 60.02 Hz 1280 x 1024, SXGA, 75.025 Hz 1600 x 1200, UXGA, 60 Hz 1400 x 1050, SXGA+, 59.948 Hz 1400 x 1050, SXGA+, 59.978 Hz 1440 x 900, WXGA+, 59.902 Hz 1440 x 900, WXGA+, 59.888 Hz 1680 x 1050, WSXGA+1, 59.883 Hz 1680 x 1050, WSXGA+2, 59.954 Hz 1920 x 1200, WUXGA1, 59.61 Hz |
| Video Input | |
|---|---|
| Video Formats | VGA, DVI, NTSC/PAL, S-Video |

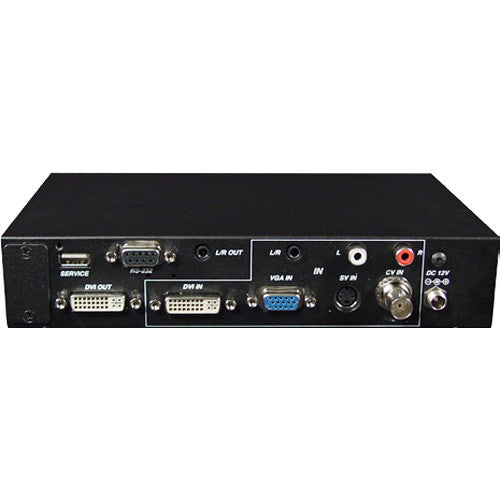

| Connectors | 1 x VGA via HD-15 1 x DVI via DVI female plug 1 x NTSC/PAL via BNC 1 x S-Video via 6-pin DIN |
| Resolution | Up to 1920 x 1200 @ 60 Hz (VGA, DVI) |
| LED Indicator | Power, Channel Selection |
| Audio | |
|---|---|
| Input Connector | 3.5 mm stereo, or female stereo RCA |
| Output Connector | 3.5 mm stereo |
| RS232 Connector | DB9 |
| Physical | |
|---|---|
| Supply Voltage | +12 VDC @ 2 A maximum |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Humidity | 0 to 95% RH, non-condensing |
| Dimensions | 1.67 x 8.46 x 5.7" (42.4 x 214.8 x 144.7 mm) |
| Weight | Not specified by the manufacturer |
In the Box
Link Bridge Multi-Format Video Scaler with DVI Output
- Limited 3-Year Warranty
