Description
Lilliput RM-503S Overview
- 1Description
- 2Wide Color Space, 98% DCI-P3 Screen
- 3Color Calibratable
- 4HDR
- 5USB Input for Importing 3D LUTs
- 6Easy Remote Control

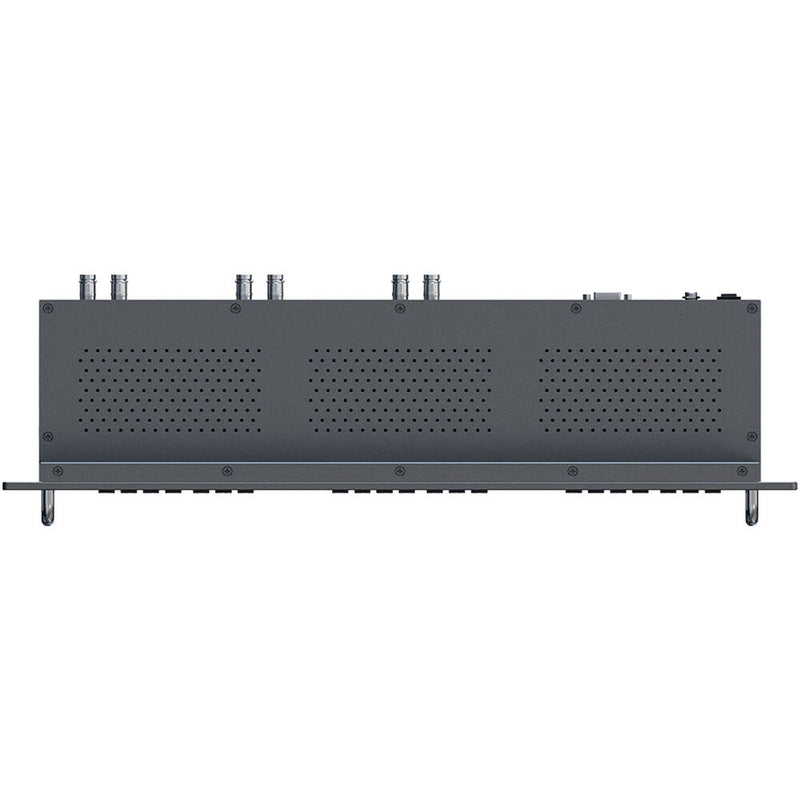

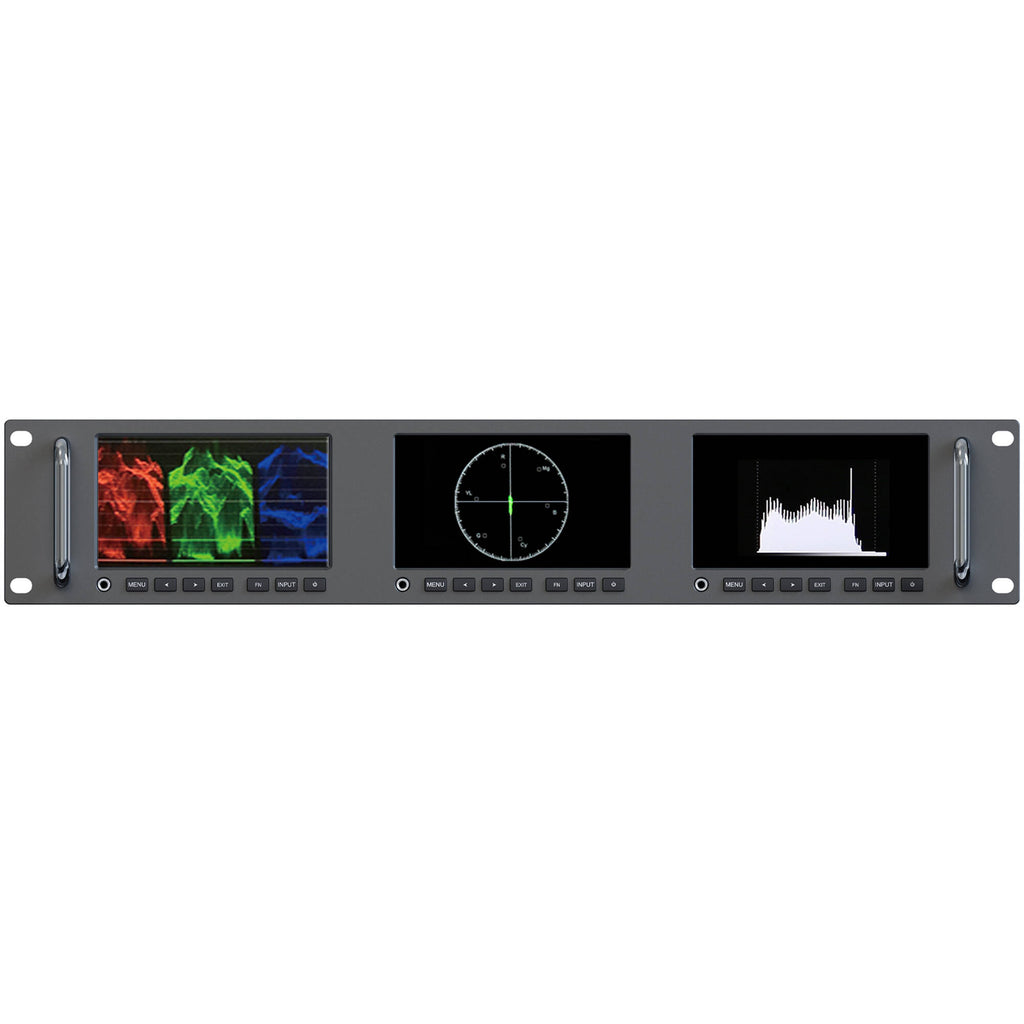

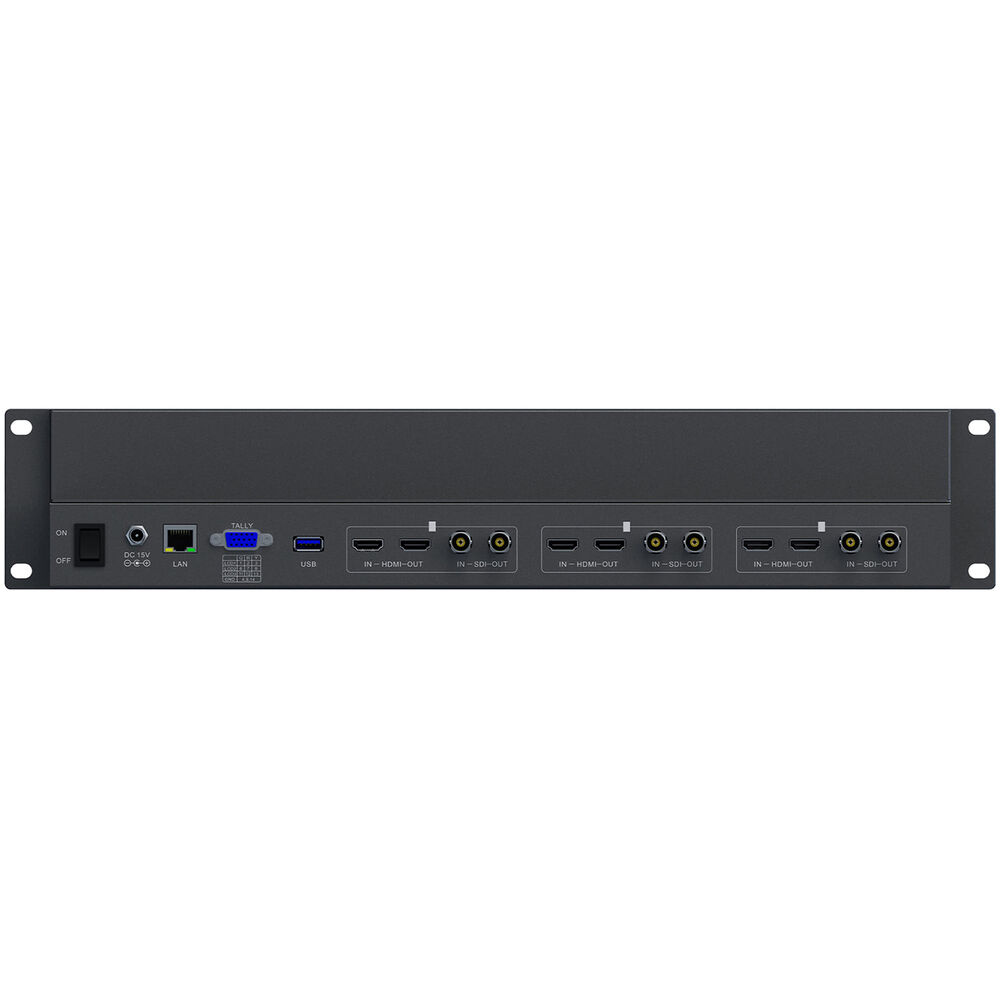

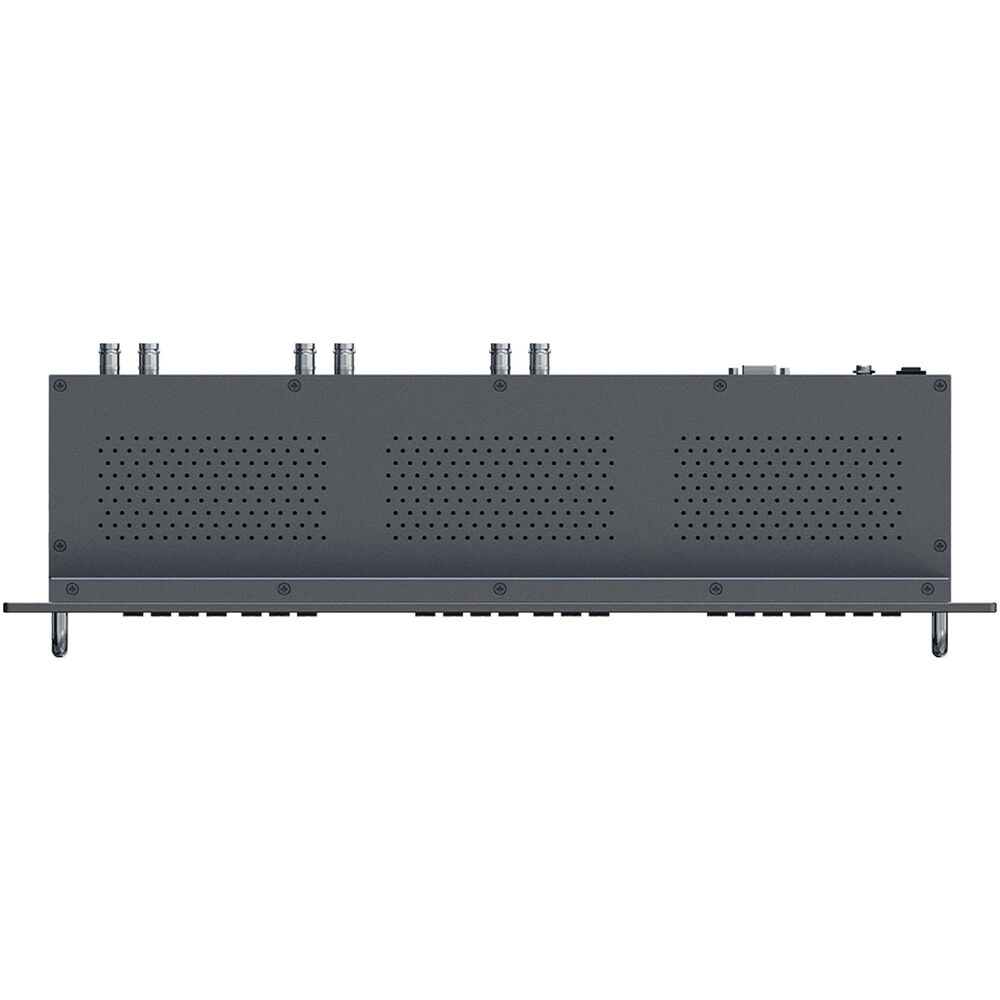

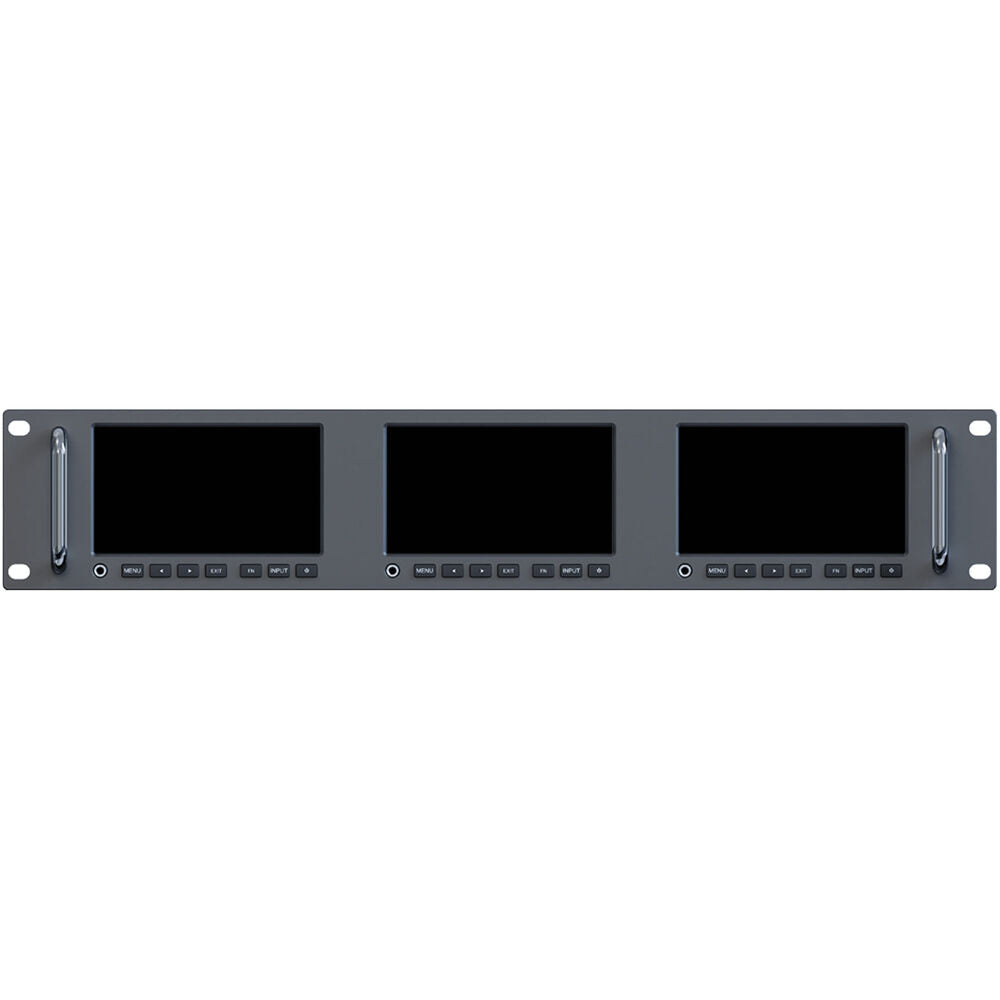

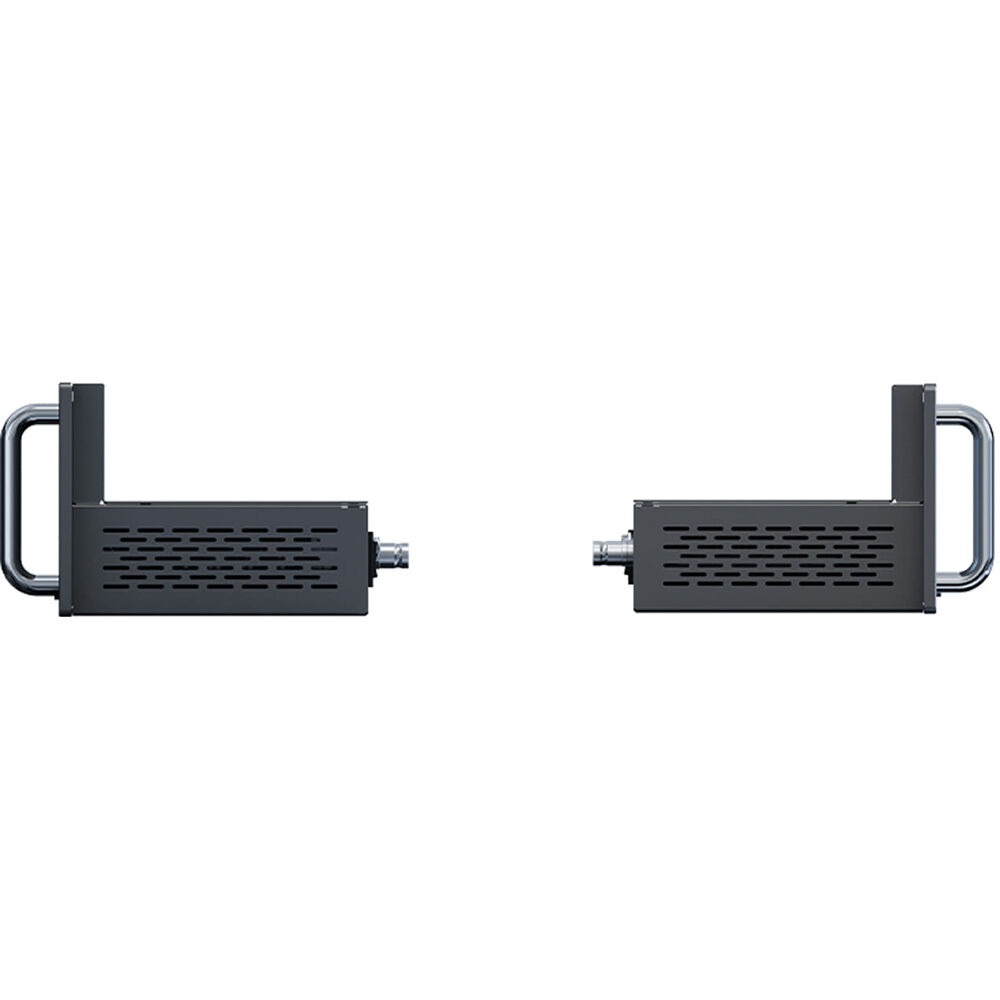

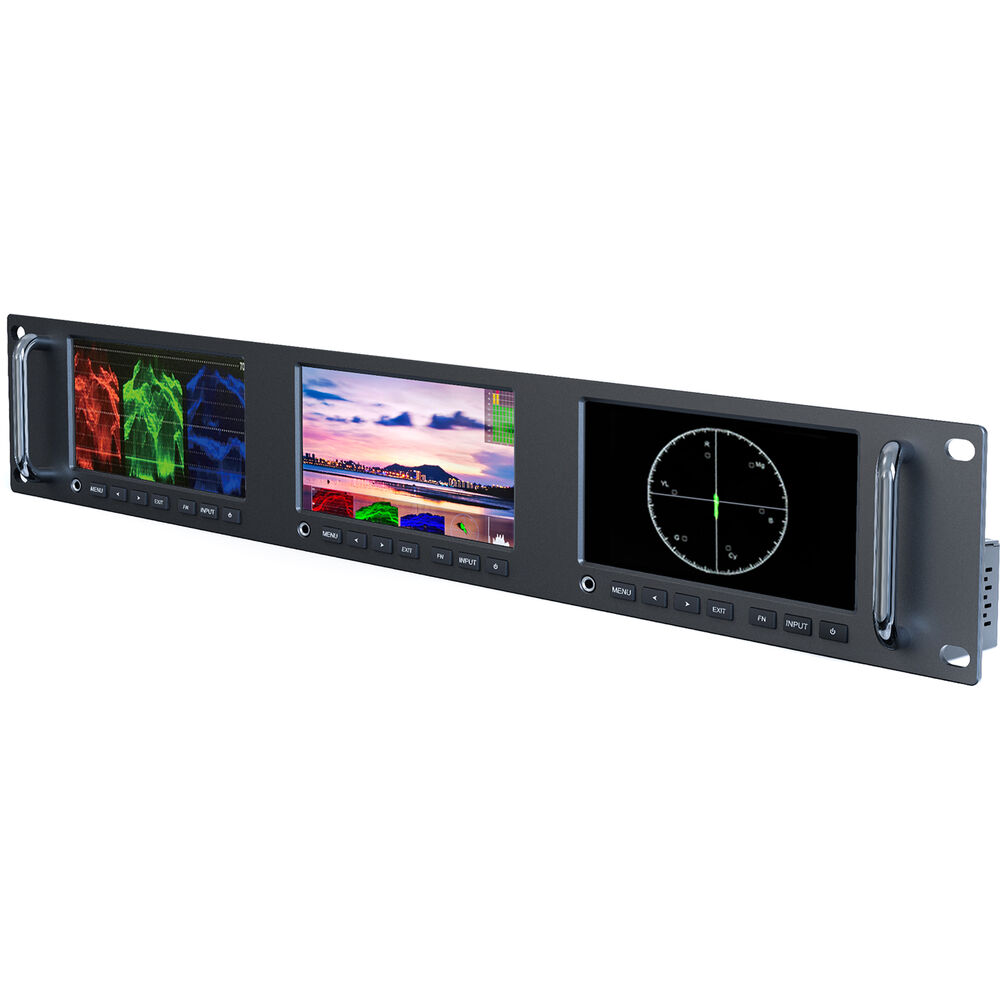

The RM-503S 5" 3G-SDI/HDMI Rackmount Monitor from Lilliput features three 5" LED displays, each with a brightness of 450 cd/m² and Full HD 1920 x 1080 resolution. The 2 RU rack-mountable metal chassis has two built-in handles to facilitate mounting and dismounting from your video wall or mobile broadcast system. With integrated 3D LUT and HDR support, the RM-503S is tailor-made for broadcast, post-production, and livestreaming applications.
The unit may be operated remotely using LAN connectivity, giving you the flexibility to use any computer that supports the protocol. Waveform, vectorscope, and histogram are all accessed in full screen, along with a wide variety of camera auxiliary functions such as false color, peaking, and audio level meter.
In the Box
- Lilliput RM-503S 5" 3G-SDI/HDMI Rackmount Monitor (2 RU)
- Power Adapter
- Tally Connector
- Description
- Wide Color Space, 98% DCI-P3 Screen
- Color Calibratable
- HDR
- USB Input for Importing 3D LUTs
- Easy Remote Control
Lilliput RM-503S Specs
| Display Size | 5.0" / 12.7 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | No |
| Maximum Brightness | 450 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 440 ppi |
| Color Gamut | 98% DCI-P3 |
| Real-Time LUT Monitoring | HDR |
| Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Marker Color, Pixel Zoom, Screen Markers, Underscan, Vectorscope, Waveform |
| Video I/O | 3 x BNC (3G-SDI) Input 3 x HDMI 2.0 Input 1 x RJ45 Input |
| Embedded Audio | HDMI/LAN (RJ45)/SDI |
| Audio I/O | 3 x 1/8" / 3.5 mm Headphone Input/Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (2.5 A / 12 VDC) Input |
| Other I/O | 1 x DE-9/DB-9 (Tally) 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50/30/24 HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50/30/25/24 |
| Gamma Curve | DCI-P3, Rec709 |
| DC Input Power | 12 to 24 VDC |
| Operating Current | 2.5 A |
| Power Consumption | 27 W |
| Rack Form Factor | 2 RU |
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminum, Metal |
| Dimensions | 18.9 x 4.6 x 3.5" / 480 x 116 x 88 mm |
| Weight | 4.6 lb / 2.1 kg |
| Package Weight | 6.665 lb |
| Box Dimensions (LxWxH) | 22.2 x 8.3 x 4.9" |
Lilliput RM-503S Reviews
It doesn't fit 2RU!
Well, first of all. There's only PSU for US. Who produces PSU's with ONLY one type of connection? But the worst part, the 2RU is not 2RU! Or to be precise, the holes does not fit 2RU. So you either have to mount only the lower or only the upper rack mount screws... this tells me this product is simply not worth anything, and I have absolutely no expectations when powering it up. If I even can...
