Description
Lilliput Q7 Overview
- 1Description
- 2Ultra-Bright for Daylight Viewing
- 3HDMI & Dual 12G-SDI Input/Output
- 4DCI 4K & HDR Support
- 53D LUT & Log Support
- 6Tally Input
- 7Display Tools
- 8L-Series Battery Plate
- 9Versatile Mounting

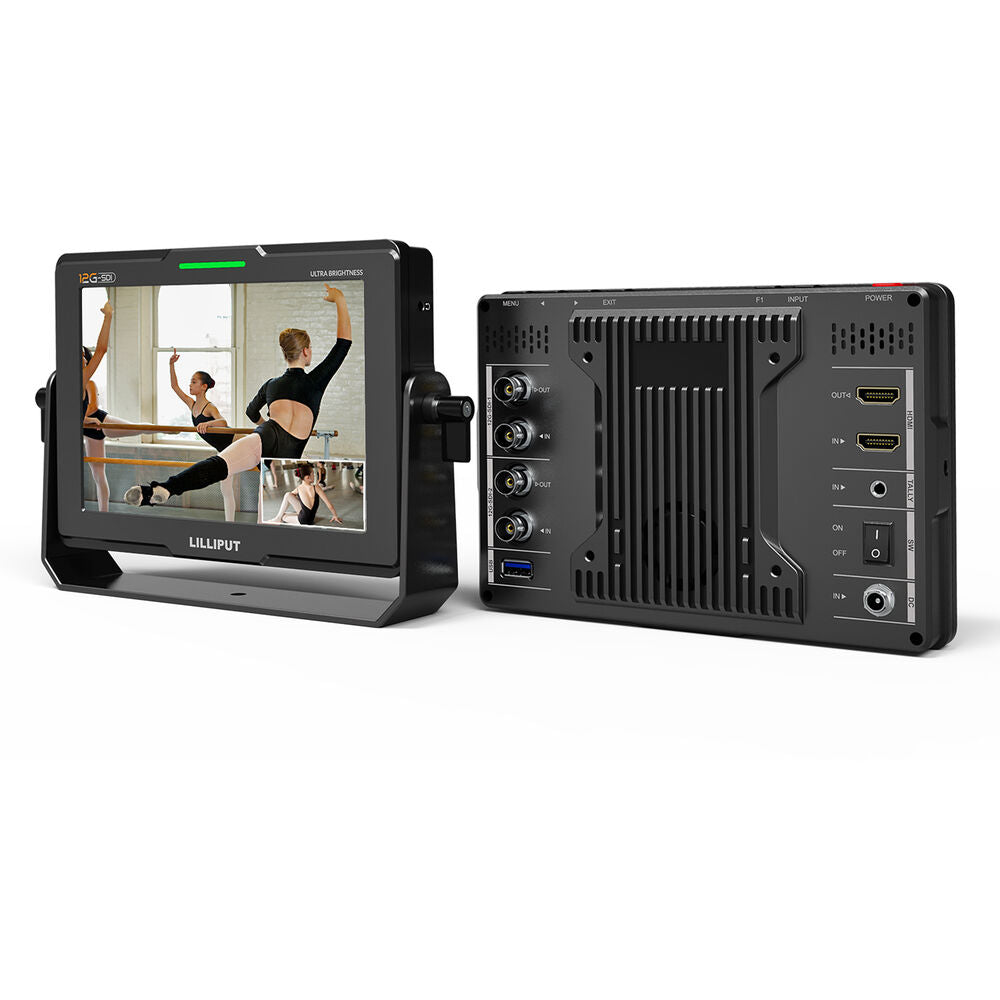

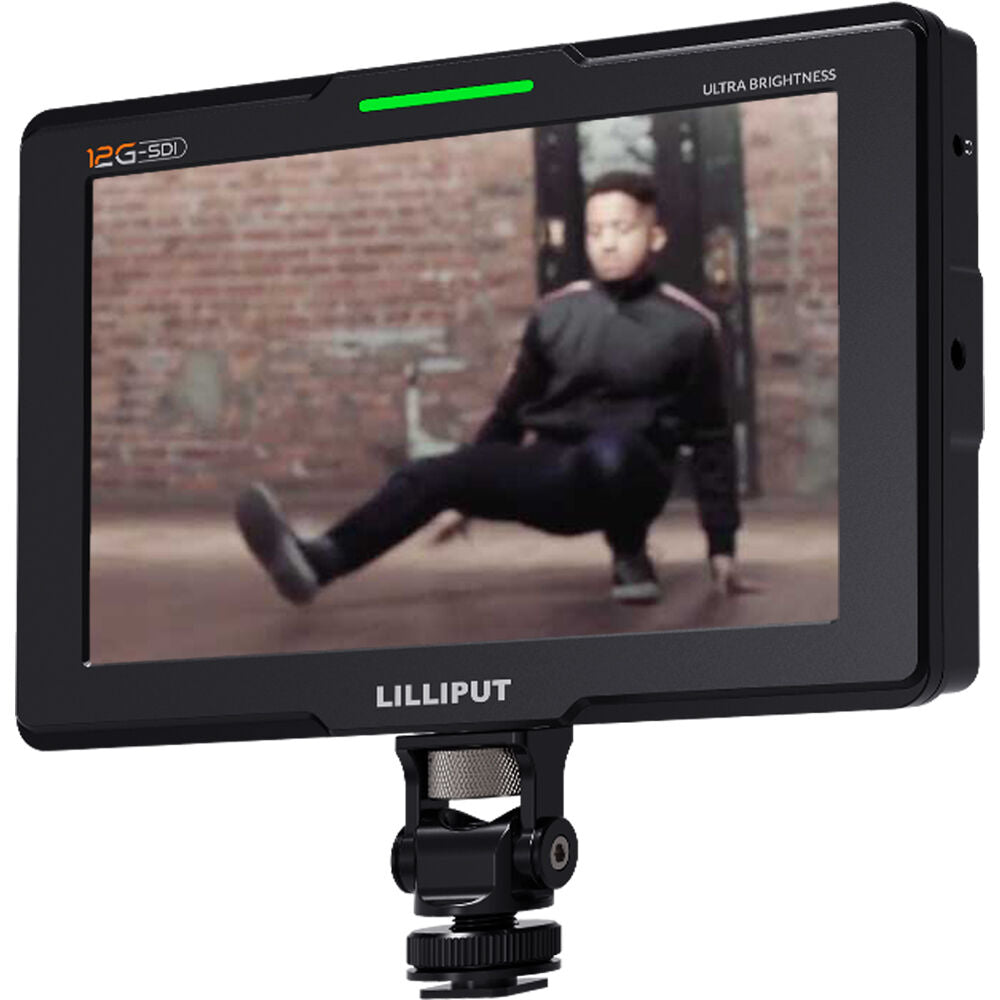

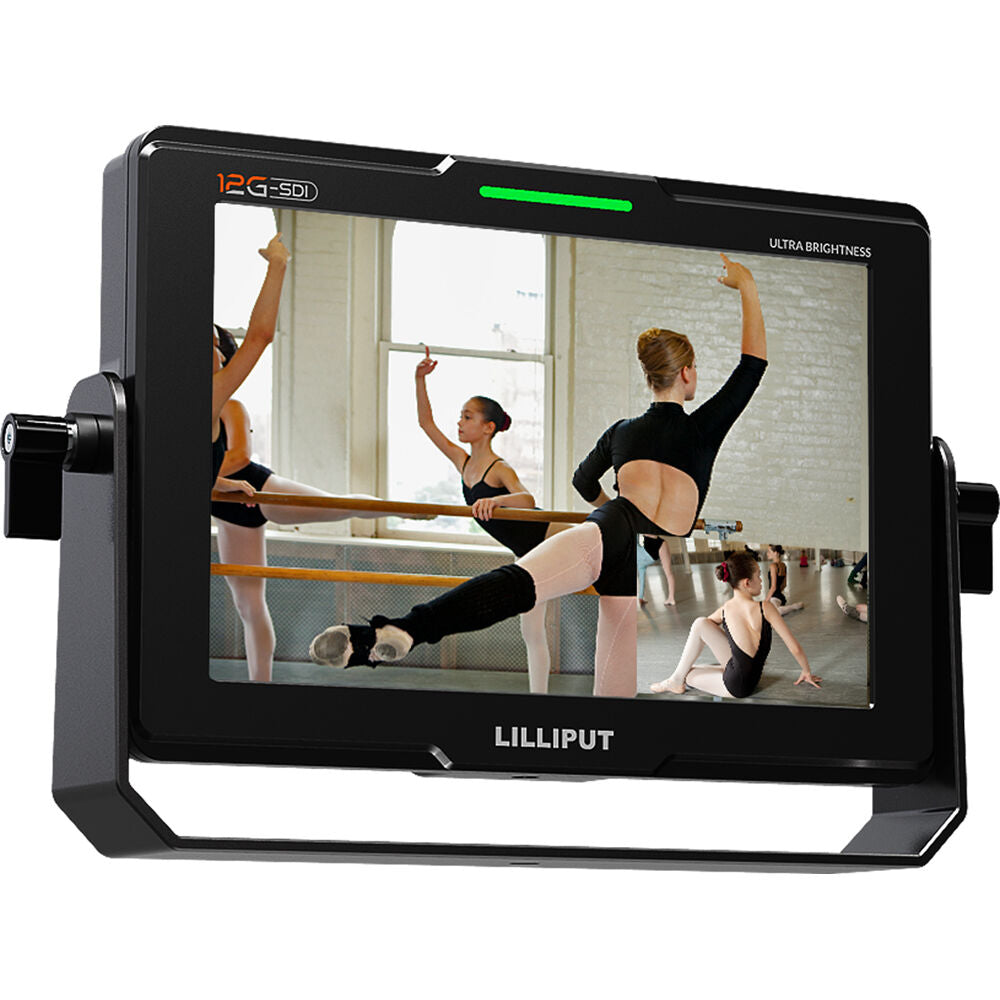

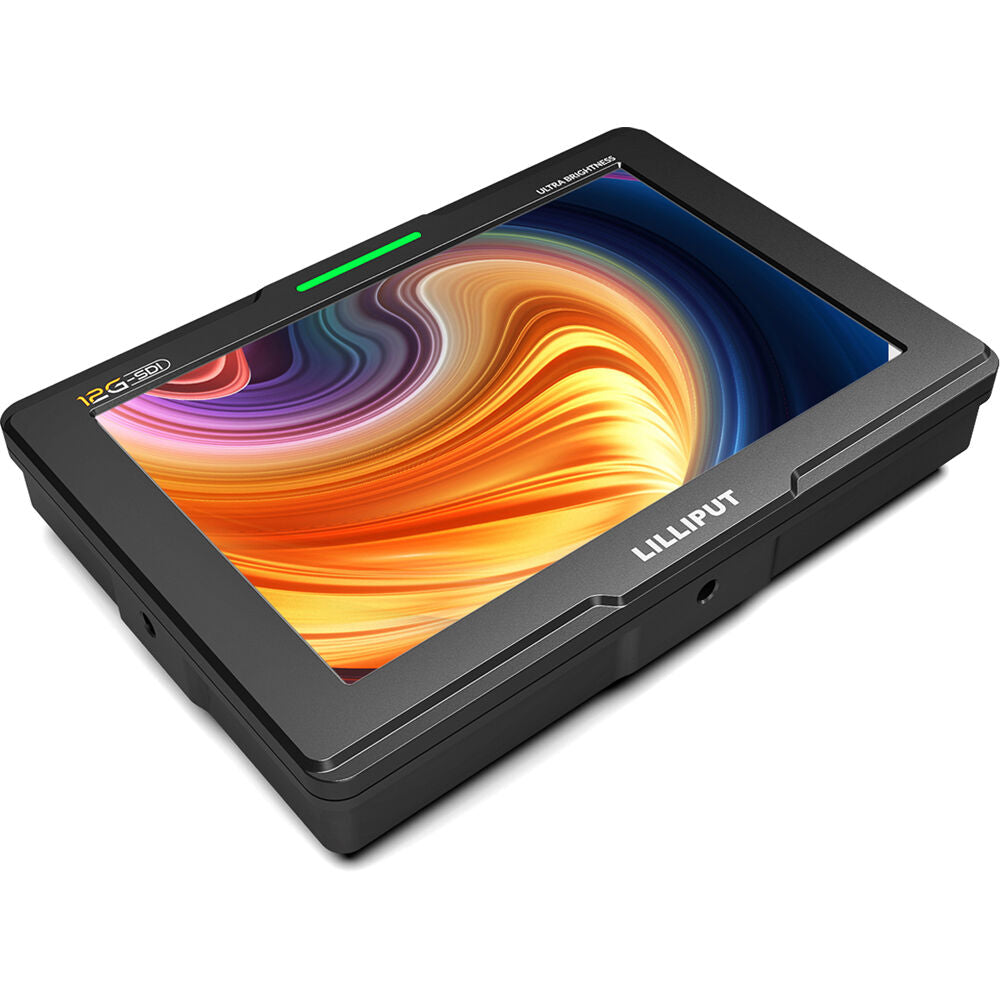

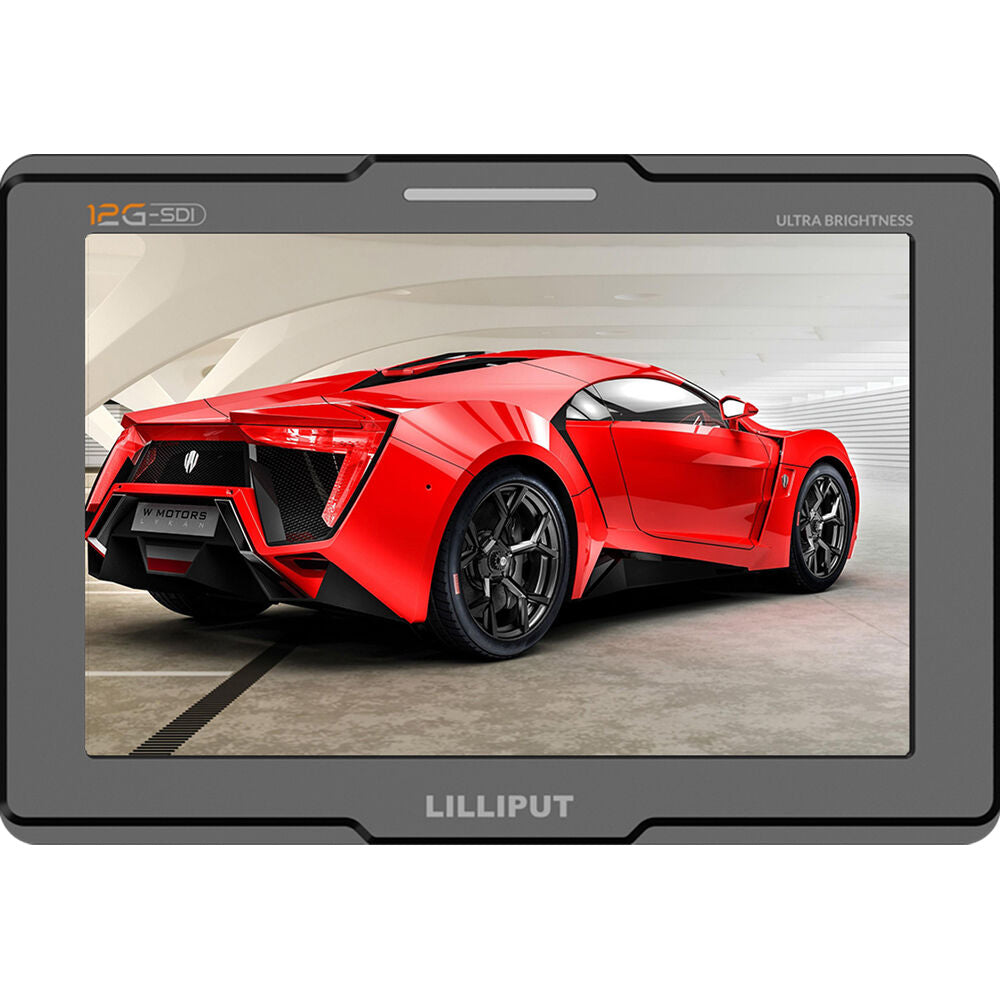

Add crisp daylight viewing to your video or photography shoot with the Q7-12G 7" HD 12G-SDI/HDMI 2.0 Ultra-Bright On-Camera Monitor from Lilliput. Bright enough to be seen outdoors, the Q7-12G monitor supports up to DCI 4K60 video, has HDMI and dual 12G-SDI inputs and outputs, and offers pro functions like 3D LUTs, high dynamic range (HDR), multiple log compatibility, imaging tools, and a Sony L-Series battery plate.
Ultra-Bright for Daylight Viewing
2000 cd/m² 7" display with 1200:1 contrast ratio is bright enough for daylight viewing
HDMI & Dual 12G-SDI Input/Output
- Dual 12G-SDI input and outputs enable picture-in-picture (PiP) viewing for two cameras or other sources
- Single HDMI 2.0 input and loop output
DCI 4K & HDR Support
- Supports video resolutions up to DCI 4K60
- HDR support creates images with a finely detailed range of exposure
3D LUT & Log Support
- 3D LUT support for applying specific "looks"
- ARRI, Canon, JVC, Nikon, and Sony log support
- Built-in LUT with 17 default log and 6 user log choices
Tally Input
Tally connector included for alerting your talent to their on-air status
Display Tools
Advanced functions include:
- Pixel zoom, focus peaking, false color
- Waveform, histogram, vectorscope
- Audio meter and full-screen audio vector
- Exposure, check field, color temperature selection, and more
L-Series Battery Plate
Detachable Sony L-series battery plate with 75mm VESA mount
Versatile Mounting
1/4"-20 and U-shaped bracket mounting
In the Box
- Lilliput Q7-12G 7" HD 12G-SDI/HDMI 2.0 Ultra-Bright On-Camera Monitor
- 12VDC, 2A Power Adapter
- Suitcase
- U-Shaped Bracket
- Sony L-Series Battery Plate/75mm VESA
- Tally Connector
- Limited 1-Year Warranty
Table of Contents
- Description
- Ultra-Bright for Daylight Viewing
- HDMI & Dual 12G-SDI Input/Output
- DCI 4K & HDR Support
- 3D LUT & Log Support
- Tally Input
- Display Tools
- L-Series Battery Plate
- Versatile Mounting
Lilliput Q7 Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 2000 cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 323 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, Pixel Zoom, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
I/O

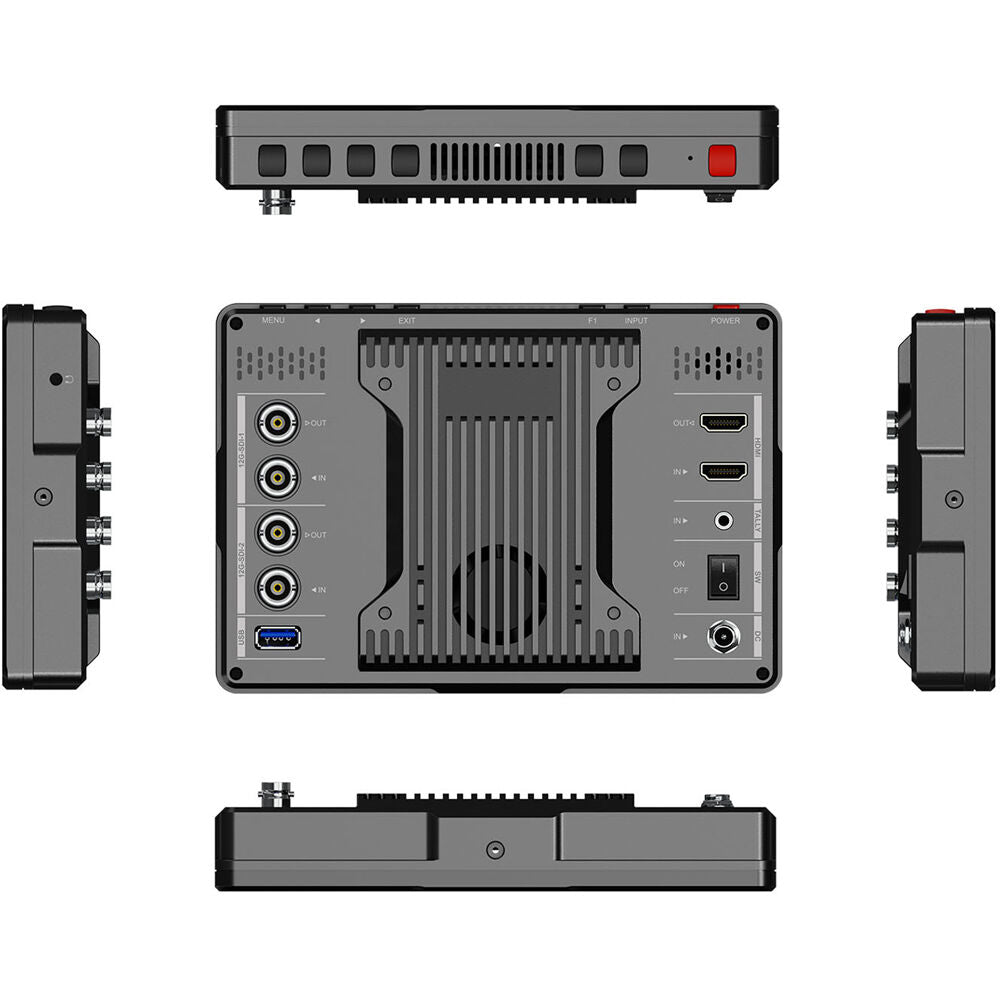

| Video | 2 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x HDMI Type A (HDMI 2.0) Input 1 x HDMI Type A (HDMI 2.0) Output |
| Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Input/Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel (1 A) Output |
| Other I/O | 1 x USB 2.0 (USB Type-A) |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
Format Support
| Video Format | SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
Power
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x L-Series (Interchangeable Mount) |
| Power Consumption | 12 W |
Mounting
| Mounting-Hole Pattern | 75 x 75 mm |
| Mounting | 1 x 1/4"-20 Female |
Environmental
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
General
| Material of Construction | Aluminum |
| Dimensions | 7.3 x 5 x 1.3" / 186 x 128 x 32.5 mm |
| Weight | 1.7 lb / 785 g |
Packaging Info
| Package Weight | 5.1 lb |
| Box Dimensions (LxWxH) | 12.7 x 10.7 x 4.5" |
