Description
Lilliput Q28-8K Overview

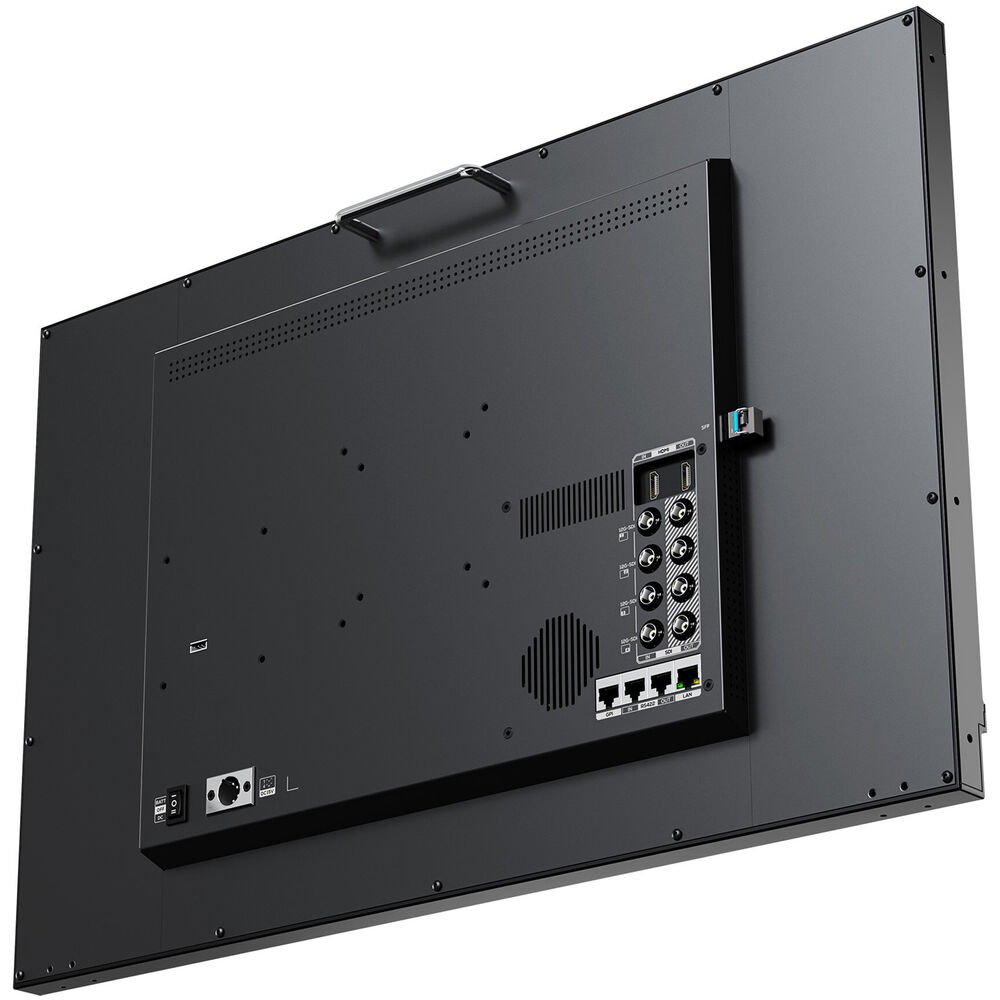

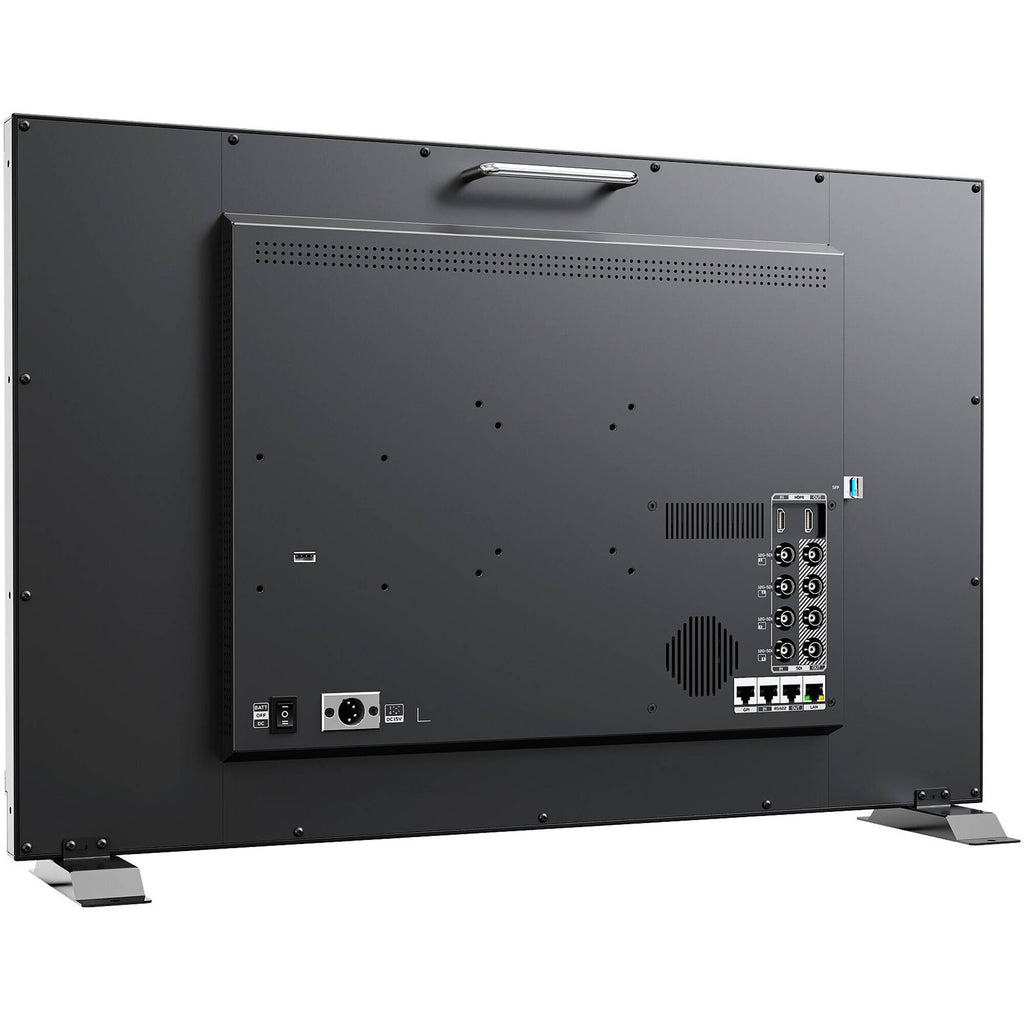

This V-mount version of the Q28 28" 8K 12G-SDI Production Monitor from Lilliput belongs to the flagship lineup of monitors engineered to handle and process 8K video input signals. It seamlessly integrates four 12G-SDI input feeds through the BNC connectors located at the rear of the unit.
Adhering to the ST2082-12 video protocol, it amalgamates these feeds to generate an 8K60 video signal, which is then displayed on its 3840 x 2160 panel. Boasting additional features such as REC. 709 and DCI-P3 color space support, 3D LUT compatibility, remote control via LAN connection, Multiview and Quad-Split functionalities, and an optional 12G-SFP connection, the Q28 offers extensive monitoring capabilities within a user-friendly system.
Items Included
- Lilliput Q28 28" 8K 12G-SDI Production Monitor (V-Mount)
- 15 VDC Power Adapter
- V-Mount Plate
- VESA Mount Plate
- Set of Base Brackets
- USB Flash Drive
- Limited 1-Year Manufacturer Warranty
Additional Resources
Lilliput Q28-8K Specs
| Display Size |
28.00" / 71.1 cm
|
| Native Resolution |
3840 x 2160
|
| Touchscreen |
No
|
| HDR Support |
Yes
|
| Video I/O |
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Output 1x SFP+ (12G-SDI) Input |
| Media/Memory Card Slot |
No
|
| Video Format |
Fiber/HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Battery Type |
1x V-Mount (Interchangeable Mount)
|
| Power Consumption |
65 W
|
| Panel Type |
LCD
|
| Display Size |
28.00" / 71.1 cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
300 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
Yes
|
| Pixels Per Inch (ppi) |
157 ppi
|
| Color Gamut |
90% Rec. 709
90% DCI-P3 |
| Image Controls |
Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Vectorscope, Waveform
|
| Video I/O |
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Output 1x SFP+ (12G-SDI) Input |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 4-Pin (24 VDC) Input
|
| Other I/O |
1x RJ45 (LAN) Input
1x RJ45 (GPI) Input 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
Fiber/HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Input Power |
12 to 24 VDC
|
| Battery Type |
1x V-Mount (Interchangeable Mount)
|
| Power Consumption |
65 W
|
| Operating Conditions |
32 to 122°F / 0 to 50°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
25.1 x 16.3 x 1.8" / 638 x 414.3 x 45.7 mm
|
| Weight |
19.0 lb / 8.6 kg
|
| Package Weight |
27.365 lb
|
| Box Dimensions (LxWxH) |
28.8 x 20.3 x 8.5"
|
