Description
Lilliput Q28 Overview
- 1Description
- 2Customizable Color Temperature
- 3Natural Gamma Values
- 4Vast Array of Log Support
- 5User-Friendly Buttons with Auxiliary Functions
- 6Powered by Battery for Flexible Mobility

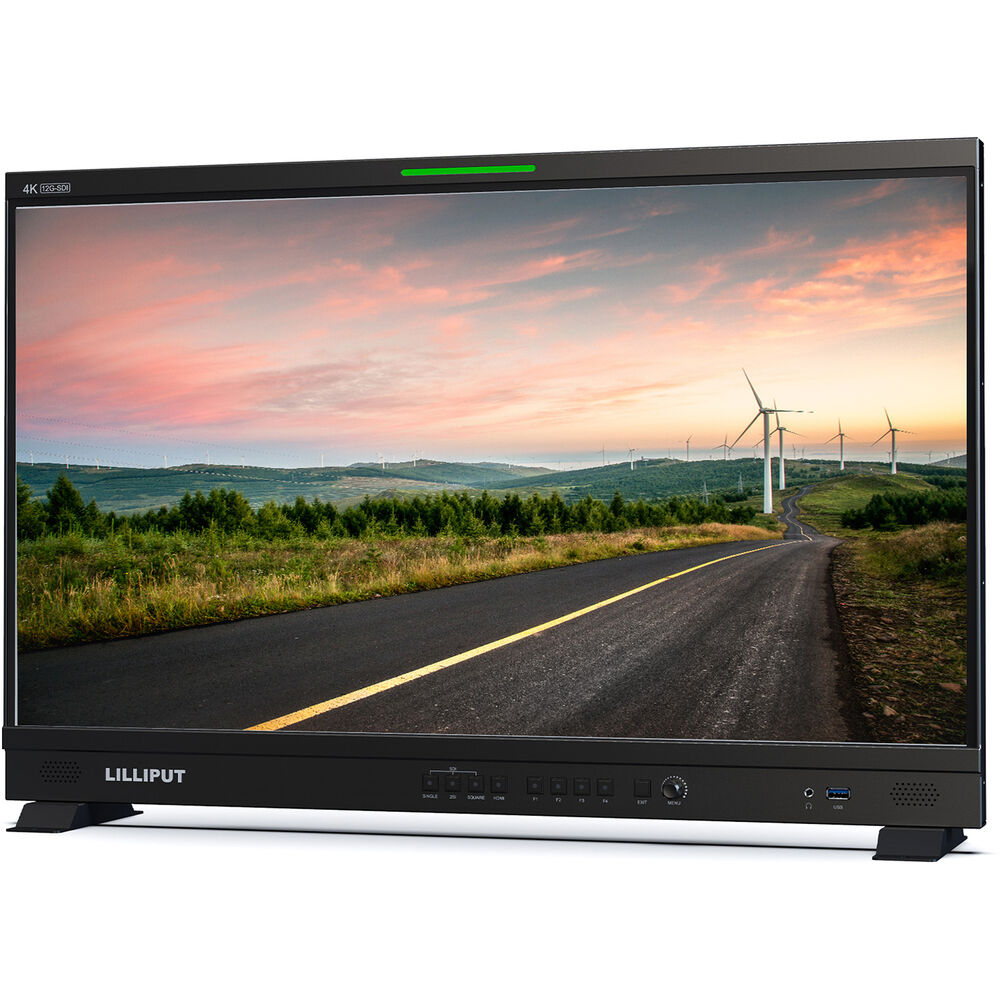

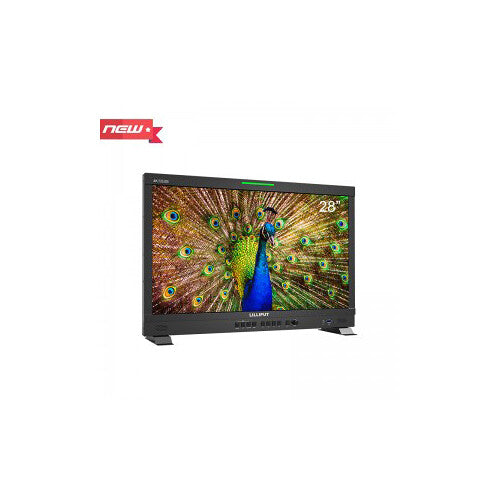

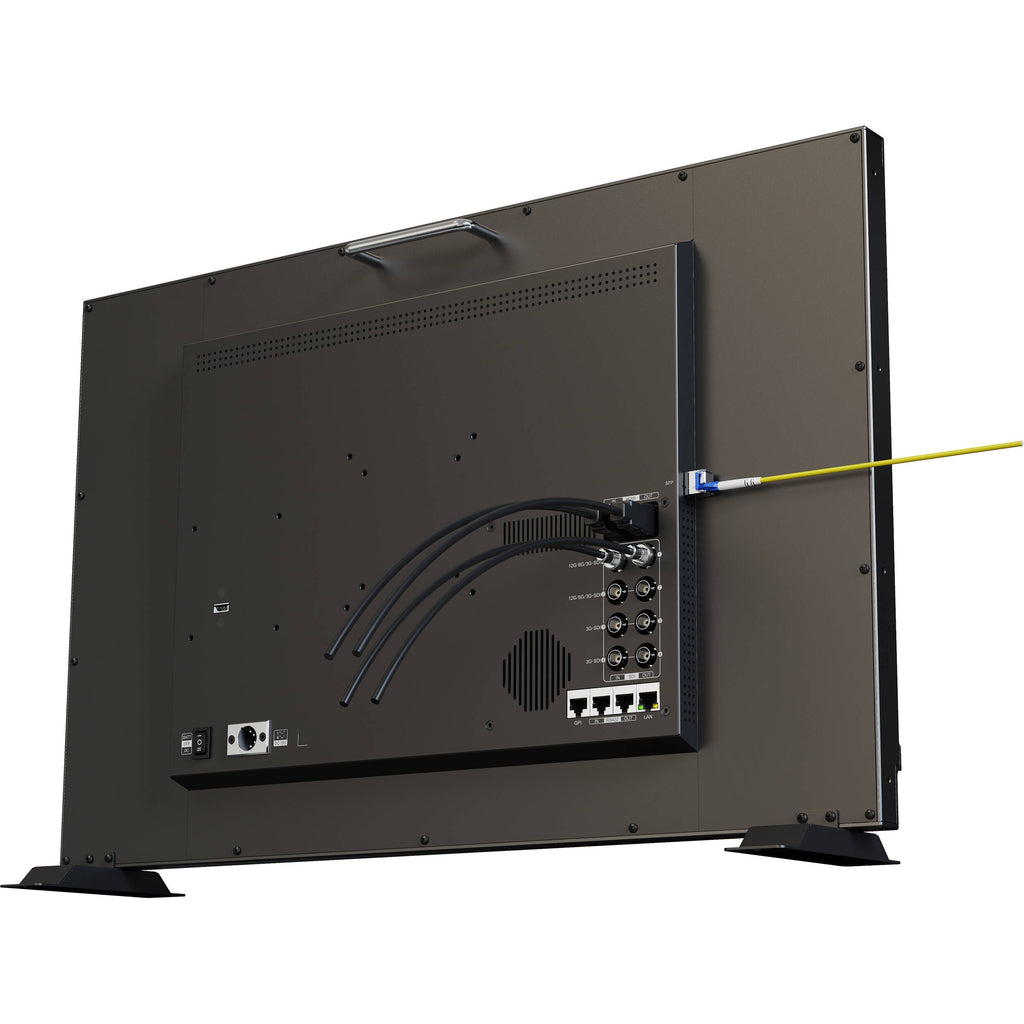

The V-mount Q28 28" 12G-SDI Professional Production Studio Monitor from Lilliput is a professional studio display with 3840 x 2160 screen resolution that can also receive up to DCI 4K60 signals, which will play as letterboxed content within the appropriate aspect ratio. There are four 12G-SDI inputs, one HDMI input with respective loop outputs, and a 12G-SFP port for optional fiber-optic connectivity, all supporting 4K and embedded, multichannel digital audio.

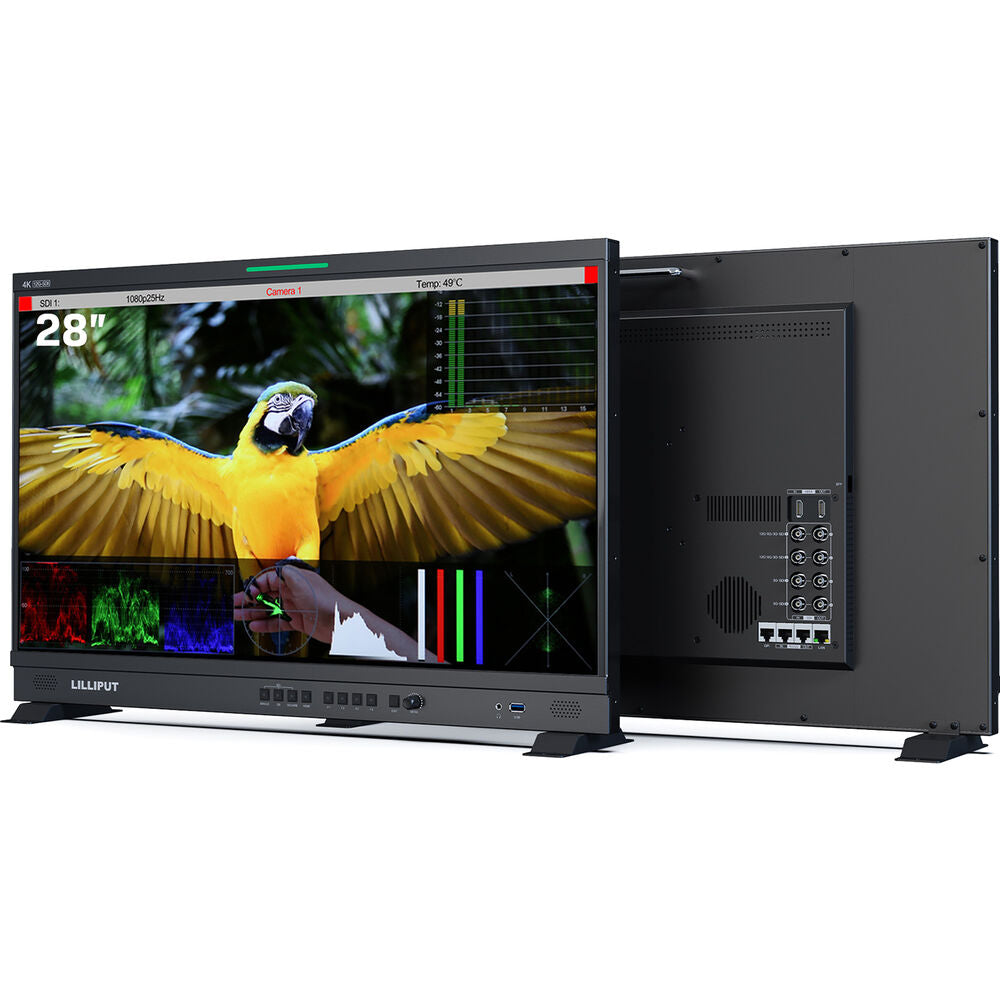

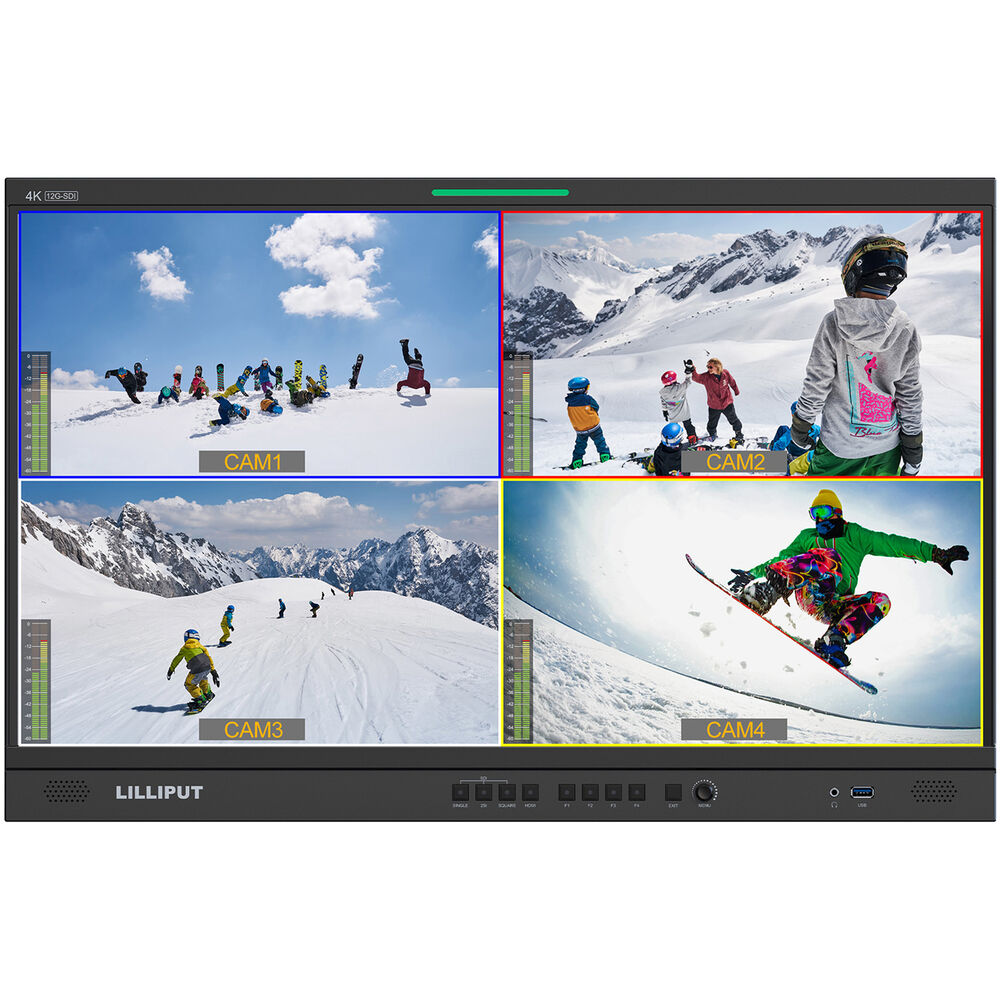

Four different signals can be monitored via the unit's quad-split multiview display, and RS-422, LAN, and GPI connectivity allow for remote control application support. Many diagnostic tools, such as audio vector, histogram, and waveform, are accessible from the feature-rich menu, and HDR and 3D-LUTs are also supported. The front panel of the Q28 has two built-in speakers, a 3.5mm headphone jack, and a tally light for studio broadcast applications integrated into the front panel design.
In the Box
- Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor (V-Mount)
- 15 VDC Power Adapter
- VESA Mount Plate
- 2 x Base Bracket
- V-Mount Battery Plate
- USB Flash Drive
- Description
- Customizable Color Temperature
- Natural Gamma Values
- Vast Array of Log Support
- User-Friendly Buttons with Auxiliary Functions
- Powered by Battery for Flexible Mobility
Lilliput Q28 Specs
| Display Size | 28.00" / 71.1 cm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | No |
| Maximum Brightness | 300 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 157 ppi |
| Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform |
| Video I/O | 2 x BNC (12G-SDI) Input 2 x BNC (3G-SDI) Input 1 x SFP Input 1 x HDMI 2.0 Input 2 x BNC (12G-SDI) Loop Output 2 x BNC (3G-SDI) Loop Output 1 x HDMI 2.0 Loop Output |
| Embedded Audio | SDI: 16-Channel HDMI: 8-Channel Fiber |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power I/O | 1 x XLR 4-Pin (24 VDC) Input |
| Other I/O | 1 x RJ45 (RS-422) Input 1 x RJ45 (RS-422) Output 1 x RJ45 (LAN) Input 1 x RJ45 (GPI) Input 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | Fiber/SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50/30/25/24 HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50/30/25/24 |
| Gamma Curve | ARRI Log C, Canon Log, HDR-HLG, JVC J-Log, Panasonic V-Log, Rec709, Sony S-Log 2, Sony S-Log 3 |
| DC Input Power | 12 to 24 VDC |
| Battery Type | 1 x V-Mount (Interchangeable Mount) |
| Power Consumption | 60 W |
| Mounting-Hole Pattern | 100 x 100 mm, 75 x 75 mm |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 25.1 x 16.3 x 2.1" / 638 x 414.3 x 54.4 mm |
| Weight | 19.0 lb / 8.6 kg |
| Package Weight | 26.47 lb |
| Box Dimensions (LxWxH) | 28.6 x 20 x 6.5" |
