| ₹ 276705.0 includes GST and import duties. | |
| B2B customers can avail ₹ 42197.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Lilliput Q24 Overview

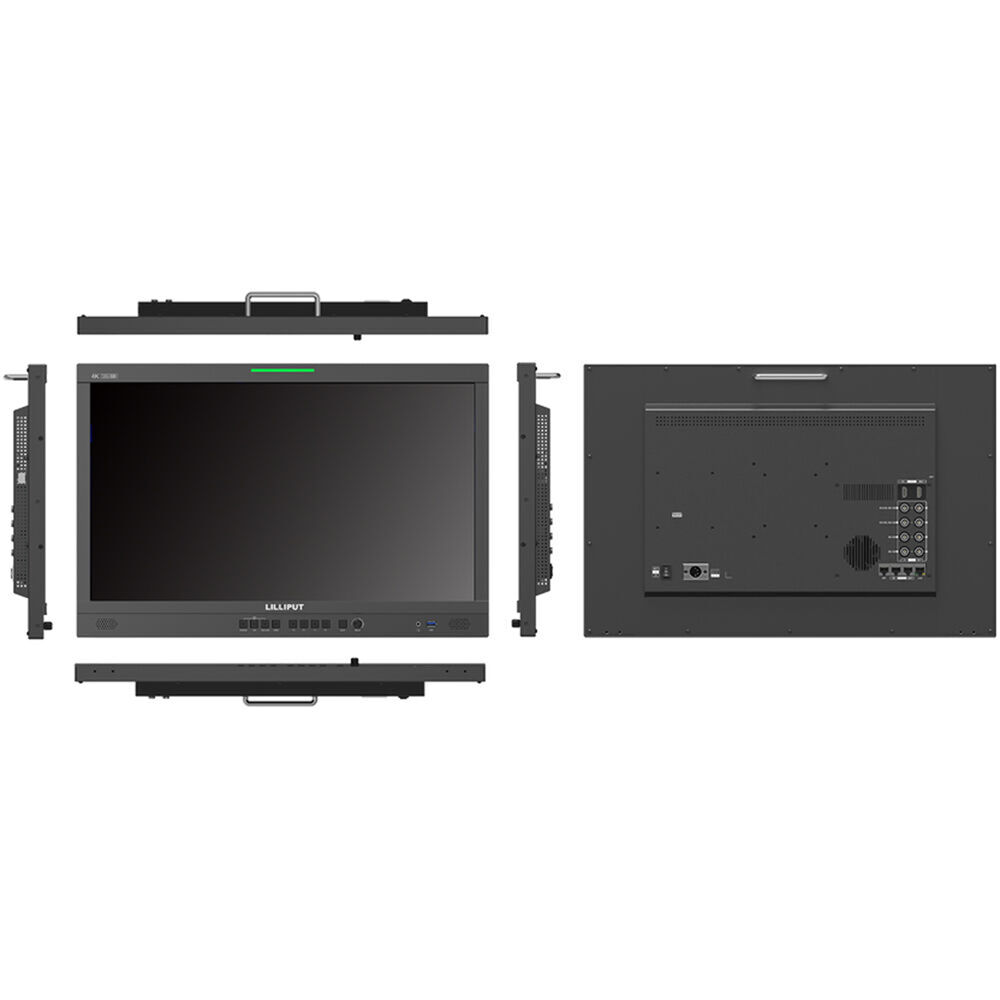

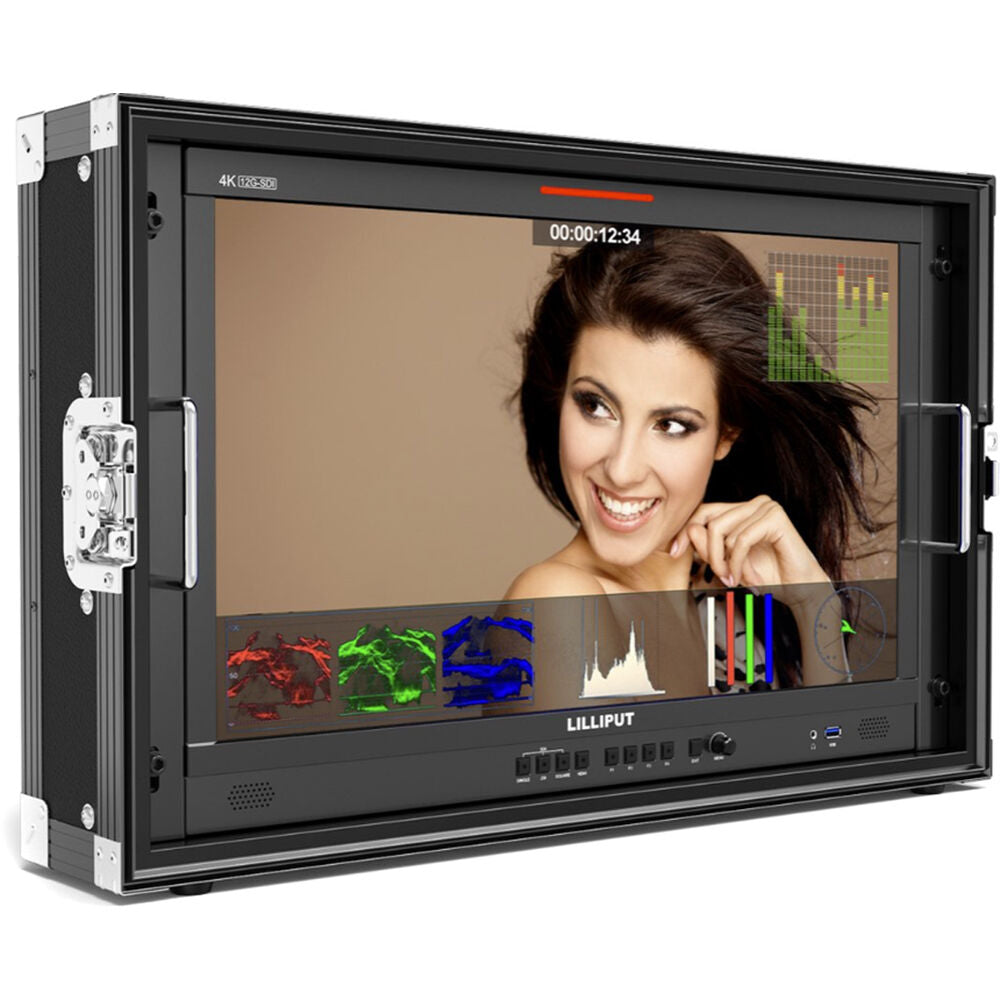

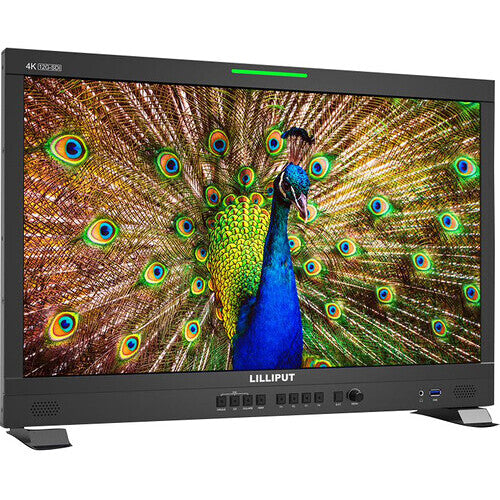

The Q24 23.6" 12G-SDI/HDMI Broadcast Studio Monitor with Carry On Case from Lilliput is a 23.6" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single-, dual-, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included). This model comes in a heavy-duty carry-on case.
Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a V-mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.
- Peaking
- Check field
- Image rotation/flip
- Overscan
- Underscan
- Image freeze
- Pixel-to-pixel
- False color
- Exposure
- Histogram
- Timecode (SDI-only)
- Aspect ratio selection
- Screen markers
- Color space
- HDR
- Color temperature adjustment
In the Box
- Lilliput Q24 23.6" 12G-SDI/HDMI Broadcast Studio Monitor with Carry On Case (V-Mount)

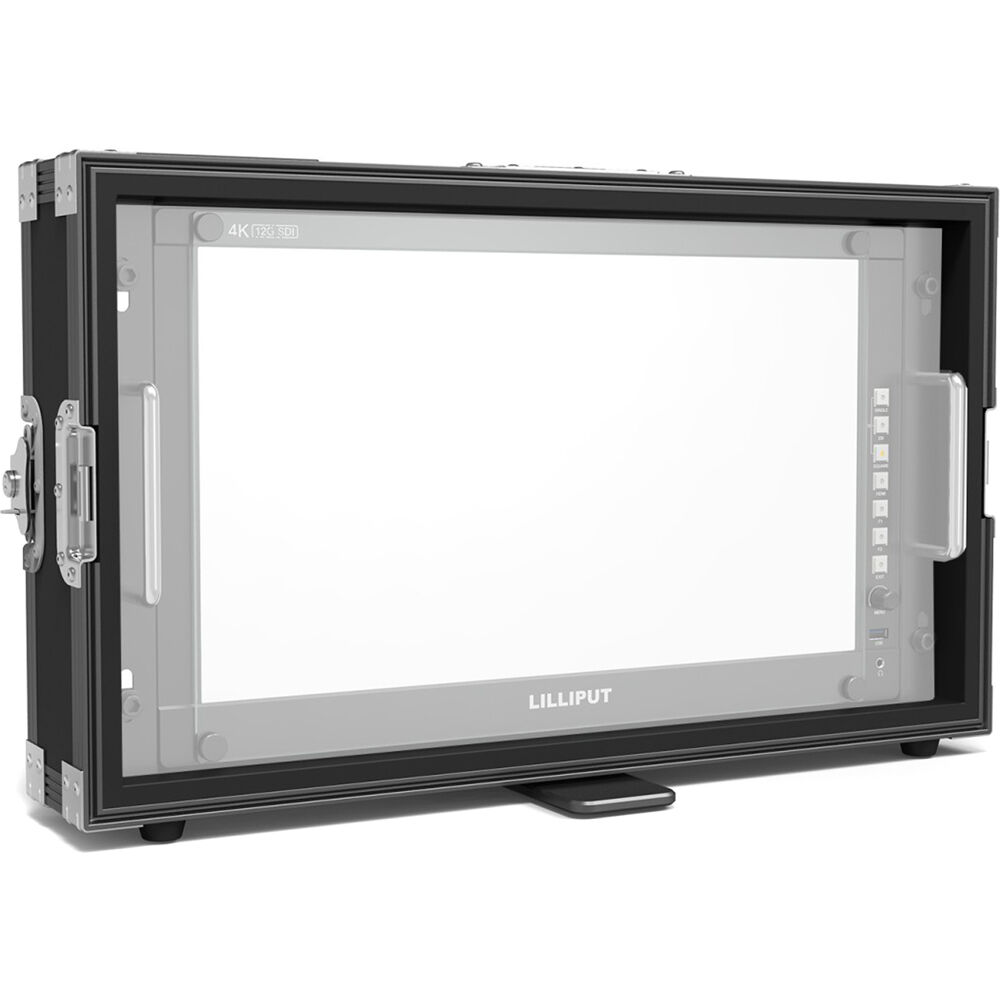

- Carry-On Case
- V-Mount Battery Plate
- Power Adapter
- VESA Mount Plate
- Base Bracket
- USB Flash Disk
- Limited 1-Year Manufacturer Warranty
Lilliput Q24 Specs
| Display Size |
23.6" / 59.9 cm
|
| Resolution |
3840 x 2160
|
| Touchscreen |
No
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Video I/O |
1x HDMI 2.0 Input
2x BNC (12G-SDI) Input 2x BNC (3G-SDI) Input 1x HDMI 2.0 Output 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Battery Type |
1x V-Mount
|
| Power Consumption |
65 W
|
| Display Size |
23.6" / 59.9 cm
|
| Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
300 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
186 ppi
|
| Real-Time LUT Monitoring |
HDR
|
| Image Controls |

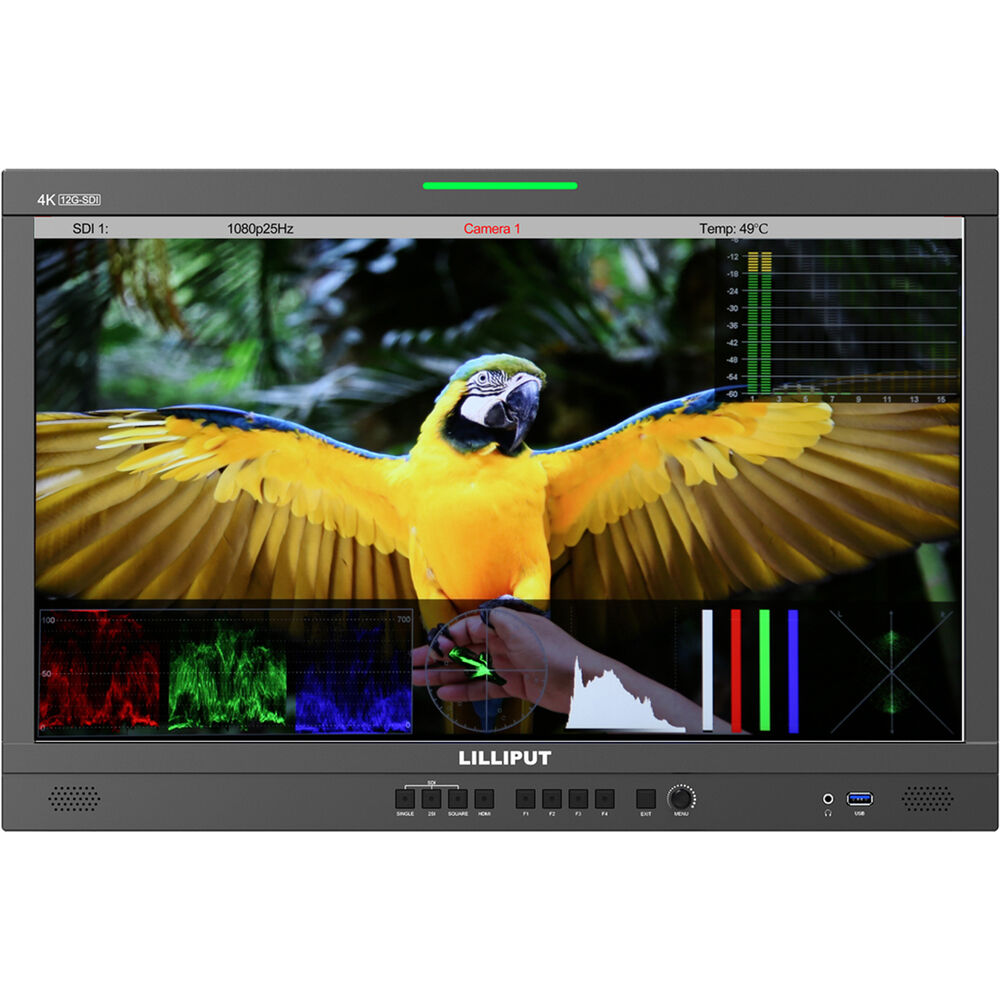

Blue Only, Check Field, Color Temperature Selection, False Color, Focus Peaking, Green Only, H/V Delay, Histogram, Pixel-to-Pixel Zoom, Red Only, Scaling, Screen Markers, Screen Split - Half, Screen Split - Quarter, Underscan, Vectorscope, Waveform, Zebra
|
| Video I/O |
1x HDMI 2.0 Input
2x BNC (12G-SDI) Input 2x BNC (3G-SDI) Input 1x HDMI 2.0 Output 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 16-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
2
|
| Power I/O |
1x XLR 4-Pin (24 VDC) Input
|
| Other I/O |
1x RJ45 (GPI) Input
1x RJ45 (LAN) Input 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output 1x USB-A 2.0 Input |
| Expansion Slots |
1x SFP+ Slot
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| DC Input Power |
12 to 24 VDC at 1.2 A
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
65 W
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
32 to 104°F / 0 to 40°C
|
| Material of Construction |
Metal
|
| Dimensions |
22.3 x 14.8 x 1.8" / 567 x 376.4 x 45.7 mm
|
| Weight |
16.3 lb / 7.4 kg
|
| Package Weight |
44 lb
|
| Box Dimensions (LxWxH) |
30 x 19.5 x 9.75"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 271170.9 |
| 3-5 | ₹ 268403.85 |
| 5-10 | ₹ 262869.75 |
| 10+ | ₹ 257335.65 |
Bulk discount will be automatically applied during checkout based on quantity.
