Description
Lilliput Q18-8K Overview

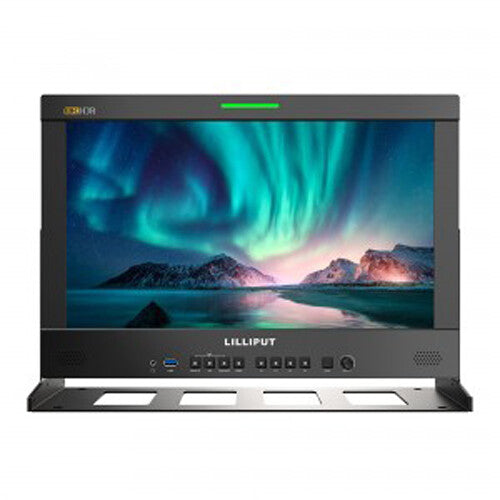

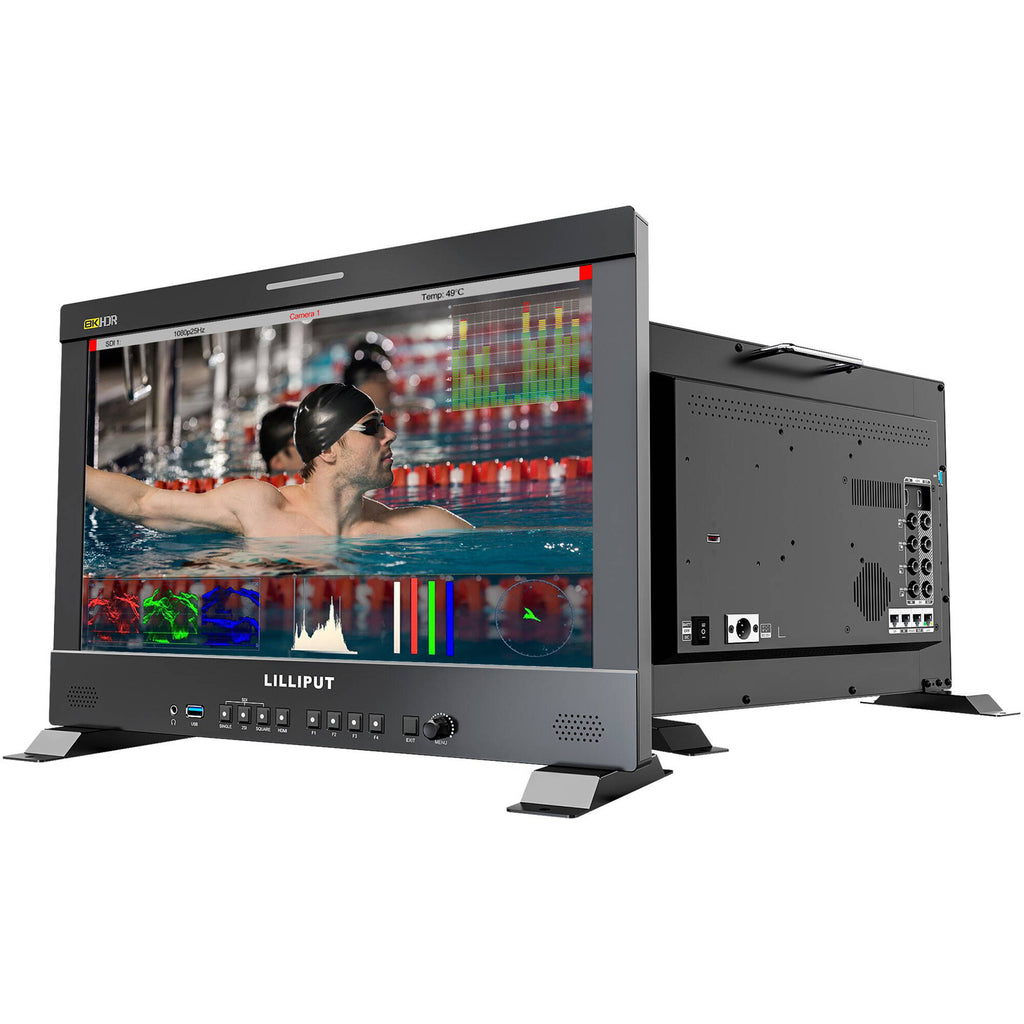

The Q18-8K 17.3" 12G-SDI/HDMI Broadcast Studio Monitor from Lilliput is a 17.3" broadcast studio and field monitor with a Gold mount battery plate and a native resolution of 3840 x 2160. It can support up to UHD 8K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1200:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness. The Q18-8K features an HDMI 2.0 input and HDMI 2.0 output, four 12G-SDI inputs and four 12G-SDI outputs, and an SFP+ input that can be used with an optional fiber module.
The monitor supports HDR color spaces and the importing of custom 3D LUTs for quick access to a variety of color reference options. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a Gold mount battery using the included battery plate.
Features
Monitoring Tools
- Peaking
- Check field
- Image freeze
- Pixel-to-pixel
- False color
- Exposure
- Histogram
- Timecode
- Screen markers
- Color space
- HDR
- Color temperature adjustment
HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colors and lighter and darker details to be displayed more clearly. You can use preset Logs or load your own custom LUTs in .cube format via the front panel USB port.
Supported Log Formats
SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.
Supported HDR
ST2084 300/1000/10000/HLG.
Audio
The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor's menu system.
Remote Control
The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.
Calibration
The monitor supports color calibration using an optional PRO/LTE version of ColourSpace CMS to ensure your monitor is displaying your image accurately.
Fiber
An integrated slot accepts an optional SFP+ module, should you require an SFP+ fiber connection.
In the Box
- Lilliput Q18-8K 17.3" 12G-SDI/HDMI Broadcast Studio Monitor
- Gold Mount Battery Plate
- Power Adapter
- VESA Mount Plate
- Base Bracket
- Limited 1-Year Manufacturer Warranty
Additional Resources
Lilliput Q18-8KSpecs
Key Specs
| Display Size |
17.3" / 43.9 cm
|
| Native Resolution |
3840 x 2160
|
| Touchscreen |
No
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Video I/O |
1x HDMI 2.0 Input
4x BNC (12G-SDI) Input 1x HDMI 2.0 Output 4x BNC (12G-SDI) Output 1x SFP+ (12G-SDI) Input |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 Fiber DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Battery Type |
1x Gold Mount
|
| Power Consumption |
40 W
|
Display
| Panel Type |
LCD
|
| Display Size |
17.3" / 43.9 cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170°
Vertical: 170° |
| Touchscreen |
No
|
| Maximum Brightness |
400 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
255 ppi
|
| LUT Support |
Yes
|
| Image Controls |
Check Field, Color Temperature Selection, False Color, Focus Peaking, Green Only, H/V Delay, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Screen Split - Half, Screen Split - Quarter, Underscan, Vectorscope, Waveform
|
Inputs/Outputs

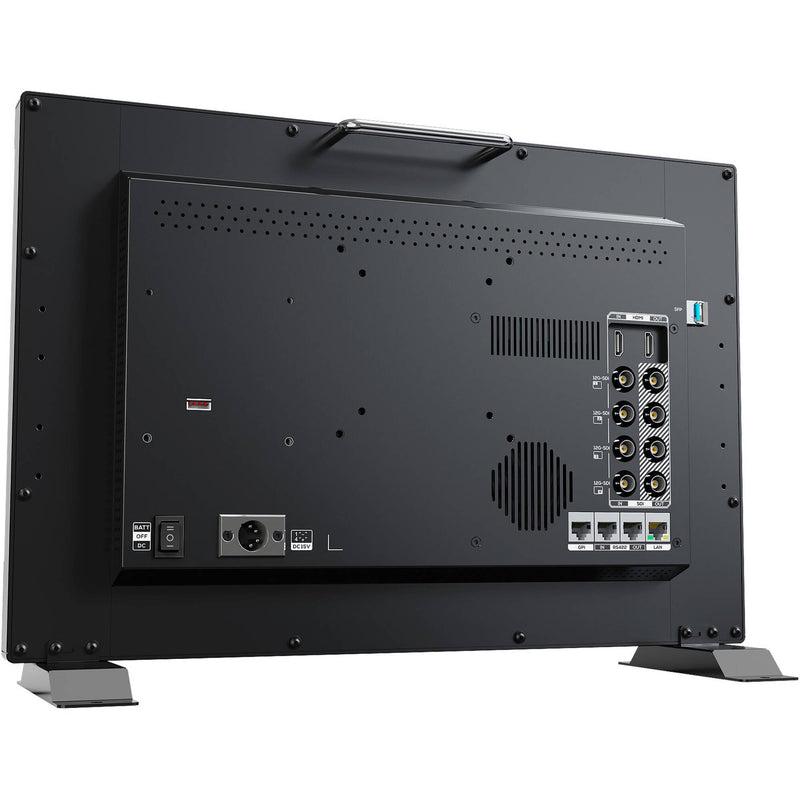

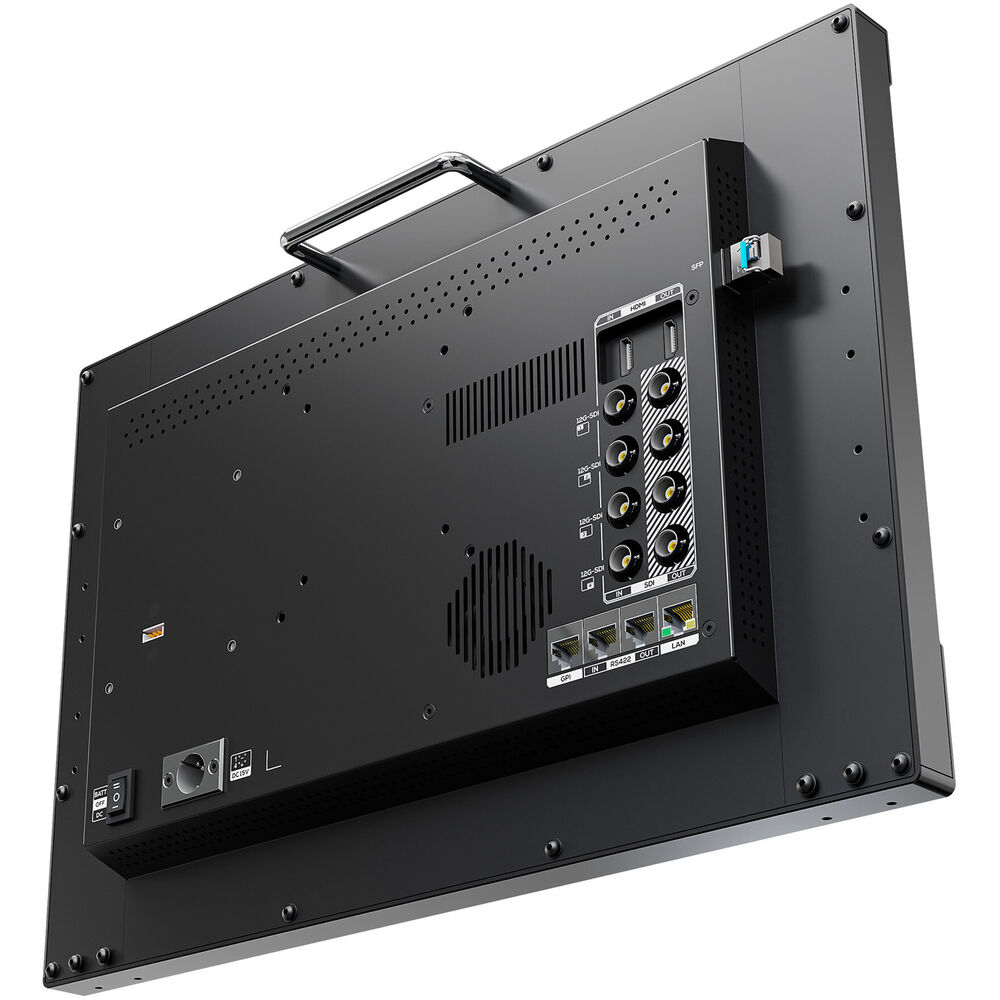

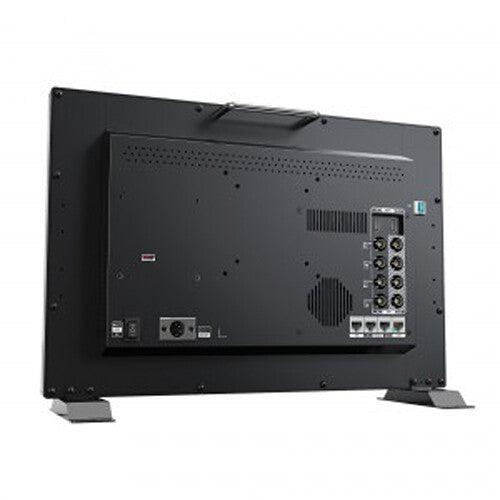

| Video I/O |
1x HDMI 2.0 Input
4x BNC (12G-SDI) Input 1x HDMI 2.0 Output 4x BNC (12G-SDI) Output 1x SFP+ (12G-SDI) Input |
| Embedded Audio |
HDMI: 8-Channel
SDI: 16-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 4-Pin (24 VDC) Input
|
| Other I/O |
1x RJ45 (GPI) Input
1x RJ45 (LAN) Input 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output 1x USB-A 2.0 Input |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 8K: 60/50/30/25/24 DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 Fiber DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
Power
| Input Power |
12 to 24 VDC
|
| Battery Type |
1x Gold Mount
|
| Power Consumption |
40 W
|
General
| Operating Conditions |
32 to 82°F / 0 to 50°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Material of Construction |
Metal
|
| Dimensions |
17.1 x 11.6 x 1.8" / 434 x 294 x 46 mm
|
| Weight |
8.6 lb / 3.9 kg
|
Packaging Info
| Package Weight |
15.43 lb
|
| Box Dimensions (LxWxH) |
20.4 x 16.9 x 7.6"
|
