Description
Lilliput Q13 Overview

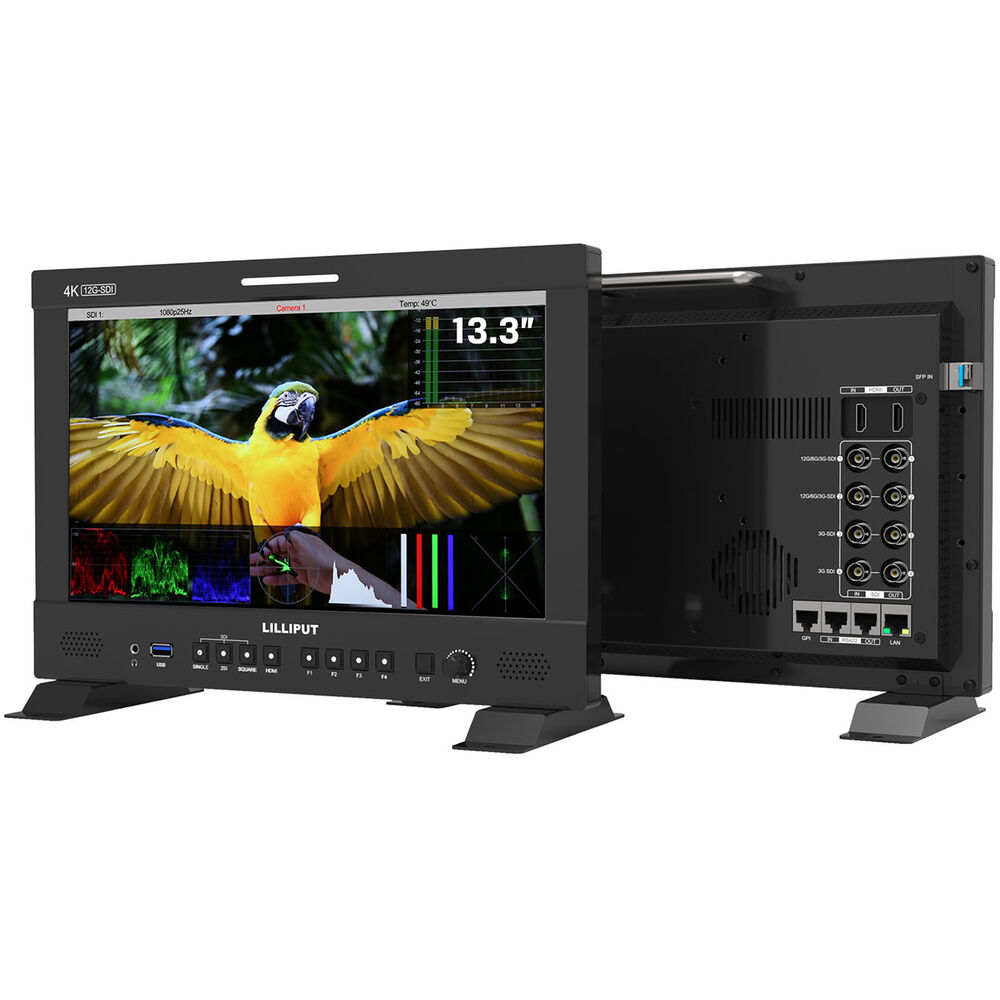

The Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor from Lilliput is a 13.3" broadcast studio and field monitor with a V-mount battery plate and a native resolution of 3840 x 2160. It has the capability of supporting up to DCI 4K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1000:1 contrast ratio, a viewing angle of 178°, and 300 cd/m² brightness.
The Q13 features an HDMI 2.0 input and HDMI loop-through output, as well as two 12G-SDI and two 3G-SDI inputs with respective 12G-SDI and 3G-SDI outputs that support single-link, dual-link, or quad-link 12G-SDI signaling. The monitor supports HDR color spaces, audio vectoring, and accurate color calibration. You can also load custom 3D LUTs for quick access to a variety of color reference options. Other features include tally, quad-split multiview, stereo speakers, and headphone output. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a V-mount battery using the included battery plate.
- Peaking
- Check field
- Image freeze
- Pixel-to-pixel
- False color
- Exposure
- Histogram
- Timecode
- Screen markers
- Color space
- HDR
- Color temperature adjustment
In the Box
- Lilliput Q13 13.3" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)
- V-Mount Battery Plate
- Power Adapter
- VESA Mount Plate
- Base Bracket
- USB Flash Drive
- Limited 1-Year Manufacturer Warranty
Additional Resources
Lilliput Q13Specs
| Display Size |
13.3" / 33.8 cm
|
| Native Resolution |
3840 x 2160
|
| Touchscreen |
No
|
| HDR Support |
No
|
| Video I/O |
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI/SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50 Fiber DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/59.94/50 |
| Battery Type |
1x V-Mount
|
| Power Consumption |
31.5 W
|
| Panel Type |
LCD
|
| Display Size |
13.3" / 33.8 cm
|
| Native Resolution |
3840 x 2160
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
No
|
| Maximum Brightness |
300 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
No
|
| Pixels Per Inch (ppi) |
331 ppi
|
| Image Controls |
Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Overscan, Screen Markers, Screen Split - Quarter, Vectorscope, Waveform
|
| Video I/O |
2x BNC (12G-SDI) Input
2x BNC (3G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Embedded Audio |
SDI: 16-Channel
HDMI: 8-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
Stereo
|
| Power I/O |
1x XLR 4-Pin Input
1x Unspecified 4-Pin Input |
| Other I/O |
1x RJ45 (GPI) Input
1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output 1x RJ45 (LAN) Input 1x USB-A (Firmware/LUT Upload) |
| Expansion Slots |
1x SFP Slot
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI/SDI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/50 720p: 60/50 Fiber DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/50 720p: 60/59.94/50 |
| Gamma Curve |
ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3
|
| Video Standard Compliance |
SMPTE ST-2084
|
| Input Power |
12 to 24 VDC
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
31.5 W
|
| Mounting-Hole Pattern |
75 x 75 mm, 100 x 100 mm
|
| Operating Conditions |
32 to 122°F / 0 to 50°C
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
13.4 x 9.2 x 1.8" / 340 x 233 x 46 mm
|
| Weight |
5.3 lb / 2.4 kg
|
| Package Weight |
10.185 lb
|
| Box Dimensions (LxWxH) |
17.9 x 15 x 8.8"
|
