Description
Lilliput Q10 Overview
- 1Description
- 2Frame Rate Support
- 312G-SDI PiP or PIB
- 4Signal Display Tools

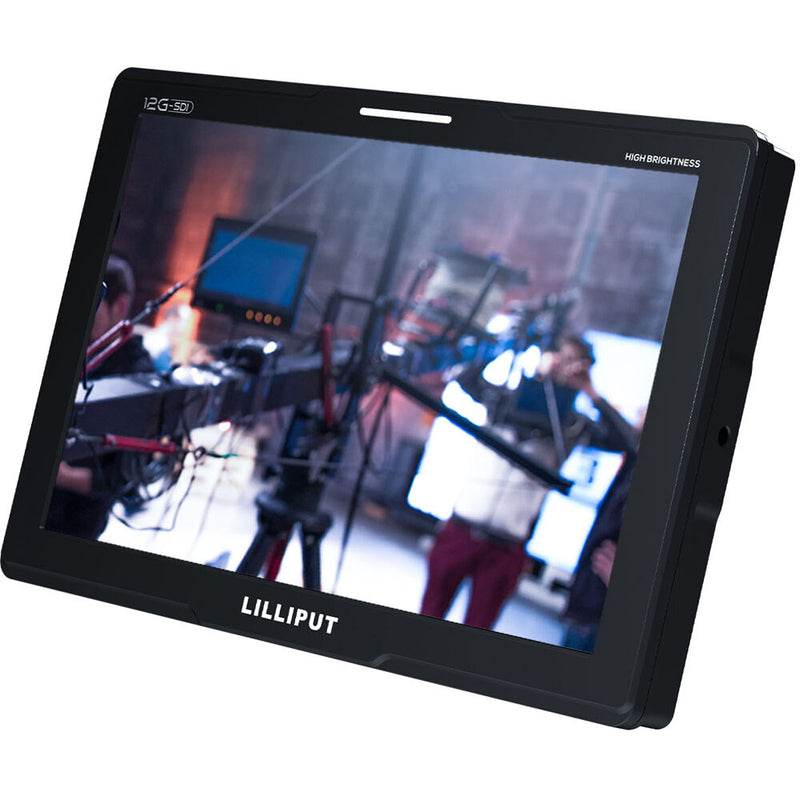

Input, pass through, and display 4K DCI, 4K UHD, and Full HD on this Q10 10.1" Ultrahigh Brightness On-Camera Monitor with 2 x 12G-SDI and 1 x HDMI from LILLIPUT. With a 1500 cd/m² maximum brightness, you can use this monitor on exterior shoots without a sunhood as well as on interior shoots. The monitor supports frame rates from 24 to 60p, covering Us and EU cinema frame rates. Featuring both HDMI and SDI in and out, the monitor can easily fit into most workflows.
The monitor supports a 170° H/V viewing angles for good color and contrast, even when viewed from extremely off center. The monitor powers from a DC input, supporting 7 to 24 VDC and it comes with an L-series battery plate that you can mount on the back. Optional V-mount and Gold mount battery plates are available. A Tally cable features pigtails that allow you to add Tally info. An included suitcase can carry your monitor and accessories to and from location, and can be used for storage when not in use.
- Video
- 3D-LUT HDR
- Waveform
- Focus Peaking
- False Color
- Histogram
- Vectorscope
- Exposure
- Check field
- Pixel Zoom
- Pixel-to-Pixel
- Marker
- Audio
- Level meter display
- Audio Vector
- Display
- Color Temperature
- Color Bar
- Color Gamut
In the Box
- Lilliput Q10 10.1" Ultrahigh Brightness On-Camera Monitor with 2 x 12G-SDI, 1 x HDMI (1500 cd/m²)
- 12 VDC, 3A Adapter
- U-Shaped Mounting Bracket
- Tally Cable with Bare End
- 75mm VESA Pattern Battery Plate
- Carry Case
- Limited 1-Year Manufacturer Warranty
- Description
- Frame Rate Support
- 12G-SDI PiP or PIB
- Signal Display Tools
Lilliput Q10 Specs
| Panel Type | LCD |
| Display Size | 10.1" / 25.6 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Touchscreen | No |
| Maximum Brightness | 1500 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | Yes |
| Pixels Per Inch (ppi) | 224 ppi |
| Real-Time LUT Monitoring | HDR |
| Image Controls | False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Vectorscope, Waveform, Zebra |

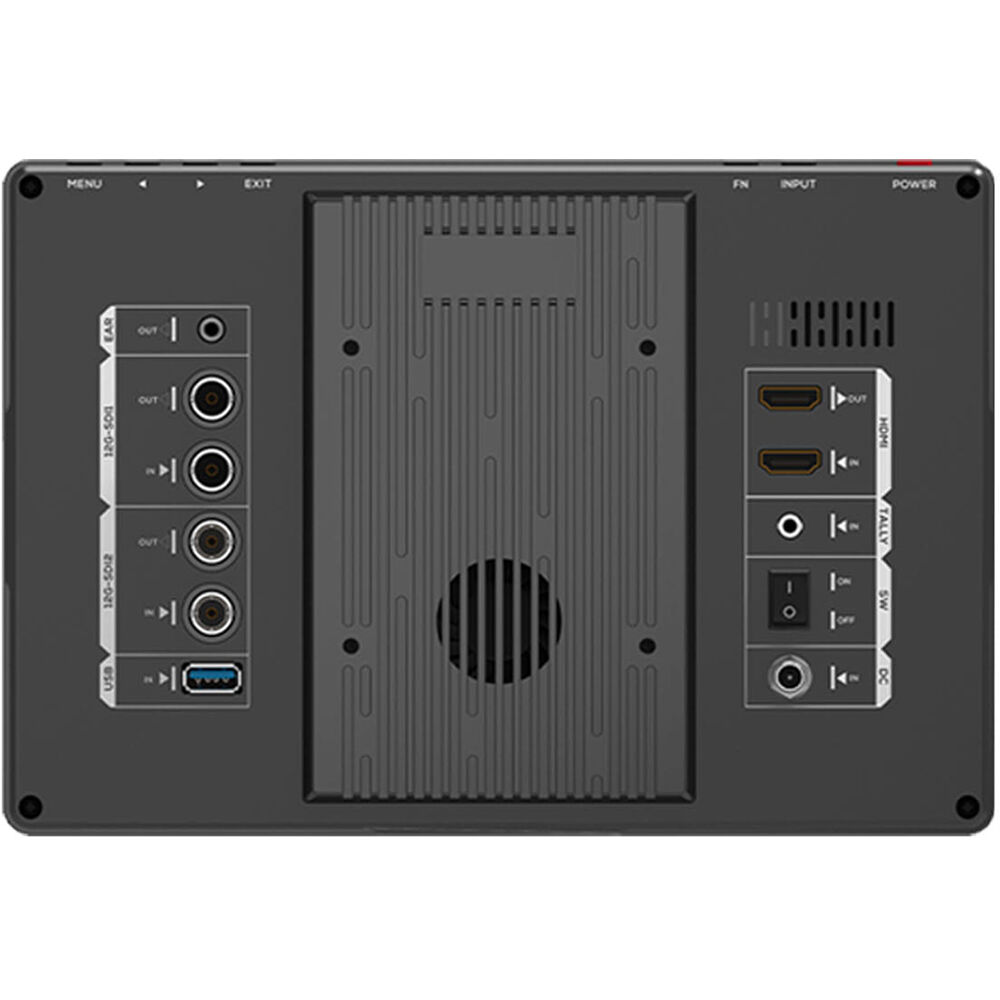

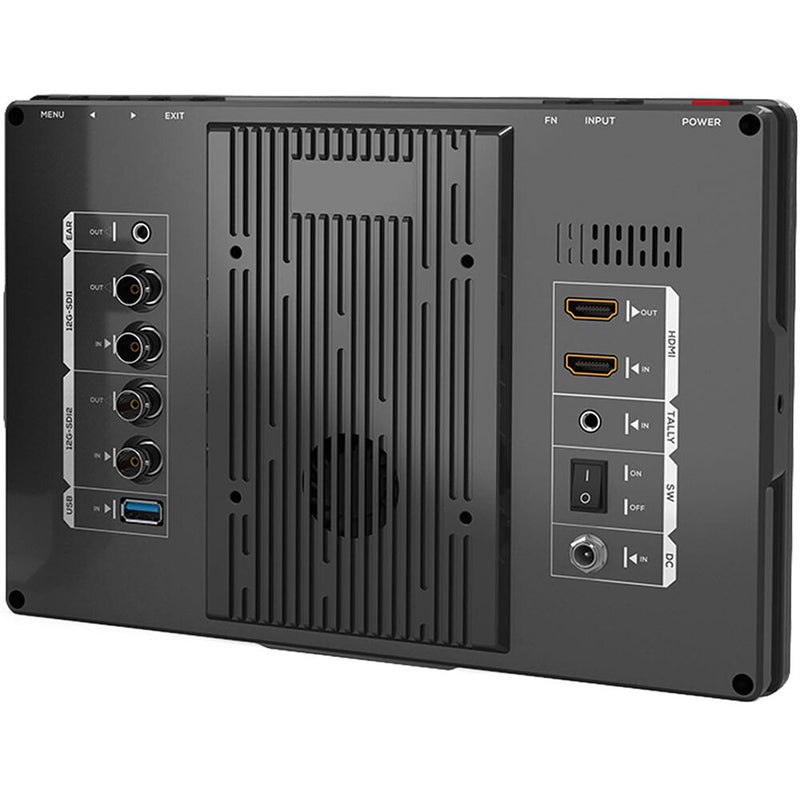

| Video I/O | 2 x BNC (12G-SDI) Input 1 x HDMI 2.0 Input 2 x BNC (12G-SDI) Output 1 x HDMI 2.0 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 x 1 W |
| Power I/O | 1 x Barrel Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Video Format | SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x L-Series |
| Power Consumption | 12 W (Maximum) |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Material of Construction | Aluminum |
| Dimensions | 9.9 x 6.7 x 1.2" / 251 x 170 x 30.5 mm |
| Weight | 2.4 lb / 1100 g |
| Package Weight | 9.7 lb |
| Box Dimensions (LxWxH) | 17.3 x 13.2 x 5.6" |
