Description
Lilliput HT5S Overview
- 1Description
- 2Ultrabright for Outdoor Viewing
- 3Touchscreen Control
- 4Sony LANC Control
- 5HDR and 3D LUT Support
- 6Image Display Functions
- 7HDMI and 3G-SDI Input/Output
- 8L-Series Battery

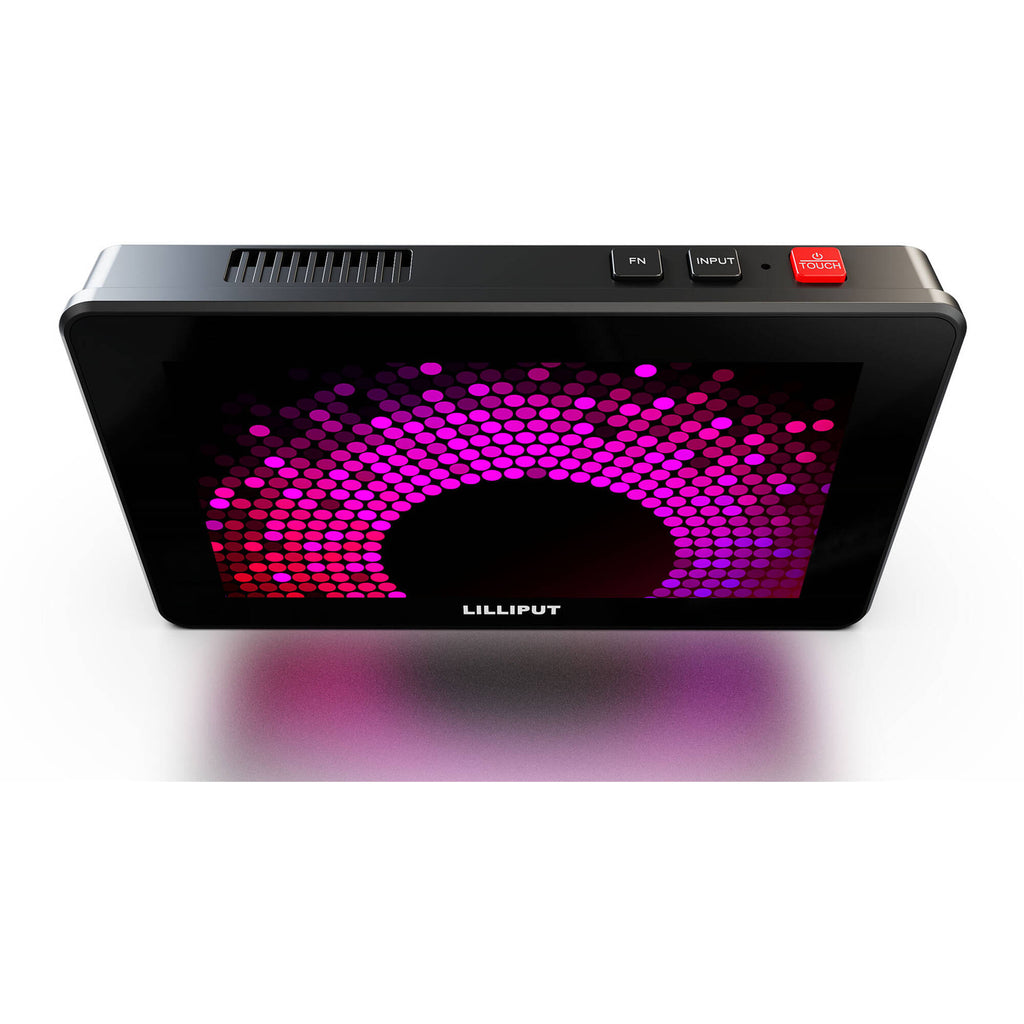

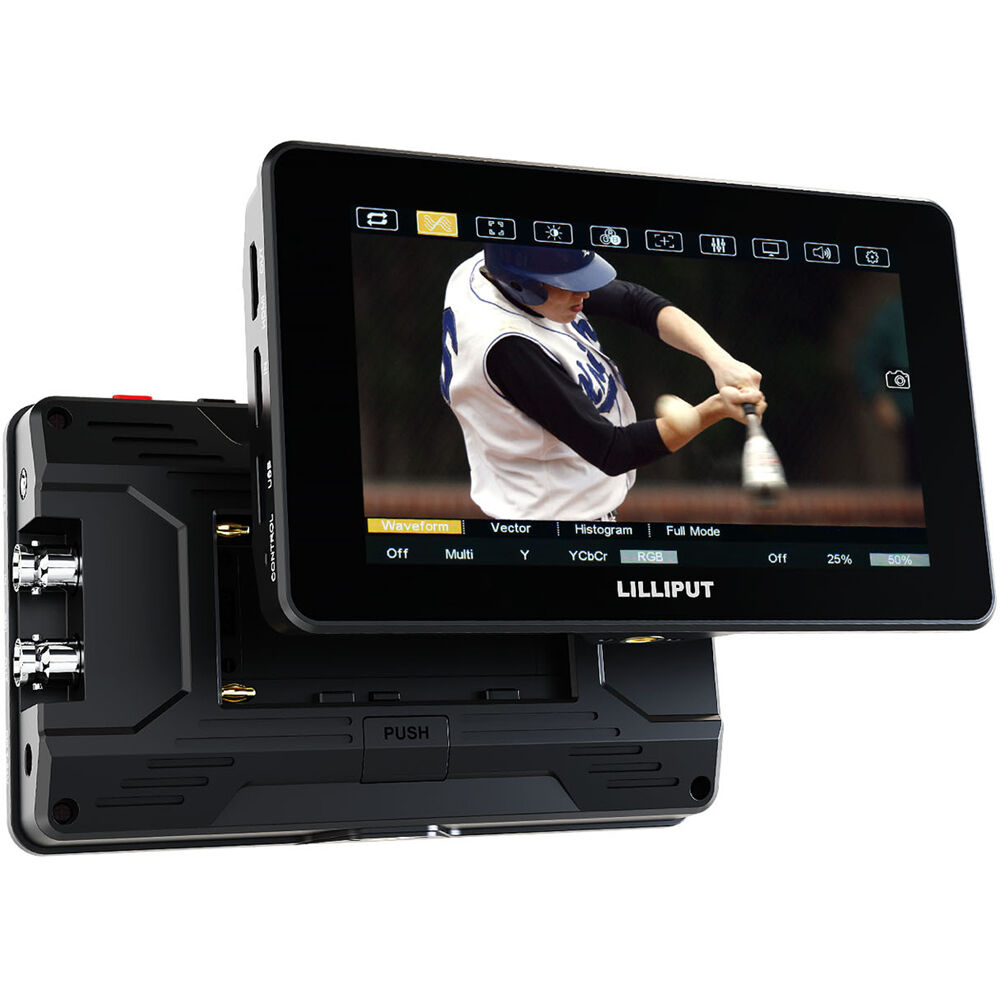

Monitor up to UHD 4K video using the HT5S 5.5" Ultrahigh 2000 cd/m² Brightness Touchscreen On-Camera Monitor from Lilliput. The HT5S features an ultrabright 2000 cd/m² display and a 1000:1 contrast ratio that make it easier to view your frame, even outdoors. This 1920 x 1080 LCD monitor provides both 3G-SDI and HDMI inputs and outputs, 3D LUT loading via the USB port, and support for HDR imaging input with the ability to display a wide dynamic range such as HLG or ST2084-300/1000/10000. It supports up to UHD 4K60 video via HDMI and up to 1080p60 via 3G-SD8. Power the monitor using a single L-series battery or a 12 VAC adapter (available separately).
The HT5S 5.5" monitor also features a speaker, a headphone jack, and multiple image control functions. Mount the monitor on your camera rig by attaching the included shoe mount adapter to the 1/4"-20 bottom thread. An HDMI to micro-HDMI cable, a Sony LANC cable, and a USB-A disk drive are also included in the box.
Ultrabright for Outdoor Viewing
- This ultrabright 5.5" monitor features a 2000 cd/m² display with a 1000:1 contrast ratio.
- Bright enough for outdoor viewing and provides an auto-dimming function.
Touchscreen Control

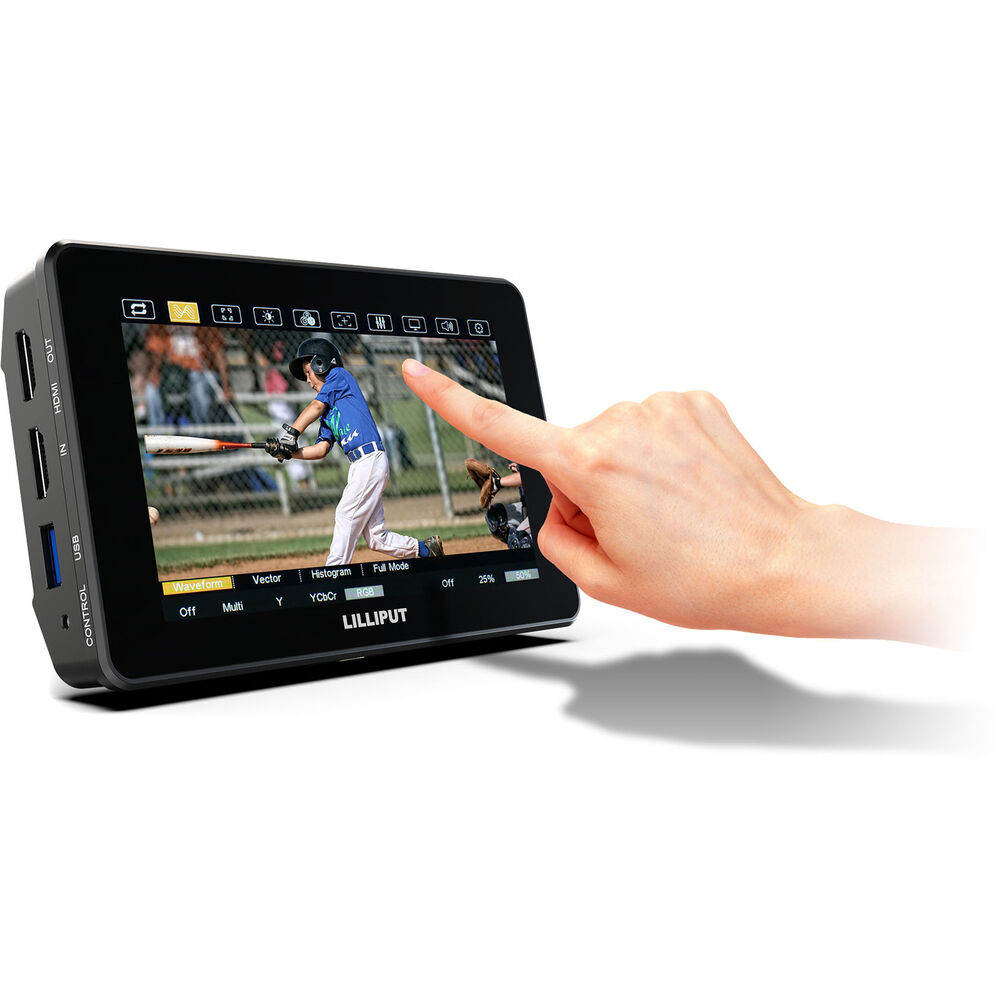

The touchscreen panel responds quickly to commands, letting you easily adjust camera, display, and setting functions.
Sony LANC Control
Use the included LANC cable to control FIZ (focus, iris, zoom) features on select Sony cameras.
HDR and 3D LUT Support
- HDR support creates highly detailed light and dark shades for highly nuanced imaging.
- Integrated 3D LUT support includes 17 default logs and six user-created logs.
Image Display Functions

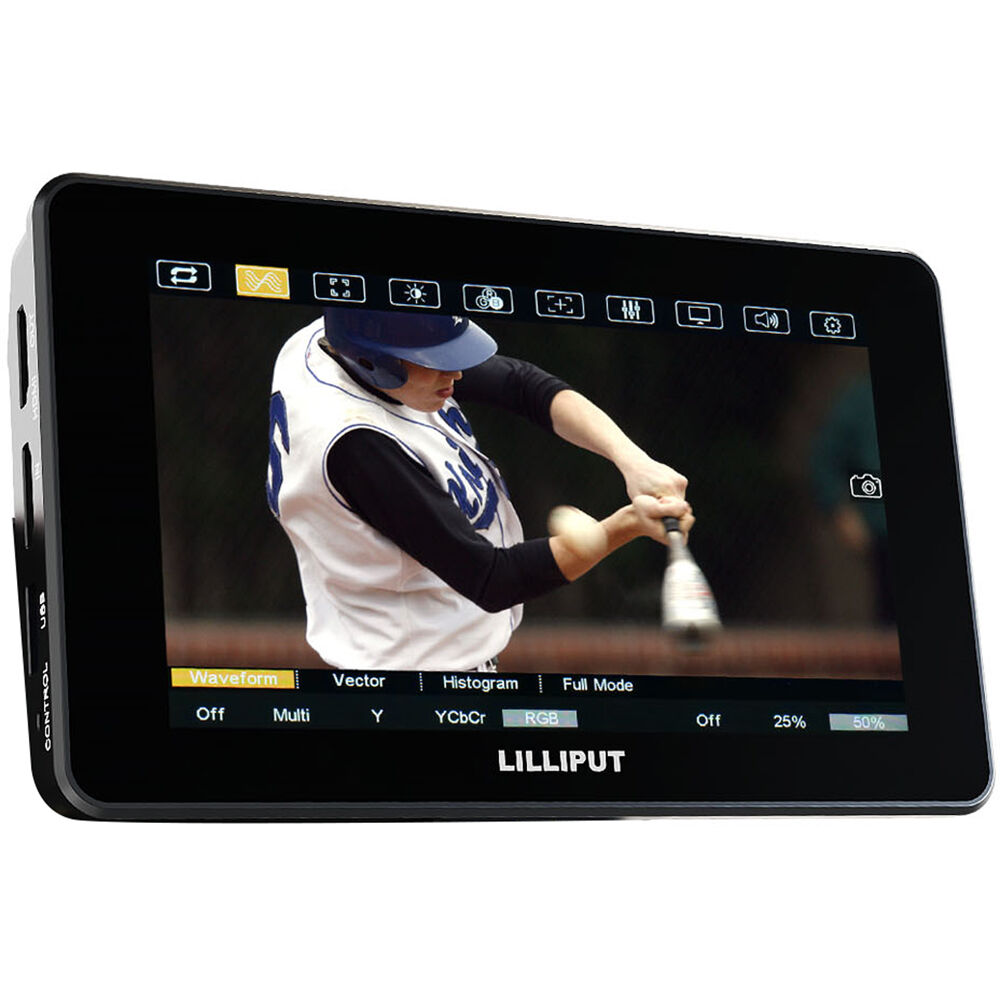

- Offers advanced functions that enable you to clearly see the image details you prefer.
- Includes waveform, histogram, pixel zoom, level meter, peaking, false color, and H/V delay.
- Includes exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze.
HDMI and 3G-SDI Input/Output
The HDMI ports support up to UHD 4K60, and the 3G-SDI port supports up to 1080p60 input and output.
L-Series Battery
Can be powered using one Sony L-series/F-970 battery or via a 12V power supply, both available separately.
In the Box
- Lilliput HT5S 5.5" Ultrahigh 2000 cd/m² Brightness Touchscreen On-Camera Monitor
- HDMI to Micro-HDMI Cable
- Coiled LANC Cable
- Ball Head to Shoe Mount Support
- USB-A Disk Drive
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Ultrabright for Outdoor Viewing
- Touchscreen Control
- Sony LANC Control
- HDR and 3D LUT Support
- Image Display Functions
- HDMI and 3G-SDI Input/Output
- L-Series Battery
Lilliput HT5S Specs
Key Specs
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Video I/O |
1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Loop Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Battery Type |
1x L-Series
|
| Power Consumption |
14 W (Maximum)
|
Display
| Panel Type |
LCD
|
| Display Size |
5.5" / 14.0 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160°
Vertical: 160° |
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Compatibility |
Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
400 ppi
|
| Color Gamut |
100% Rec. 709
|
| Image Controls |
Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom
|
Inputs / Outputs
| Video I/O |
1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x HDMI 2.0 Loop Output 1x BNC (3G-SDI) Loop Output |
| Embedded Audio |
HDMI: 8-Channel
SDI: 2-Channel |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone/Monitor Output
|
| Built-In Speaker |
1
|
| Power I/O |
1x Barrel (24 VDC) Input
|
| Other I/O |
1x USB-A (Firmware), (LUT Upload)
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| Gamma Curve |
ARRI Log C, Canon Log, JVC J-Log, Nikon N-Log, Sony S-Log 2, Sony S-Log 3, V-Log
|
Power
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
1x L-Series
|
| Power Consumption |
14 W (Maximum)
|
Environmental
| Environmental Protection |
No
|
| Certifications |
FCC, CE, UKCA
|
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Dimensions |
6.1 x 3.7 x 1" / 154.8 x 93.8 x 26.5 mm
|
| Weight |
10.9 oz / 310 g
|
Packaging Info
| Package Weight |
1.905 lb
|
| Box Dimensions (LxWxH) |
8.6 x 5.1 x 3.6"
|
