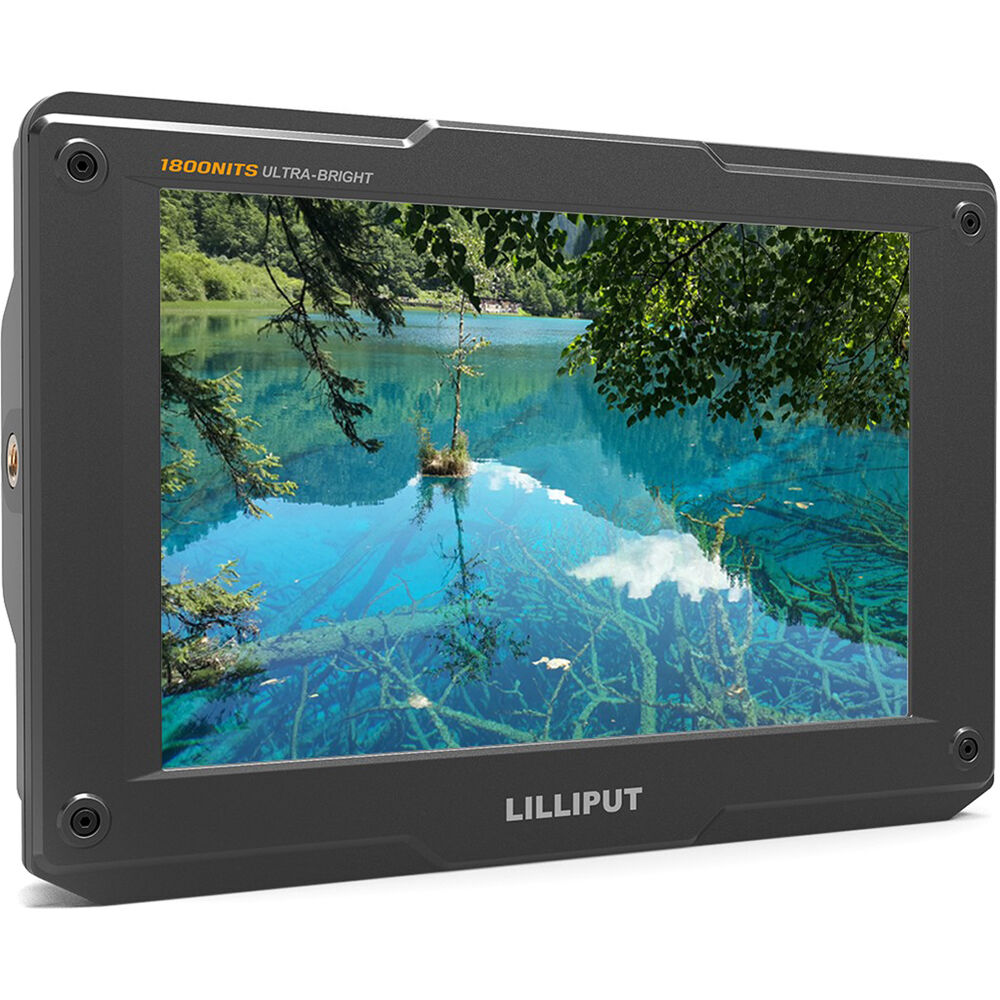

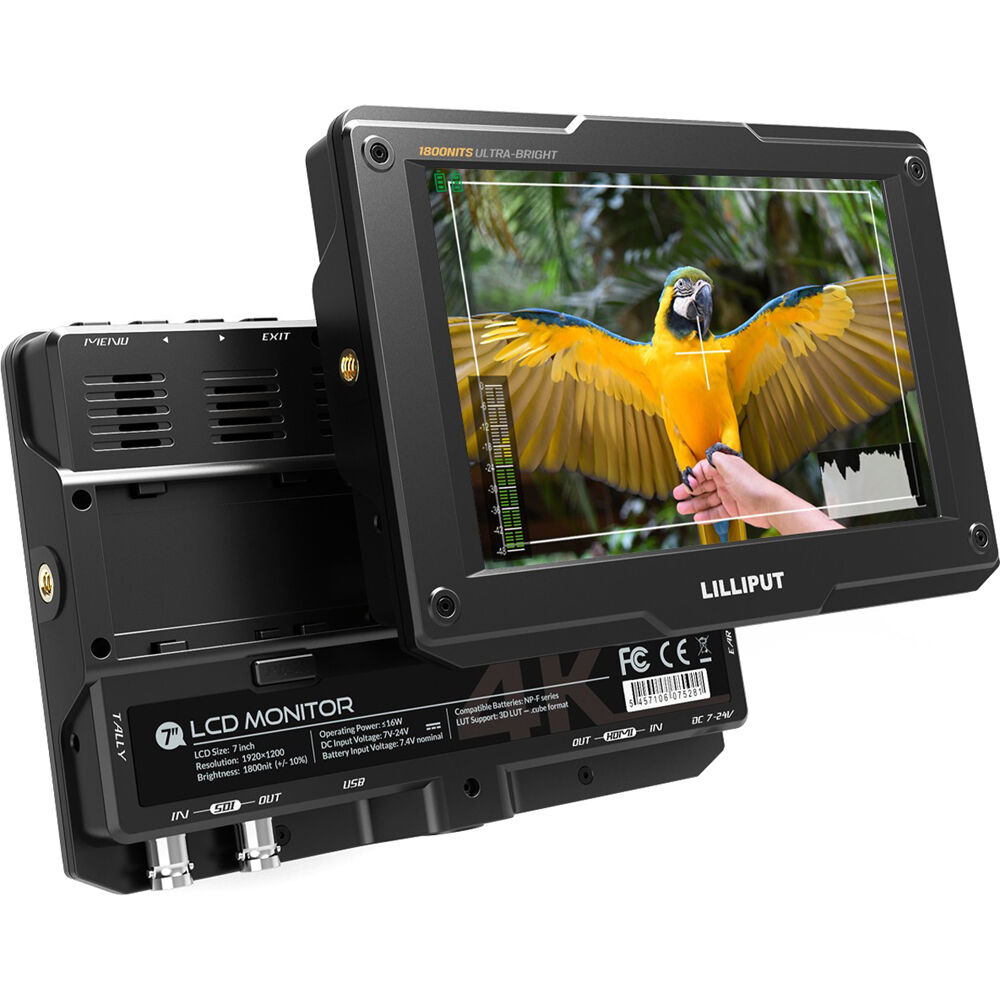

Lilliput H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor

1920 x 1200 Native, 2840 x 2160 Maximum

1800 cd/m² Brightness, HDR Support

1200:1 Contrast Ratio, 16:10 Aspect

HDMI/3G-SDI Inputs/Outputs, Tally Input

Monitor your 4K camera images with the H7S 7" 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor from Lilliput . The H7S features 3G-SDI and HDMI 1.4 inputs, making it suitable for DCI 4K24 and UHD 4K filmmaking and photography. With a 16:10 aspect ratio, an ultra-bright 1800 cd/m² display, and a 1200:1 contrast ratio, the LCD panel displays Full HD images natively in 1920 x 1200, up to a maximum resolution of 2840 x 2160. The HDMI loop-through output function allows you to output via 3G-SDI or HDMI to any other compatible device.

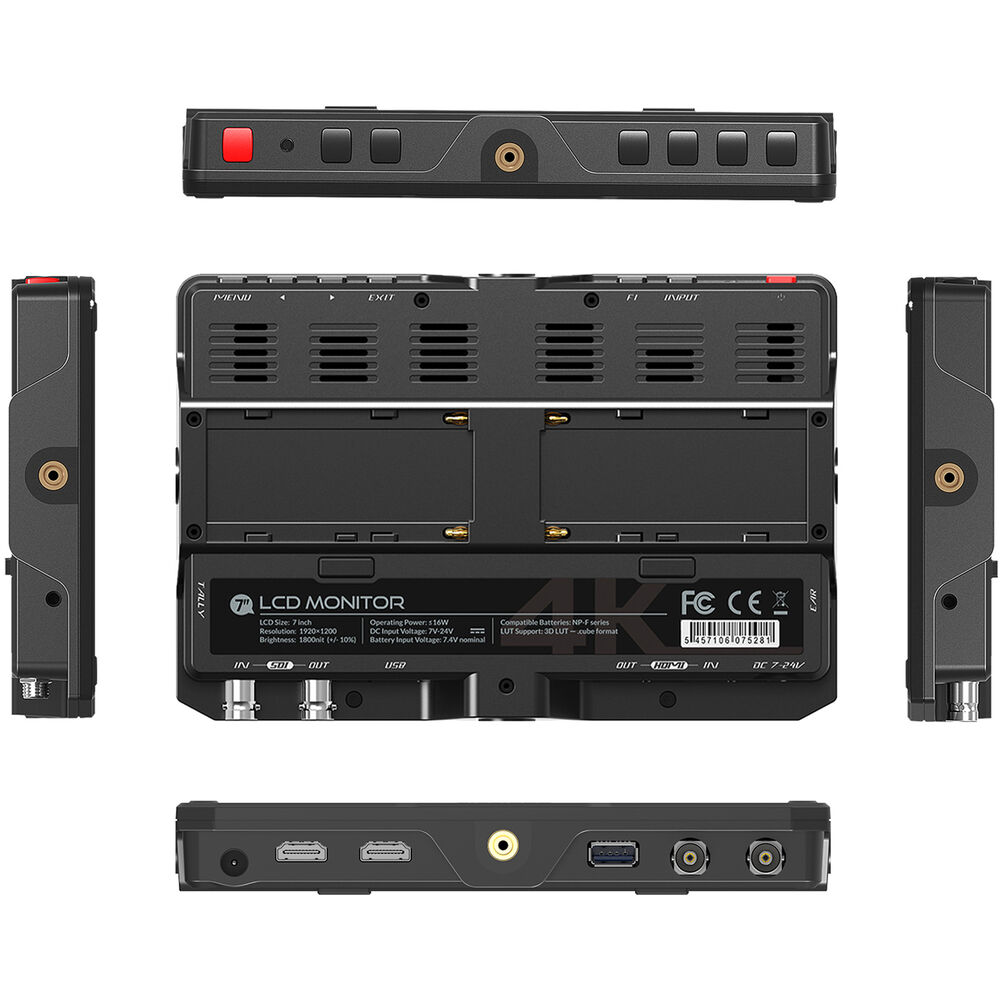

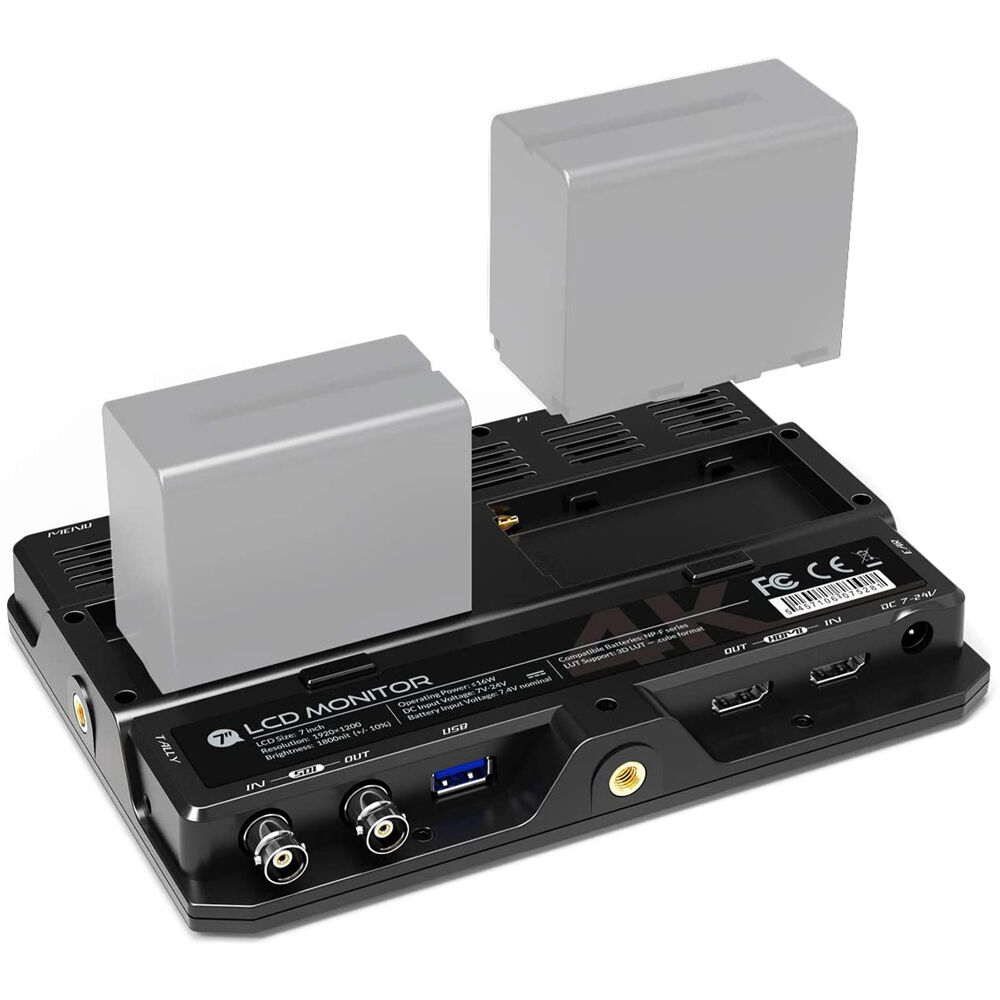

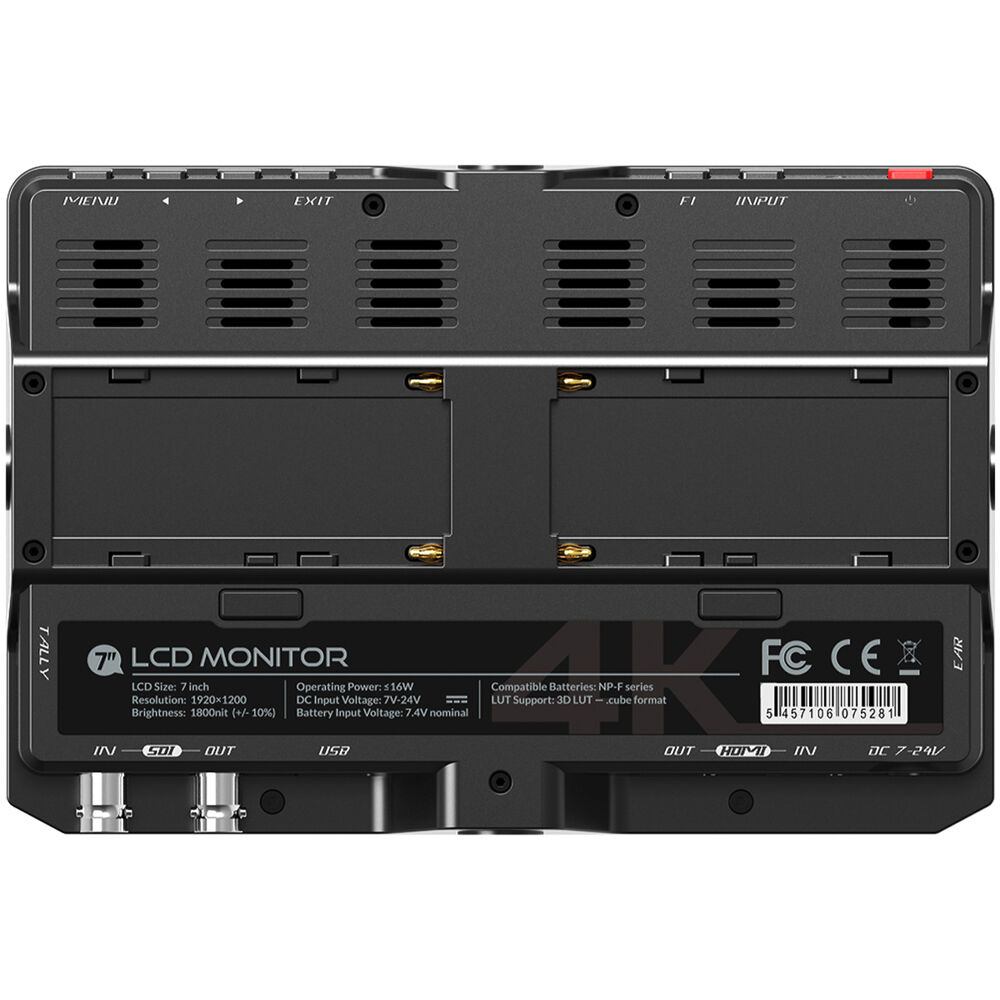

The H7S supports loading 3D LUTs via the USB port on the bottom, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log Gamma). On the back of the monitor is a dual L-series battery plate so you can power the monitor for a long shoot. The batteries are also hot-swappable so you can charge one battery and then swap out the other while the monitor is in use, without having to power it down.

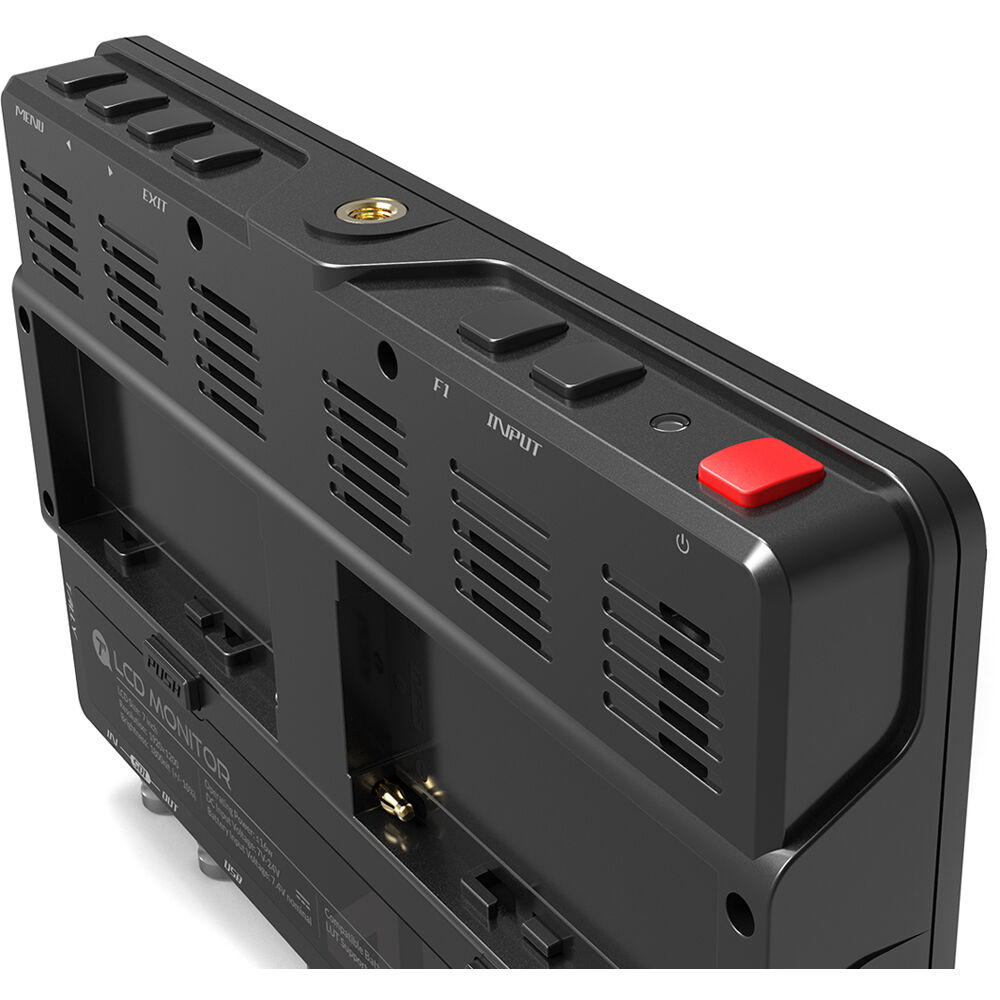

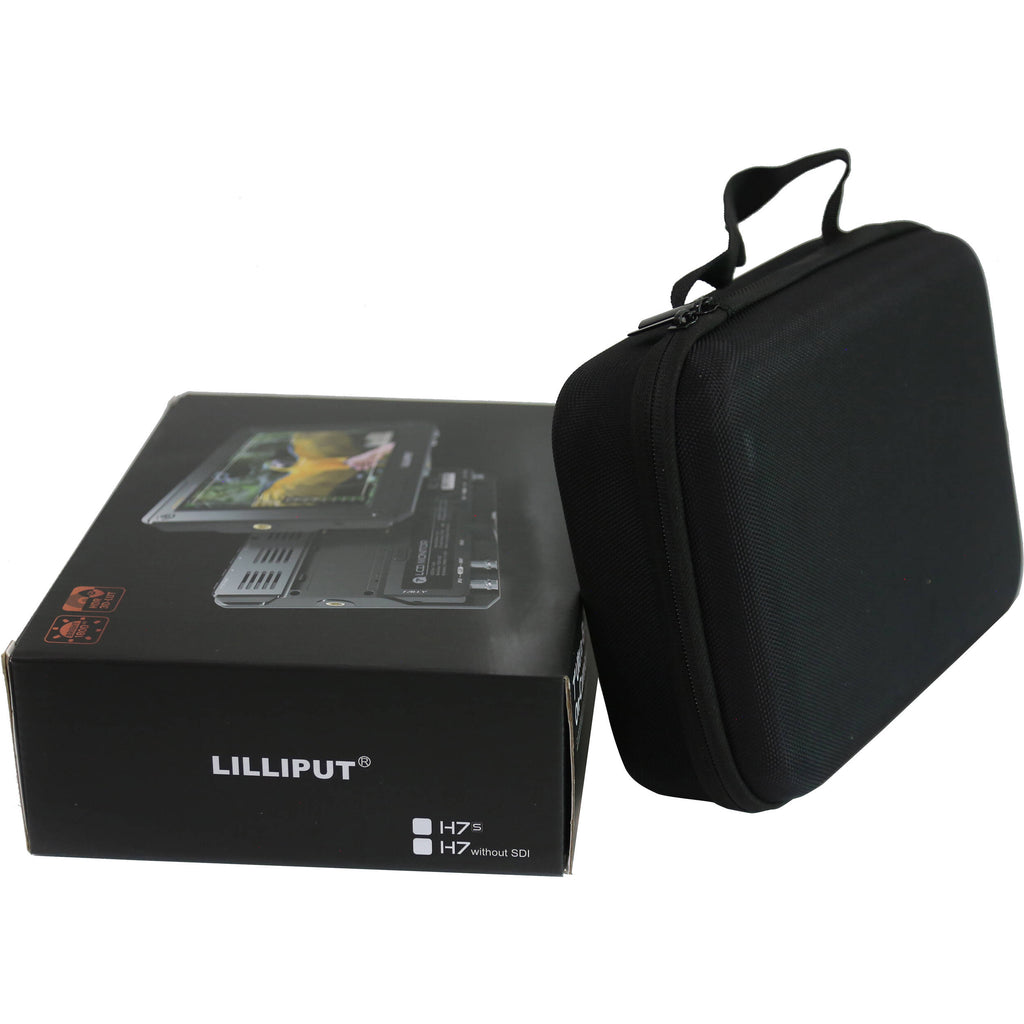

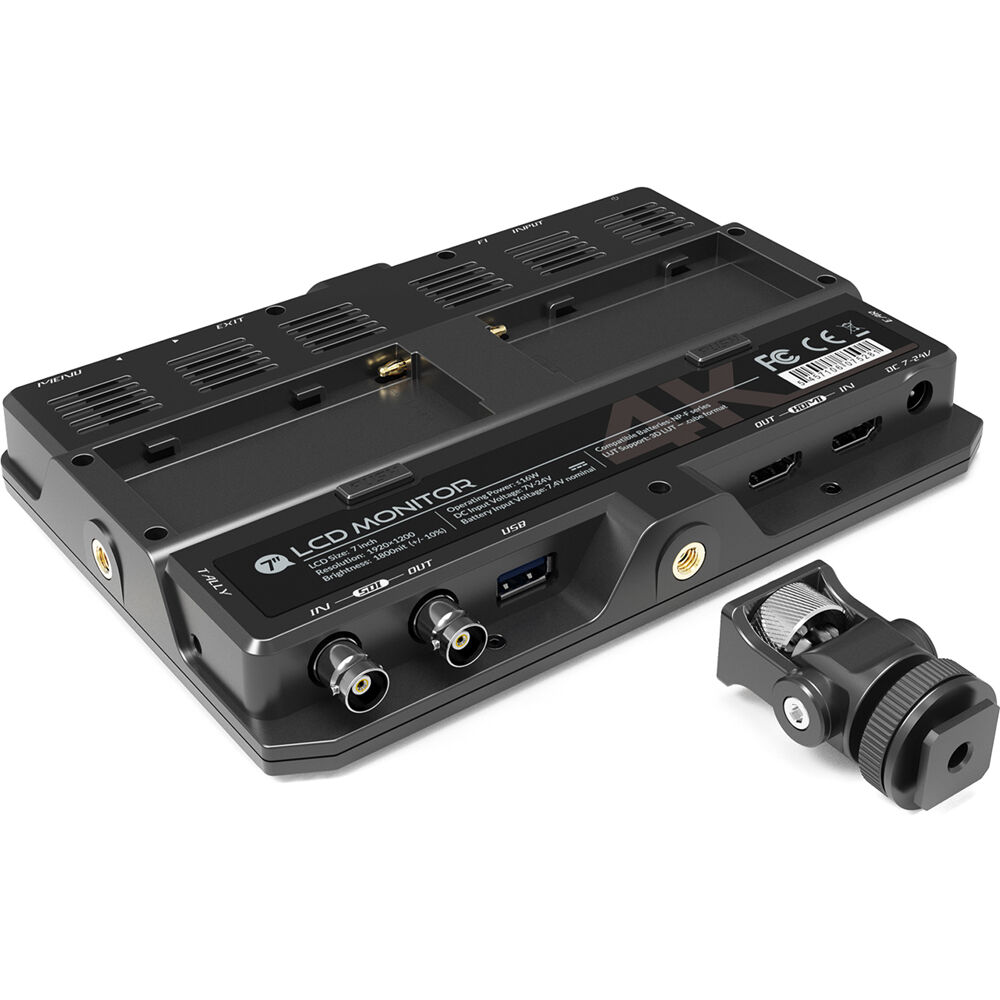

The monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20, or with threads on the bottom or sides. An HDMI type A to type C cable, a tally cable, and a carry bag are also included in the box.

7" bright 1800 cd/m² display; 1200:1 contrast ratio DCI and UHD 4K compatible; HDR support Support for 3D LUTs, which are loaded via the USB port on the bottom HDMI and 3G-SDI input and output; tally input Advanced functions such as pixel zoom, level meter, peaking, false color, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze Dual-battery Sony L-series/F-970 battery plate on back; batteries are hot-swappable Includes shoe mount adapter tilts 180° and rotates 360° Three 1/4"-20 mounting threads on bottom and sides

Number of Displays	1
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160° Vertical: 60°
Touchscreen	No
Maximum Brightness	1800 cd/m 2
Contrast Ratio	1200:1
Dot Pitch	0.07870 x 0.07875 mm
Pixels Per Inch (ppi)	323 ppi
Real-Time LUT Monitoring	HDR

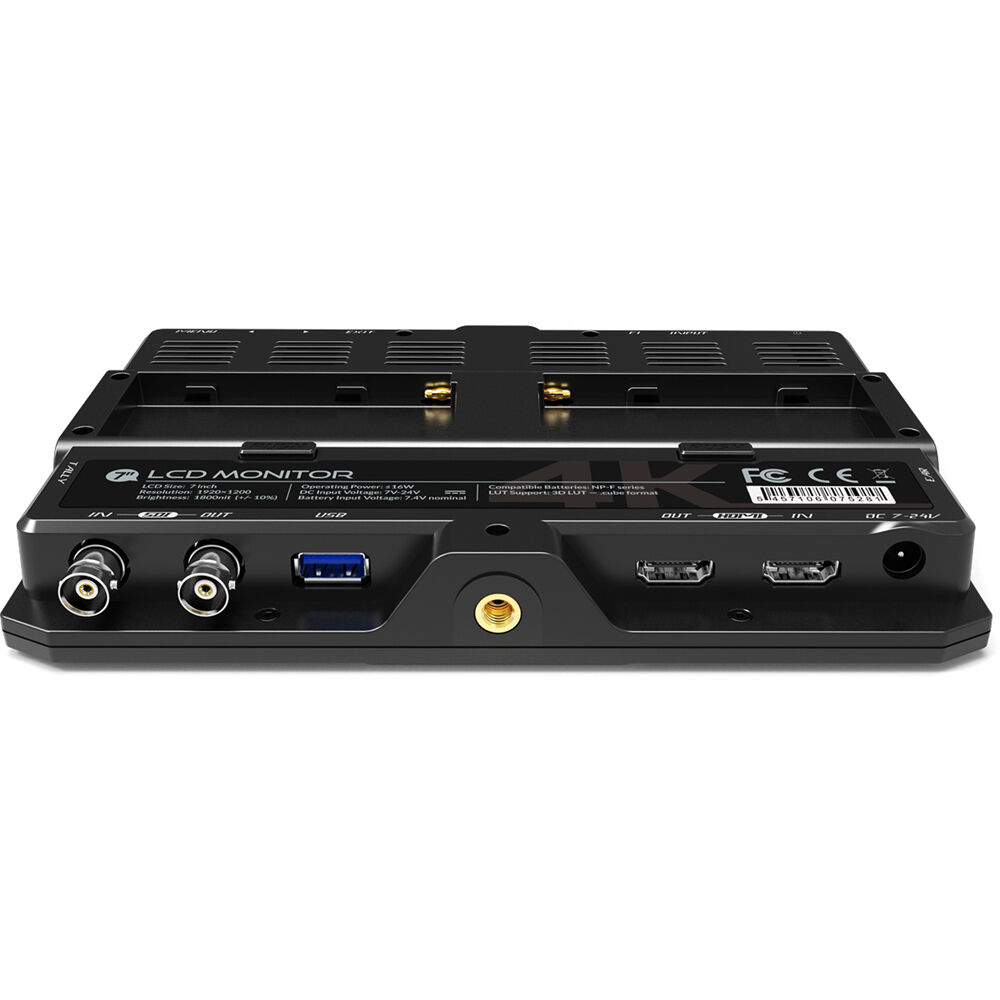

Video	1 x HDMI Type A (HDMI 1.4b) Input 1 x HDMI Type A (HDMI 1.4b) Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Output
Audio	1 x 3.5 mm Headphone Input
Built-In Speaker	1 x 1 W
Other I/O	1 x Tally (BNC) Input 1 x USB 2.0 (USB Type-A) Input
Card Slot	None
Wi-Fi	None

Video Format

HDMIRGB DCI 4K: 24 UHD 4K: 30/24 DCI 2K 1080p

DC Input Power	7 to 24 VDC
Battery Type	2 x L-Series
Power Consumption	16 W (Maximum)

Mounting

3 x 1/4"-20 Female

Operating Humidity	0 to 90%
Operating Temperature	32 to 140°F / 0 to 60°C
Storage Temperature	14 to 140°F / -10 to 60°C

Dimensions (W x H x D)	8.86 x 6.1 x 0.91" / 225 x 155 x 23 mm
Weight	19.40 oz / 550 g
Warranty Length	Limited 1-Year Warranty

Package Weight	2.415 lb
Box Dimensions (LxWxH)	10.4 x 7.7 x 3.4"
