Lilliput H7 7" 4K HDMI Ultrabright On-Camera Monitor

1920 x 1200 Native, 2840 x 2160 Maximum

1800 cd/m² Brightness, HDR Support

1200:1 Contrast Ratio, 16:10 Aspect

HDMI Input/Output, Tally Input

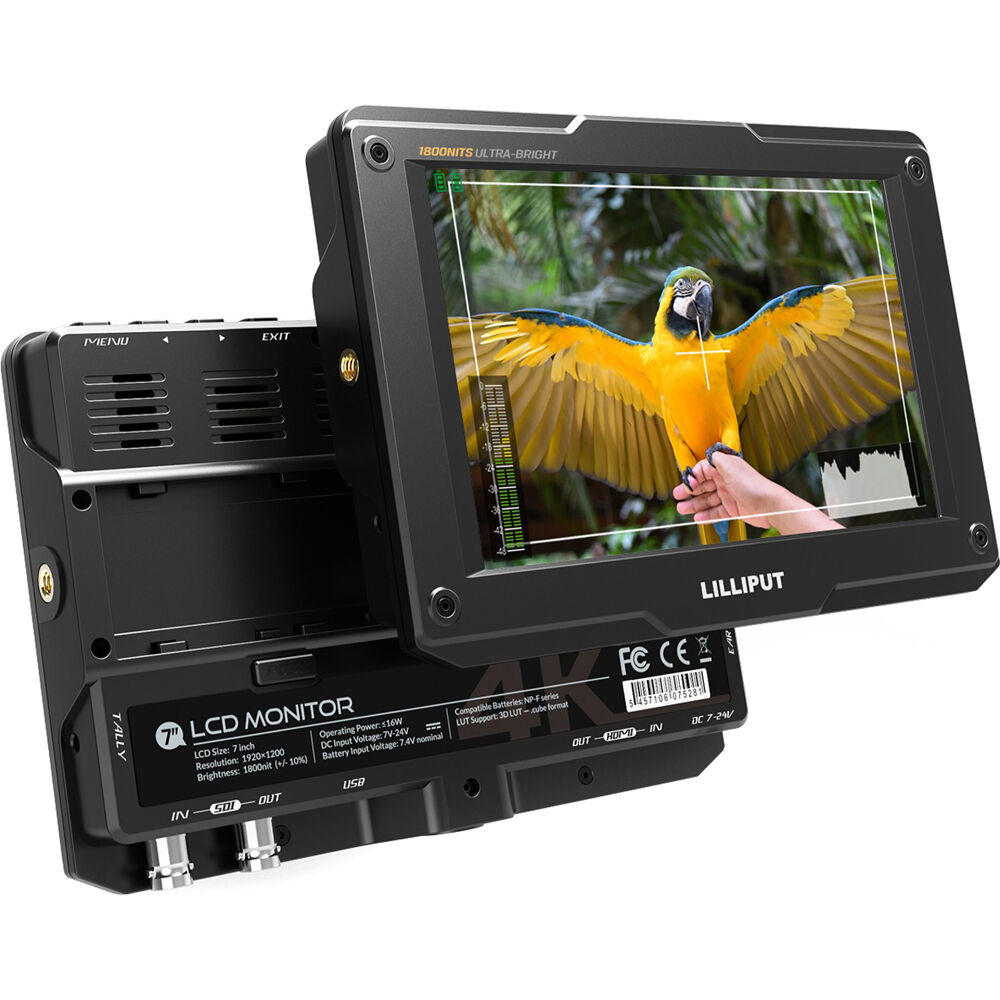

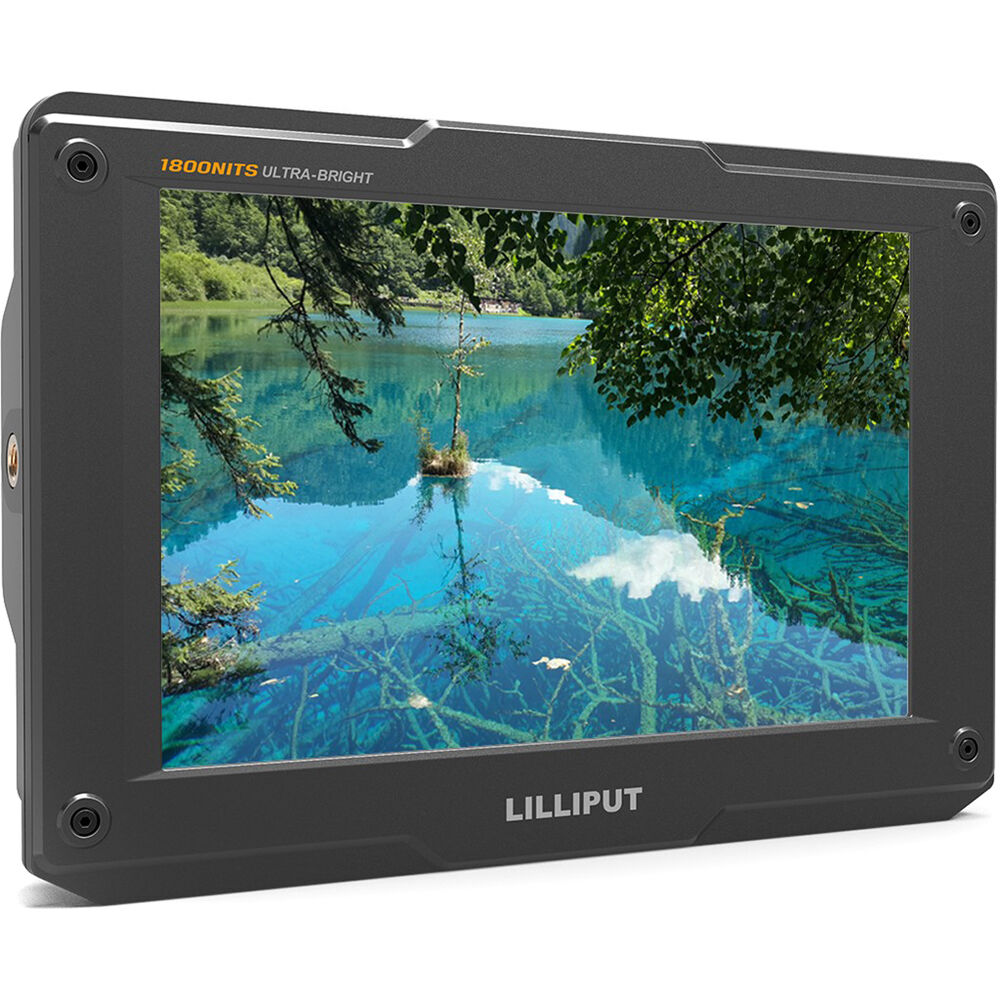

View your 4K video clearly, even in daylight, with the H7 7" 4K HDMI Ultrabright On-Camera Monitor from Lilliput . The H7 features an HDMI 1.4 input, making it suitable for DCI 4K24 and UHD 4K filmmaking and photography. With a 16:10 aspect ratio, an ultrabright 1800 cd/m² display, and a 1200:1 contrast ratio, the H7's LCD panel displays Full HD images natively in 1920 x 1200 and up to a maximum resolution of 2840 x 2160. The HDMI loop-through output function allows you to output via HDMI to a compatible device.

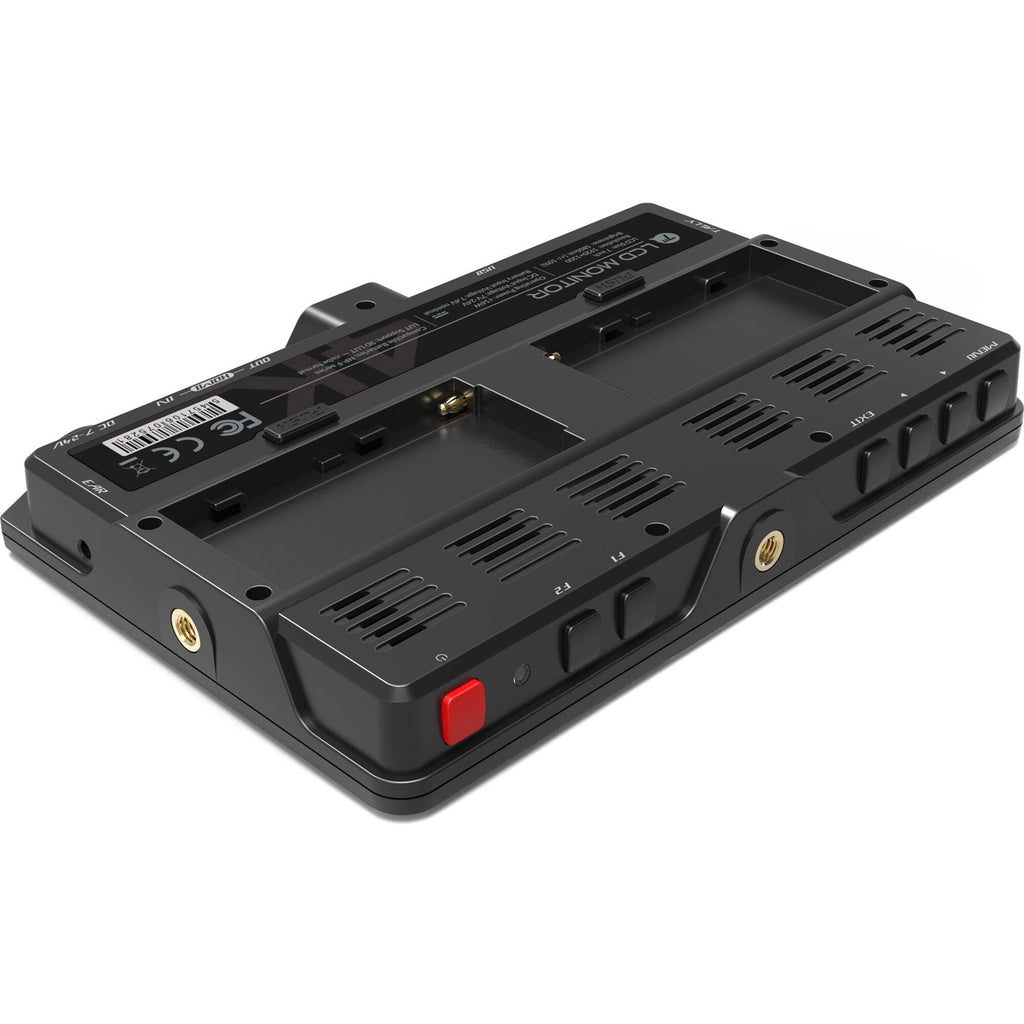

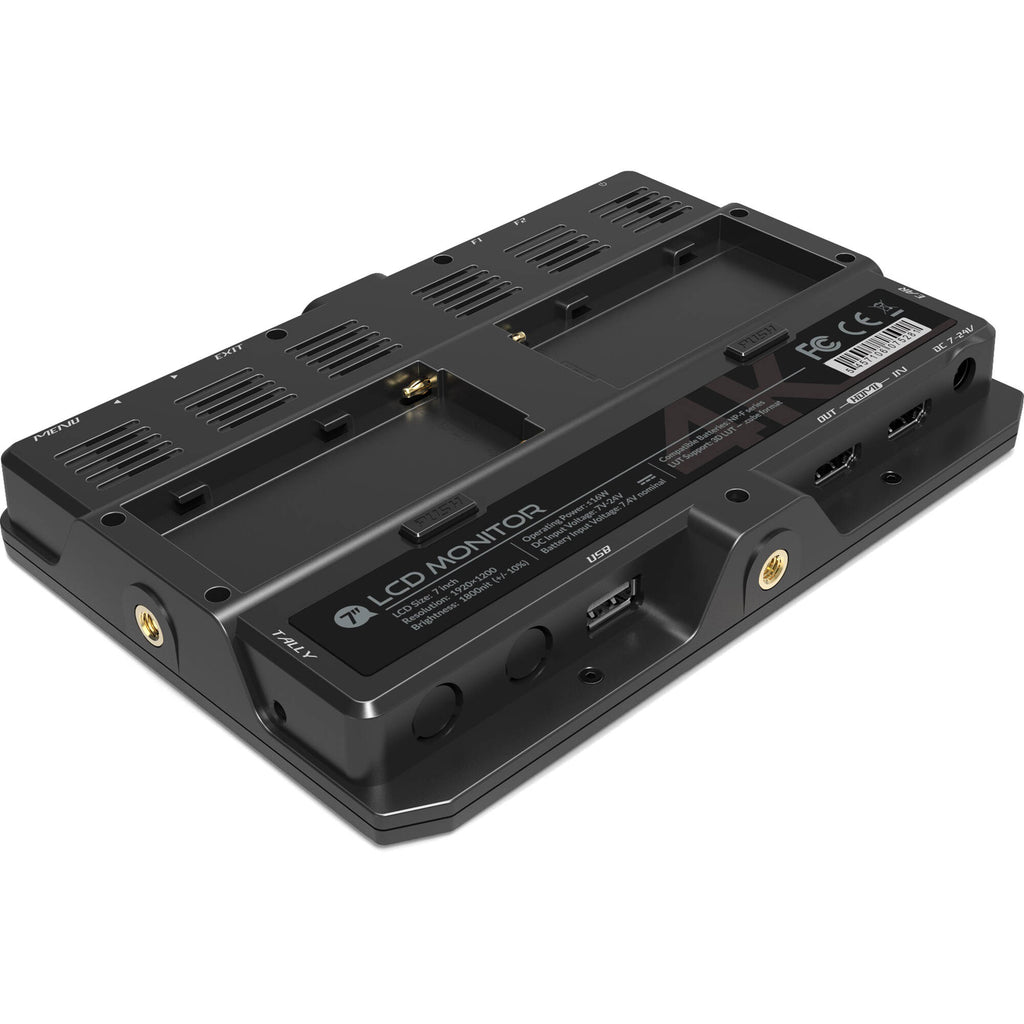

The H7 supports loading 3D LUTs via its USB port, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log-Gamma). On the back of the monitor is a dual L-series battery plate that enables you to power the monitor for a long shoot. The batteries are hot-swappable, so you can detach one of two attached batteries for charging while the monitor is in use without having to power it down.

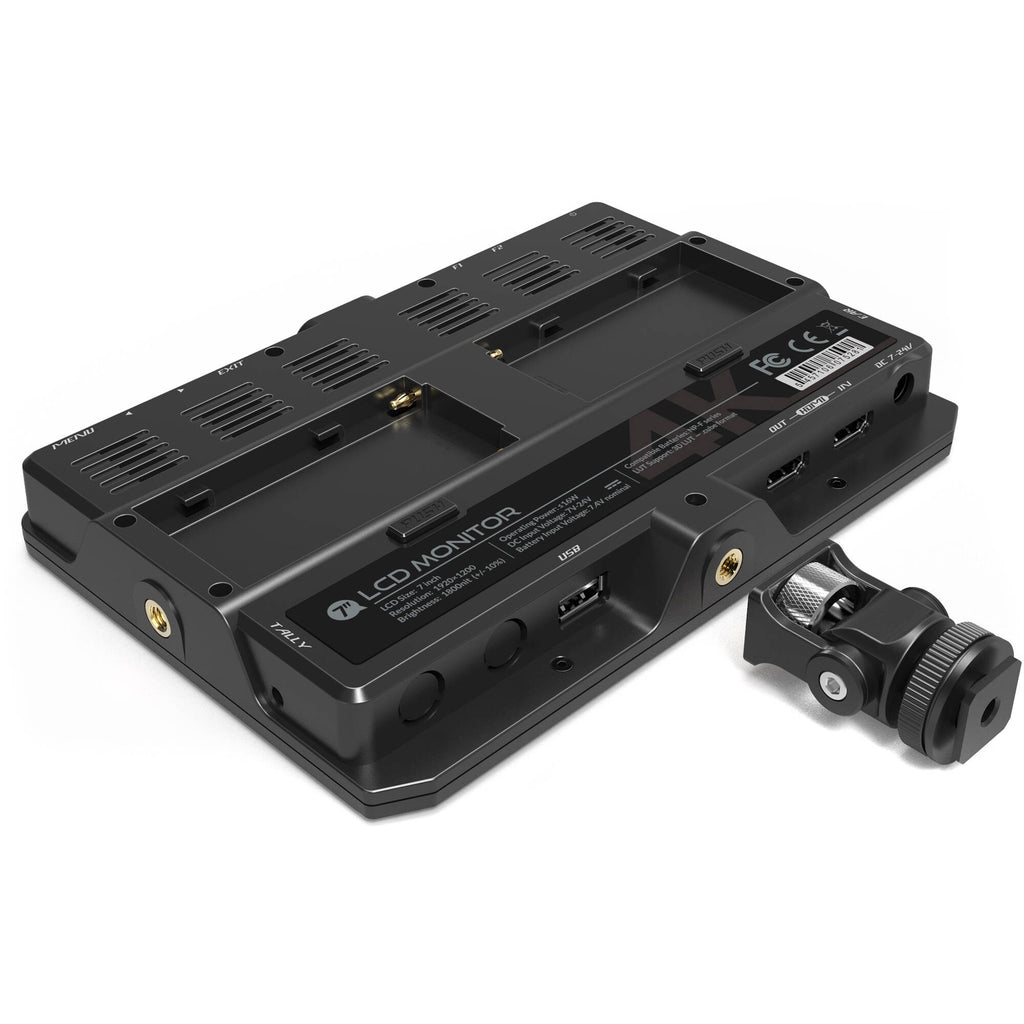

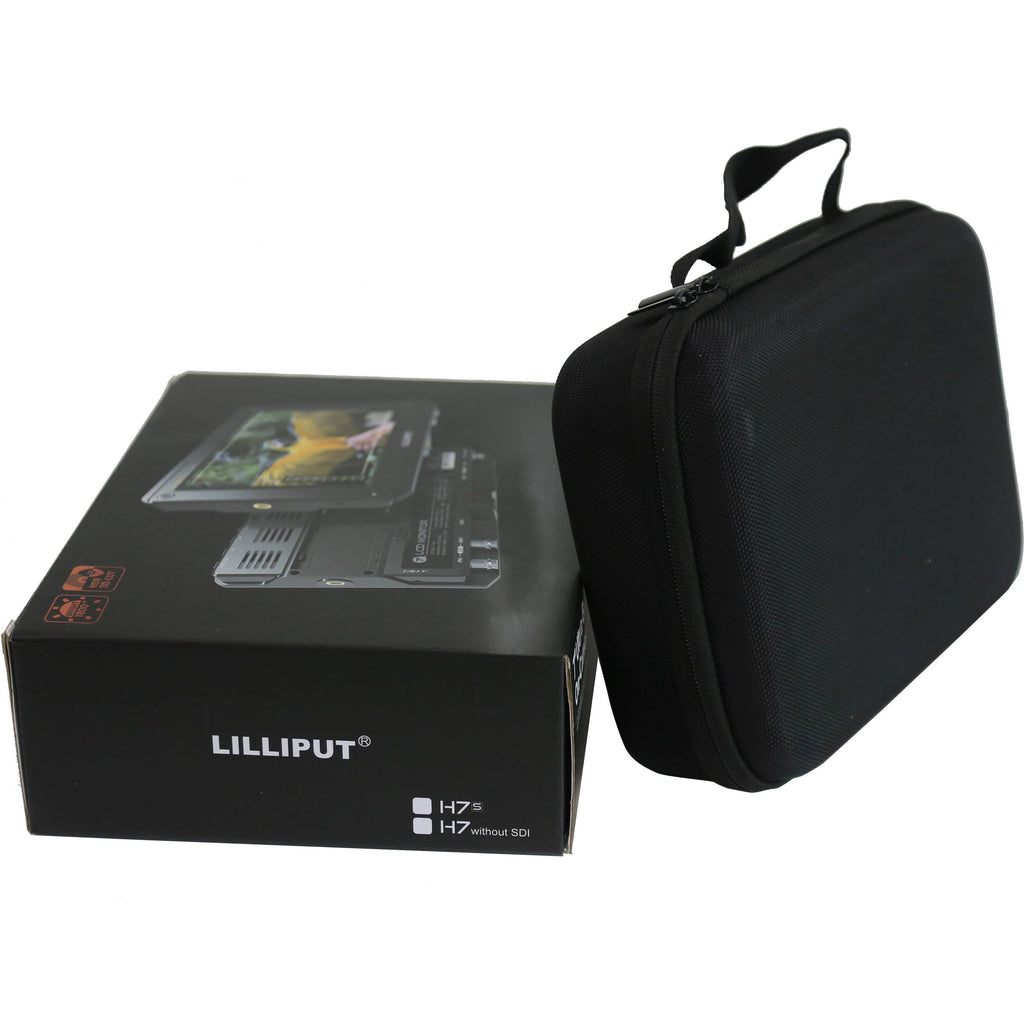

The H7 monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most-used monitor functions using the two customizable function keys. You can mount the Lilliput H7 monitor on your camera by attaching the included shoe mount adapter to the 1/4"-20 or with threads on the bottom or sides. An HDMI Type A to Type C cable, a tally cable, and a carry bag are also included with the monitor.

Ultrabright Display 7" bright 1800 cd/m² display; 1200:1 contrast ratio 4K and HDR Compatible DCI and UHD 4K compatible; HDR support 3D LUT Support Supports 3D LUTs loaded via the USB port on the monitor bottom HDMI Input/Output and Tally Input HDMI input and output; tally input Advanced Imaging Tools Advanced functions such as pixel zoom, level meter, peaking, false color, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze Hot-Swappable L-Series Battery Support Dual-battery Sony L-series/F-970 battery plate on the back; batteries are hot-swappable Tilting Shoe Mount Adapter Includes shoe mount adapter that tilts 180° and rotates 360° 1/4"-20 Mounting Three 1/4"-20 mounting threads on the bottom and sides

Number of Displays	1
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 160° Vertical: 160°
Touchscreen	No
Maximum Brightness	1800 cd/m 2
Contrast Ratio	1200:1
Dot Pitch	0.07870 x 0.07875 mm
Pixels Per Inch (ppi)	323 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	HDR
Image Controls	Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Screen Markers, Zebra

Video	1 x HDMI Type A (HDMI 1.4b) Input 1 x HDMI Type A (HDMI 1.4b) Output
Embedded Audio	HDMI: 2-Channel
Audio	1 x 3.5 mm Headphone Input
Built-In Speaker	1 x 1 W
Other I/O	1 x Tally (BNC) Input 1 x USB 2.0 (USB Type-A) Input
Card Slot	None
Wi-Fi	None

Video Format

HDMIRGB DCI 4K: 24 UHD 4K: 30/24 DCI 2K 1080p

DC Input Power	7 to 24 VDC
Battery Type	2 x L-Series
Power Consumption	16 W (Maximum)

Mounting

3 x 1/4"-20 Female

Operating Humidity	0 to 90%
Operating Temperature	32 to 140°F / 0 to 60°C
Storage Temperature	14 to 140°F / -10 to 60°C

Dimensions (W x H x D)	8.86 x 6.1 x 0.91" / 225 x 155 x 23 mm
Weight	18.9 oz / 535 g
Warranty Length	Limited 1-Year Warranty

Package Weight	2.38 lb
Box Dimensions (LxWxH)	10.3 x 7.8 x 3.4"
