Description

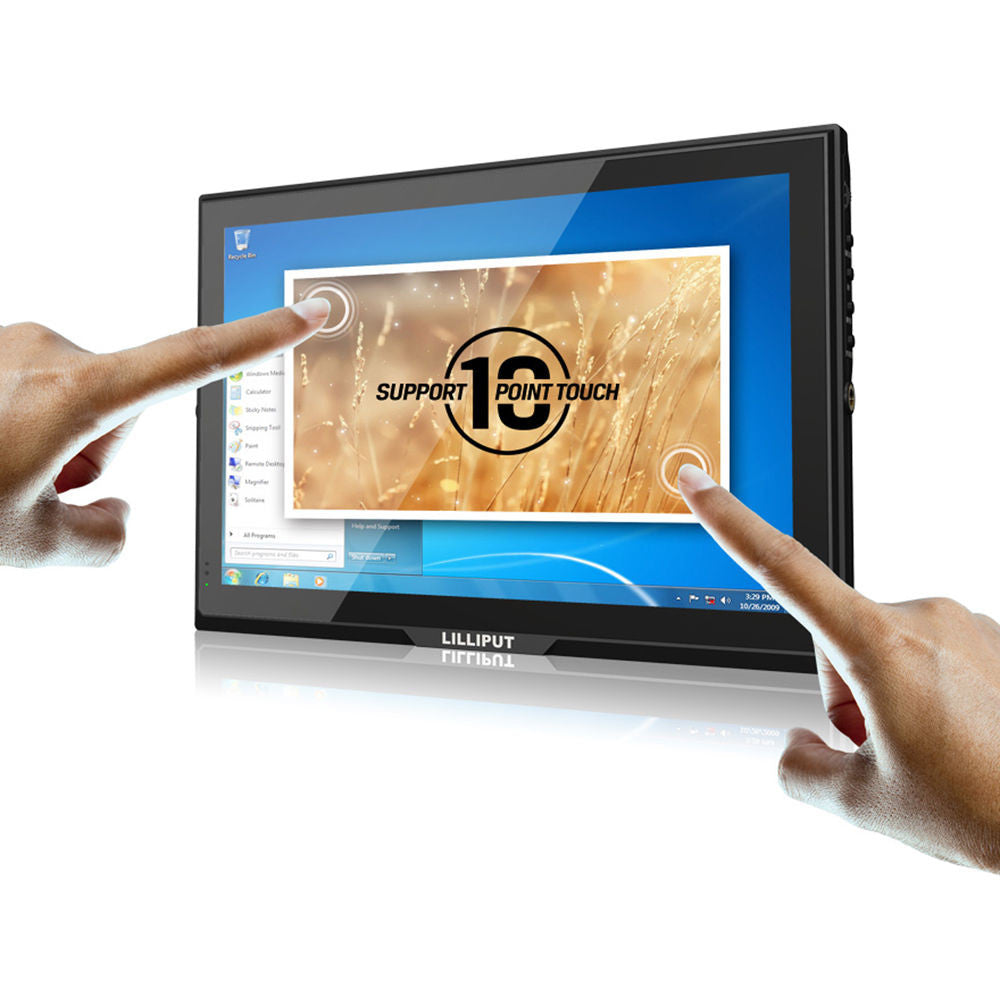

The LILLIPUT FA1014-NP/C/T 10.1" IPS HDMI Monitor features a 10-point capacitive touch panel with high precision, fast response, and better transmittance, allowing image flip and zoom in/out via touch functionality. It offers a native resolution of 1280 x 800 with 350 cd/m² brightness and contrast ratio of 800:1. It features HDMI, DVI, VGA, and AV inputs, and supports resolutions up to 1920 x 1080 resolution via HDMI.
This LCD monitor with IPS panel offers a wide viewing angle of 170° (horizontal & vertical) for good color and contrast reproduction when viewed slightly off-center at different angles. It also adopts an integrated front panel that protects the screen from mild liquid droplets and dust. The I/O control interface has functions such as connecting to the reverse trigger line in car reversing systems or controlling the computer host (switch on/off), etc. These functions can be customized as per your requirements.
- 10.1" IPS display monitor with 1280 x 800 native resolution
- 10-point touch capacitive screen supports Windows 7 or above
- Integrated dustproof front panel protects the screen from mild liquid droplets and dust
- 170° (horizontal and vertical) wide viewing angle
- 350 cd/m² brightness and 800:1 contrast ratio
- HDMI, DVI, VGA, & AV inputs
- I/O control interface
| Display Screen | 10.1" (25.6 cm) LED backlit |
| Resolution | 1280 x 800 (DOT) Supports up to 1920 x 1080 |
| Active Area (WxH) | 8.54 x 5.34" (216.96 x 135.6 mm) |
| Dot Pitch | 0.0565 x 0.1695 mm |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 800:1 |
| Brightness | 350 cd/m² |
| Viewing Angle | 170° / 170° (H/V) |
| Touch Panel | 10-point capacitive |
| Response Time | Typical: 10 msec (Rise Time) 15 msec (Fall Time) Maximum: 20 msec (Rise Time) 30 msec (Fall Time) |
| HDMI Format Support | 1080i (60/59.94/50 Hz) 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976 Hz) 1035i (60/59.94 Hz) 720p (60/59.94/50/30/29.97/25 Hz) 576p (50 Hz) 576i (50Hz) 480p (60/59.94 Hz) 480i (60/59.94 Hz) |
| Input Connectors | AV1, AV2, PC (VGA), HDMI, & DVI |
| Speaker | Built in |
| Audio Output | ?1 W |
| Interface | AV, DC Power, HDMI, VGA, I/O port |
| Light Source | Single LED (Side-light type) |
| Control | Basic: Dial, Menu, FN, Input, Power Advance: Brightness, Contrast, Saturation, Tint, Sharpness, Volume, Color Temp, Center Marker, Safety Marker, Aspect Ratio, H/V delay, Check Field, Pixel-to-Pixel, Underscan, Zoom, Freeze Input, Auto, H-Position, V-Position, Phase, Clock, Language, Reset, Backlight, Auto Light, Image Flip, Upgrade |
| Supported OS | Windows 7 or above |
| Menu Language | English/Chinese |
| Battery | External (available separately) |
| Input Voltage | 7 to 24 VDC |
| Current | 800 mA |
| Power Supply | 12 VDC, 1500 mA (adapter included) |
| Power Consumption | ?10 W |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operation Temperature | 32 to 122°F (0 to 50°C) |
| Operation Time | 120 hours at 104°F (40°C) and 90% RH |
| Dimensions (L x W x D) | 9.8 x 6.7 x 1.8" (250.0 x 170.0 x 32.3 mm) |
| Weight | 19.8 oz (560.0 g) |
| Packaging Info | |
|---|---|
| Package Weight | 4.15 lb |
| Box Dimensions (LxWxH) | 12.1 x 10.0 x 4.3" |
- 7-Key Remote Control
- HDMI to HDMI Cable with Touch
- I/O Control Line
- Composite Cable
- VGA Cable for Touch
- 12 VDC Adapter
- Limited 1-Year Warranty
