Description
Lilliput RM-7029S Overview
- 1Description
- 23D-LUTs
- 3HDR
- 4Video Assist Functions

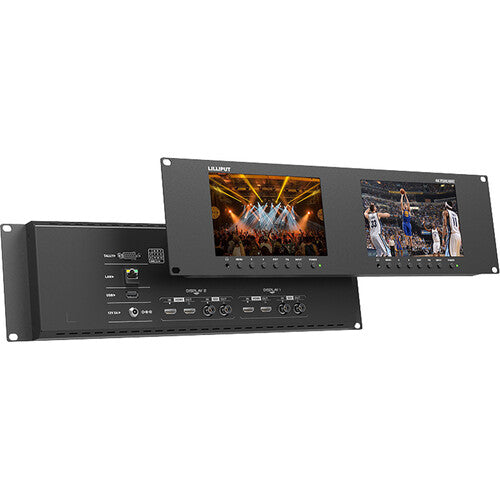

Monitor two different cameras simultaneously for your next live broadcast using the 1920 x 1200 resolution Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI, which can be installed in a video wall or broadcast truck thanks to its 3 RU form factor. Various video assist functions such as false color, histogram, and timecode are independently available for each monitor, allowing production managers to easily and precisely analyze image quality. Custom 3D-LUTs can be uploaded using the USB Type-A input for accurate color comparison.
Two 3G-SDI and two HDMI inputs support video up to 1080p60 and 2160p60 respectively. There are also two 3G-SDI and two HDMI loop outputs, which expand your display options. Control for both monitors is possible with the onboard buttons or using the LAN input and a connected computer to adjust settings like picture, marker, function, source, audio, and tally light. Audio can be monitored via the two 3.5mm headphone jacks.
In the Box
- Lilliput Dual 7" Rackmount Monitors with 3G-SDI & HDMI (3 RU)
- Power Adapter (12 VDC, 2A)
- Tally Connector
- Description
- 3D-LUTs
- HDR
- Video Assist Functions
Lilliput RM-7029S Specs
| Panel Type | LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | No |
| Maximum Brightness | 400 cd/m2 |
| Contrast Ratio | 2000:1 |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | Check Field, False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers |

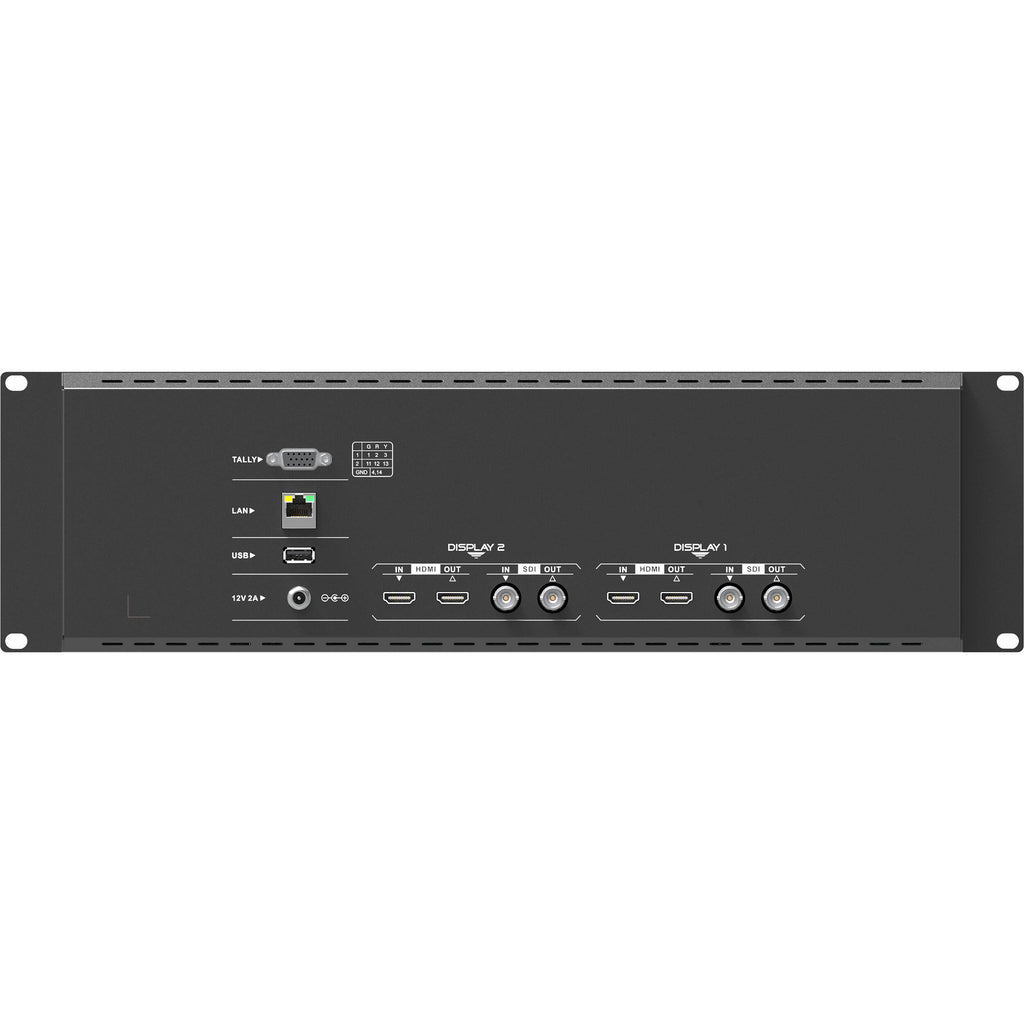

| Video I/O | 2 x BNC (3G-SDI) Input 2 x BNC (3G-SDI) Loop Output 2 x HDMI 2.0 Input 2 x HDMI 2.0 Loop Output |
| Audio I/O | 2 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power I/O | 1 x Barrel (1.5 A / 24 VDC) Input |
| Other I/O | 1 x RJ45 (LAN) Input 1 x DE-15/DB-15 (Tally) Input 1 x USB-A |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | SDI 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI DCI 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
| Gamma Curve | ARRI Log C, Canon Log, JVC J-Log, Panasonic V-Log, Sony S-Log 2, Sony S-Log 3 |
| Video Standard Compliance | SMPTE ST-2084 |
| DC Input Power | 10 to 24 VDC |
| Operating Current | 1.5 A |
| Power Consumption | 16 W |
| Rack Form Factor | 3 RU |
| Operating Temperature | 32 to 82°F / 0 to 50°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Material of Construction | Metal |
| Dimensions | 18.9 x 5.2 x 1.2" / 480 x 131.6 x 29.3 mm |
| Weight | 4.9 lb / 2.2 kg |
| Package Weight | 6.26 lb |
| Box Dimensions (LxWxH) | 23.6 x 7.5 x 3.7" |
