Description

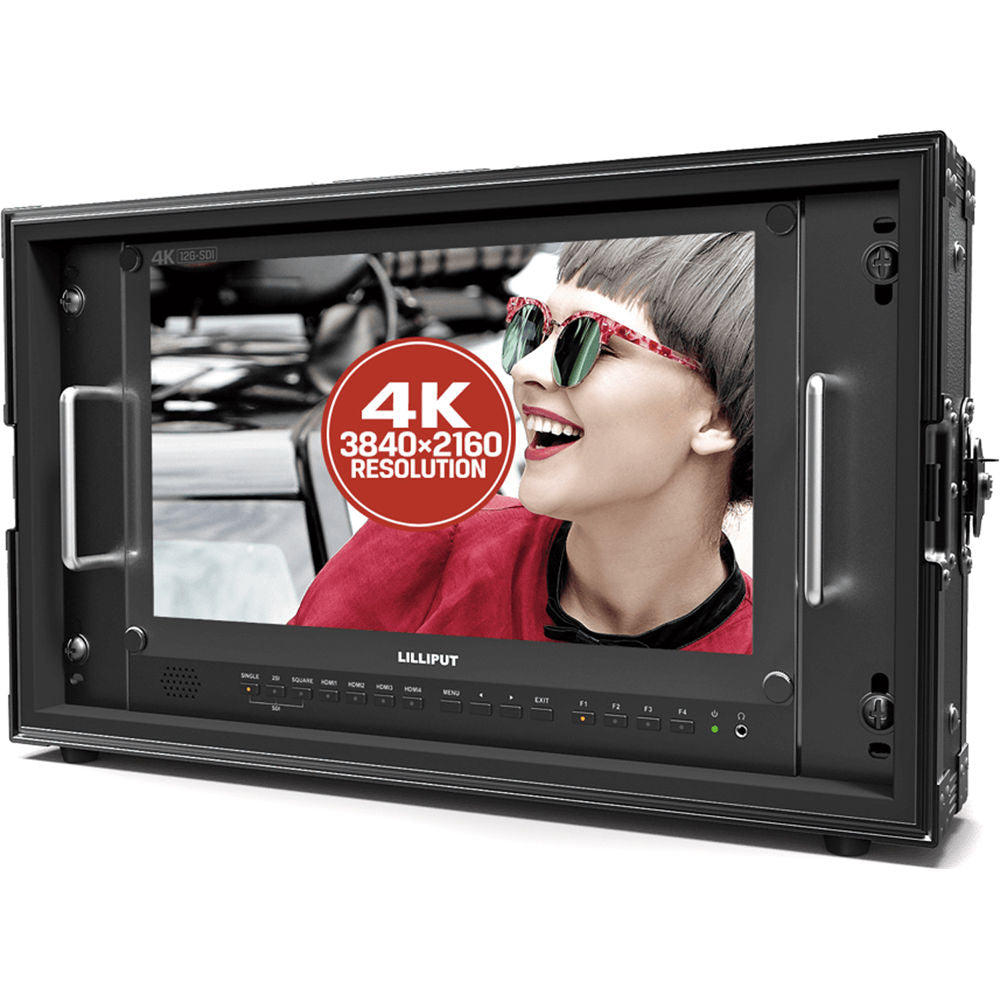

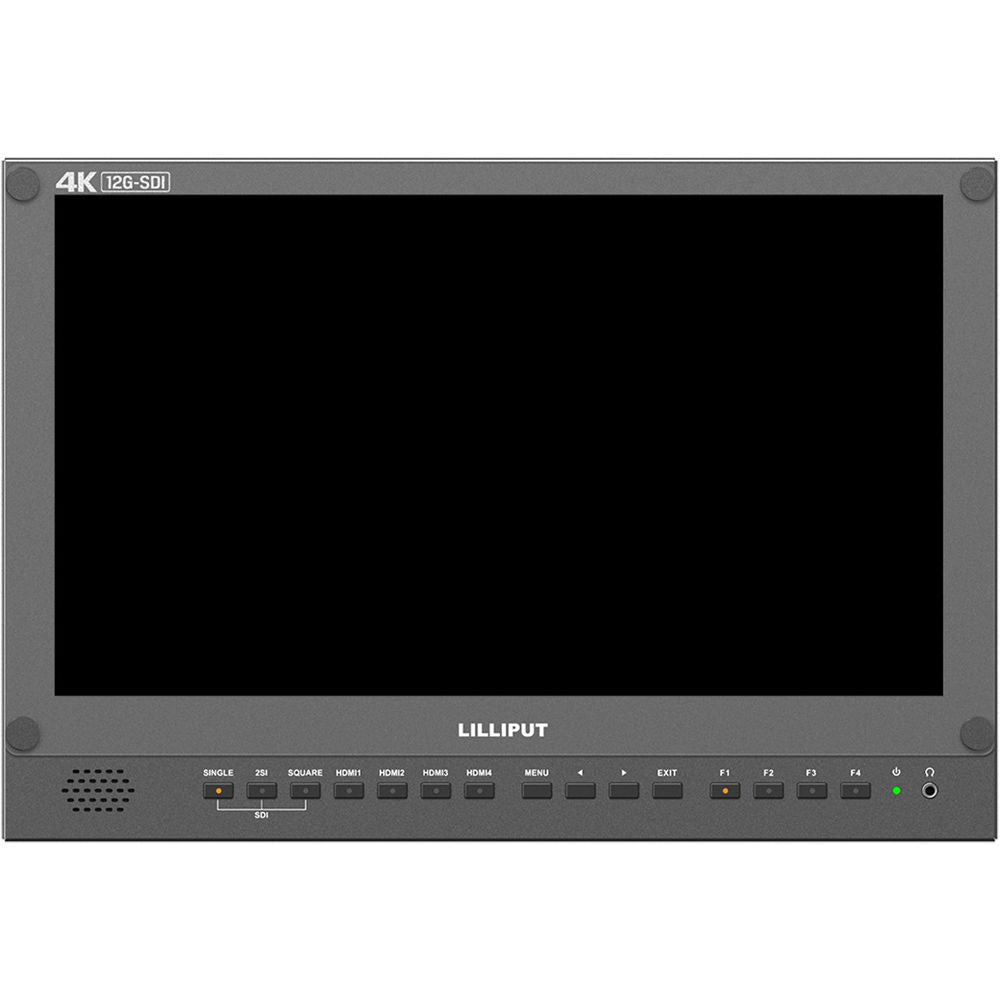

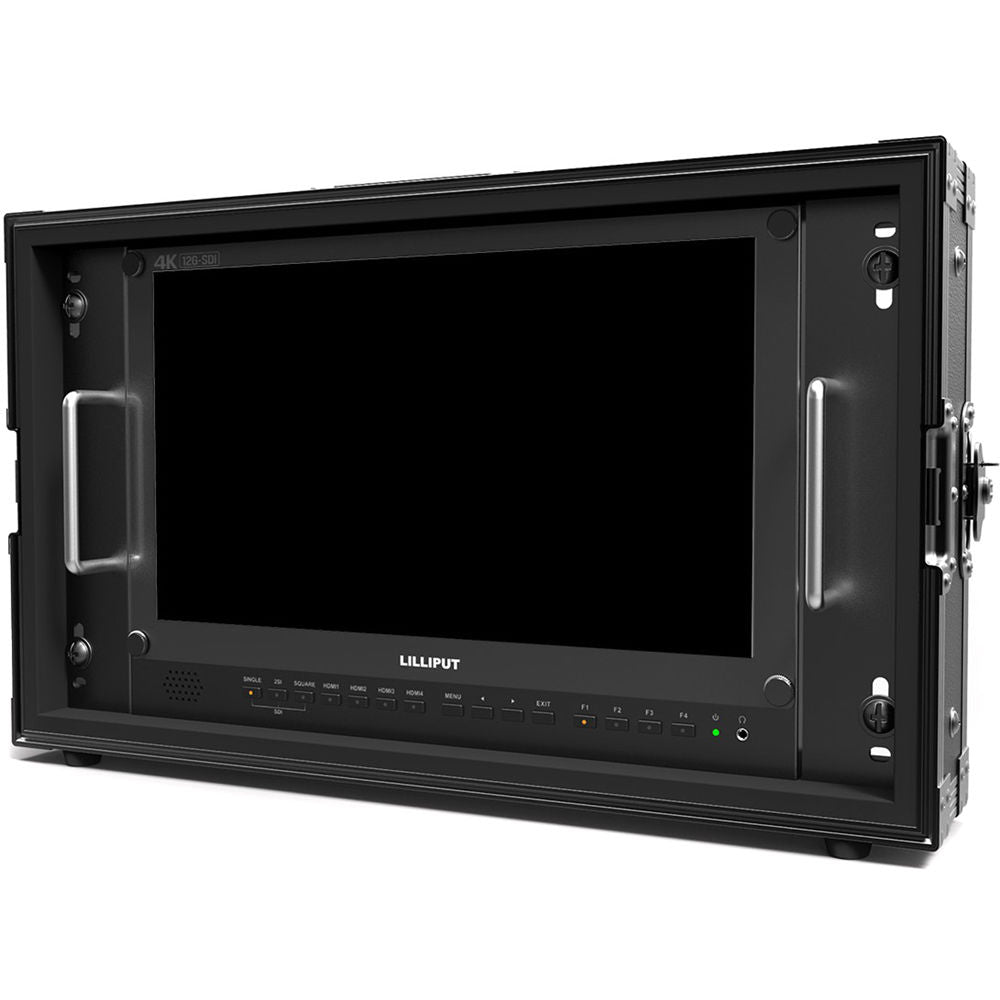

The 15.6" 4K Broadcast Monitor from Lilliput features a native resolution of 3840 x 2160. It supports 12G-SDI single-link signal input and loop output. This monitor is backward compatible with 6G-SDI, 3G-SDI, HD-SDI, and SDI input signals. It supports quad views from different input signals simultaneously, such as 12G-SDI, 3G-SDI, and HDMI.
- Supports picture-in-picture function
- Supports 6U rackmount

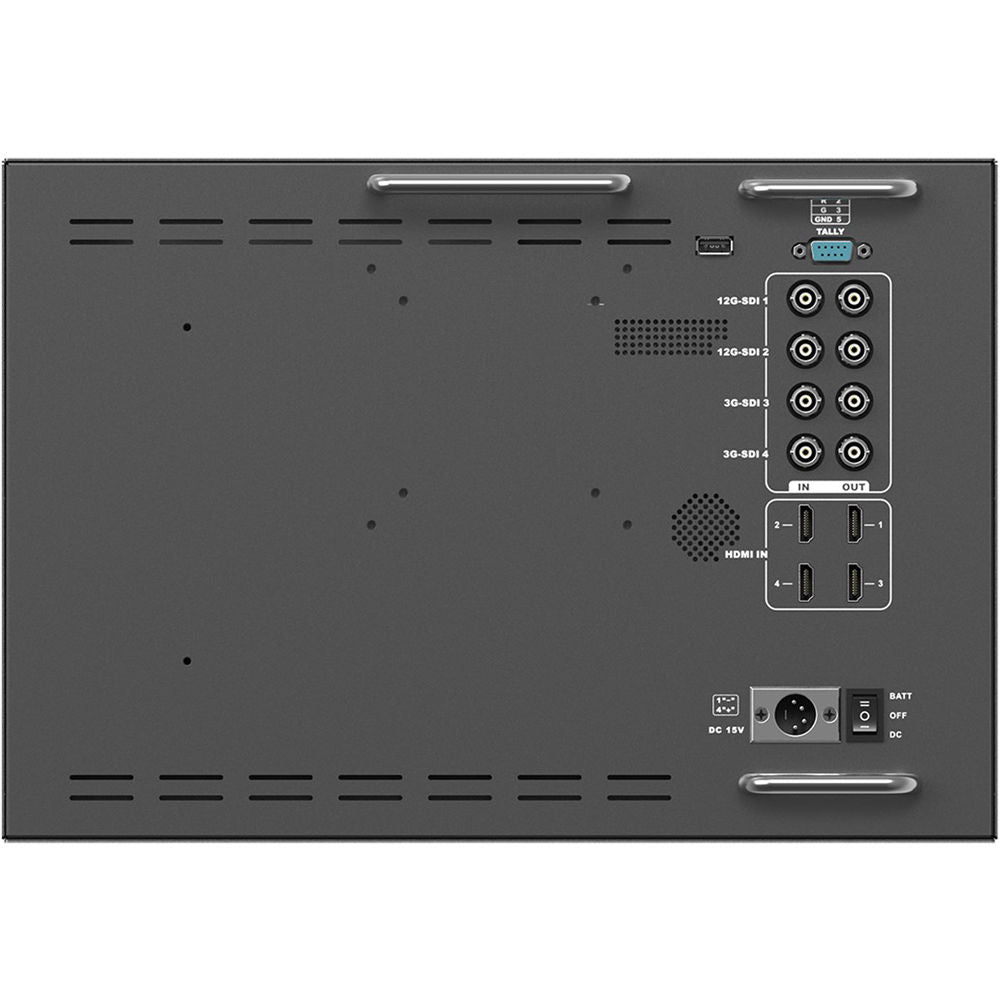

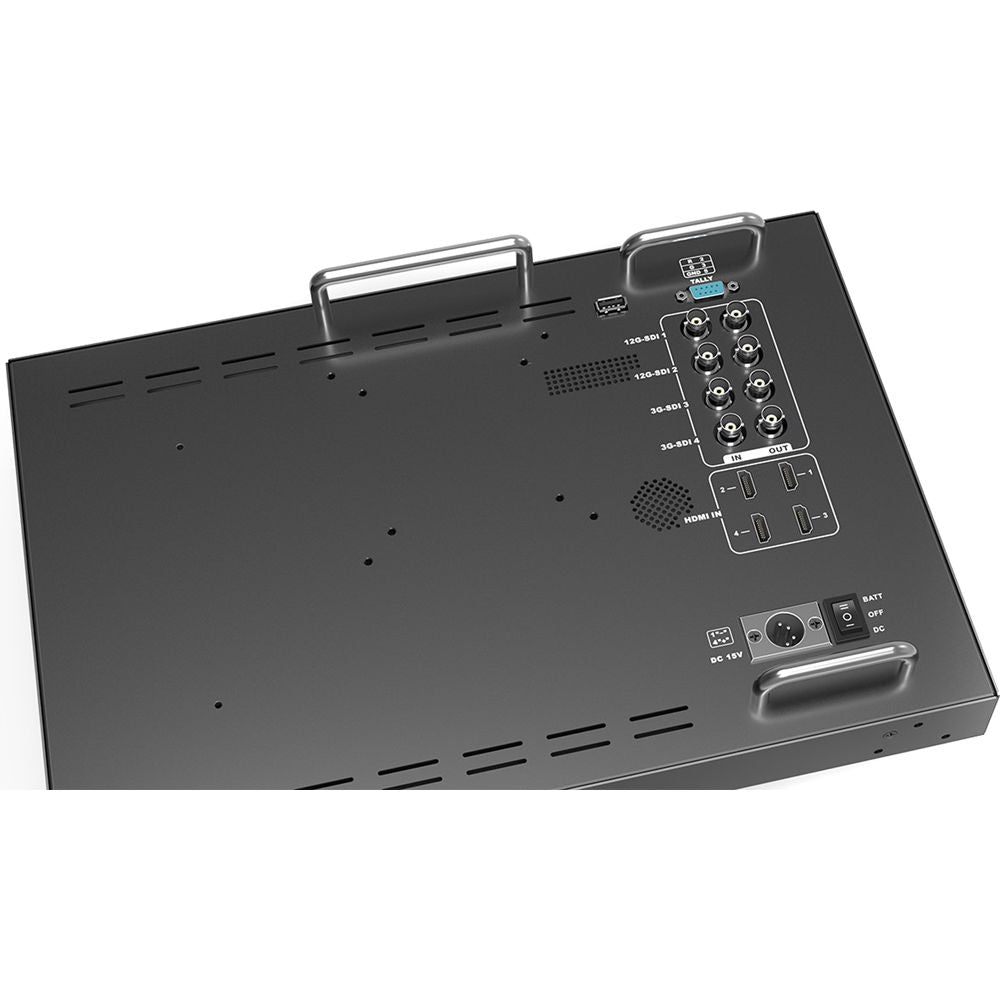

- Interfaces: 2 x 12G-SDI, 2 x 3G-SDI, 1 x HDMI 2.0, 3 x HDMI 1.4, tally input, 12G-SDI single link, dual link, and 3G-SDI quad link
- Metal housing
| Display | |
|---|---|
| Screen Size | 15.6" (39.6 cm) |
| Screen Type | IPS |
| Resolutions | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Brightness | 330 cd/m 2 |
| Contrast Ratio | 1000:1 |
| Viewing Angle (H/V) | 176°/ 176° |
| Input/Output | |
|---|---|
| Input | 2 x 12G-SDI 2 x 3G-SDI 1 x HDMI 2.0 (supports 4K 60 Hz) 3 x HDMI 1.4 (supports 4K 30 Hz) 1 x Tally |
| Output | 2 x 12G-SDI 2 x 3G-SDI |
| Audio | 1 x Speaker 1 x Earphone slot |
| Power Requirements | |
|---|---|
| Current | 2.8 A (15 V) |
| Input Voltage | 12 to 24 VDC (XLR) |
| Battery Plate | V-mount/Gold mount |
| Power Consumption | < 34 W |
| General | |
|---|---|
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | 86 to 158°F (30 to 70°C) |
| Dimensions | Without Case: 15.3 x 10.5 x 1.5" (38.9 x 26.7 x 3.8 cm) With Case: 20.6 x 12 x 6.7" (52.4 x 30.5 x 17 cm) |
| Weight | Without Case: 7.5 lb (3.4 kg) With Case: 26.5 lb (12 kg) |
In the Box
Lilliput 15.6" 4K Broadcast Monitor
- Limited 1-Year Warranty
