Description

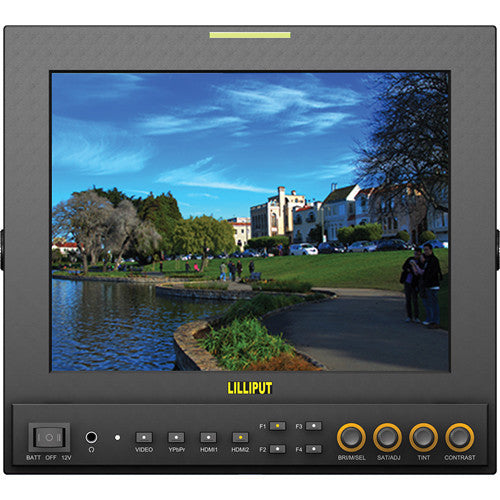

The Lilliput 969A/O/P 9.7� LED-Backlit HD Broadcast Monitor features earphone, YPbPr, audio, HDMI, mini USB, power cable interface, TALLY signal, USB, and XLR DC power inputs. This monitor is optimized for studio and video editing work. It supports resolutions up to 1024 x 768 pixels and features a 600:1 contrast ratio. This LCD features IPS technology and offers a viewing angles of 178°. The monitor also features a foldable sun shade to protect the display from glare when used outdoors.
- Features a 9.7" IPS LCD screen that is suitable for a small broadcast applications
- Supports resolutions up to 1024 x 768 pixels
- Screen features a 4:3 aspect ratio and a 600:1 contrast ratio
- 178° viewing angle ensures the content does not get distorted
- Features dual HDMI inputs
- Complies with IP52 standard
| Display | |
|---|---|
| Panel | 9.7" (24.6 cm) |
| Resolution | 1024 x R.G.B. x 768 |
| Dot Pitch | 0.192 (H) x 0.192 (V) mm |
| Aspect Ratio | 4:3 |
| Brightness | 400 cd/m 2 |
| Contrast | 600:1 |
| Backlight | White LED |
| Surface Treatment | Hard coating (3H), glare treatment of the front polarizer (Haze 0%) |
| Response Time | Ton + Toff: 30 ms (typical), 50 ms (maximum) |
| Viewing Angle | Left/Right/Up/Down: 89°, Total: 178°(H/V) |
| Format | HDMI FULL HD: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24SF) HD: 1018i (60/59.95/50), 1035i (60/59.94), 720p (60/59.94/50/30/29.97/25) SD: 576p (50), 576i (50), 480p (60/59.94), 486i (60/59.94) |
| Control | Basic: Battery power, Video, YPbPr, HDMI bottoms. F1-F4 User-definable buttons, BRI/M/SEL knob, SAT/ADJ knob, TINT knob, CONTRAST knob Advance: Brightness, Contrast, Saturation, Tint, Volume, Sharpness, Color Temp, Check Field, Aspect Ratio, Pixel-to-Pixel, Camera, H/V delay, Underscan, Center Marker, Screen Markers, Language, PIP, Input Format OSD, LOGO, Freeze Input, Peaking, Assistant Function, Manufacturer Default, Color Bar, Zoom, ISP. |
| Inputs & Outputs | |
|---|---|

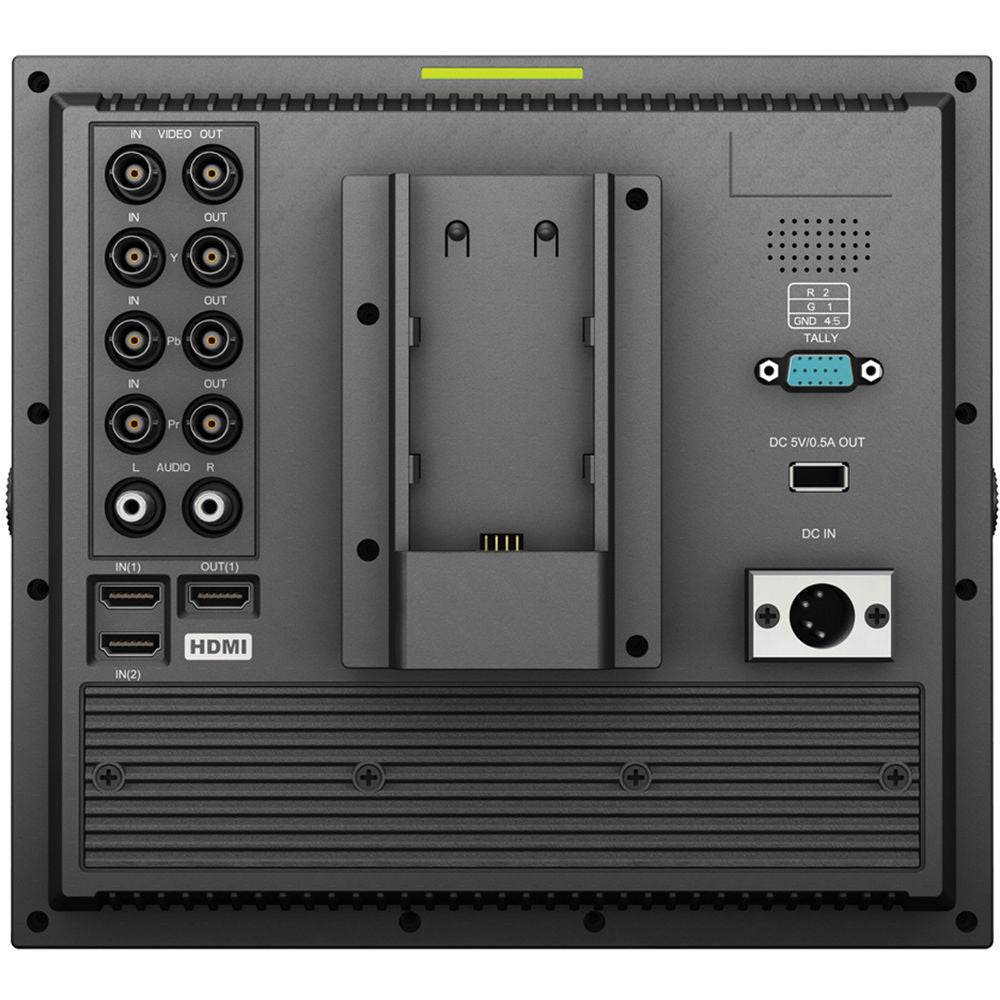

| Interface | Earphone, YPbPr, audio, HDMI, mini-USB, power cable interface, TALLY signal, USB, XLR DC power |
| Connectors | Input: 2 x HDMI, YPbPr, Video, TALLY, Audio Output: HDMI, YPbPr, Video, USB |
| Power | |
|---|---|
| Power Input | 7 to 24 VDC |
| Power Consumption | ? 18 W |
| General | |
|---|---|
| Speaker | Built in 1 W |
| Menu Language | English/Chinese |
| Operating Temperature | -4 to 140°F (-20 to 60°C) Do not exceed an operating time of more than 240 hours when operating at 140°F (60°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Dimensions (L x W x D) | 9.8 x 6.7 x 1.2" (24.6 x 22.4 x 3.1 cm) |
| Weight | 8.2 lb (3.7 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 9.25 lb |
| Box Dimensions (LxWxH) | 16.5 x 12.9 x 4.9" |
In the Box
LILLIPUT 969A/O/P 9.7� LED-Backlit HD Broadcast Monitor
- Flexible Folding Sun Shade
- Battery Plate Bracket
- F-970 Battery Plate
- LP-E6 Battery Plate
- HDMI A/A Cable
- 12VDC Adapter
- TALLY Connector
- Gimbals Bracket
- Limited 1-Year Warranty
