Description
- 8 x 2" 640 x 240 LCD Screens
- 8 x 3G-SDI Input / 8 x Loop-Outs
- On-Screen Image Calibration Controls
- Timecode Support
- 1 RU Rack-Mountable

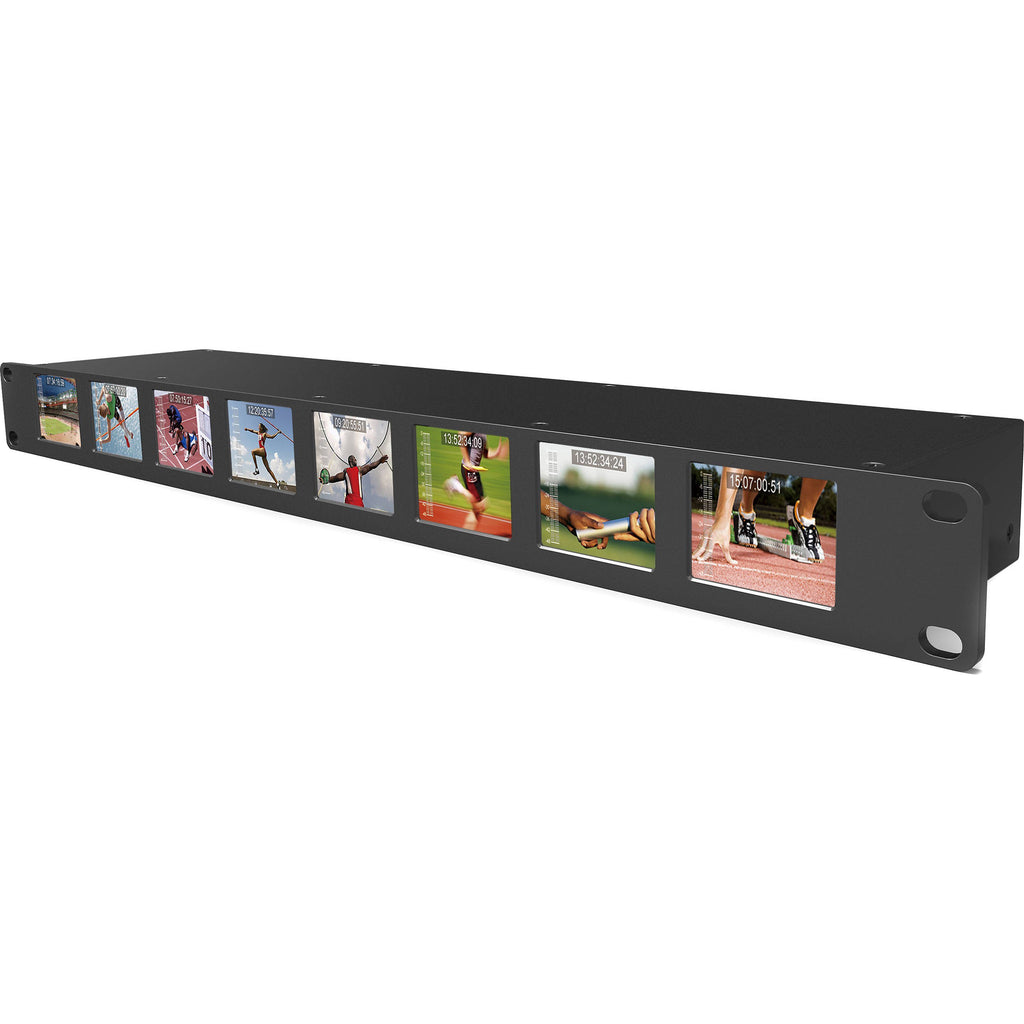

With eight 2" monitors in a 1 RU rack-mountable chassis, the Lilliput RM-0208S is designed for monitoring multiple 3G-SDI sources within a compact form factor, suiting it for use in mobile trucks, live broadcasts, and for on-site use. Each LCD screen has a resolution of 640 x 240, and features SDI equalization and re-clocking. The RM-0208S model also offers 3G-SDI outputs for each LCD, enabling you to loop the signals out to additional devices.
DIP switch�activated, on-screen level metering supports up to two audio tracks per monitor. Use your laptop and downloadable software to control monitor functions, display timecode, and label each monitor. Power is provided by an included AC adapter.
- Features
-
- Eight 2" 640 x 240 LCD screens
- One 3G-SDI input and output per screen;
- 2 RU rack-mountable design
- On-screen labeling provides quick and easy signal identification
- Timecode and audio-level metering display
- SDI equalization and re-clocking
- Windows and Mac RS-422 laptop control with downloadable software
| Display | |
|---|---|
| Number of Displays | 8 |
| Screen Size | 2" (50.8 mm) |
| Screen Type | TFT LCD |
| Resolution | 640 × 240 Supports up to 1920 × 1080 |
| Aspect Ratio | 4:3 |
| Brightness | 250 cd/m 2 |
| Contrast | 300:1 |
| Viewing Angle (H/V) | 80 x 70° |
| Inputs/Outputs | |
|---|---|
| Inputs | 8 x 3G-SDI 1 x RS-422 |
| Outputs | 8 x 3G-SDI |
| Supported Formats | |
|---|---|
| SDI Format Support | SMPTE-125M: 480i: 59.94 1080i: 60/59.94/50 1080p: 30/29.97/25/24/24sF/23.98/23.98sF SMPTE-292M: 1080p: 30/29.97/25/24/24sF/23.98/23.98sF SMPTE-296M: 720p: 60/59.94/50/30/29/25/24/23.98 SMPTE-372M: 720p: 60/59.94/50 1080i: 29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 SMPTE-425M-AB: 1080p: 60/59.94/50 Level A & Level B: 720p: 60/59.94/50/30/29.97/25/24/23.98 Level B 2 x: 1080i: 60/59.94/50 ITU-R BT.656 576i: 50 |
| HDMI Format Support | Full HD ~ HD: 1080p, 1080i, 720p, 576p, 576i, 480p, 486i |
| Power | |
|---|---|
| Current | 1500 mAh, 15 V |
| Input Voltage | 12-24 VDC |
| Power Consumption | ?23 W |
| Environment | |
|---|---|
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Dimensions | |
|---|---|
| Rack Height | 1 RU |
| Dimensions (LxWxD) | 19 x 4.1 x 1.7" (482.5 x 105 x 44 mm) |
- 15V DC Adapter
- CD
- Limited 1-Year Warranty
