| ₹ 20335.0 is including GST. No additional charges. | |
| B2B customers can avail ₹ 3101.09 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 7" 800 x 480 Display
- HDMI, YPbPr, Composite Inputs
- Built-In Battery
- 140° Horizontal Viewing Angle
- Includes Ball Mount and Sun Hood
- Includes HDMI Cable
With inputs supporting analog and digital sources, this 7" HDMI On-Camera Monitor from Lilliput provides an 800x480 pixel display for checking your image's focus and exposure. The display's 16:9 aspect ratio fits most signals output from HD camcorders without letterboxing or pillarboxing the image, ensuring the full screen resolution is used.

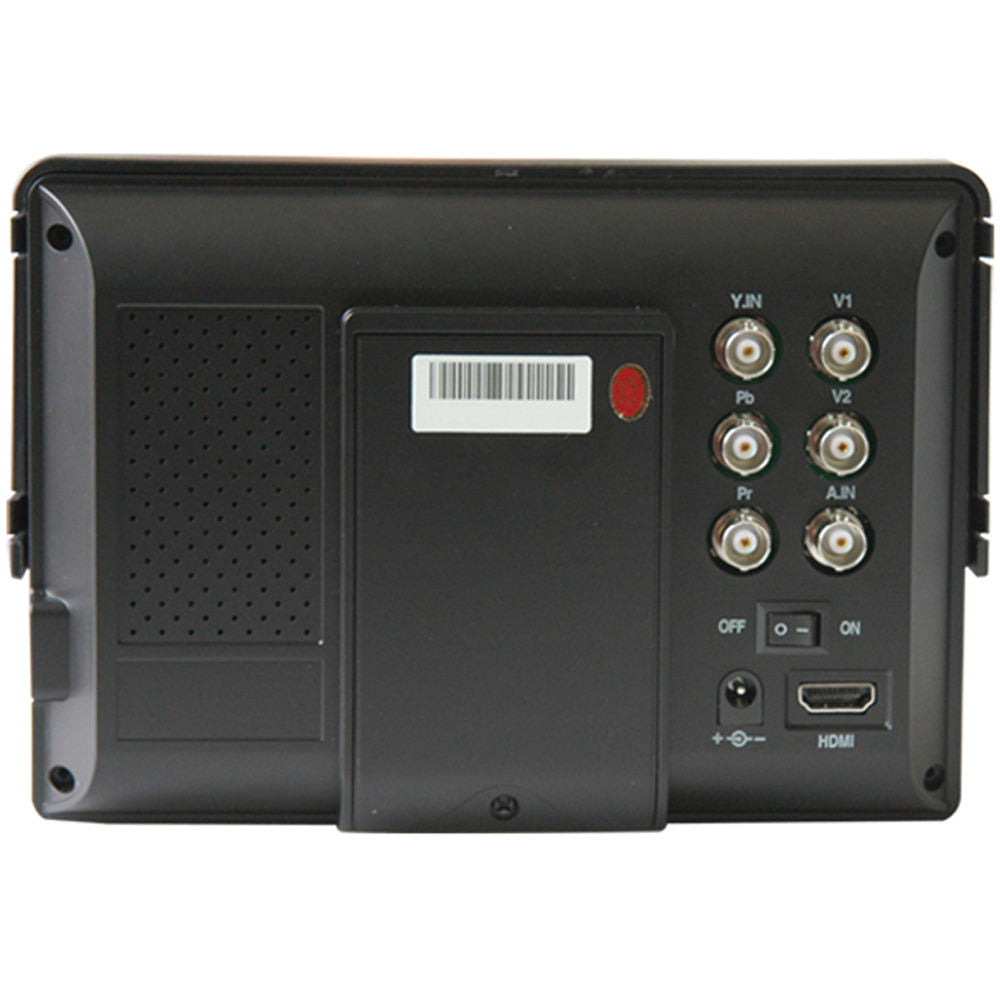

On the rear panel, the HDMI input supports DSLR cameras and newer camcorders with HDMI outputs, up to 1080p resolution. For legacy cameras and analog equipment, a component YPbPr as well as dual composite video BNC inputs are also available.

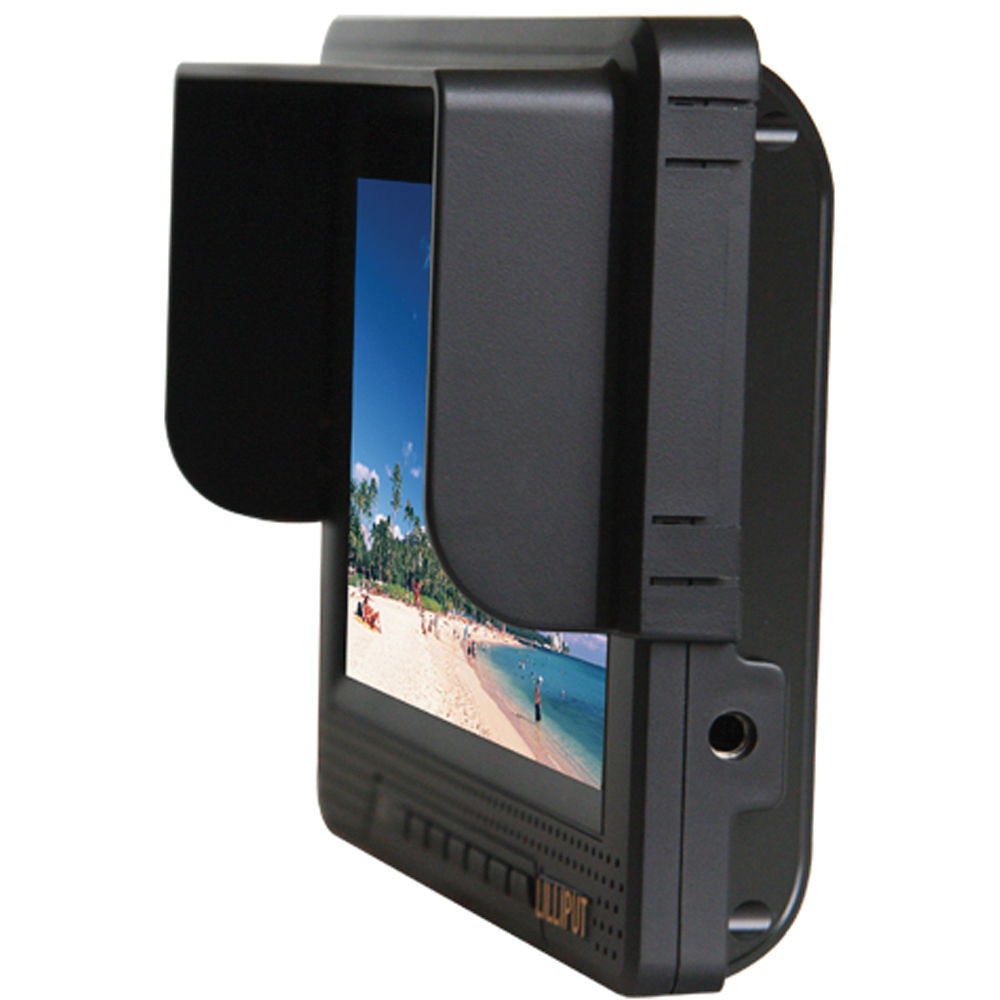

For wide viewing angles and accurate colors, this monitor features an IPS display with an anti-glare finish and a 500:1 contrast ratio for punchy images. A sun hood is included for preventing excess glare when outdoors. For power, a built-in battery can provide up to 3 hours of use on a full charge. Alternatively a 6-20 VDC power source can be input via the barrel jack. A ball mount is also included for securing the monitor atop a camera using an available shoe-mount.
- 7" camera-top monitor with 16:9 aspect ratio
- 500:1 contrast ratio produces vivid and rich colors
- Enhanced 450 cd/m 2 backlight produces a crystal clear picture and shows colors vividly
- IPS panel offers 130° horizontal and 120° vertical wide viewing angles
- Built-in 2,200mAh Li-ion battery
- Shoe mount adapter included
| LCD Display | |
|---|---|
| LCD Size | 7" (18 cm) |
| Display Resolution | 800 x 480 |
| Aspect Ratio | 16:9 |
| Brightness | 450 cd/m 2 |
| Contrast Ratio | 500:1 |
| Backlight | White LED |
| Surface Treatment | Anti-glare |
| Viewing Angle | 70/70° (left/right) and 50/70° (up/down) |
| Video | |
|---|---|
| Interface | Video, AV1, AV2, YPbPr, HDMI, DC power |
| Input Connectors | Composite (BNC), YPbPr (BNC), HDMI |
| Input Format Support | HDMI Format Support: FULL HD: 1080p (60/59.94/50) HD: 1080i (60/59.95/50), 720p (60/59.94/50) SD: 480i (60/59.94), 576i (50) |
| General | |
|---|---|
| Control | Basic: -Volume down,+ Volume up, menu, 2 x selection key, switch key, power |
| Speaker | Built in, 1 W |
| Battery | 7.4 VDC, 2200 mAh |
| Power Consumption | Max: 8 W |
| Environmental | Operating: -4 to 140°F (-20 to 60°C) Storage: -22 to 158°F (-30 to 70°C) Operating at High Temperature and High Humidity: 140°F (60°C) / 90% RH max, 240 hrs |
| Dimensions (L x W x D) | 7.1 x 5.1 x 1.2" / 188 x 131 x 33 mm |
| Weight | 2.8 lb / 1.3 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.0 lb |
| Box Dimensions (LxWxH) | 12.6 x 7.9 x 2.9" |
- Remote Control
- HDMI Cable
- Shoe Mount
- Sun Shade
- DC Adapter
- Limited 1-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 19928.3 |
| 3-5 | ₹ 19724.95 |
| 5-10 | ₹ 19318.25 |
| 10+ | ₹ 18911.55 |
Bulk discount will be automatically applied during checkout based on quantity.
