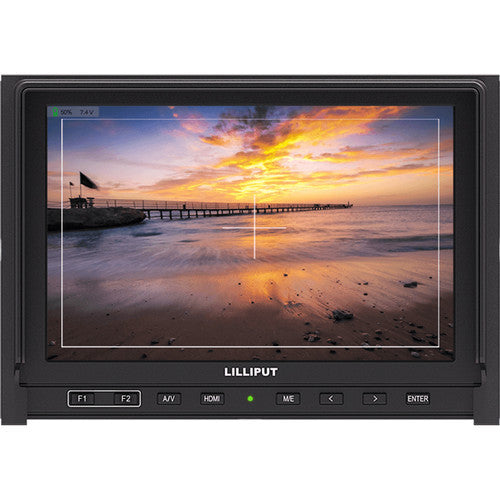

The black 7" Camera-Top Monitor from Lilliput has a display resolution of 1280 x 800 with an aspect ratio of 16:9. The 800:1 high contrast ratio helps produce colors that are vivid, rich, and accurate. The built-in 2600mAh battery with battery level indicator supports up to 3 to 4 hours working time. It can ideally be used by filmmakers, photographers, enthusiasts, and DSLR camera users.
- Camera Auxiliary Functions
-
- Camera mode
- Center marker
- Pixel-to-pixel
- Safety marker
- Aspect ratio
- Check field
- Color bar
- Underscan
- Overscan
- Freeze input
- H/V delay
- 8x zoom
- Image flip
- Excellent Display & Design
-
- It features 1280 x 800 high resolution, 400 cd/m² high brightness & 800:1 high contrast which produces colors that are vivid, rich, and accurate.
- Wide Viewing Angles (IPS Panel)
-
- 178° horizontal & vertical wide viewing angles allow people viewing from different angles to see the monitor with the same visual effect.
- Pro HD display solution for DSLR
-
- 7" broadcasting quality field monitor with HDMI & AV inputs. It can ideally be used by filmmakers, photographers, enthusiasts, and DSLR camera users.
- Built-in Battery & Battery Level
-
- Built-in 2600mAh battery with battery level indicator which supports up to 3 to 4 hours working time
| Display |
| Panel | 7.0" (17.8 cm) IPS, LED backlit |
| Resolution | 1280 x 800 |
| Active Area | H x V: 5.89 x 3.68" (149.76 x 93.6 mm) |
| Dot Pitch | 0.117 (H) × 0.117 (V) mm |
| Aspect Ratio | 16:10 |
| Brightness | 400 cd/? |
| Contrast | 800:1 |
| Surface Treatment | 3H |
| Response Time | T On: Typical 14 msec, maximum 17 msec
T Off: Typical 11 msec, maximum 14 msec |
| Viewing Angle | 89°/89° (Left/Right) and 89°/89° (Up/Down) |
| Interface | AV input, AV output, HDMI input |
| Audio |
| Speaker | 1 |
| Earphone | 1 |
| Control |
| Basic | Power, AV button, HDMI , menu button, 2 x selection button F1-F2, enter button? Left/right selection key |
| Advanced | Brightness, contrast, color, language, volume, U/D, L/R, zoom, S auto, C-sys, sleep, Time, OFF-time, ON-time |
| HDMI Connectivity |
| Full HD 1080P | 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24sF) |
| HD | 1080i (60/59.94/50)
1035i (60/59.94)
720p (60/59.94/50/30/29.97/25) |
| SD | 576p (50)
576i (50)
480p (60/59.94)
486i (60/59.94) |
| Power |
| Current | 12 VDC, 1500 mA |
| Input Voltage | 7 to 24 VDC |
| Battery | Built-in 2600 mAh battery |
| Power Consumption | < 12 W |
| Environmental Specifications |
| Operating Temperature | -4 to 140°F (-20 to 60°C)
At high temperature and high humidity Ta= 140°F (60°C), 90% RH, 240 hours |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Dimensions |
| Dimensions (L x W x D) | 7.5 x 5 x 1.2" (19 x 13 x 3 cm) |
| Weight | 12.7 oz (360.0 g) |
| Packaging Info |
| Package Weight | 2.45 lb |
| Box Dimensions (LxWxH) | 9.0 x 6.6 x 4.2" |
In the Box

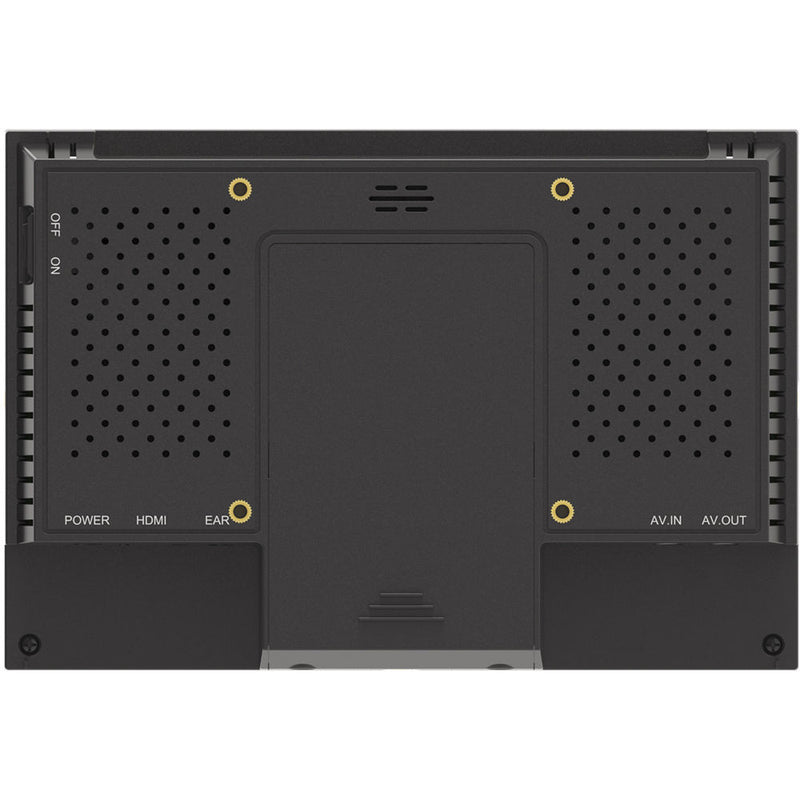

LILLIPUT 7" Camera-Top Monitor (Black)
- Shoe Mount
- HDMI A/C Cable
- AV Output Cable
- AV Input Cable
- 2600mAh 7.4V Li-ion Battery
- Sunshade
- 12 VDC Adapter
- Limited 1-Year Warranty
