| ₹ 35515.0 is including GST. No additional charges. | |
| B2B customers can avail ₹ 5416.04 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 7" 800 x 480 Display
- 3G-SDI, HDMI, YPbPr Inputs
- Includes Battery Plates and HDMI Cable
- 140° Horizontal Viewing Angle
- Includes Ball Mount and Sun Hood

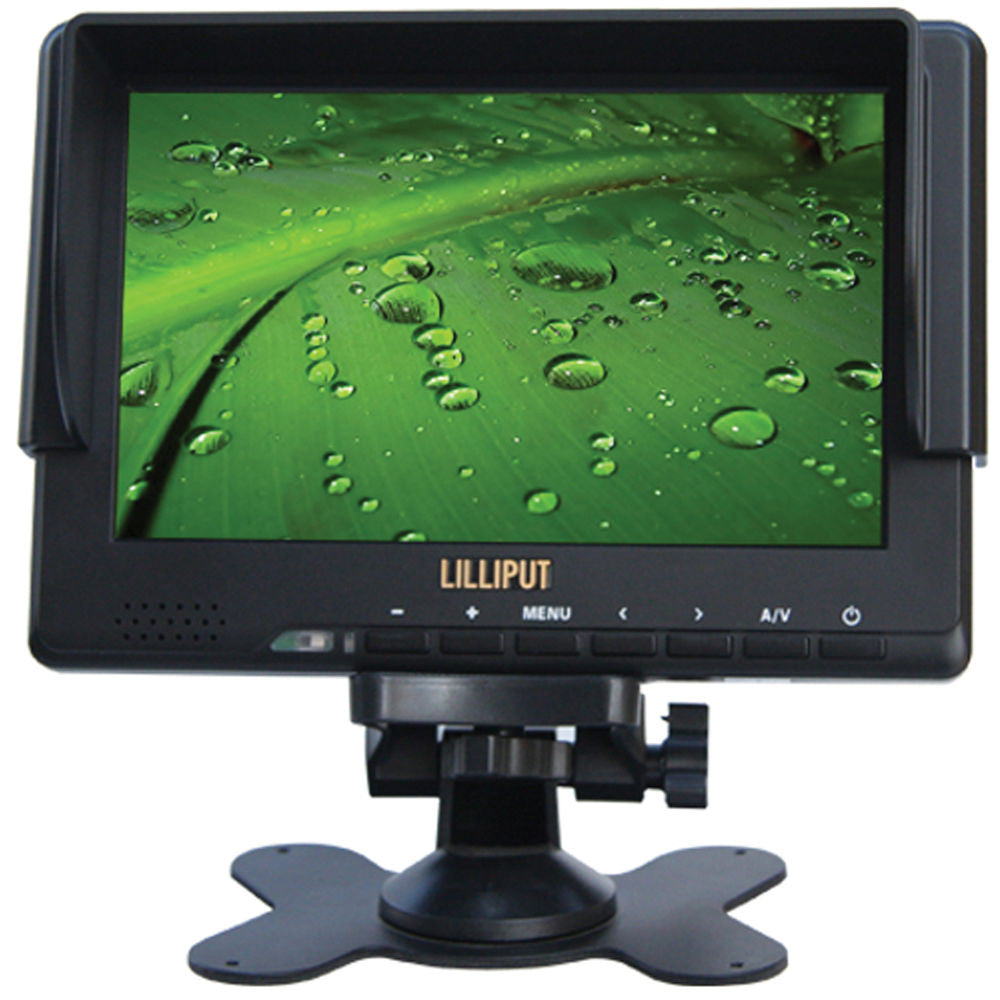

With inputs supporting almost any camera, this 7" 3G-SDI Field Monitor from Lilliput provides an 800x480 pixel display for checking your image's focus and exposure. The display's 16:9 aspect ratio fits most signals output from HD camcorders without letterboxing or pillarboxing the image, ensuring the full-screen resolution is used.

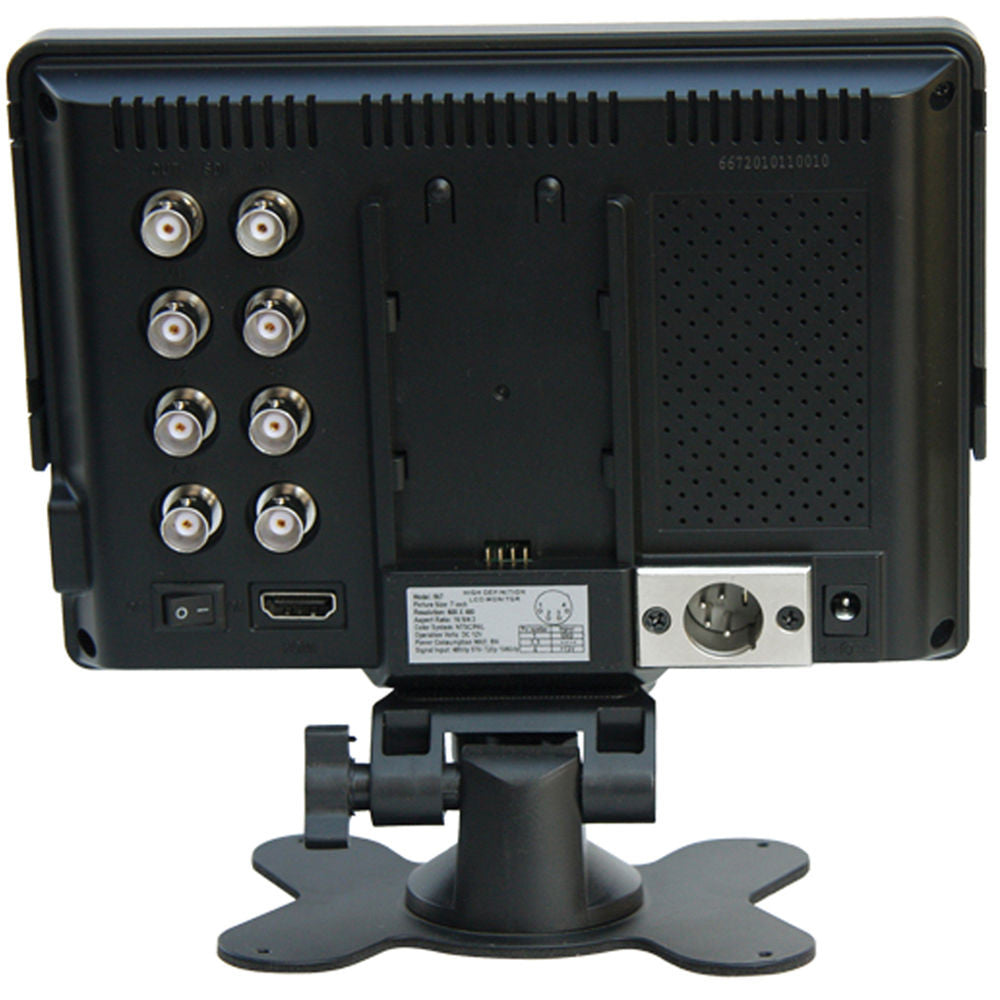

On the rear panel, the HDMI input supports DSLR cameras and newer camcorders with HDMI outputs, up to 1080p resolution. A 3G-SDI input accepts SD or HD video signals from professional camcorders or other SDI equipment, up to 1080p resolution. SD and HD-SDI protocols are also supported. For legacy cameras and analog equipment, component inputs are also available.
For wide viewing angles and accurate colors, this monitor features an IPS display with an anti-glare finish and a 500:1 contrast ratio for punchy images. A sun hood is included for preventing excess glare when outdoors. For power, the included Canon or Sony battery plates can be used for portability. Alternatively a 6-24V DC power source can be input via the XLR jack. A ball mount is also included for securing the monitor atop a camera using an available shoe-mount.
- 7" camera-top monitor with 16:9 aspect ratio
- 500:1 contrast ratio produces vivid and rich colors
- Enhanced 450 cd/m 2 backlight produces a crystal clear picture and shows colors vividly
- IPS panel offers 130° horizontal and 120° vertical wide viewing angles
- Includes two battery plates compatible with Canon LP-E6 and Sony F-970 batteries
- Shoe mount adapter included
| LCD Display | |
|---|---|
| LCD Size | 7" (18 cm) |
| Display Resolution | 800 x 480 |
| Active Area | 152.4 (W) x 91.44 (H) mm |
| Dot Pitch | 0.0635 (W) x 0.1905 (H) mm |
| Aspect Ratio | 16:9 |
| Brightness | 400 cd/m 2 |
| Contrast Ratio | 500:1 |
| Backlight | White LED |
| Surface Treatment | Anti-glare |
| Viewing Angle | 70/70° (left/right) and 50/70° (up/down) |
| Video | |
|---|---|
| Interface | Video, Audio, YPbPr, HDMI, XLR DC power, DC power |
| Input Connector | Video, Audio, YPbPr, HDMI |
| Input Format Support | SDI Format Support: SMPTE-425M-A: 1080p (60/59.94/50) 1080i (60/59.94/50) SMPTE-274M: 1080i (60/59.94/50) SMPTE-296M: 720p (60/59.94/50) SMPTE-125M: 480i (60/59.94) ITU-R BT.656: 576i (50) |
| General | |
|---|---|
| Control | Basic: -Volume down,+ Volume up, menu, 2 x selection key, switch key, power |
| Speaker | Built in, 1 W |
| Power Input | 12 VDC (XLR DC connection) |
| Power Consumption | Max: 8 W |
| Environmental | Operating: -4 to 140°F (-20 to 60°C) Storage: -22 to 158°F (-30 to 70°C) Operating at High Temperature and High Humidity: 140° F (60°C) / 90% RH max, 240 hrs |
| Dimensions (L x W x D) | 7.1 x 5.1 x 1.2" / 188 x 131 x 33 mm |
| Weight | 2.7 lb / 1.2 kg |
| Packaging Info | |
|---|---|
| Package Weight | 2.95 lb |
| Box Dimensions (LxWxH) | 12.4 x 7.9 x 2.9" |
- Remote Control
- 568 Bracket
- Shoe Mount
- HDMI A cable
- F-970 Type Battery Plate
- LP-E6 Type Battery Plate
- Sun Shade
- DC Adapter
- Limited 1-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 34804.7 |
| 3-5 | ₹ 34449.55 |
| 5-10 | ₹ 33739.25 |
| 10+ | ₹ 33028.95 |
Bulk discount will be automatically applied during checkout based on quantity.
