Description

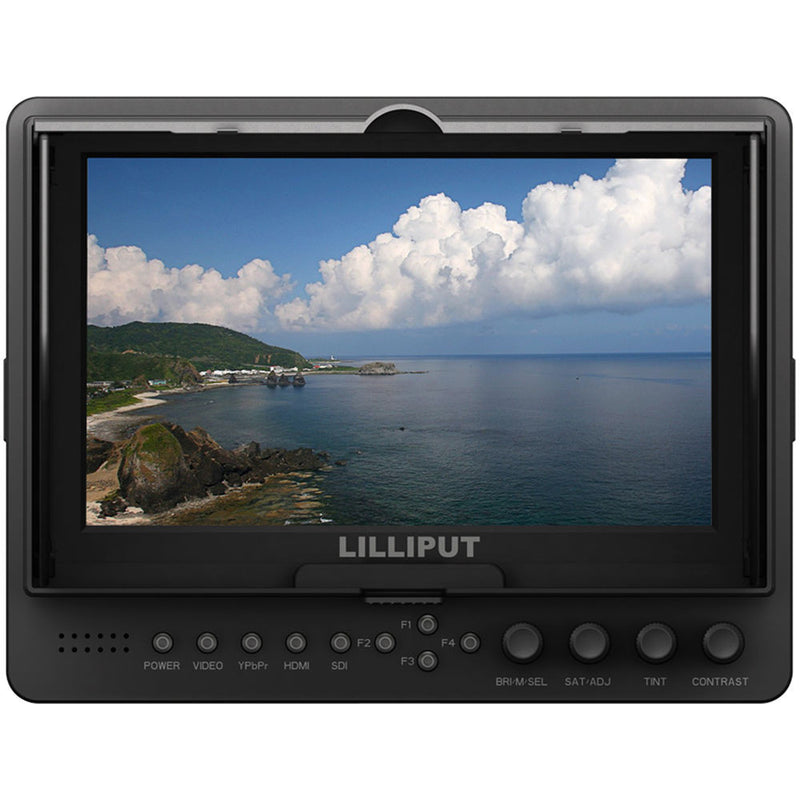

The 665/S/P 3G-SDI 7" LCD On-Camera HDMI Monitor from Lilliput features an 800:1 contrast ratio which offers deep blacks and bright whites in a 1024 x 600 resolution. The monitor works on a wide 7-24 VDC range, making it suitable for use in most power sources. The built-in 1W speaker provides clear audio output. F970 and LP-E6 battery plates are included.
- 1024 x 600 resolution
- 800:1 contrast ratio offers deep blacks and bright whites
- 7-24 VDC range
- 250 cd/m² brightness for clear viewing
- Hard coating with EWV film
| LCD Size | 7" (177.8 mm) |
| Display Resolution | 1024 × 600 |
| Active Area | 6.04 x 3.54" (153.6 x 90 mm) |
| Dot Pitch | 0.15 x 0.15 mm |
| Aspect Ratio | 17:10 |
| Brightness | 250 cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | White LED |
| Surface Treatment | Hard coating with EWV Film |
| Response Time | Typical: Tr: 14 ms, Tf: 11 ms Maximum: Tr: 17 ms, Tf: 14 ms |
| View Angle | 80/80° (Left/Right) and 80/70° (Up/Down) |
| Interface | Audio, Video, YPbPr, HDMI, XLR, DC Power |

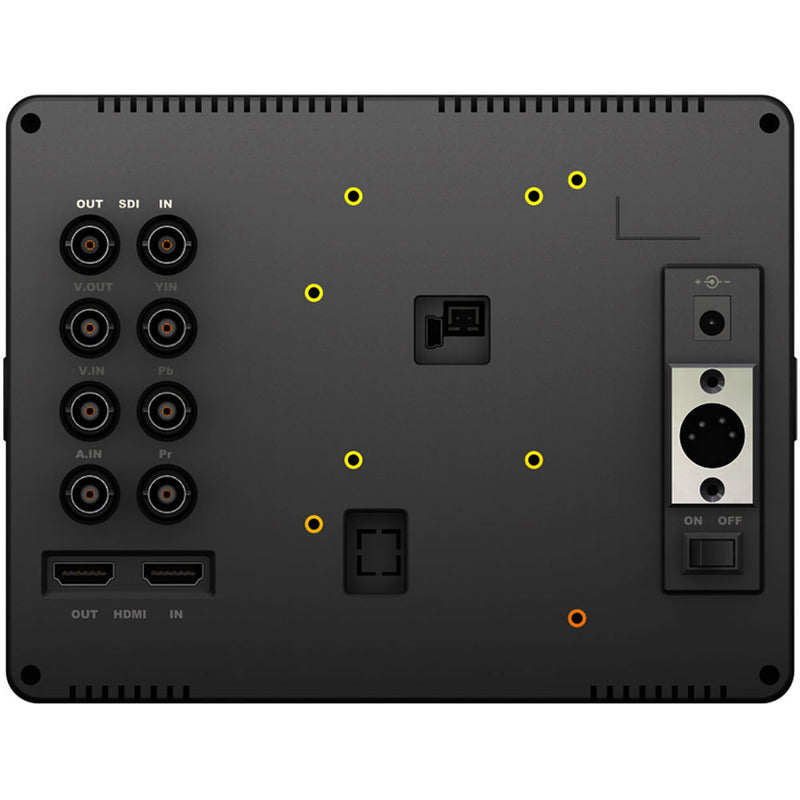

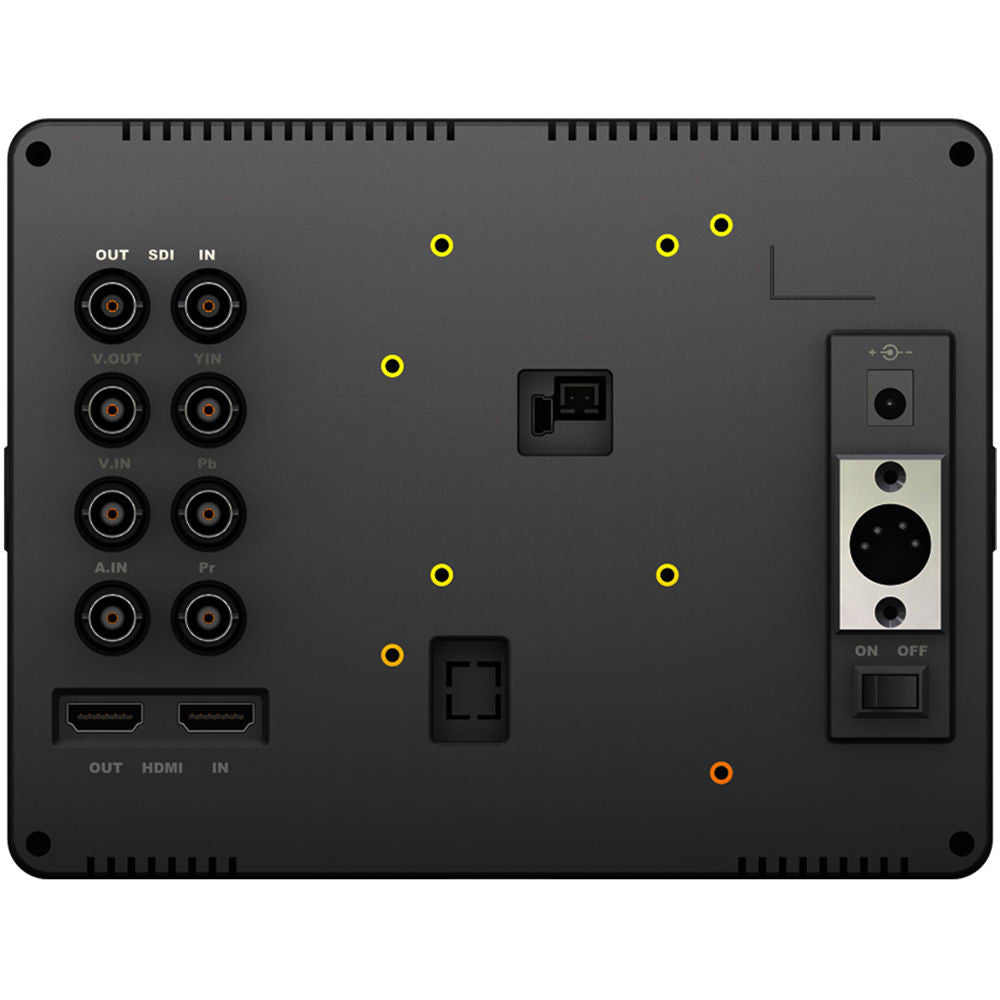

| Input Connector | 3G-SDI, AV, YPbPr & HDMI |
| Output Connector | 3G-SDI, HDMI, Video |
| Power | 7 to 24 VDC |
| Power Consumption | ?10 W |
| Control | Basic: Power, Video, YPbPr, HDMI bottoms. F1-F4 User-definable buttons, BRI/MENU knob, SAT/ADJ knob, TINT knob, CONT knob Advanced: Brightness, Contrast, Saturation, Tint, Volume, Sharpness, Color Temp, Check Field, Aspect Ratio, Pixel-to-Pixel, Camera, H/V delay, Underscan, Center Marker, Screen Markers, Language, PIP, Input Format OSD, LOGO, Freeze Input, Image Flip, Assistant Function, Manufacturer Default, Color Bar, Zoom. |
| HDMI Format Support | Full HD: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24SF) HD: 1080i (60/59.95/50 Hz), 1035i (60/59.94 Hz), 720p (60/59.94/50/30/29.97/25 Hz) SD: 576p (50 Hz), 576i (50 Hz), 480p (60/59.94 Hz), 486i (60/59.94 Hz) |
| Speaker | Built-in 1 W |
| Menu Language | English/Chinese |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Operation Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 7.65 x 5.9 x 1.51" (194.5 x 150 x 38.5 mm) |
| Weight | 16.93 oz (480 g) 22.57 oz (640 g) with cover |
| Packaging Info | |
|---|---|
| Package Weight | 3.1 lb |
| Box Dimensions (LxWxH) | 12.5 x 9.5 x 3.5" |
In the Box
LILLIPUT 665/S/P 3G-SDI 7" LCD On-Camera HDMI Monitor

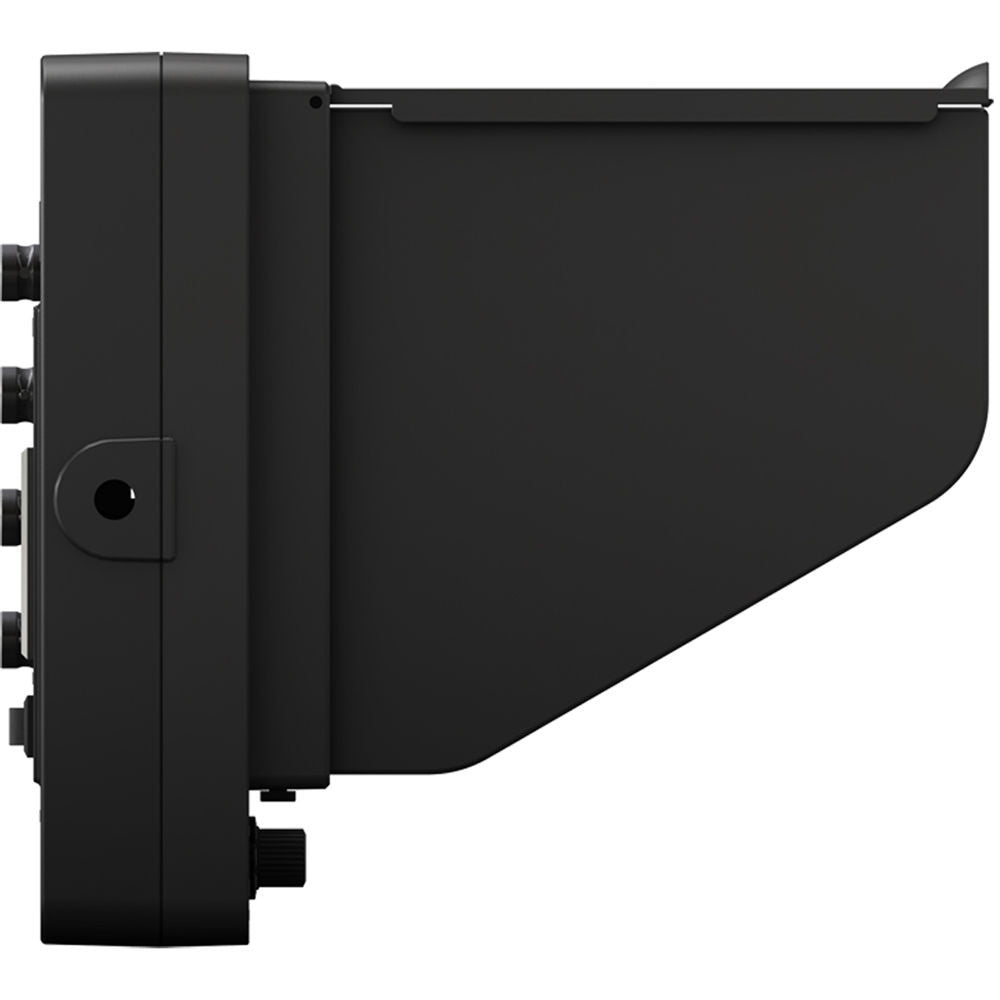

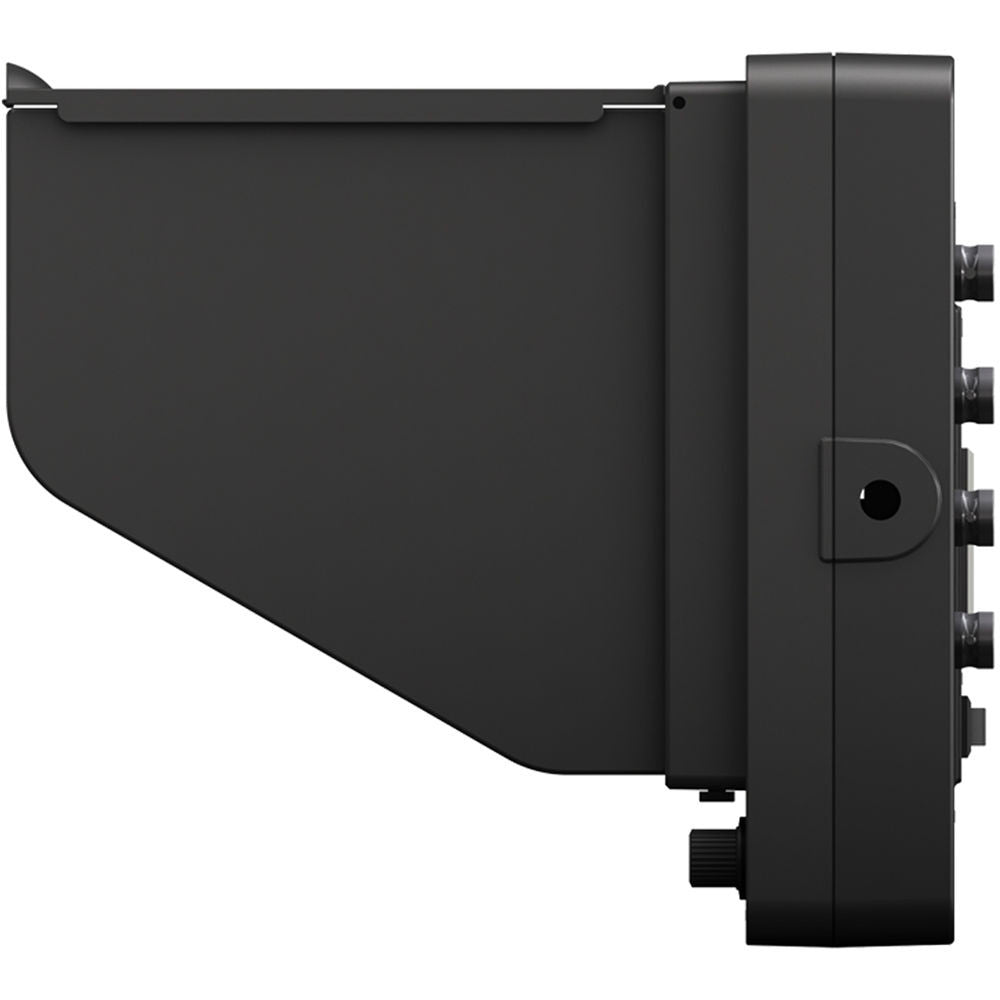

- Flexible Folding Sun Shade
- F-970 Battery Plate
- LP-E6 Battery Plate
- Battery Plate Bracket
- HDMI Type-A to Type-C Cable
- 12 VDC Adapter
- Limited 1-Year Warranty
