Description
Lilliput 3G-SFP-LC Overview

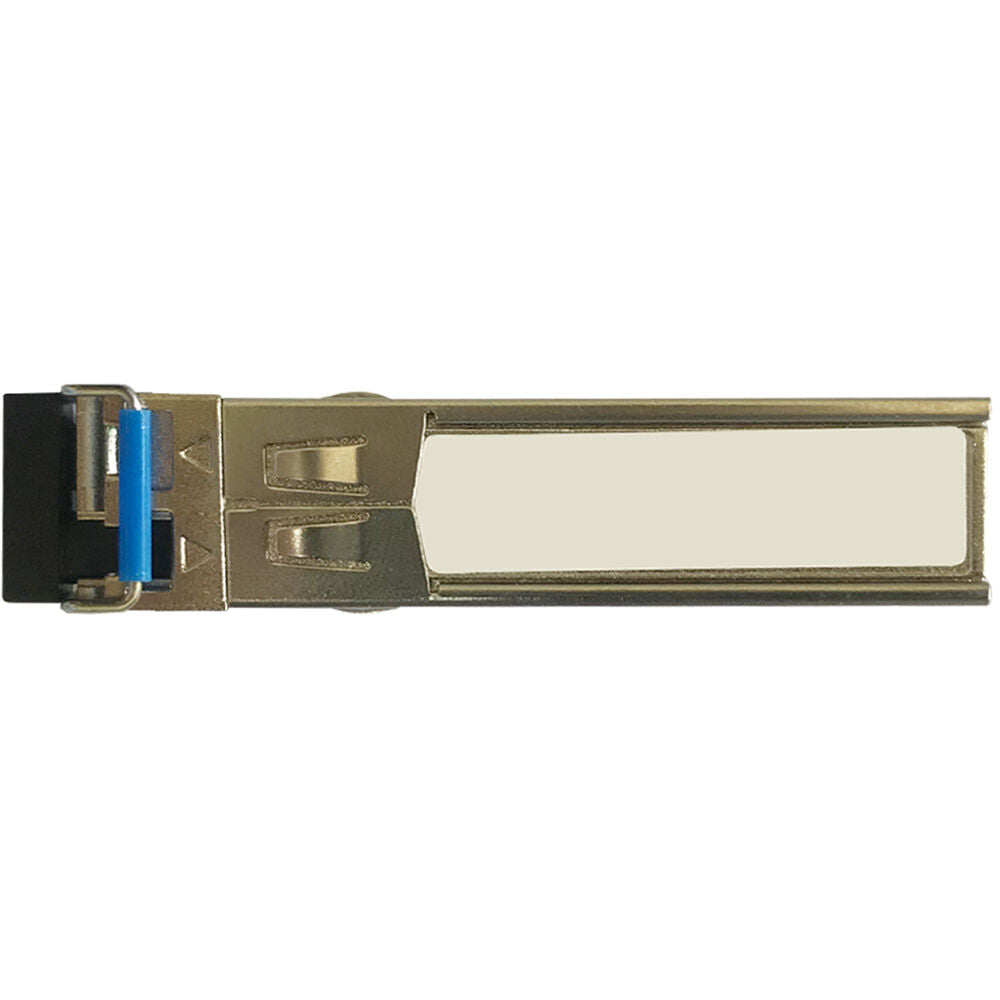

The Lilliput 3 Gb/s Video SFP Optical Receiver is an SFP module designed to accept an optical SDI signal and convert it to an electrical signal. It's built to deliver high performance in the presence of SDI pathological patterns for SMPTE 259M, 344M, 292M, and 424M serial rates. It pairs with an optional corresponding transmitter to achieve duplex video transmission via single-mode fiber over distances up to 12.4 miles. It accepts data rates from 50 Mb/s to 2.97 Gb/s and is fully compliant with the SMPTE 297M-2006 standard, which relates to fiber/SDI transmission.
Consisting of two sections, the 3 Gb/s Video SFP Optical Receiver features an MCU control unit and a PIN photodiode integrated with a trans-impedance preamplifier (TIA), with both modules satisfying class I laser safety requirements.
In the Box
- Lilliput 3 Gb/s Video SFP Optical Receiver
- Limited 1-Year Warranty
Lilliput 3G-SFP-LC Specs
| Interface | I2C Bus (2-Wire Serial CMOS E2PROM Protocol): 280 kHz Maximum Clock Rate |
| Supported Transmission Distance | 12.4 mi / 20 km |
| Center Wavelength | 1260 to 1580 nm |
| Overload | 0 dBm |
| Enclosure | Metal |
| Power Supply Voltage | Typical: 3.3 V |
| Power Supply Current | 150 mA |
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Operating Humidity | 5 to 85% |
| Package Weight | 0.07 lb |
| Box Dimensions (LxWxH) | 4 x 2.4 x 0.7" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 18615.1 |
| 3-5 | ₹ 18425.15 |
| 5-10 | ₹ 18045.25 |
| 10+ | ₹ 17665.35 |
Bulk discount will be automatically applied during checkout based on quantity.
