Description

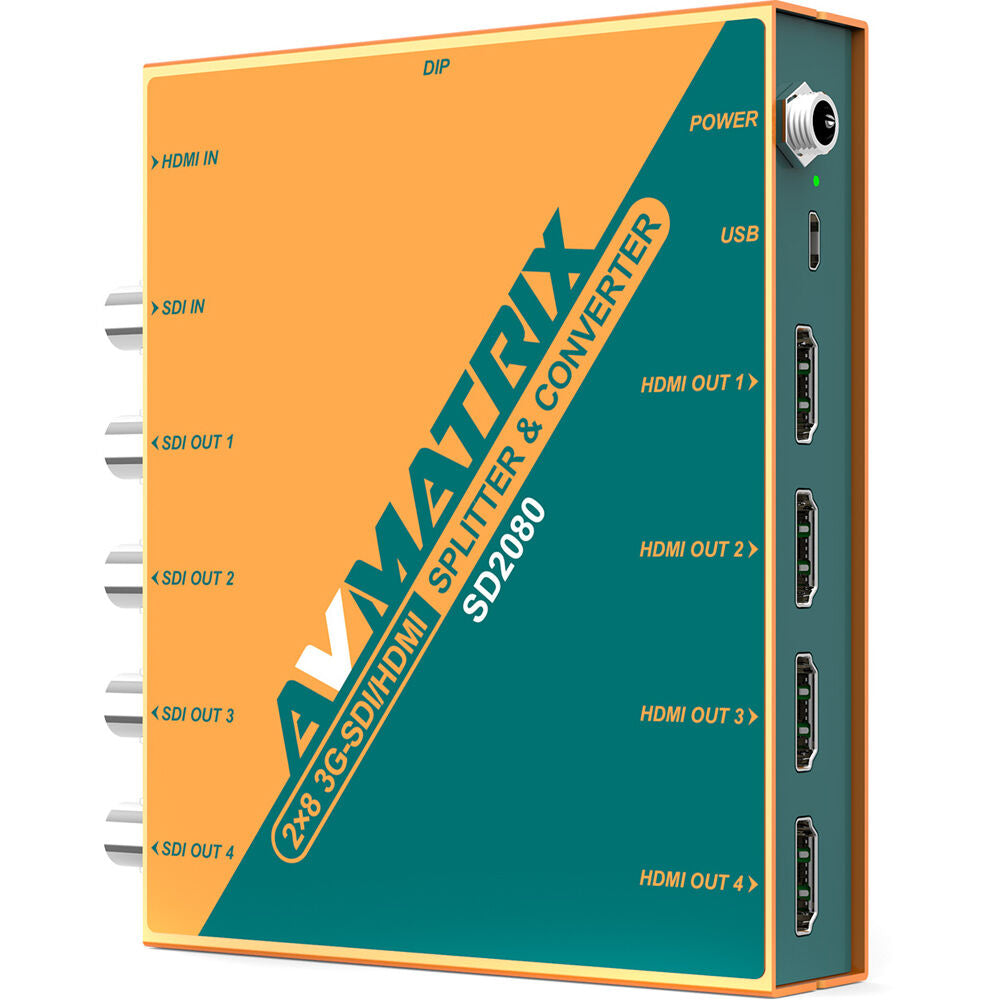

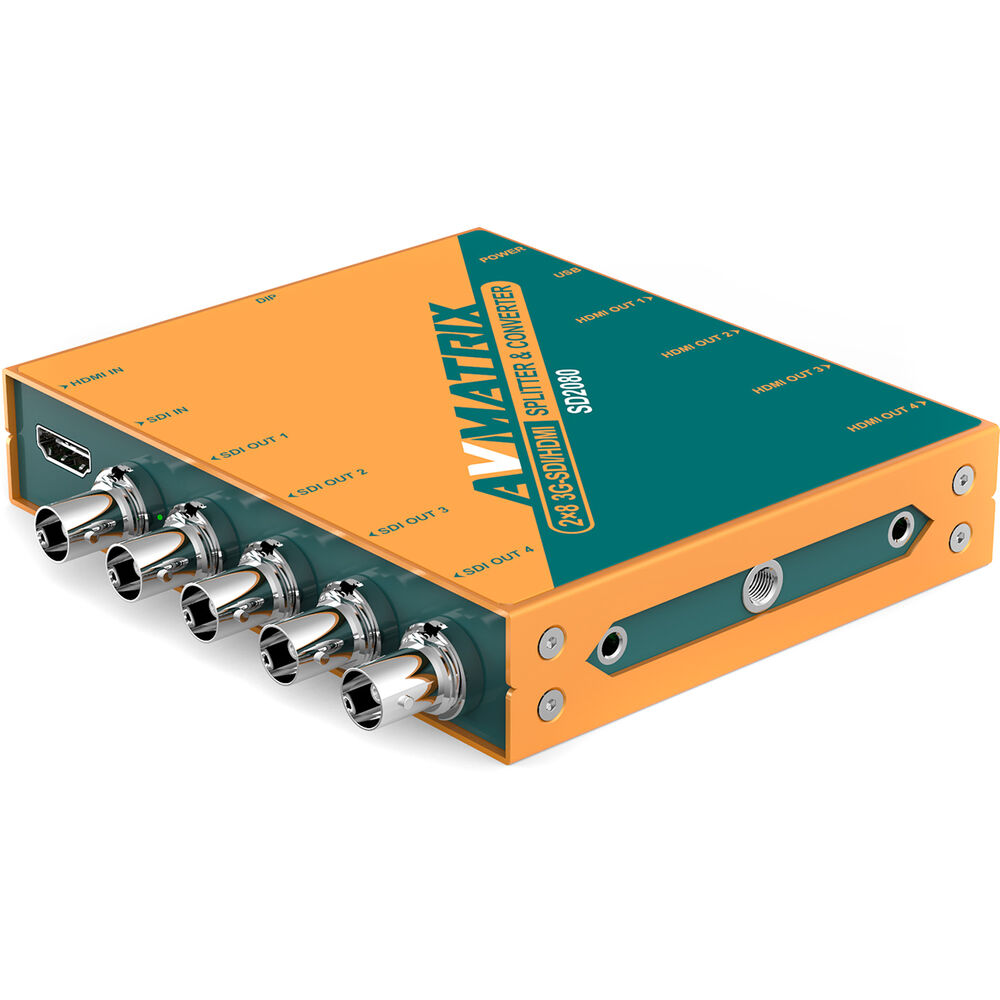

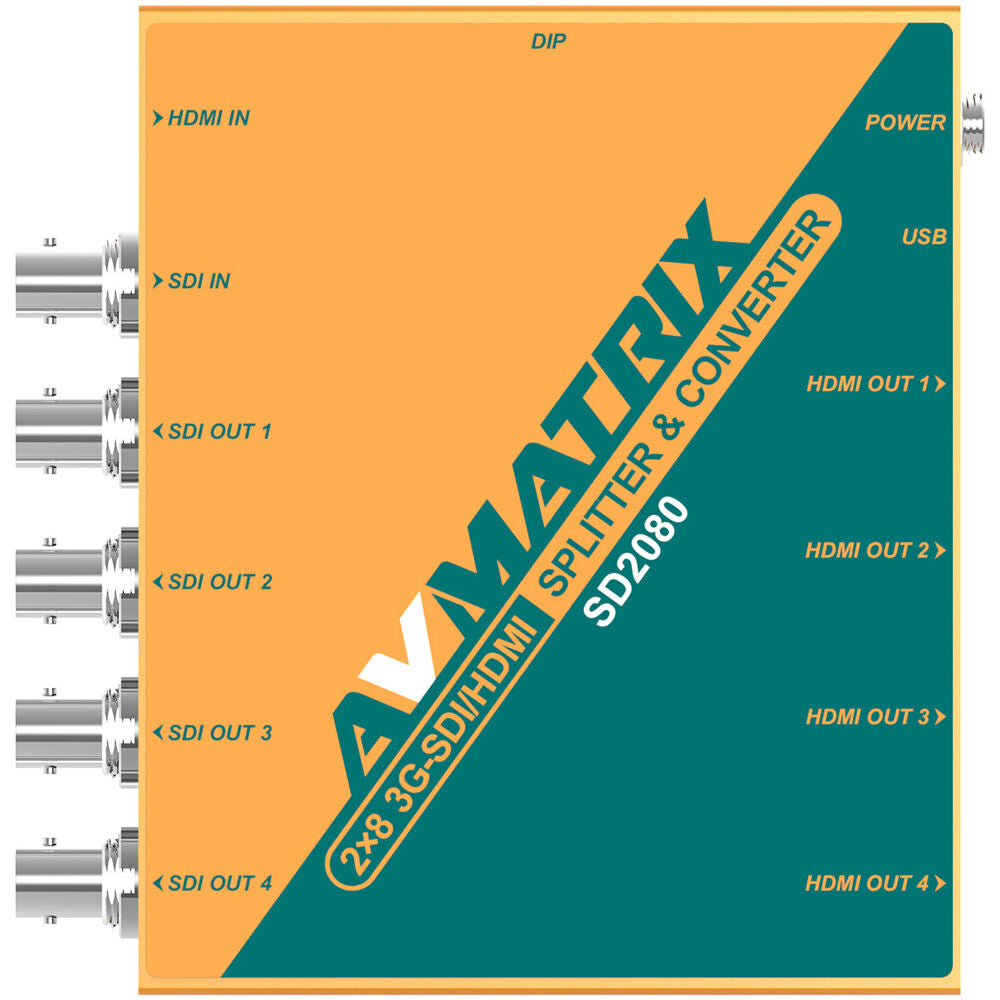

Lilliput SD2080 Overview

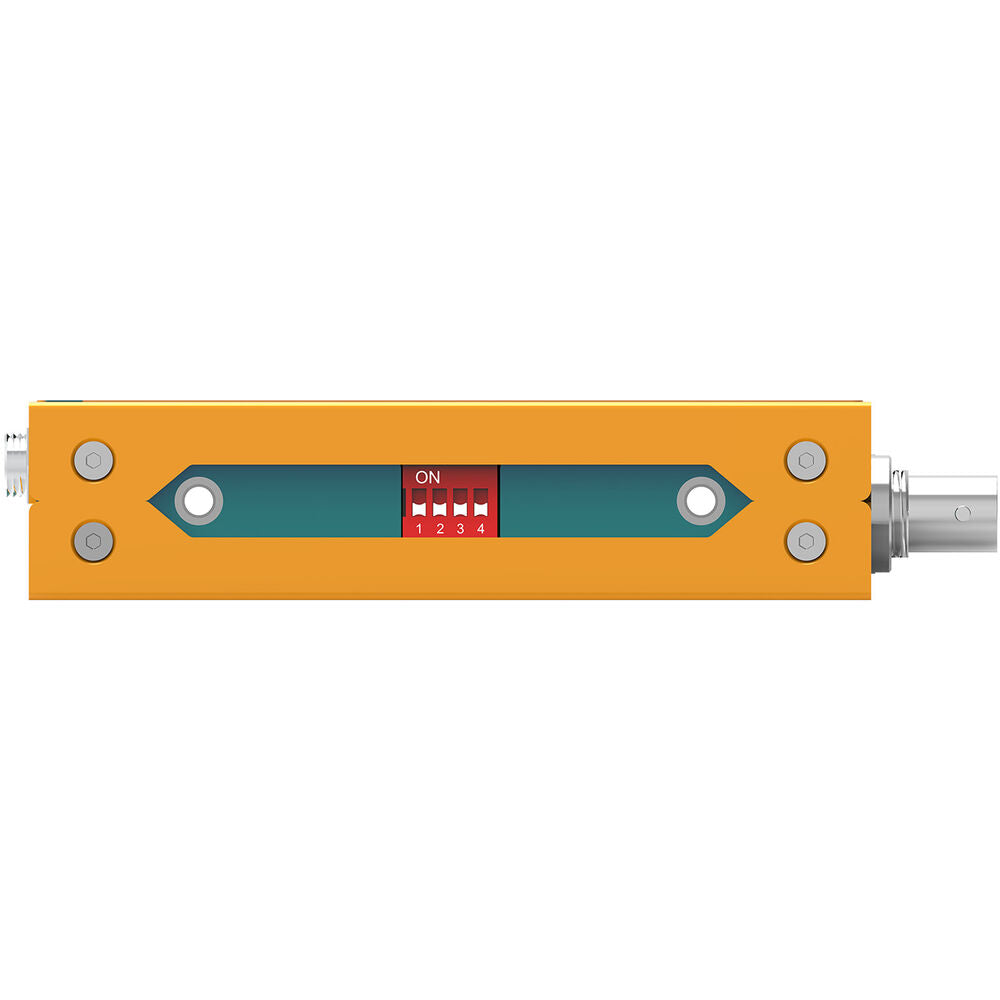

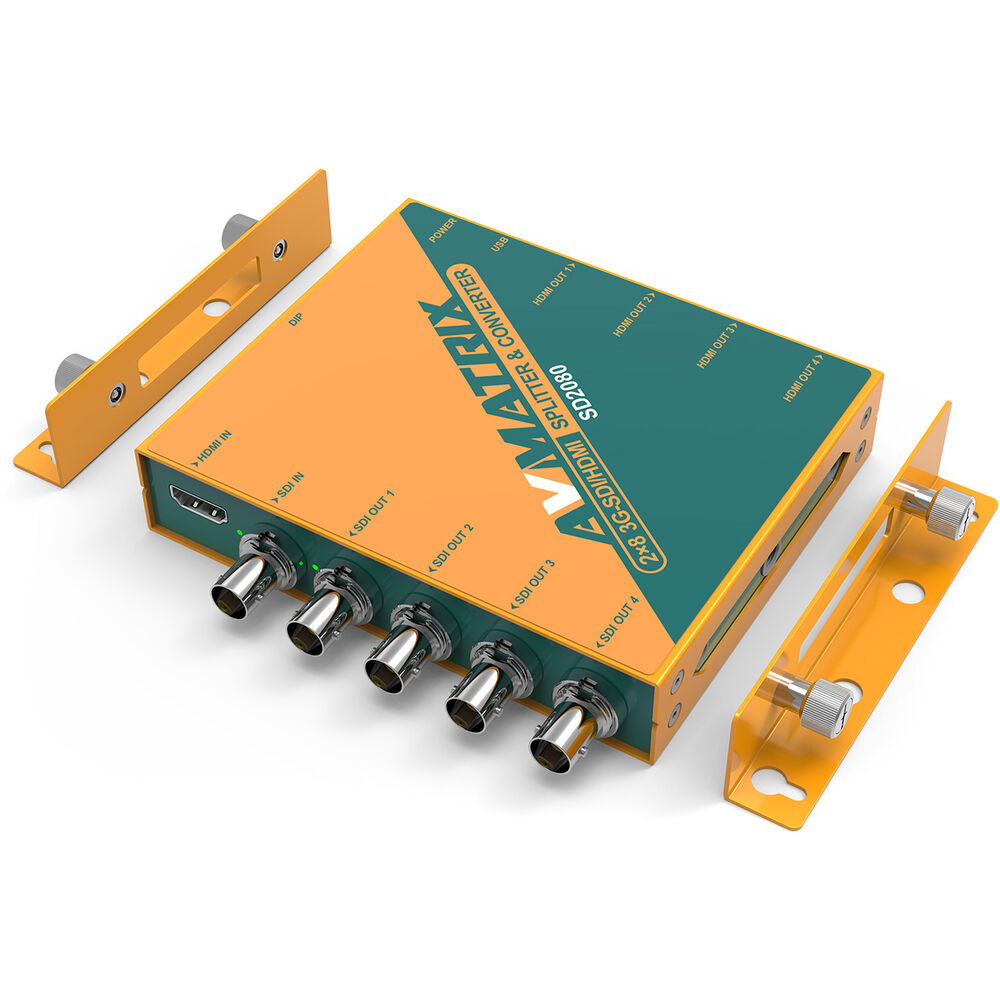

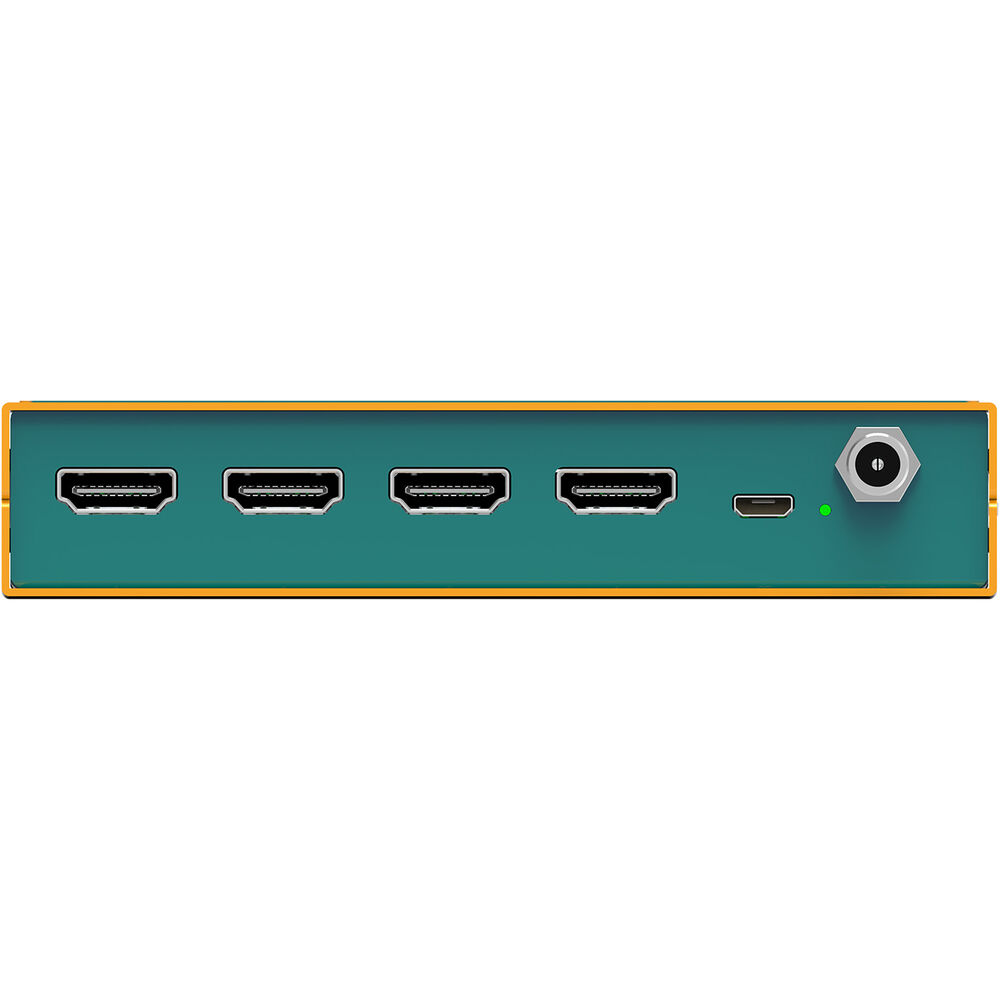

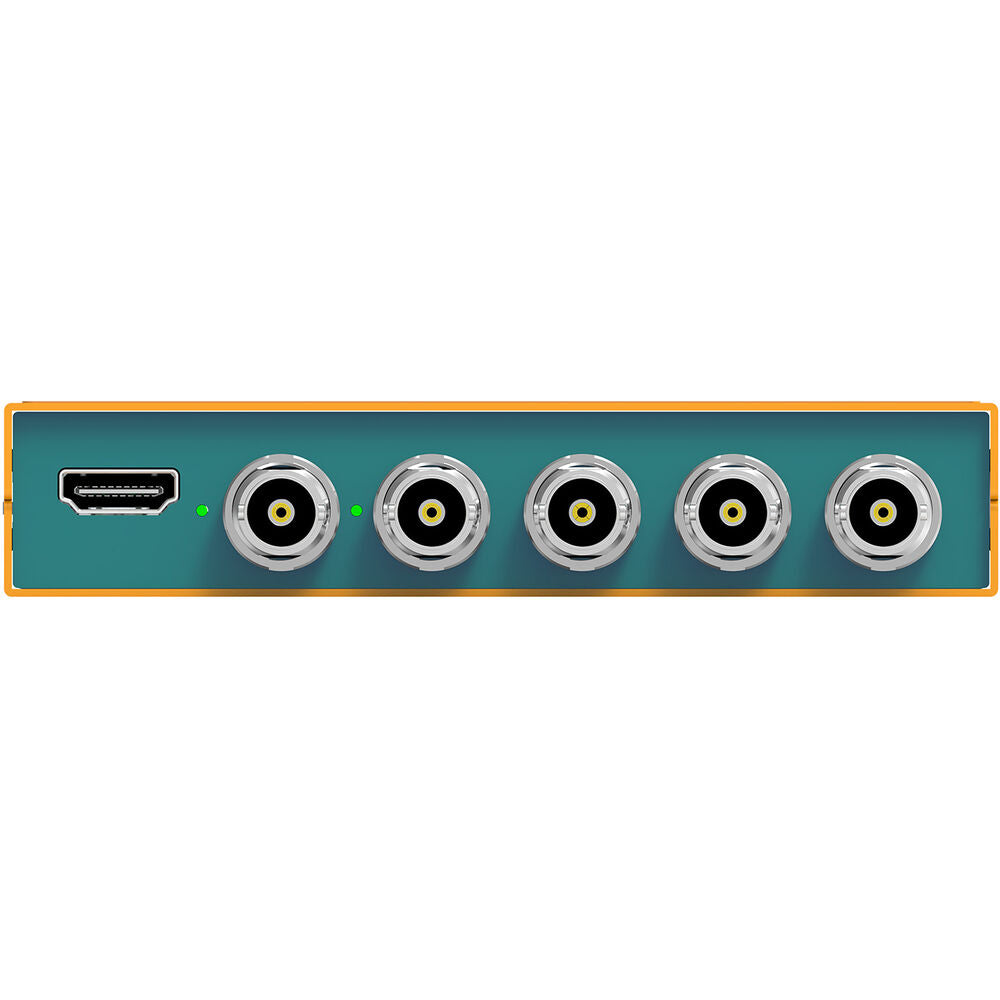

The 2 x 8 SDI/HDMI Splitter and Converter from Lilliput offers 2 x 8 distribution as well as SDI/HDMI conversion. It features HDMI and 3G-SDI autodetecting inputs, four 3G-SDI outputs, and four HDMI outputs. All the connections support up to 1080p60 signals. The SDI ports support cable equalization and reclocking. Input signals can easily be switched via dip switches on the side. Two mounting brackets are included for mounting the splitter in various ways.
In the Box
- Lilliput 2 x 8 SDI/HDMI Splitter and Converter
- 12V Locking Power Supply
- 2 x Mounting Bracket
Lilliput SD2080 Specs
Interfaces
| Input | 1 x BNC (3G-SDI) 1 x HDMI |
| Output | 4 x BNC (3G-SDI) 4 x HDMI |
| Other I/O | 1 x USB Micro-B |
Standards
| Video Standard Compliance | SMPTE 259M/292M/424M |
| Reclocking | Yes |
| HDR Compatibility | None |
| HDCP Support | None |
| EDID Support | None |
Transmission
| Video Format | SDI Input (4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps NTSC PAL SDI Output (4:2:2 YUV) 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC PAL HDMI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 25/29.97/30/50/59.94/60 fps NTSC PAL |
Power
| Power Connector | 1 x Barrel (12 VDC) Input |
| Power Consumption | (6.6 W) |
| ESD Protection | None |
Environmental
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
General
| Dimensions | 4.9 x 4.1 x 1.0" / 125.5 x 104.0 x 24.5 mm |
| Weight | 17.1 oz / 485 g |
Packaging Info
| Package Weight | 2.48 lb |
| Box Dimensions (LxWxH) | 7 x 7 x 3.6" |
