Description
Lilliput Q15 Overview

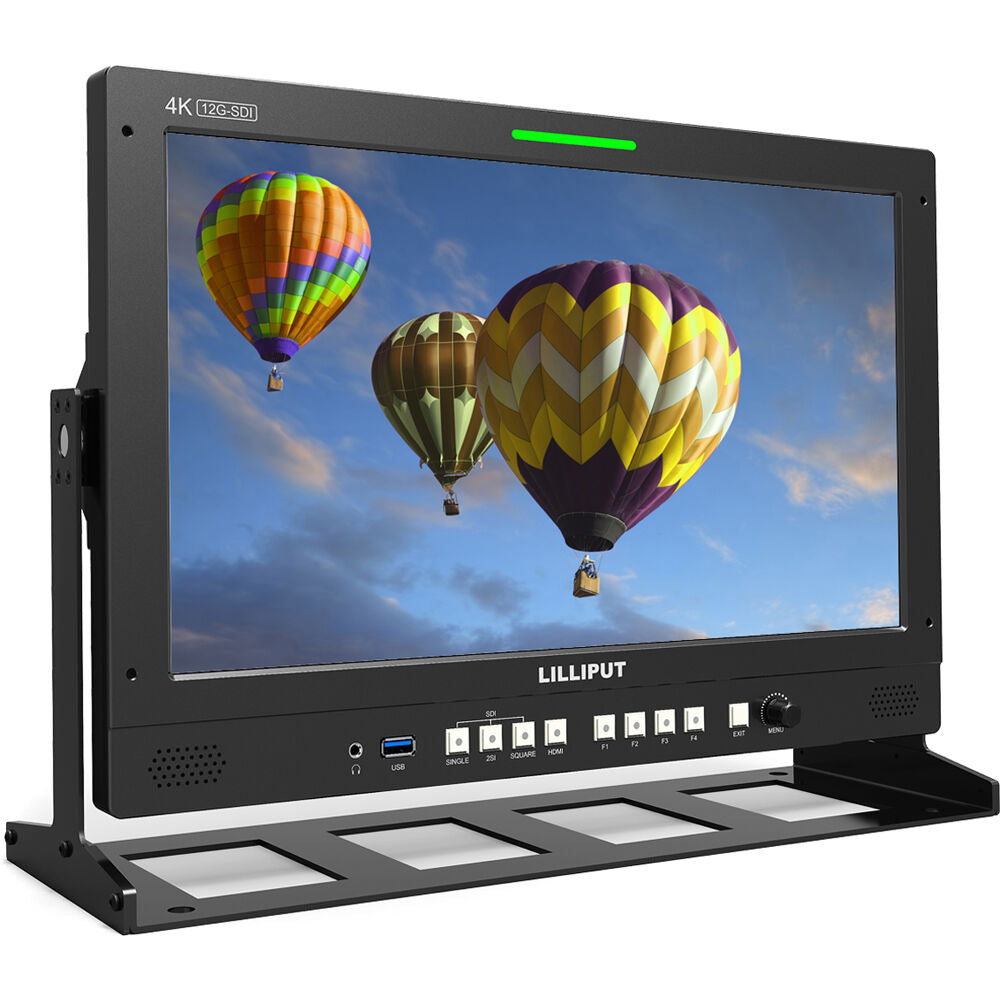

The Lilliput 15.6" 12G-SDI/HDMI Broadcast Studio Monitor is a 15.6" native UHD 4K monitor with a Gold mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single, dual, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).
Input video signals are automatically scaled to fit the entire 3840 x 2160 screen. Audio embedded in the HDMI and SDI signals play through the monitor's speakers, and a 3.5mm headphone jack allows you to monitor without outside noise. The monitor also supports adjustable HDR color spaces, including HLG, and you can select from 17 built-in 3D-LUTs or import six of your own. In the studio, the included power supply allows you to power the monitor from a mains outlet via the 4-pin XLR port, or you can power it from a Gold mount battery using the included battery plate. The monitor comes with a mounting bracket for desktop use and a VESA mounting plate for mounting in the field.
Features

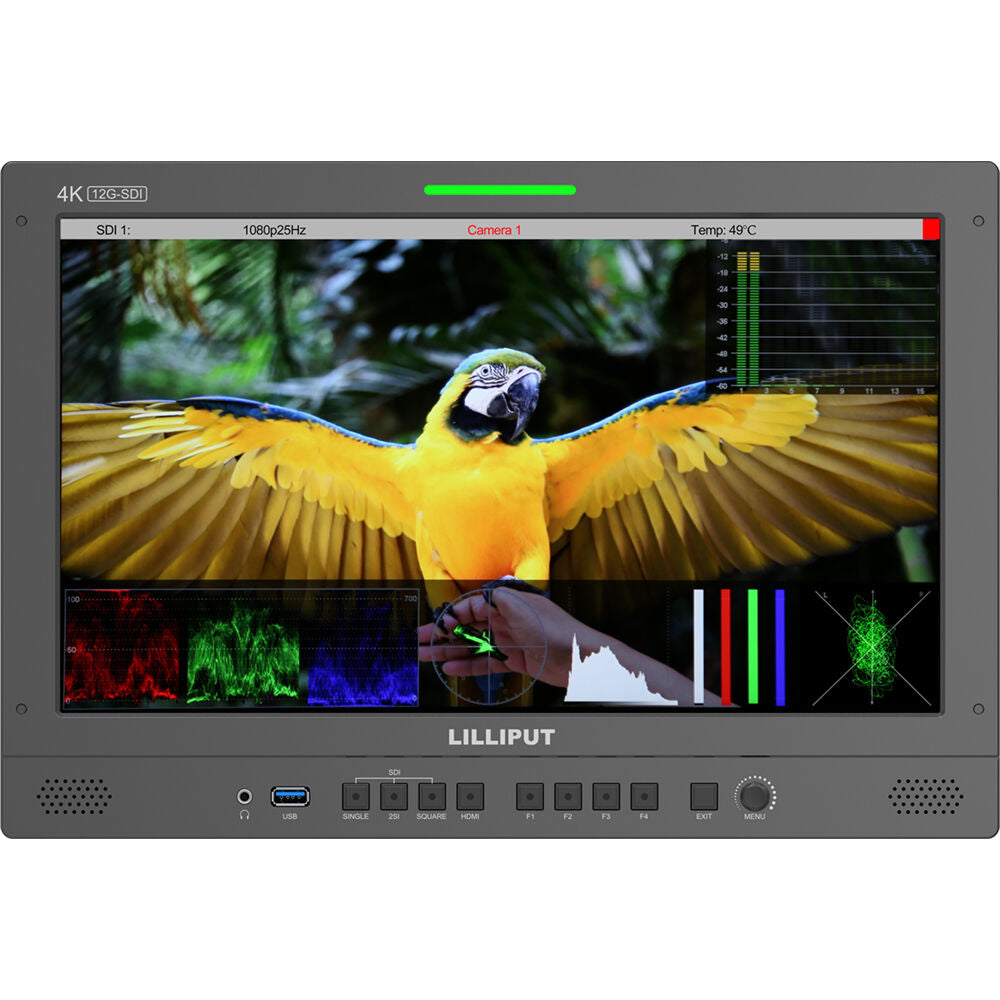

Monitoring Tools
- Peaking
- Check field
- Image rotation/flip
- Overscan
- Underscan
- Image freeze
- Pixel-to-pixel
- False color
- Exposure
- Histogram
- Timecode (SDI-only)
- Aspect ratio selection
- Screen markers
- Color space
- HDR
- Color temperature adjustment
HDR and 3D LUTs
Audio
Assignable Buttons
Remote Control
Calibration
Fiber
In the Box
- Lilliput 15.6" 12G-SDI/HDMI Broadcast Studio Monitor (Gold Mount)
- Gold Mount Battery Plate
- Power Adapter
- VESA Mount Plate
- Base Bracket
- USB Flash Disk
- Limited 1-Year Warranty
Lilliput Q15 Specs
| Display Size | 15.6" / 39.6 cm |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 176° Vertical: 176° |
| Touchscreen | No |
| Maximum Brightness | 330 cd/m2 |
| Contrast Ratio | 1000:1 |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 282 ppi |
| Real-Time LUT Monitoring | HDR |
| Image Controls | Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Video | 1 x HDMI Type A (HDMI 2.0) Input 2 x BNC (12G-SDI) Input 2 x BNC (3G-SDI) Input 1 x HDMI Type A (HDMI 2.0) Output 2 x BNC (12G-SDI) Output 2 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 8-Channel SDI: 16-Channel |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Power I/O | 1 x XLR 4-Pin (24 VDC) Input |
| Other I/O | 1 x GPI (RJ45) Input 1 x LAN (RJ45) Input 1 x RS-422 (RJ45) Input 1 x RS-422 (RJ45) Output 1 x USB 2.0 (USB Type-A) Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
| DC Input Power | 12 to 24 VDC at 1.2 A |
| Battery Type | 1 x Gold Mount |
| Power Consumption | 32.5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 15.5 x 10.5 x 2" / 393 x 267 x 51.4 mm |
| Weight | 6.4 lb / 2.9 kg |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 12.88 lb |
| Box Dimensions (LxWxH) | 22.9 x 13.8 x 7.5" |
Lilliput Q15 Reviews
Exactly what I needed
This is an amazing monitor, chock full of great features. The screen is super-sharp, which gives us a leg up on camera focus, and the focus assist utility is amazing. Having both SDI and HDMI options gives us much needed flexibility, and the onboard SD card recording capability is a huge win. Having both SDI and HDMI I/O is handy and the video signal monitoring functions (Zebra, focus peaking, histogram, false color, etc.) It's inherent color reproduction also seems to be accurate as well as 3D Lut support.
