Description
Lilliput 12G-SFP-LC Overview

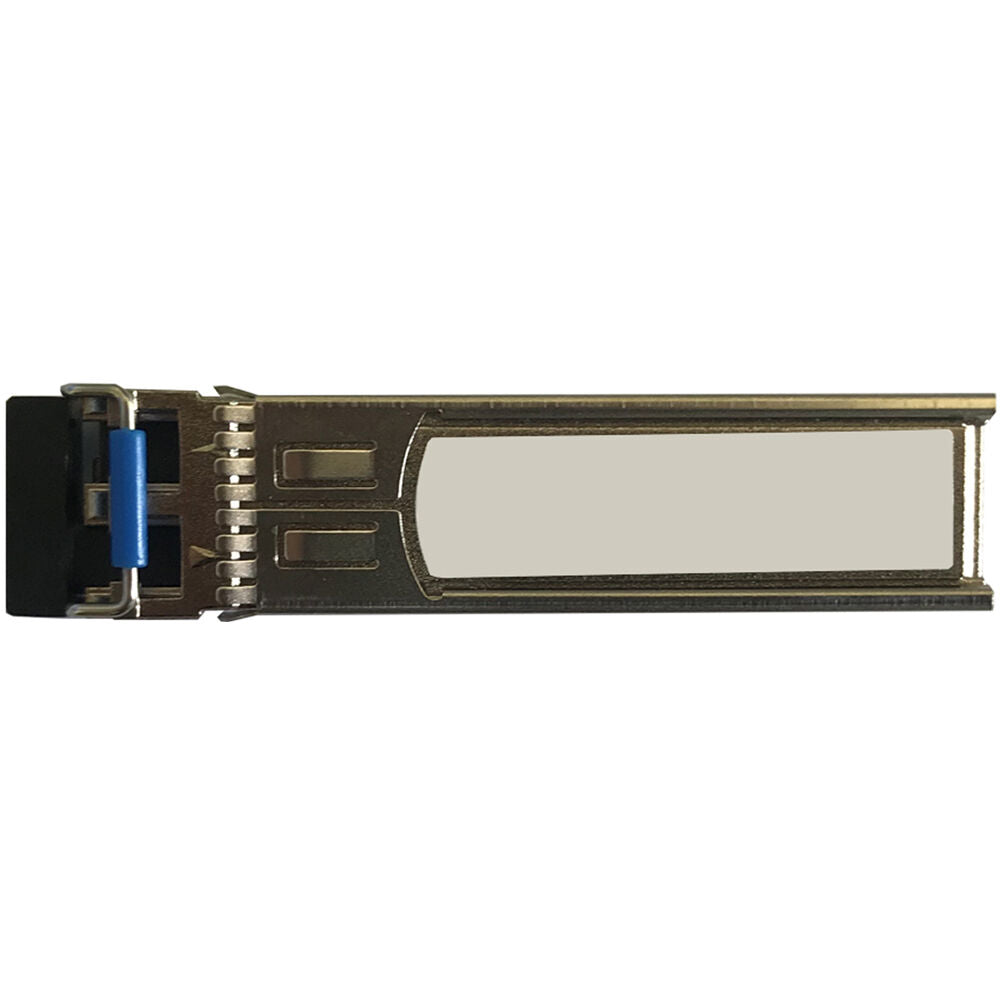

The Lilliput 12 Gb/s Video SFP+ Optical Transmitter is an SFP+ module designed to facilitate the conversion of an electrical SDI signal into an optical signal for transmission over fiber. It supports SD/HD/3G/6G/12G-SDI signals and SDI pathological pattern transmission. Pairing with an optional corresponding receiver, the optical transmitter delivers the signal via single-mode fiber at 11.88 Gb/s over distances up to 6.2 miles.
Additional Features
Hot pluggable SFP+ footprint LC connector interface
Operating data rate up to 11.88 Gb/s
1310nm DFB laser (class I)
Up to 6.2 mile single-mode fiber transmission at 11.88 Gb/s
Standards and Compliance
Compliant with SFP+ MSA / SFF-8472
RoHS compliance
SMPTE 424M/297M (2.97 Gb/s, 1080p60/59.94/50)
SMPTE 292M/297M (1.485 Gb/s)
SMPTE 259M/297M (270/360 Mb/s)
SMPTE ST-2081(6 Gb/s, 4K30)
SMPTE ST-2082 (12 Gb/s, 4K60)
In the Box
- Lilliput 12 Gb/s Video SFP+ Optical Transmitter
- Limited 1-Year Warranty
Lilliput 12G-SFP-LC Specs
| Interface | SFP+ LC Connector |
| Transmission Distance | Up to 6.2 mi / 10 km (at 10.88 Gb/s) |
| Center Wavelength | 1260 to 1360 nm Typical: 1310 nm |
| Spectral Width | (-20 dB) 1 nm |
| Side Mode Suppression Ratio | 30 dB |
| Output Power | -6 to -0 dBm Typical: -4 dBm |
| Power Supply Voltage | Typical: 3.3 V |
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Storage Temperature | -40 to 185°F / -40 to 85°C |
| Operating Humidity | 5 to 95% |
Packaging Info
| Package Weight | 0.065 lb |
| Box Dimensions (LxWxH) | 4.1 x 2.4 x 0.8" |
