Libec TH-Z H Overview

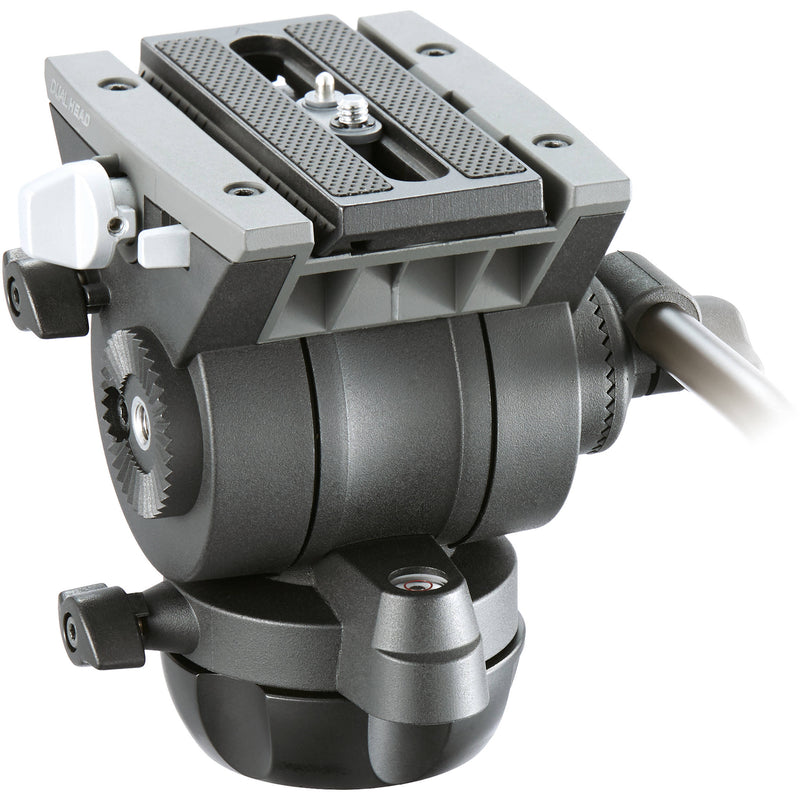

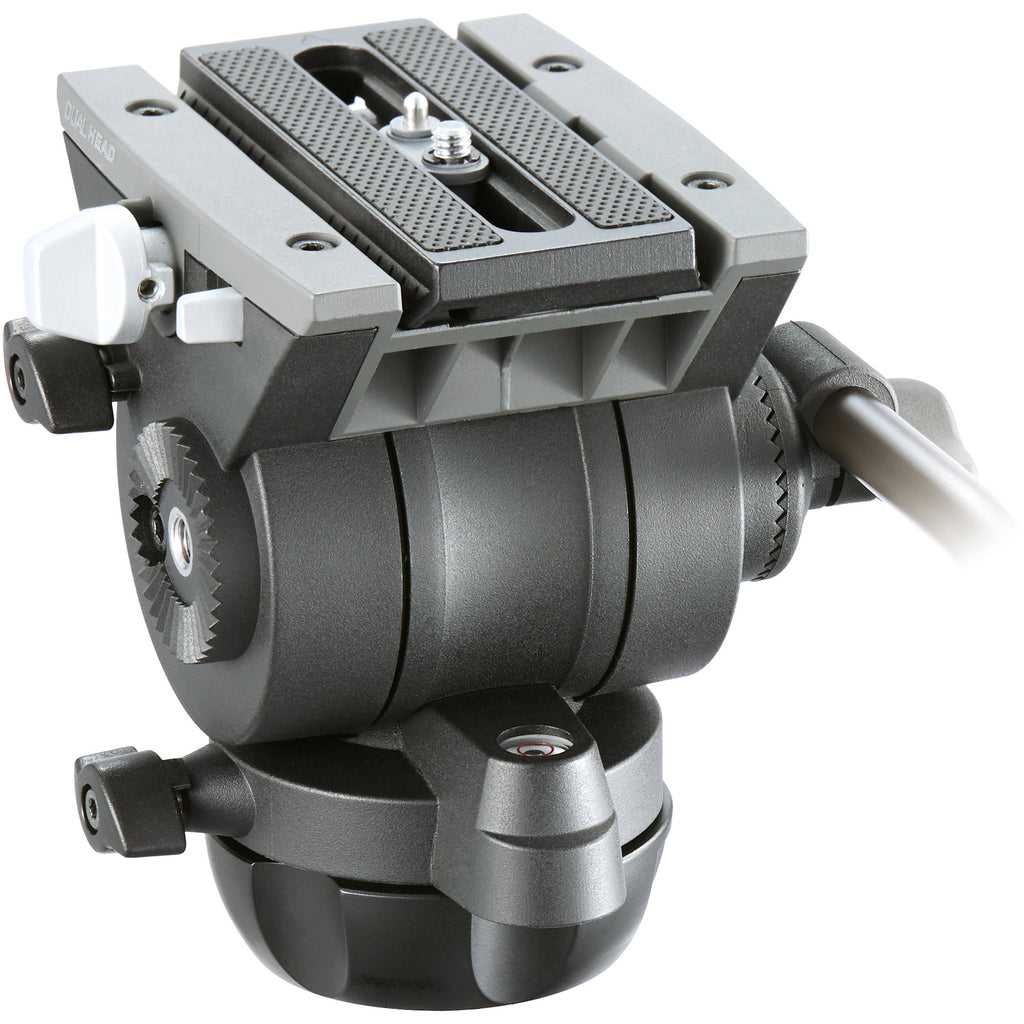

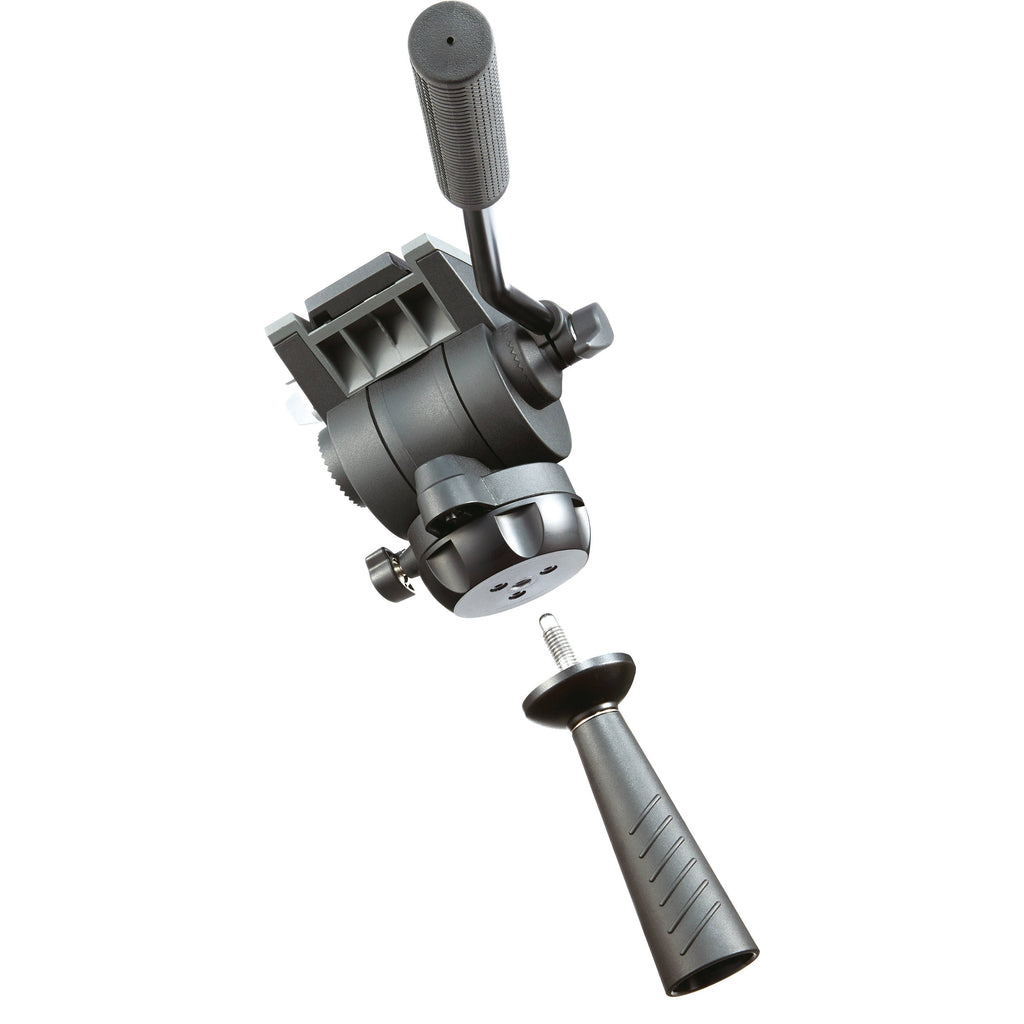

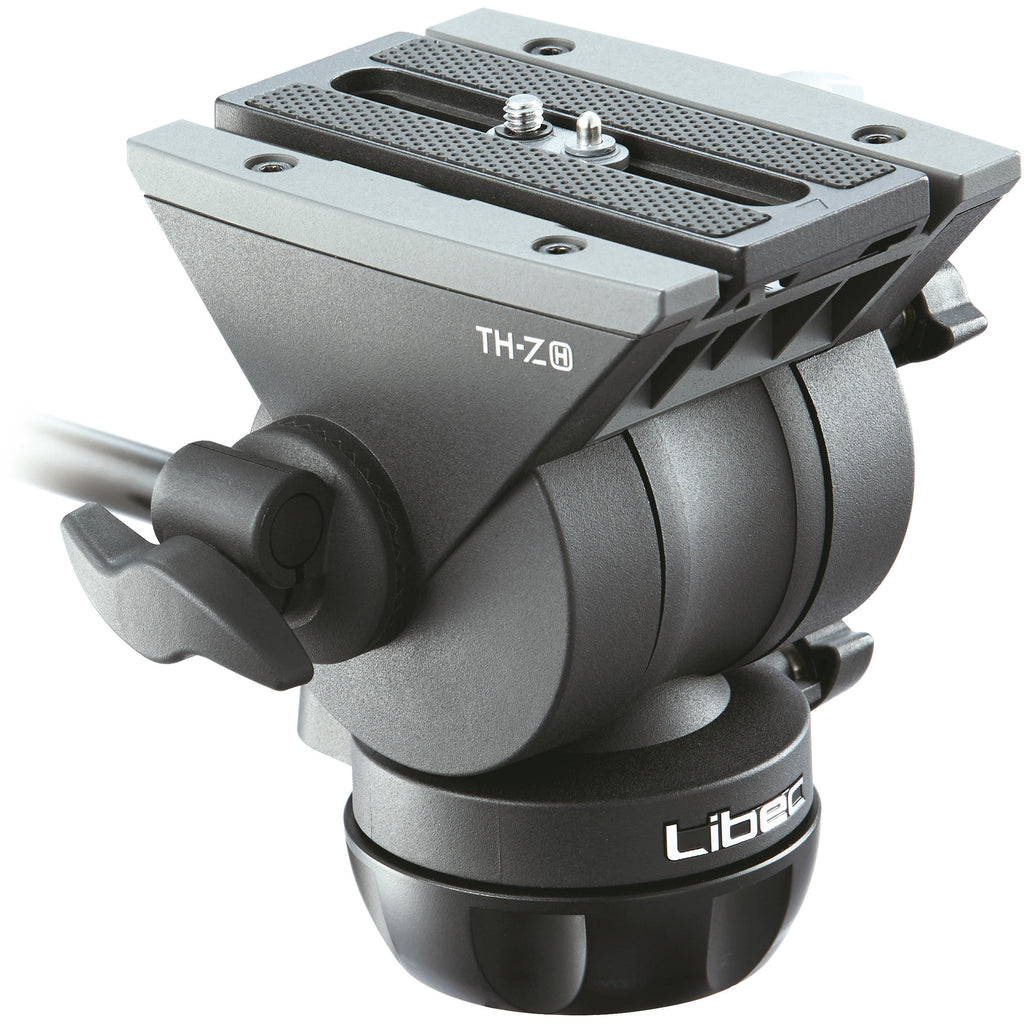

The Libec TH-Z H Fluid Head is a compact dual-function tripod head with an 11 lb payload and fixed counterbalance and drag. It features a native 75mm half ball and has a flat base with a 3/8"-16 mounting thread on the bottom of the half ball. It's directly compatible with 75mm bowl tripods but can also be mounted directly on sliders and other supports via the flat base. A tie-down is included for securing it to tripods.

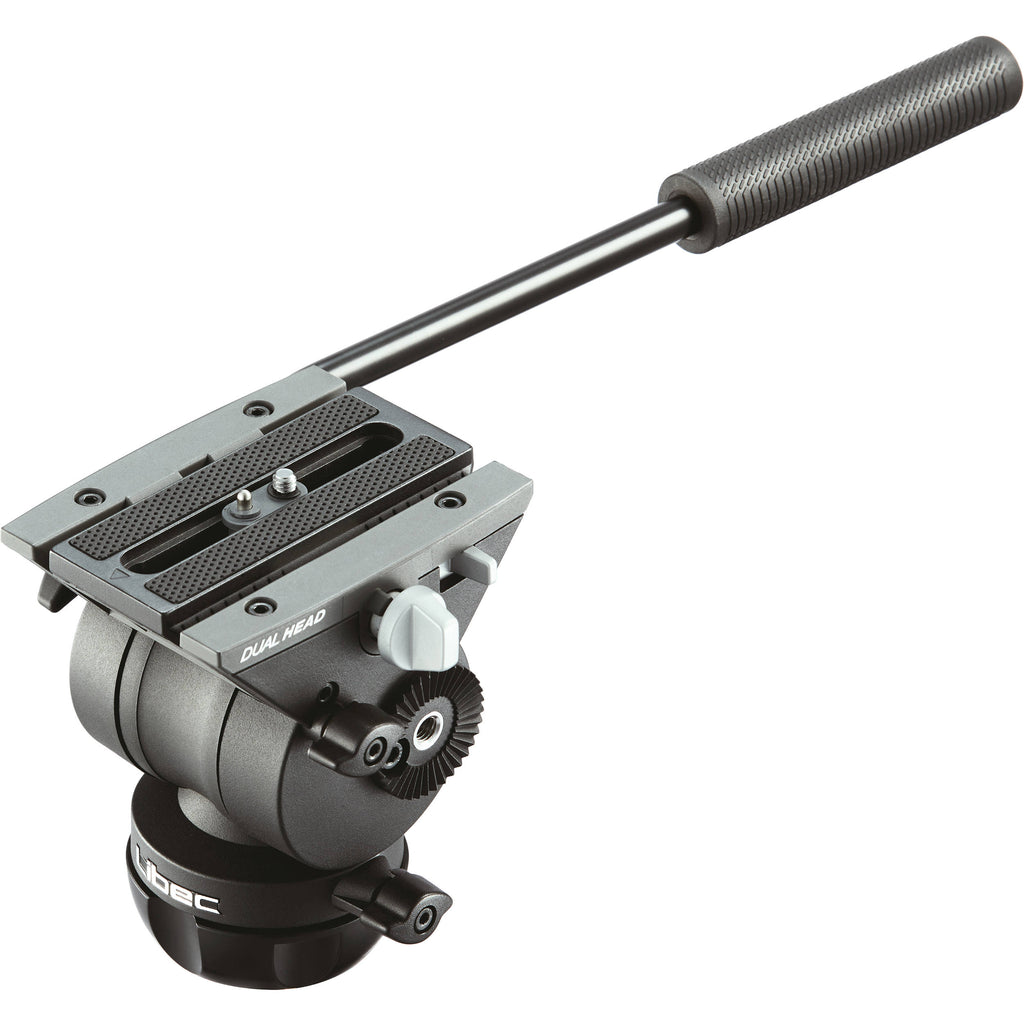

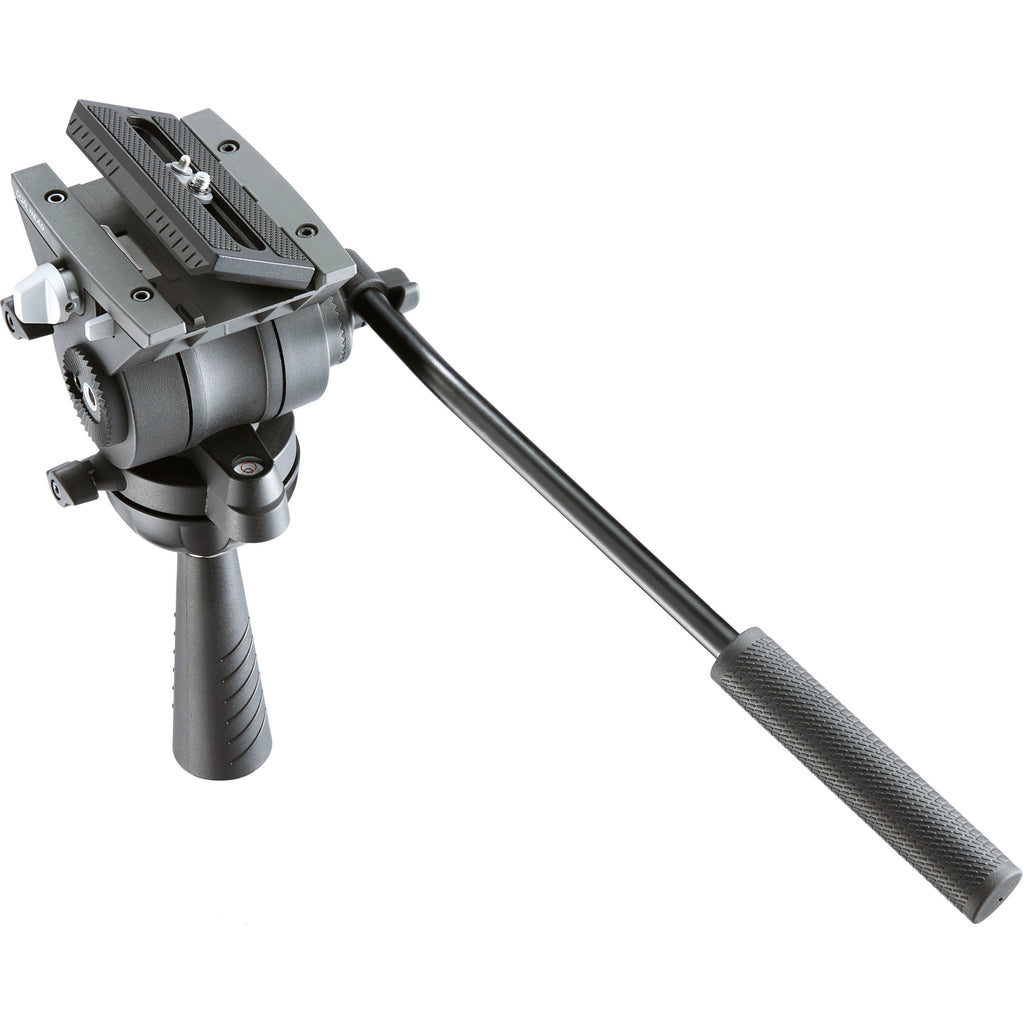

The head has a snap-in camera plate system that lets you attach the included camera plate from above rather than slide it in from the rear. The plate has a sliding range of 1.2" once secured. It comes with a 1/4"-20 mounting screw and an anti-twist video pin beside it. A long rosette-mount pan bar is included and an optional second one is also supported.
Key Features
- 11 lb payload
- 75mm half ball with a flat base and 3/8"-16 mounting thread
- Snap-in camera plate system
- 1/4"-20 mounting screw with a video pin
- Long pan bar (an optional second one is supported)
- Fixed counterbalance and drag
- Illuminated bubble level
Libec TH-Z H Specs
Camera Plate
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Balance Plate Sliding Range | 1.2" / 3.05 cm |
Tripod Platform
| Base Mount | 75 mm Half Ball
3/8"-16 Female |
Pan & Tilt
| Drag Control | Fixed |
| Vertical Tilt | +90° to -80° |
| Panning Range | 360° |
Physical
| Load Capacity | 11 lb / 4.99 kg |
| Counter Balance | Fixed |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Weight | 2.4 lb / 1.09 kg |
Packaging Info
| Package Weight | 3.715 lb |
| Box Dimensions (LxWxH) | 15.6 x 8.5 x 6.1" |
