Description
Libec SVF-7Pro Overview

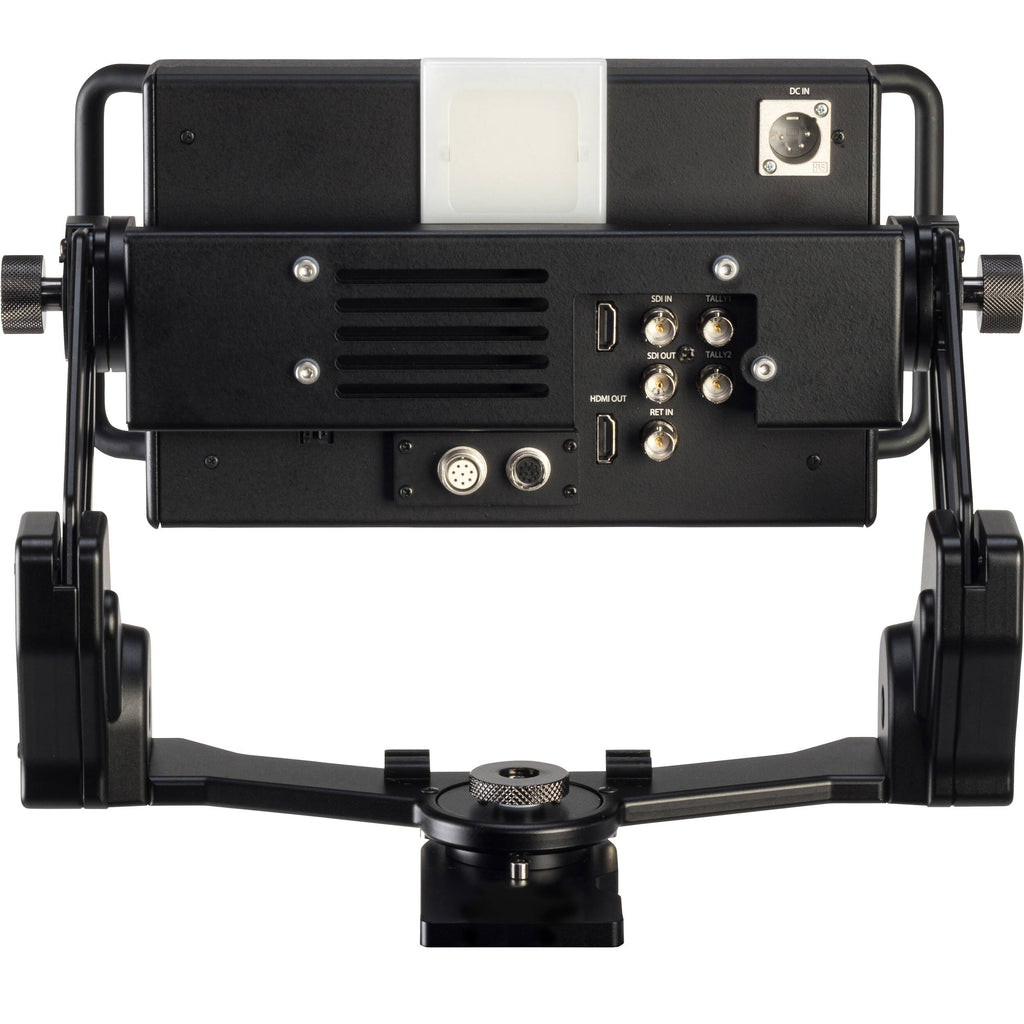

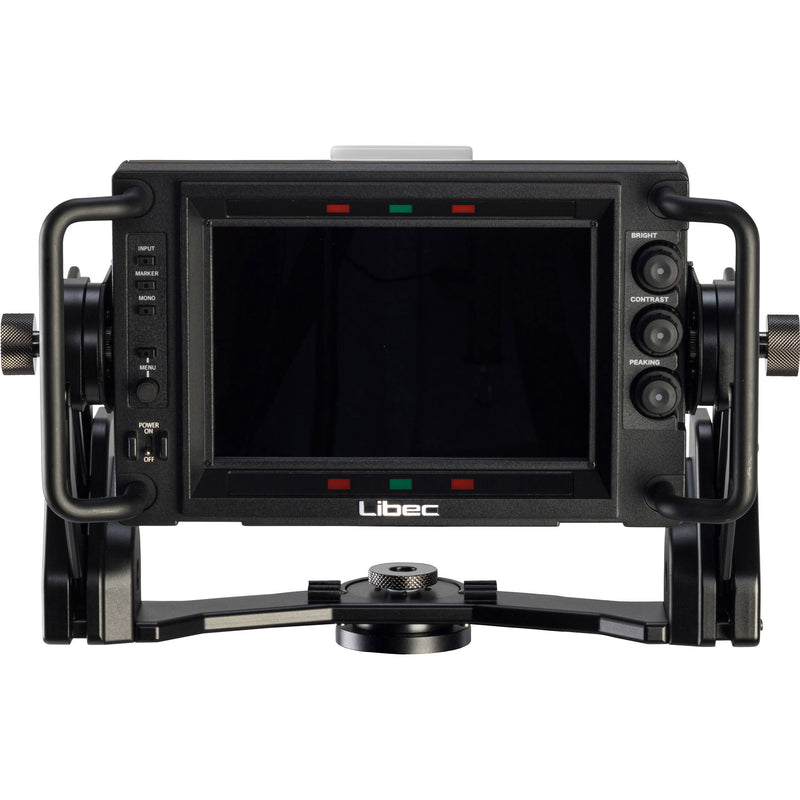

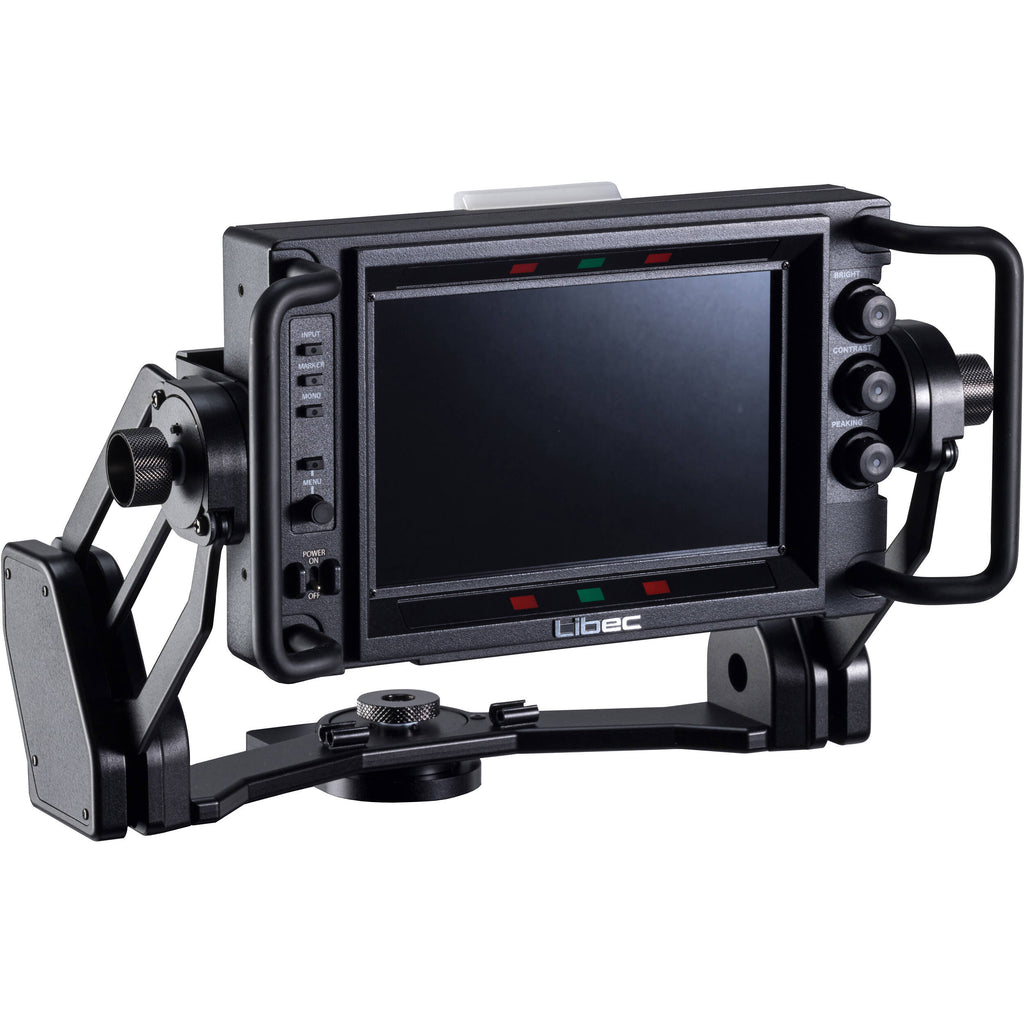

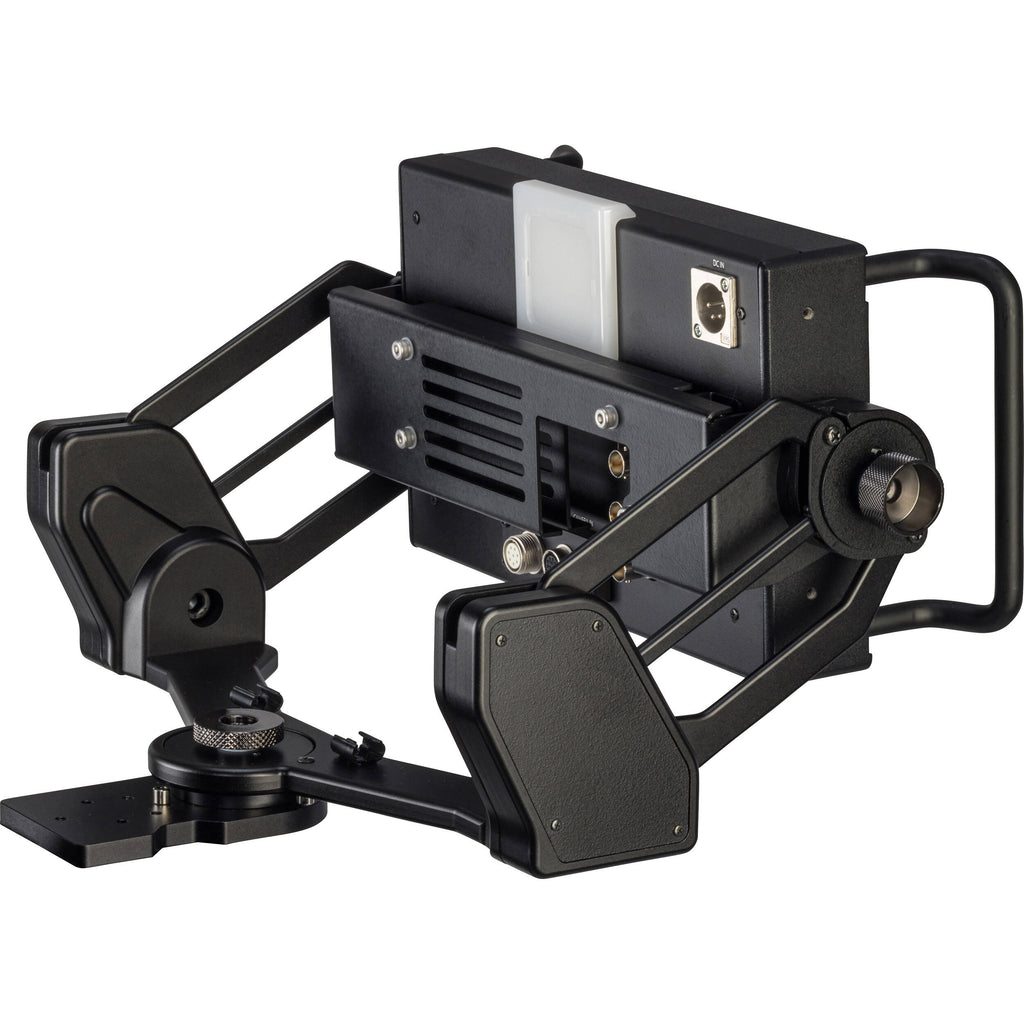

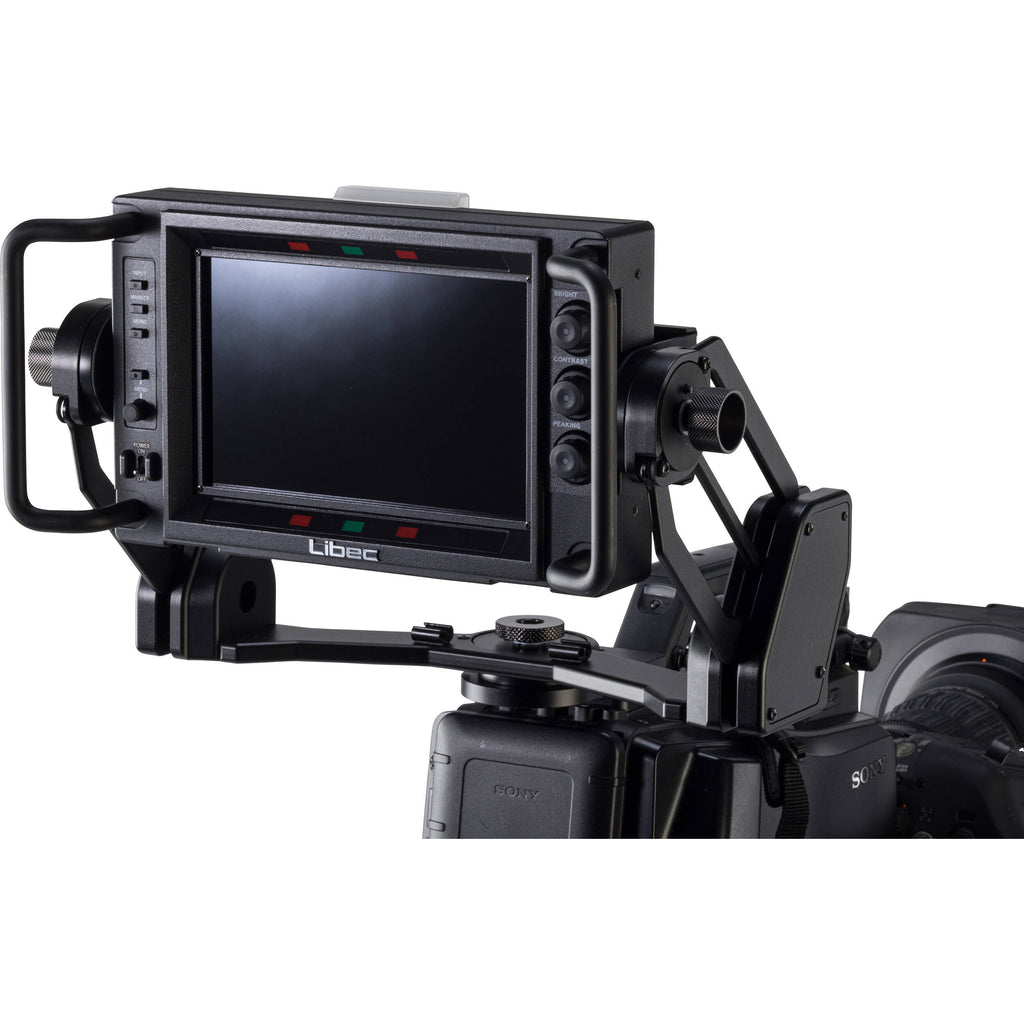

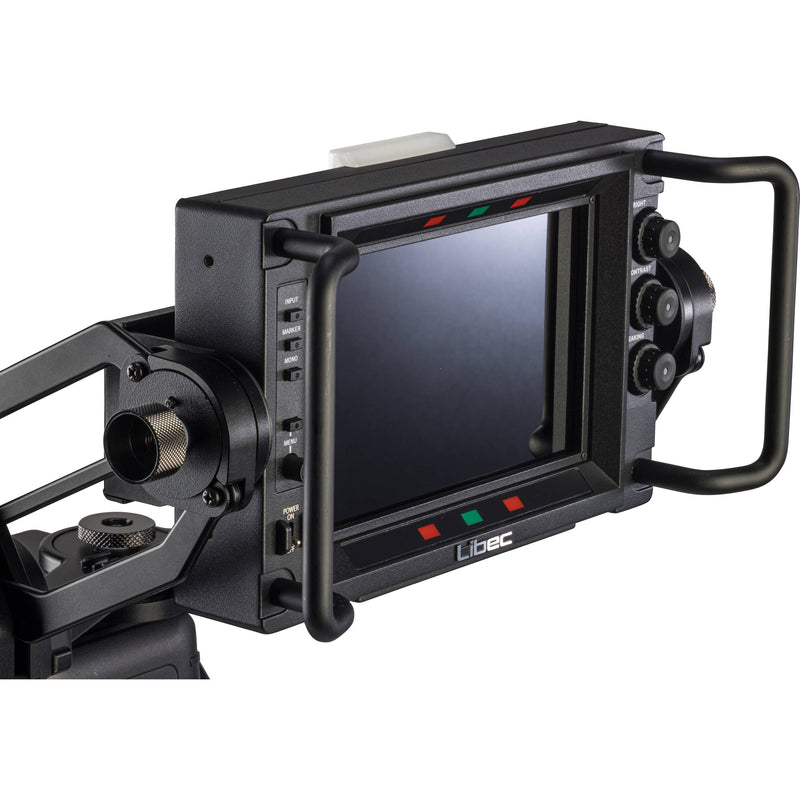

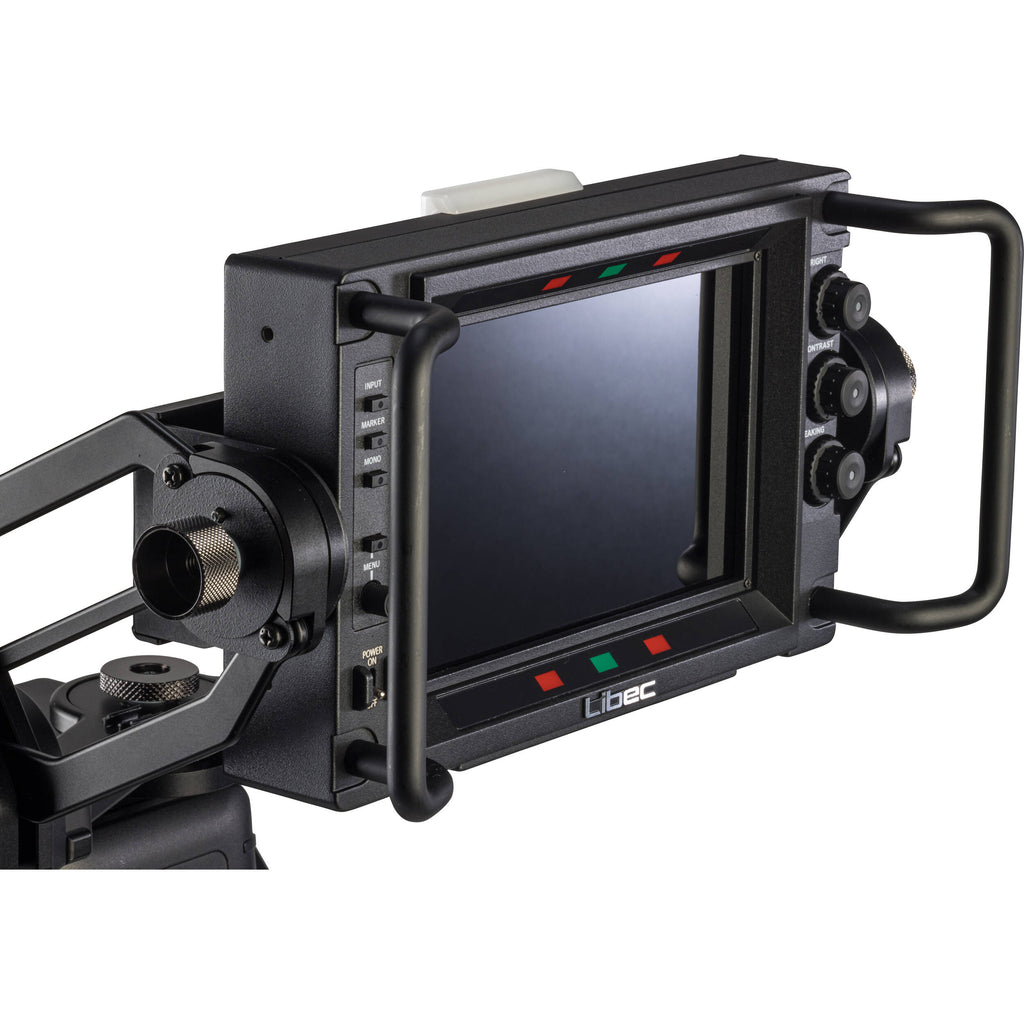

The SVF-7Pro 7" HD Viewfinder from Libec is a professional color display designed for use with studio-style video cameras. This 7" viewfinder features a 1920 x 1080 panel, both BNC and HDMI video inputs and outputs, a BNC return port, red and green tally inputs with adjustable brightness, and a 20-pin camera input port.
Note:
A connector cable and shoe mount for the camera are not included. Please be sure to purchase either the CA-7S, CA-7I, or CA-7H cable and mount kit.
7" Studio Viewfinder
Yoke-style viewfinder for use on studio cameras.
In the Box
- Libec SVF-7Pro 7" HD Viewfinder for Studio Cameras
- Limited 3-Year Manufacturer Warranty
Libec SVF-7Pro Specs
Key Specs
| Color/Monochrome |
Color
|
| Display Size |
7.0" / 17.8 cm
|
| Touchscreen |
No
|
| Video I/O |
1 x BNC Input
1 x BNC Output 1 x BNC Monitor Output 1 x HDMI Input 1 x HDMI Output |
| Video Format |
SDI (10-Bit 4:2:2 YUV)
1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 1080PsF: 29.97/25/24/23.98 720p: 59.94/50 |
| Power I/O |
1 x XLR 4-Pin (12 VDC) Input
|
| Other I/O |
2 x BNC (Tally) Input
|
| Power Consumption |
12 W
|
Display
| Color/Monochrome |
Color
|
| Display Size |
7.0" / 17.8 cm
|
| Active Area |
5.9 x 3.3" / 151 x 85 mm
|
| Screen Resolution |
1920 x 1080
|
| Viewing Angle |
Horizontal: 170°
Vertical: 170° |
| Touchscreen |
No
|
| Maximum Brightness |
350 nits / cd/m2
|
| Bit Depth / Color Support |
6-Bit+FRC (16.7 Million Colors)
|
| Pixels Per Inch (ppi) |
315 ppi
|
Inputs / Outputs
| Video I/O |
1 x BNC Input
1 x BNC Output 1 x BNC Monitor Output 1 x HDMI Input 1 x HDMI Output |
| Video Format |
SDI (10-Bit 4:2:2 YUV)
1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 1080PsF: 29.97/25/24/23.98 720p: 59.94/50 |
| System Connection |
HR12 20-Pin
|
| Power I/O |
1 x XLR 4-Pin (12 VDC) Input
|
| Other I/O |
2 x BNC (Tally) Input
|
Power
| Power Consumption |
12 W
|
Environmental
| Operating Humidity |
0 to 90% (Non-Condensing)
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
50 to 113°F / 10 to 45°C
|
General
| Dimensions |
9.1 x 5.7 x 1.9" / 232 x 146 x 47 mm
|
| Weight |
2.6 lb / 1.2 kg
|
Packaging Info
| Package Weight |
10.325 lb
|
| Box Dimensions (LxWxH) |
15.9 x 14.7 x 8.8"
|
