Libec RSP-850PD Overview
-
1Description
-
2Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles
-
3Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads
-
4Libec DL-8B Heavy Duty Dolly for T102B and T102B Tripods (Black)

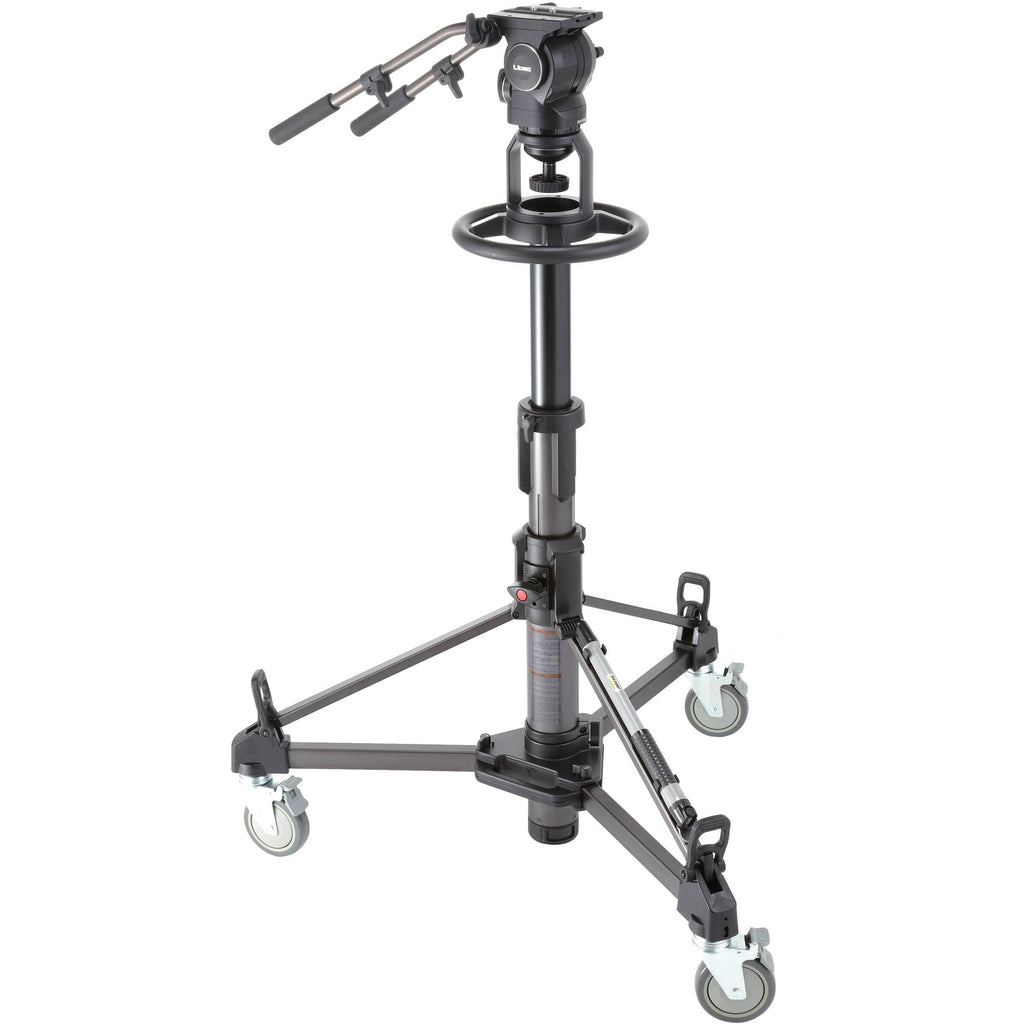

The Libec RSP-850PD(B) Professional Pedestal System consists of the RHP85 Fluid Head, PH-8B Pan Handle, and an Outside Broadcast Dolly DL-8B. This compact Pedestal System is designed to accommodate studio cameras weighing up to 55 lb (25kg). It is equipped with the double bearing system to prevent wobbling and ensure smooth movements. Easy to set up, this pedestal system is supplied with air pump for weight adjustments.
Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles
The Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles features the fully adjustable Continuous Counterbalance technology. It offers optimal counterbalance, as well as Balance Stabilizer Mechanism that prevents the slightest wobble on your image, while providing a smooth balancing system.
The Fluid Head features a 7-step pan and tilt torque switch that covers a wide torque range. The one-touch attachment and release ensures that the camera plate can be attached and detached with just a touch, enabling fast and easy setup. The Fluid Head comes with the PH-8B Pan Handle with rubber grip that can stop the camera precisely at any tilt angle.
The Fluid Head is capable of operating at temperature of -40°F. The Fluid Head features a 100mm diameter ball head. It is designed for use with ENG (Electronic News Gathering) cameras that can capture fast moving objects.
It is capable of handling a payload of 55 lb.
Fully adjustable Continuous Counterbalance technology
Balance Stabilizer Mechanism prevents wobble on your images
7-step pan and tilt torque switch
One-touch camera plate attachment and release
Operates at as low as -40°F
Features an extendable pan handle with a rubber grip
Great for ENG cameras that can capture fast moving objects
Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads
This Libec Pan Bar Handle is compatible with the Libec RHP75, RHP85, and LX10 video heads. It connects and locks into either side of those heads with a clamp and bolt for right or left-handed use. A rubberized handle provides a comfortable means to move its telescoping aluminum-alloy shaft, which is effectively adjustable from 16 to 22".
This angled pan bar handle can rotate within its clamp, allowing a downward-pointing orientation for right or left-handed use. It is packaged for immediate installation with a downward-pointing orientation for right-handed use. For a pan bar handle that installs on a Libec RHP75, RHP85, or LX10 video head and is packaged for immediate installation with a downward-pointing orientation for left-handed use, the Libec PH-8BL Extendable Pan Bar Handle can be used instead.
Libec DL-8B Heavy Duty Dolly for T102B and T102B Tripods (Black)
The DL-8B Heavy Duty Dolly from Libec is designed for use with the T102B and T102B Tripods. It is equipped with casters and brake locking system.
In the Box
- Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles
- Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads
- Limited 3-Year Warranty
- Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads
- Libec DL-8B Heavy Duty Dolly for T102B and T102B Tripods (Black)
- Limited 3-Year Warranty
Table of Contents
- Description
- Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles
- Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads
- Libec DL-8B Heavy Duty Dolly for T102B and T102B Tripods (Black)
Libec RHP85 Fluid Head with PH-8B Extendable Pan Handles Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate |
| Camera Mounting Screw |
2 x 3/8"-16 Male |
| Balance Plate Sliding Range |
4.3" / 110 mm |
Tripod Platform
| Base Mount |
100 mm Half Ball |
Pan & Tilt
| Drag Control |
7-Step |
| Vertical Tilt |
+90° to -70° |
Physical
| Load Capacity |
55 lb / 25 kg |
| Counter Balance |
Continuous (20 to 44 lb / 9 to 20 kg) |
| Bubble Level |
1 x Illuminated |
| Base Diameter |
3.93" / 100 mm |
| Operating Temperature |
-40 to 140°F / -40 to 60°C |
| Weight |
8.6 lb / 4 kg |
Packaging Info
| Package Weight |
11.85 lb |
| Box Dimensions (LxWxH) |
14.8 x 10.4 x 7.9" |
Libec PH-8B Extendable Pan Bar Handle for RHP75, RHP85, and LX10 Video Heads Specs
General
| Compatibility |
Libec RHP75 Video Head
Libec RHP85 Video Head
Libec LX10 Video Head |
| Material |
Aluminum alloy with rubberized handle |
| Effective Arm Length |
16.0 to 22.0" (40.6 to 55.9 cm) |
Packaging Info
| Package Weight |
1.02 lb |
| Box Dimensions (LxWxH) |
17.75 x 3.9 x 3.05" |
Libec DL-8B Heavy Duty Dolly for T102B and T102B Tripods (Black) Specs
| Tripod Foot Compatibility |
Spiked Feet |
| Adjustable Footprint |
No |
| Load Capacity |
198 lb / 90 kg |
| Folded Length |
27.17" / 60 cm |
| Locking Wheels |
Yes |
| Wheel Diameter |
5" / 125 mm |
| Cable Guards |
No |
| Weight |
13.6 lb / 6.2 kg |
Packaging Info
| Package Weight |
16.5 lb |
| Box Dimensions (LxWxH) |
31 x 13.2 x 11" |
