Libec QH3 Overview

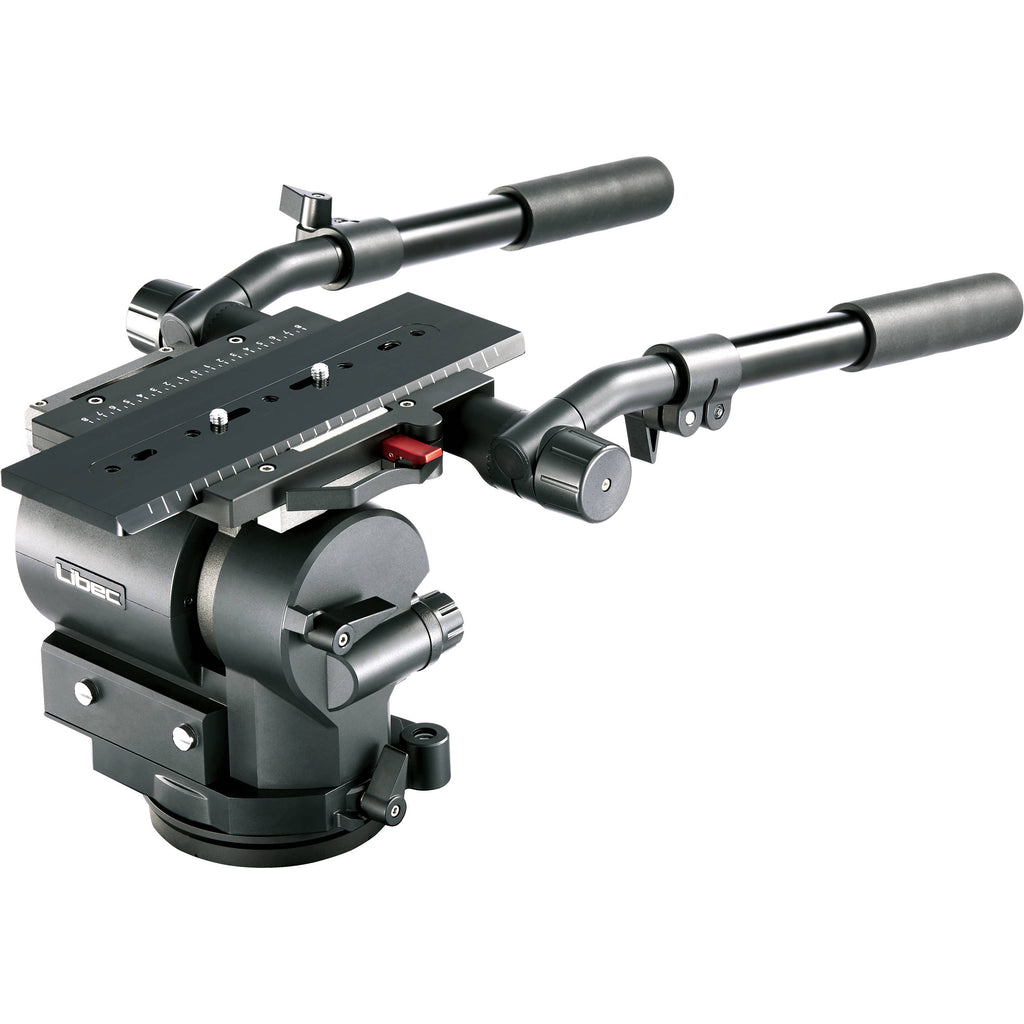

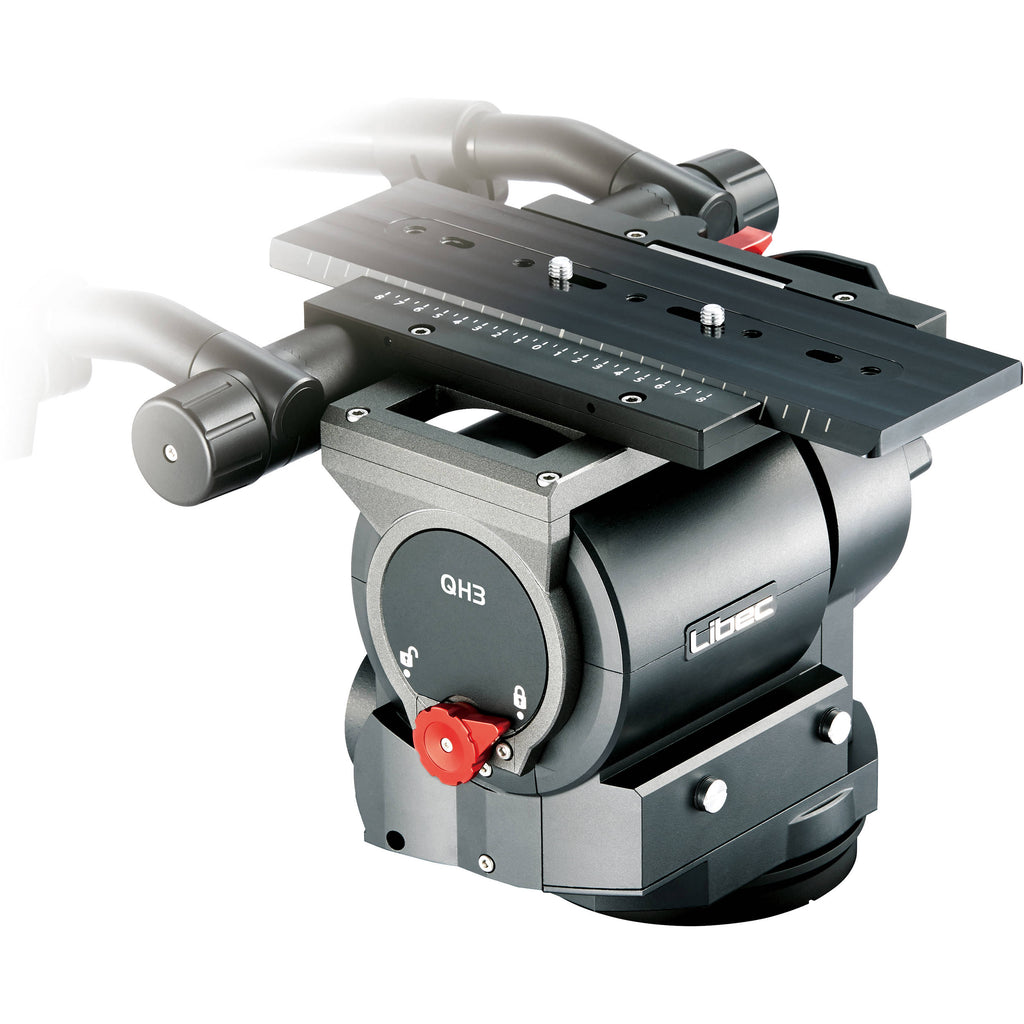

The Libec QH3 Fluid Head is a pedestal-capable heavy-duty head supporting up to 152 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH3 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws. The head also comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.
Key Features
- Pedestal-capable heavy-duty fluid head with 152 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars

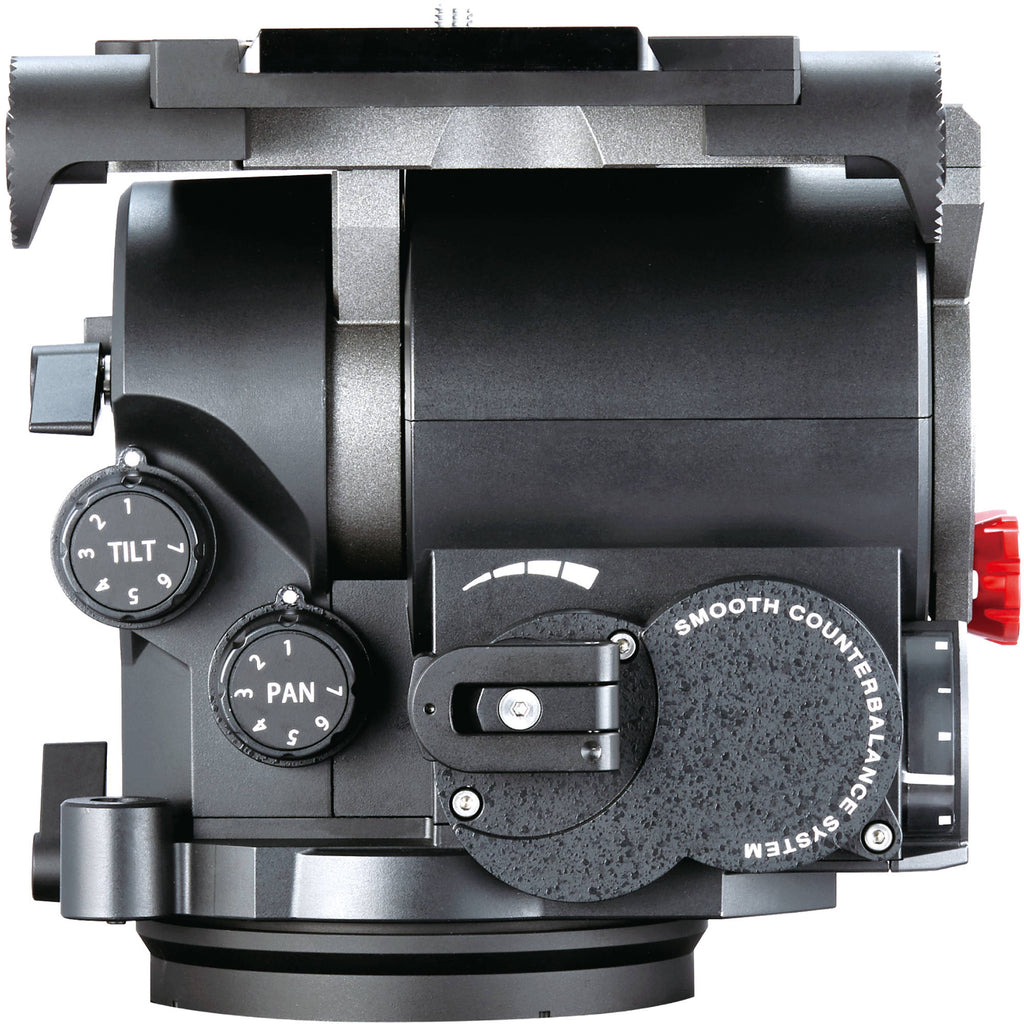

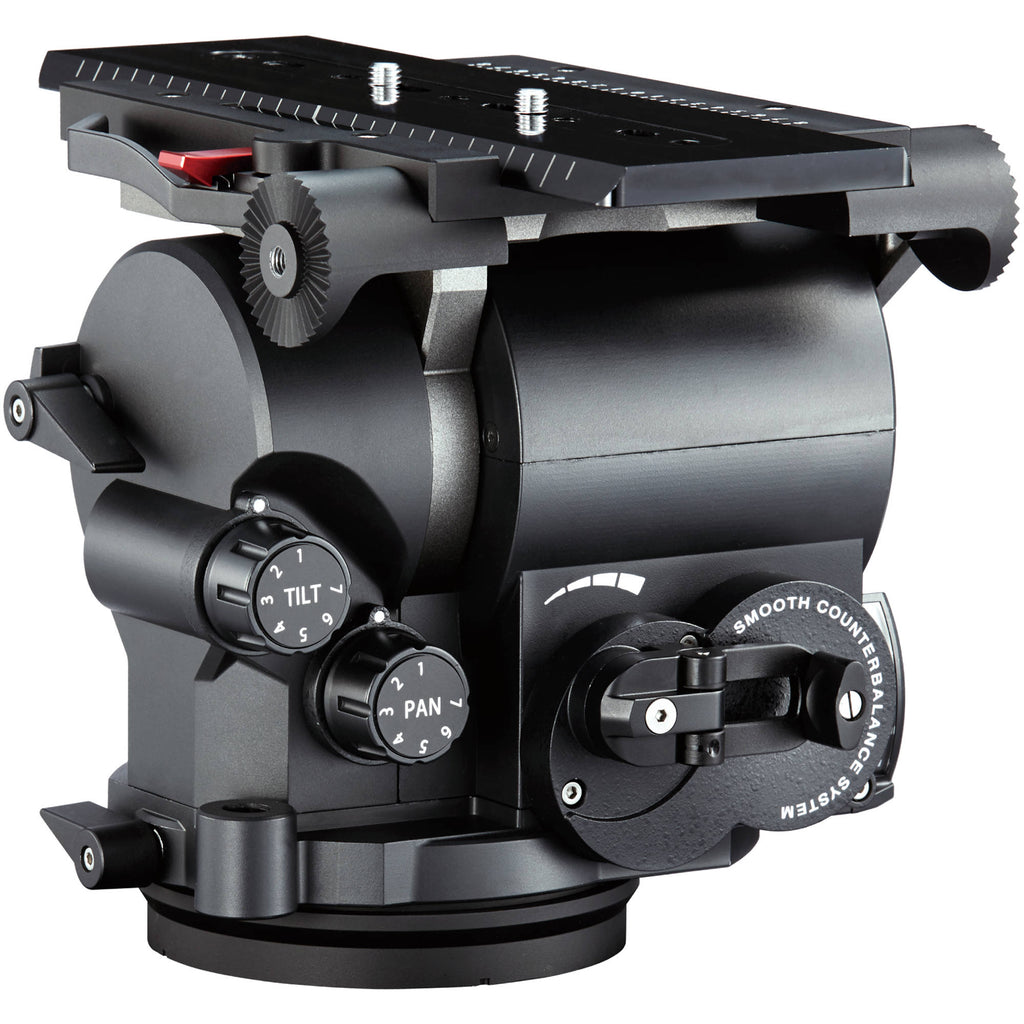

- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan
In the Box
- Libec QH3 Fluid Head
- 150mm Half Ball Adapter
- 4 x Mounting Screw for Half Ball Adapter
- 2 x Telescoping Pan Bar
- Camera Plate with Two 3/8"-16 Screws
- 2 x Spare 3/8"-16 Camera Plate Screw
- Limited 3-Year Warranty
Libec QH3 Specs
Camera Plate
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 2.95" / 75 mm |
Tripod Platform
| Base Mount | 4-Bolt Flat Base |
Pan & Tilt
| Drag Control | 7-Step |
| Vertical Tilt | +90° to -70° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Material | Aluminum |
| Load Capacity | 152 lb / 68.95 kg |
| Counter Balance | Continuous (62 to 143 lb / 28.12 to 64.86 kg) |
| Center of Gravity | 4.92" / 125 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Weight | 27.9 lb / 12.66 kg |
