Libec QD-30M Overview
- 1 Description
- 2 Libec QH3 Fluid Head
- 3 Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
- 4 Libec BR-6B Mid-Level Spreader
- 5 Libec Large Rubber Foot Pads for Select Tripods

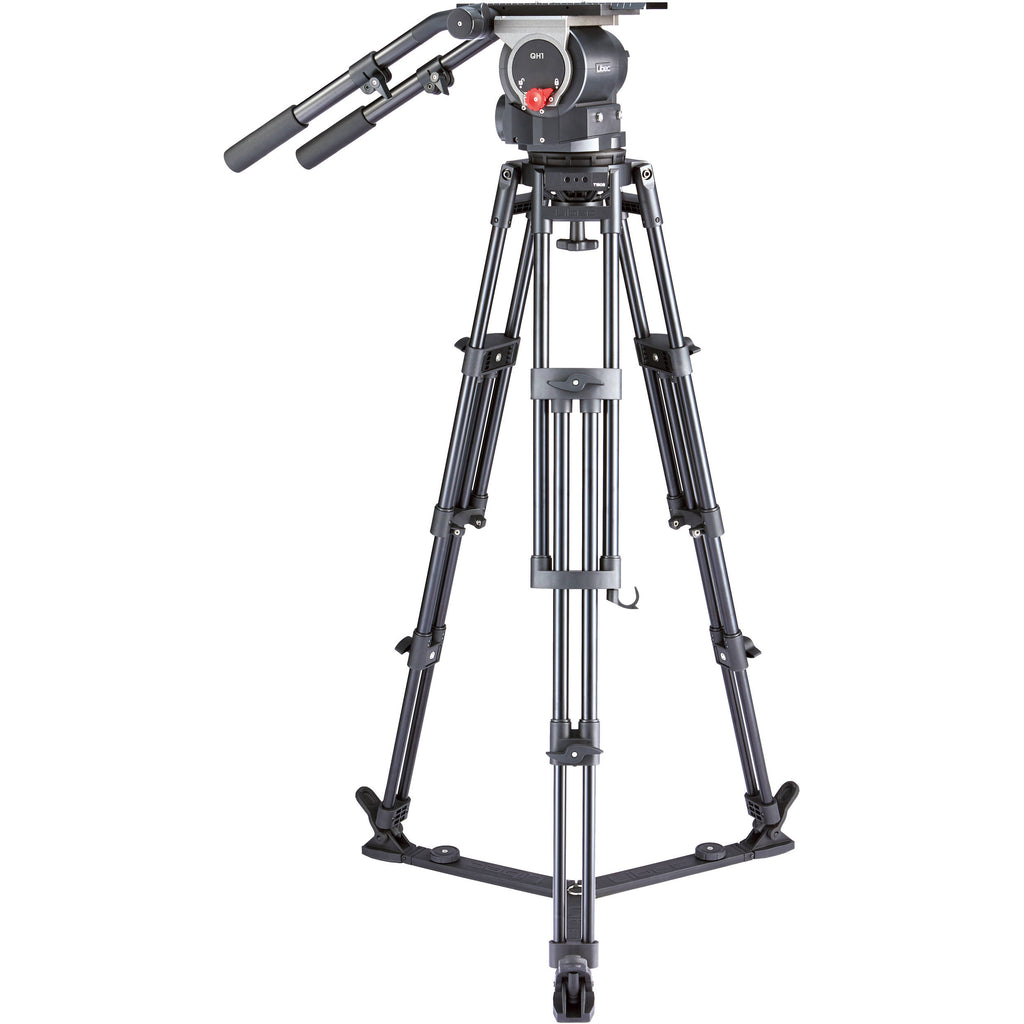

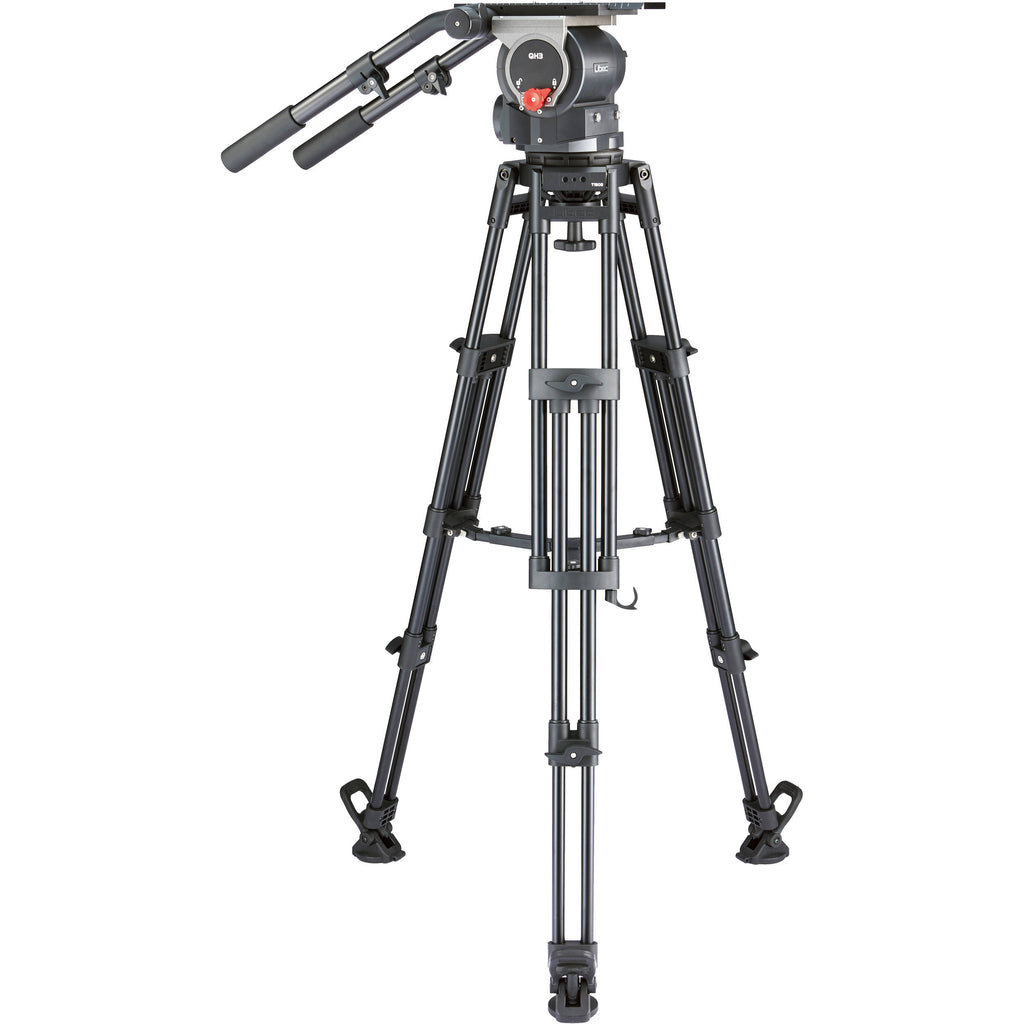

The Libec QD-30M Tripod System features the pedestal-capable QH3 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with a telescoping mid-level spreader and large rubber foot pads. The QH3 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 152 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.
Libec QH3 Fluid Head
The Libec QH3 Fluid Head is a pedestal-capable heavy-duty head supporting up to 152 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH3 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws. The head also comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.
Key Features
- Pedestal-capable heavy-duty fluid head with 152 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars
- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan
Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber food pads are also supported, such as the FP-6B pads.
Multiple 3/8"-16 and 1/4"-20 accessory mount threads are provided on two sides of the tripod, on top near the bowl base. A weight hook is also provided on one of the legs. The T150B is made in Japan. Compatible tripod heads include the Libec QH1 and QH3.
Key Features
- 150mm bowl
- 220.5 lb payload
- 23 to 64" height range in two leg stages
- Ergonomic twist leg lock knob at each stage of each leg
- Spiked feet
- One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
- Weight hook
- Optional foot pads and mid and ground spreaders supported
- Made in Japan
Libec BR-6B Mid-Level Spreader
Quickly set up your tripod as well as add stability with the BR-6B Mid-Level Spreader from Libec . Compatible with the RT40RB, RT50B, RT50C, T102B, and T103B tripods, this telescopic model can extend from 7" to 10.3" to accommodate a wide range of leg angles.
Libec Large Rubber Foot Pads for Select Tripods
The replacement Large Rubber Foot Pads for Select Tripods from Libec are compatible with their T102B, T103B, T150B, and T150C tripods. The rubber pads attach to the bottom of each leg and prevent the tripod from sliding on smooth surfaces.
Compatibility
Libec: T102B, T103B, T150B, & T150C Tripods
Table of Contents
- Description
- Libec QH3 Fluid Head
- Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
- Libec BR-6B Mid-Level Spreader
- Libec Large Rubber Foot Pads for Select Tripods
Libec QH3 Fluid Head Specs
Camera Plate
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 2.95" / 75 mm |
Tripod Platform
| Base Mount | 4-Bolt Flat Base |
Pan & Tilt
| Drag Control | 7-Step |
| Vertical Tilt | +90° to -70° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Material | Aluminum |
| Load Capacity | 152 lb / 68.95 kg |
| Counter Balance | Continuous (62 to 143 lb / 28.12 to 64.86 kg) |
| Center of Gravity | 4.92" / 125 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Weight | 27.9 lb / 12.66 kg |
Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl Specs
General
| Head Mount Type | 150 mm Bowl |
| Load Capacity | 220.5 lb / 100.02 kg |
| Maximum Working Height | 64" / 162.56 cm |
| Minimum Working Height | 23" / 58.42 cm |
| Materials | Aluminum |
| Accessory Mounting | 4 x 3/8"-16 Female Thread
2 x 1/4"-20 Female Thread |
| Weight | 14.5 lb / 6.58 kg |
Legs
| Leg Lock Type | Twist Lock |
| Leg Sections | 3 |
| Feet Features | Spiked |
| Spreader | (Not Included) |
Libec BR-6B Mid-Level Spreader Specs
| Sliding Range | 7.0-10.3" / 17.8-26.2 cm |
| Folded Length | 7" / 17.8 cm |
| Weight | 0.6 lb / 0.3 kg |
Packaging Info
| Package Weight | 0.95 lb |
| Box Dimensions (LxWxH) | 13.3 x 5.4 x 5.1" |
Libec Large Rubber Foot Pads for Select Tripods Specs
| Material | Plastic, Rubber |
| Weight | 1.5 lb / 0.68 kg |
