Libec QD-30 Overview
- 1 Description
- 2 Libec QH3 Fluid Head
- 3 Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
- 4 Libec SP-15B Ground Spreader for T150B & T150C Tripods

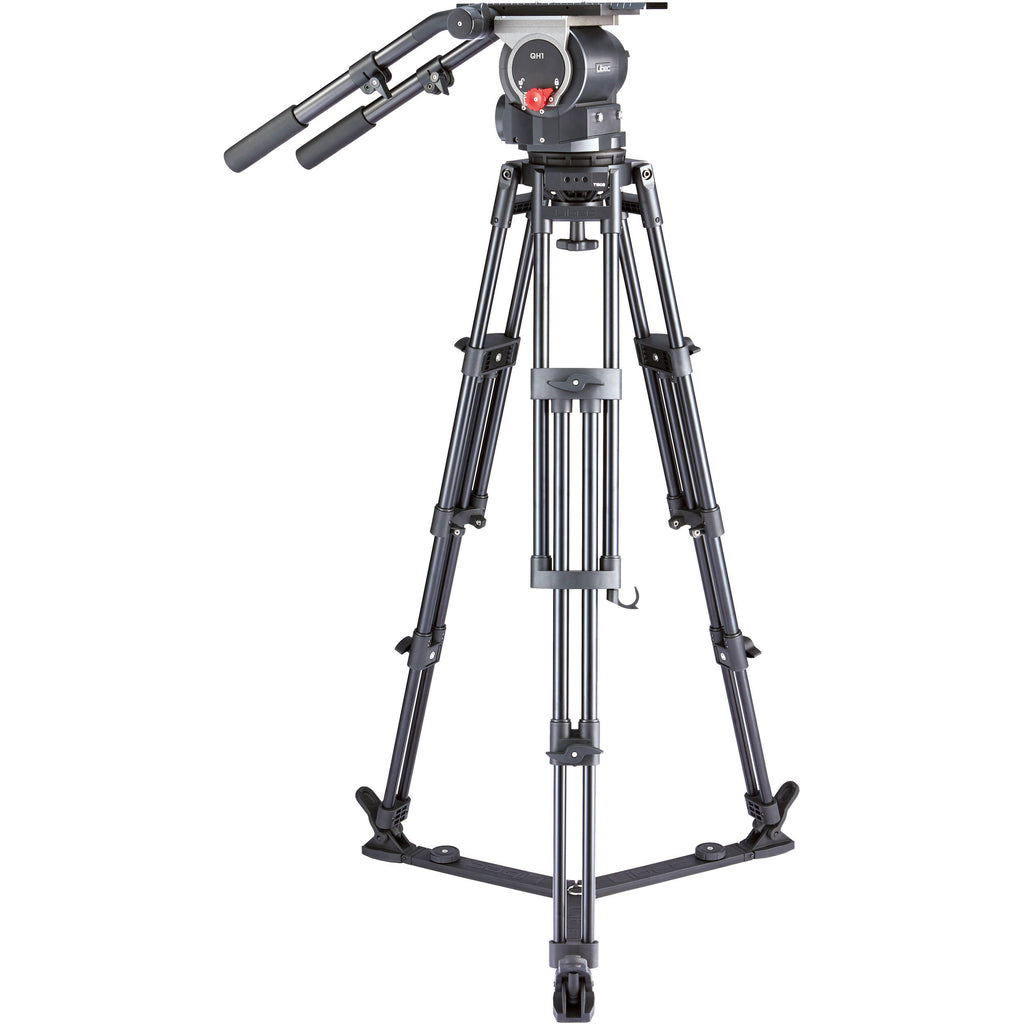

The Libec QD-30 Tripod System features the pedestal-capable QH3 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with the SP-15B Ground Spreader, which has individually adjustable arms. The QH3 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 152 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.
Libec QH3 Fluid Head

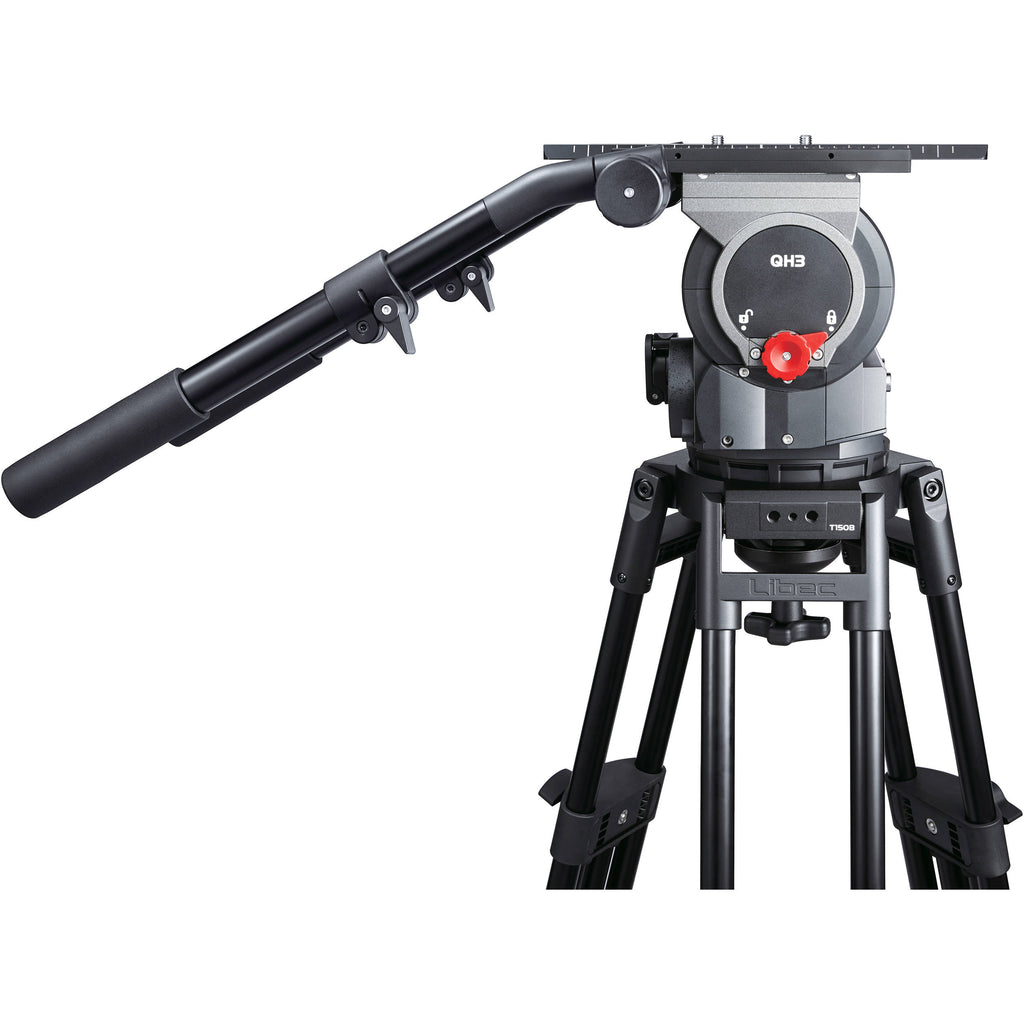

The Libec QH3 Fluid Head is a pedestal-capable heavy-duty head supporting up to 152 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH3 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws. The head also comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.
Key Features
- Pedestal-capable heavy-duty fluid head with 152 lb payload
- Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
- Side-mount camera plate system
- 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
- Two 2-piece telescoping pan bars
- Continuous counterbalance
- 7-step drag
- Independent pan and tilt locks
- 90 to -70° tilt
- Illuminated bubble level
- Aluminum construction
- Made in Japan
Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

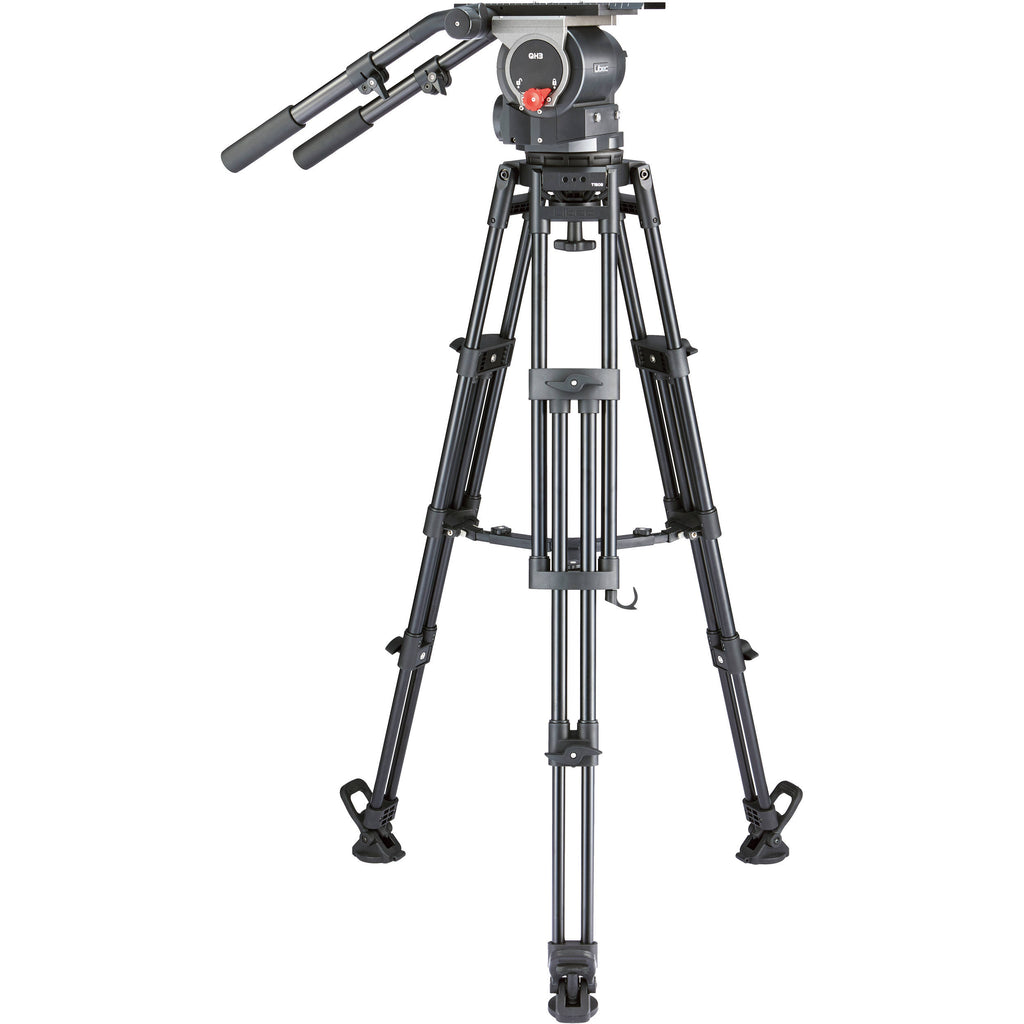

The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber food pads are also supported, such as the FP-6B pads.
Multiple 3/8"-16 and 1/4"-20 accessory mount threads are provided on two sides of the tripod, on top near the bowl base. A weight hook is also provided on one of the legs. The T150B is made in Japan. Compatible tripod heads include the Libec QH1 and QH3.
Key Features
- 150mm bowl
- 220.5 lb payload
- 23 to 64" height range in two leg stages
- Ergonomic twist leg lock knob at each stage of each leg
- Spiked feet
- One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
- Weight hook
- Optional foot pads and mid and ground spreaders supported
- Made in Japan
Libec SP-15B Ground Spreader for T150B & T150C Tripods
The Libec SP-15B Ground Spreader is compatible with the Libec T150B and T150C tripods. The arms are individually length-adjustable when you loosen dedicated knobs, and a pull ring is provided in the center for collapsing the spreader.
In the Box
- Libec QH3 Fluid Head
- 150mm Half Ball Adapter
- 4 x Mounting Screw for Half Ball Adapter
- 2 x Telescoping Pan Bar
- Camera Plate with Two 3/8"-16 Screws
- 2 x Spare 3/8"-16 Camera Plate Screw
- Limited 3-Year Warranty
- Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
- Libec SP-15B Ground Spreader for T150B & T150C Tripods
Table of Contents
- Description
- Libec QH3 Fluid Head
- Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
- Libec SP-15B Ground Spreader for T150B & T150C Tripods
Libec QH3 Fluid Head Specs
Camera Plate
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 2.95" / 75 mm |
Tripod Platform
| Base Mount | 4-Bolt Flat Base |
Pan & Tilt
| Drag Control | 7-Step |
| Vertical Tilt | +90° to -70° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Material | Aluminum |
| Load Capacity | 152 lb / 68.95 kg |
| Counter Balance | Continuous (62 to 143 lb / 28.12 to 64.86 kg) |
| Center of Gravity | 4.92" / 125 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Weight | 27.9 lb / 12.66 kg |
Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl Specs
General
| Head Mount Type | 150 mm Bowl |
| Load Capacity | 220.5 lb / 100.02 kg |
| Maximum Working Height | 64" / 162.56 cm |
| Minimum Working Height | 23" / 58.42 cm |
| Materials | Aluminum |
| Accessory Mounting | 4 x 3/8"-16 Female Thread
2 x 1/4"-20 Female Thread |
| Weight | 14.5 lb / 6.58 kg |
Legs
| Leg Lock Type | Twist Lock |
| Leg Sections | 3 |
| Feet Features | Spiked |
| Spreader | (Not Included) |
Libec SP-15B Ground Spreader for T150B & T150C Tripods Specs
