Libec HS-350 Tripod System Overview
-
1Description
-
2Libec H35 75mm Ball and Flat Base Video Head with Pan Handle (17.6 lb Payload)
-
3Libec RT30B 2-Stage Aluminum Tripod Legs
-
4Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
-
5Libec FP-2B Large Rubber Feet (Set of 3)
-
6Libec Carrying Case
Libec HS Series - Lineup Introduction
Libec HS Series - Features
Libec PERFECT BALANCE-How to Properly Balance a Camera

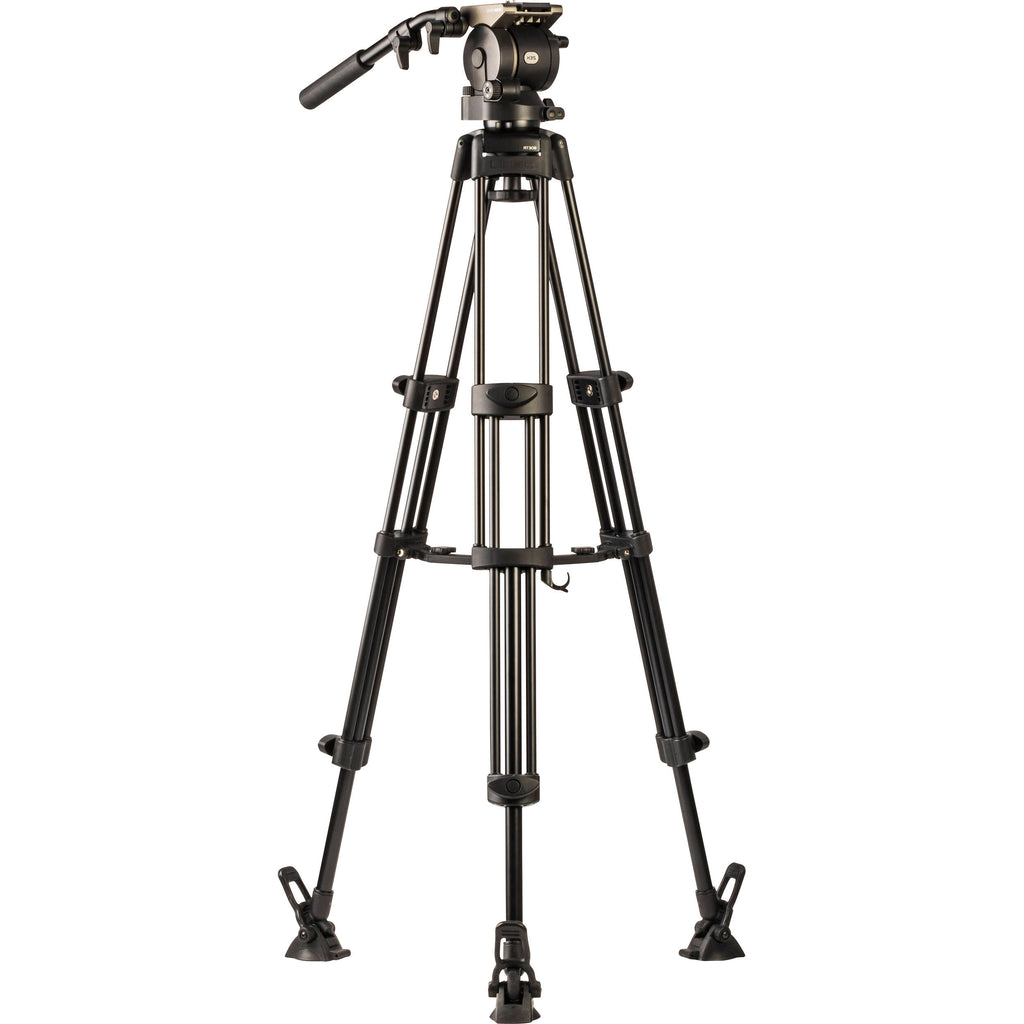

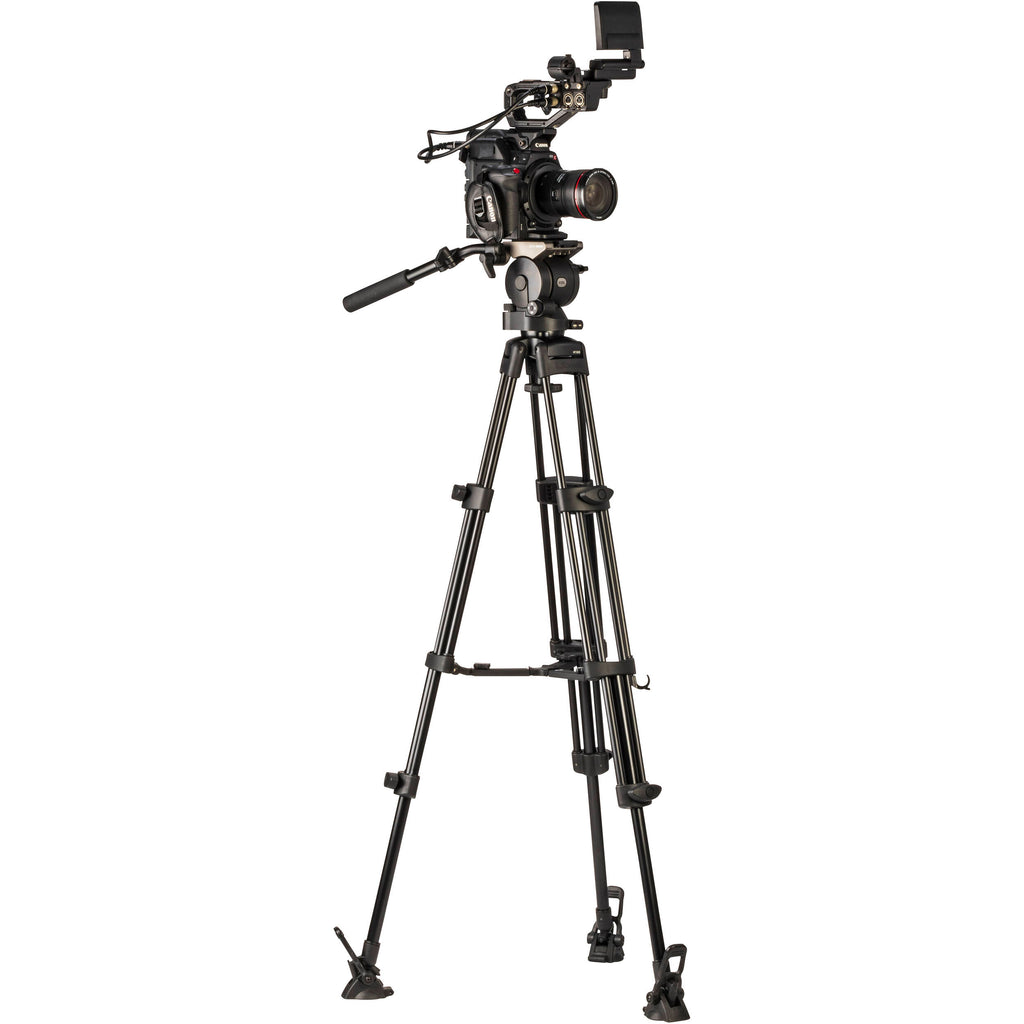

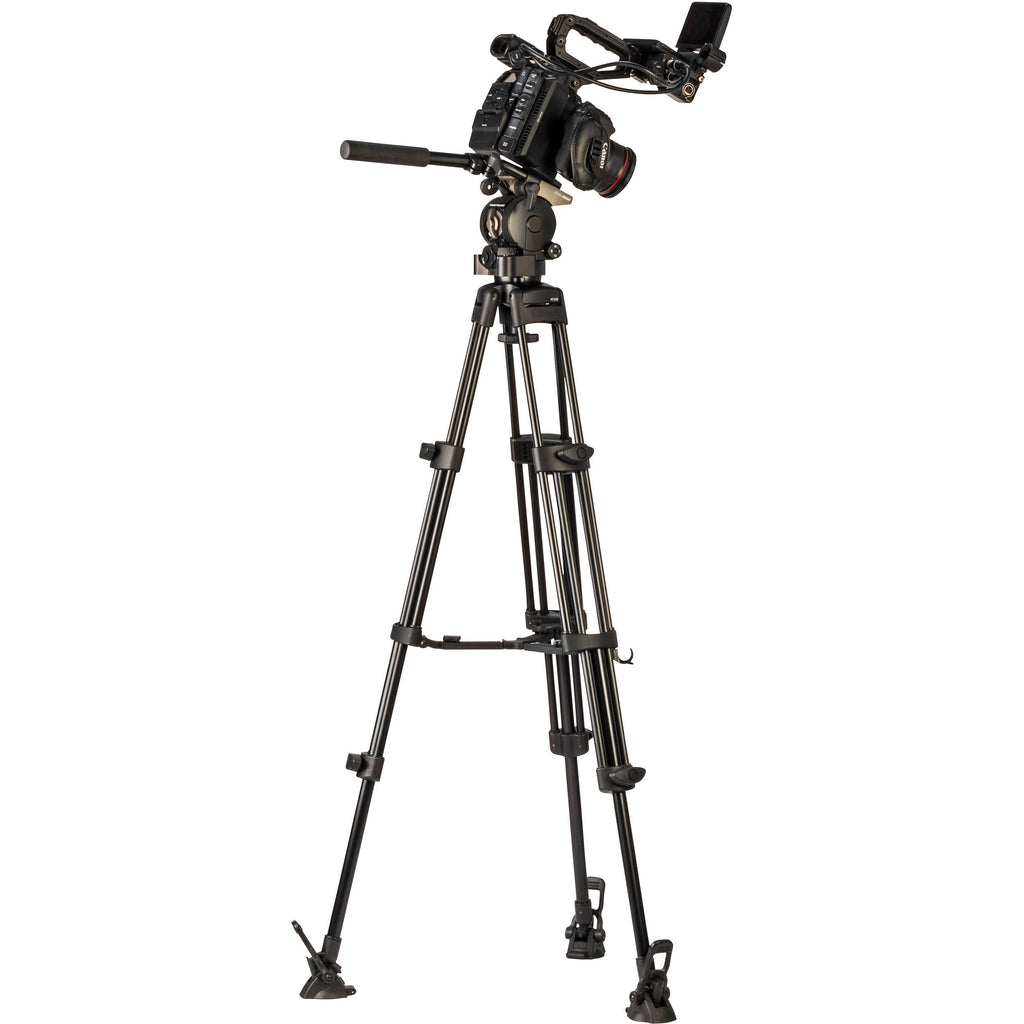

This HS-350M Tripod System from Libec outfits you with a 17.6 lb load capacity fluid head, a compatible mid-level spreader, three rubber feet, and a carrying case to bring it to set. Intuitive adjustment of pan, tilt, and counterbalance makes for a customizable experience. Aluminum construction creates a lightweight and durable tripod design.

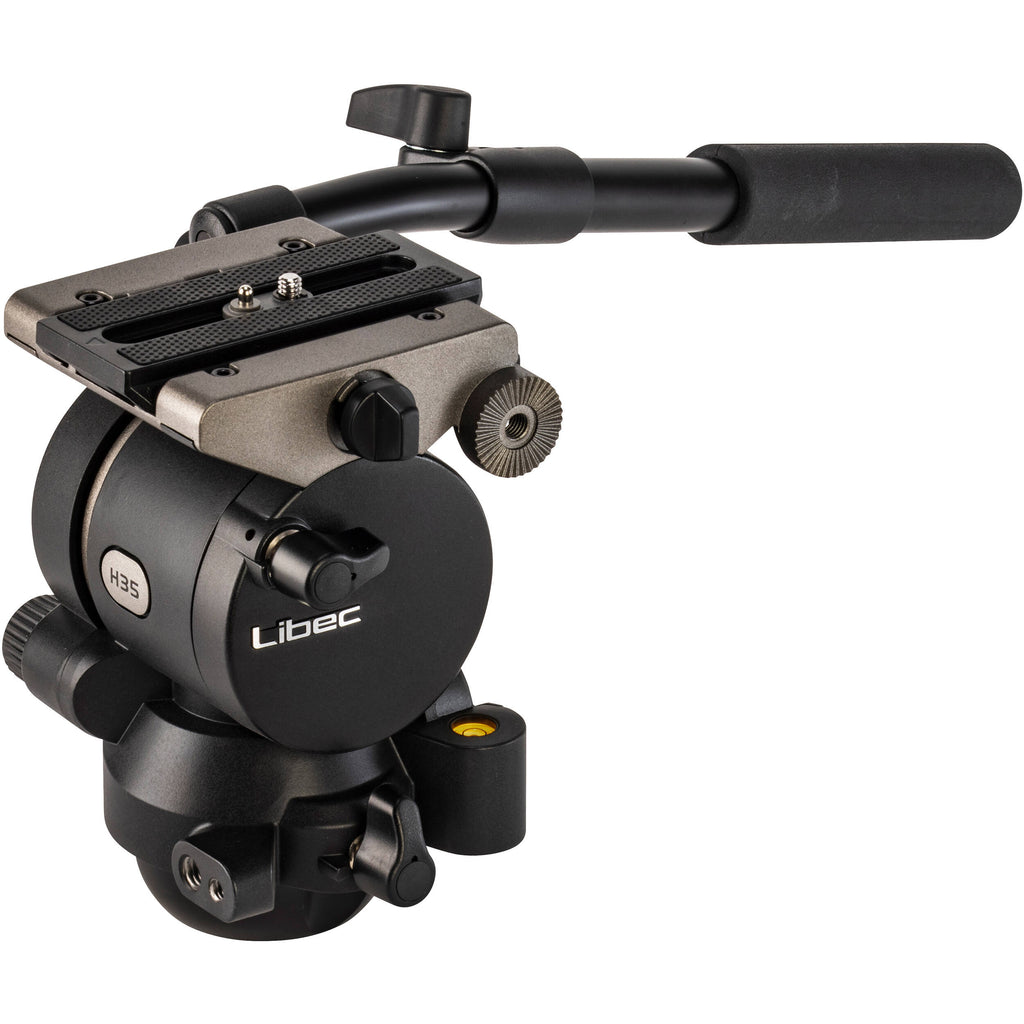

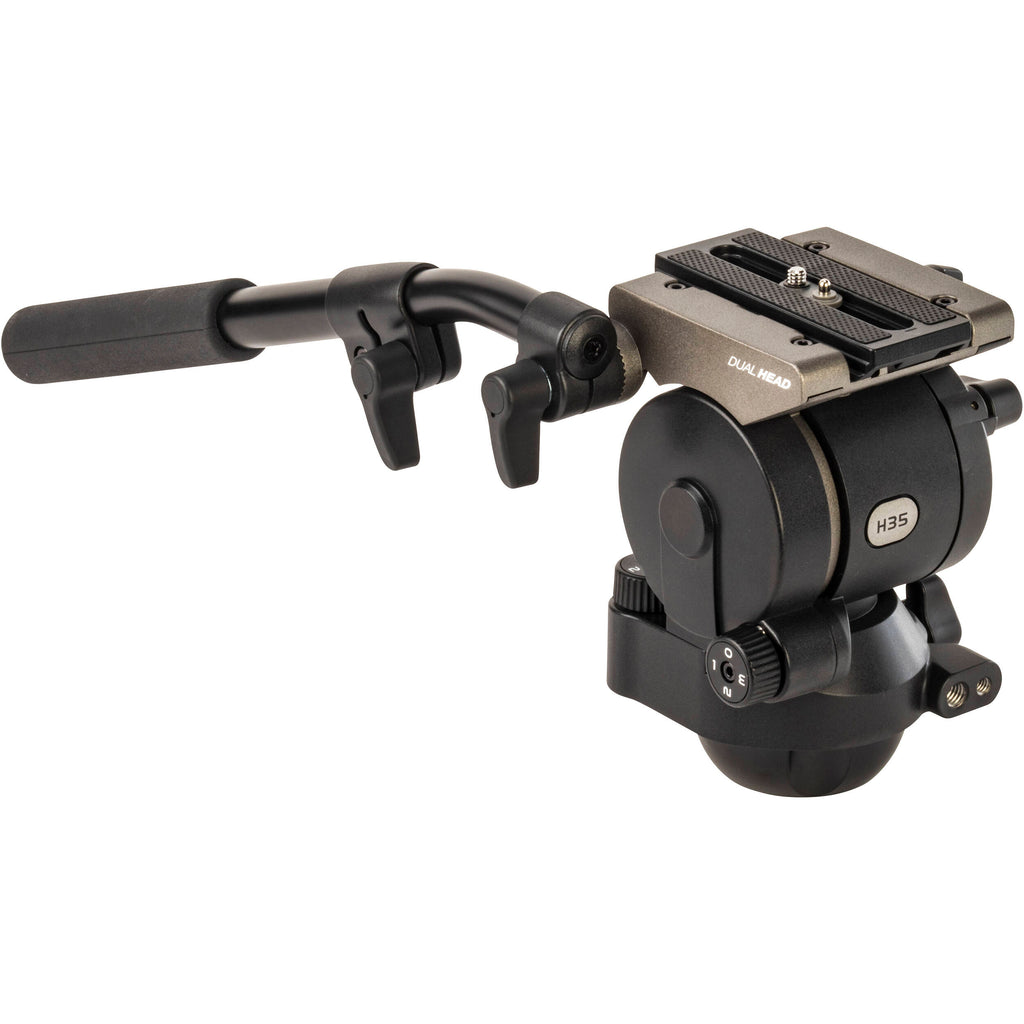

Libec H35 75mm Ball and Flat Base Video Head with Pan Handle (17.6 lb Payload)
Integrate a fluid head into your tripod configuration with various adjustment features using this H35 75mm Ball and Flat Base Video Head with Pan Handle from Libec. An included pan handle makes for easy movement up and down or side to side. Independent pan and tilt adjustments make movements intuitive and smooth. The H35 head has a load capacity of 17.6 lb and an adjustable counterbalance range of 6.6 to 16.5 lb.
Your camera is secured via a 1/4"-20 screw and locating pin, and additional 3/8"-16 and 1/4"-20 screws are included for further attachments. The head also comes with a long sliding plate with one 3/8"-16 screw and one 1/4"-20 screw. An illuminated bubble level ensures your configuration is level when mounted onto tripod legs. The H35 is compatible with Manfrotto or Sachtler heads.
Libec RT30B 2-Stage Aluminum Tripod Legs
The Libec RT30B 2-Stage Aluminum Tripod Legs feature a 75mm bowl base and support up to 55 lb loads. The height range is a low minimum height of 16" to a maximum height of 59.5". The tripod has spiked feet for use on soft ground, and the aluminum die-cast material used for the upper leg casing enhances overall stability.
Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
The BR-2B Mid-Level Spreader from Libec is designed to offer added stability to RT20C and RT30B tripods. It installs onto the mid-level leg stage and can adjust the length of each arm by sliding them out and tightening them with locking knobs. Best used on uneven surfaces where ground spreaders won't lie flat, the BR-2B also keeps the tripod's legs from twisting.
Libec RT20C and RT30B tripods
Libec FP-2B Large Rubber Feet (Set of 3)
Libec FP-2 Large Rubber Feet ensure stable shooting with RT-30B two-stage tripods.

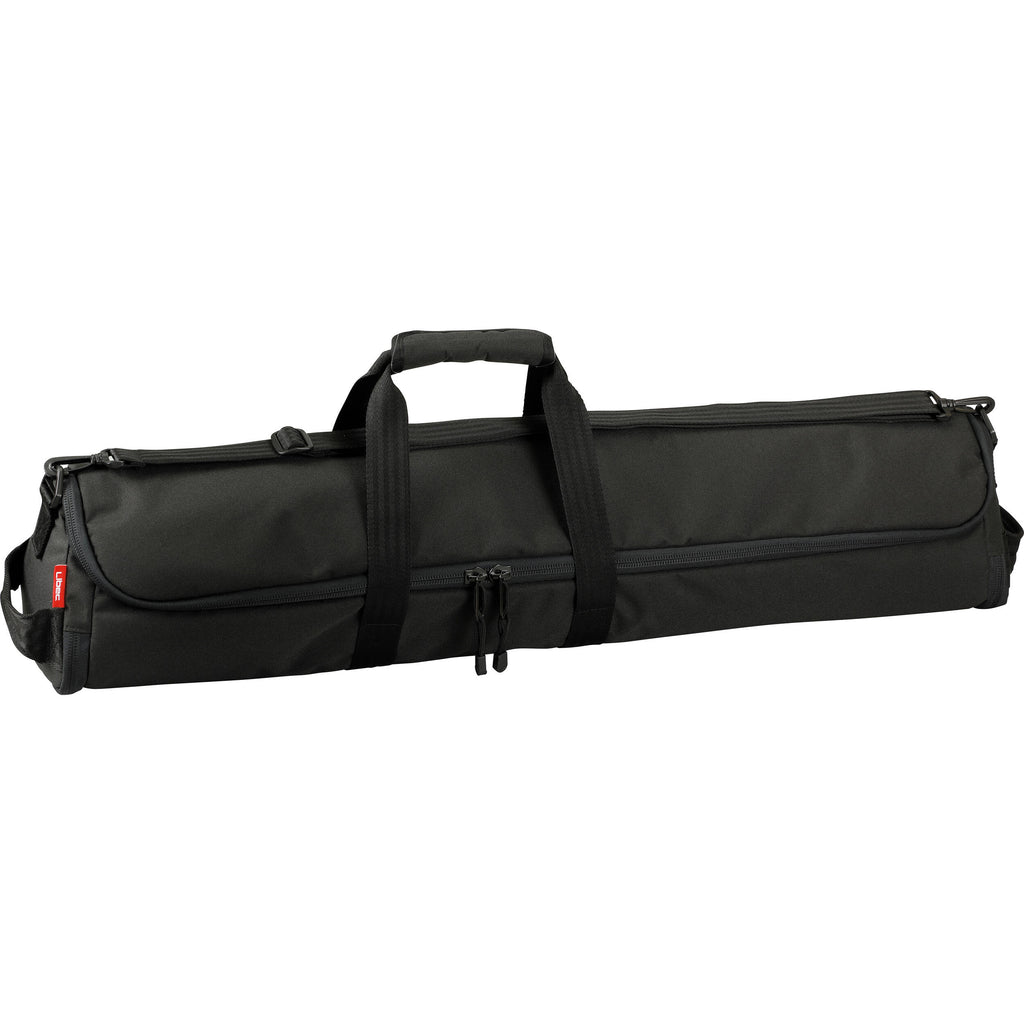

The Libec RC-30 Carrying Case (Black) is a non-padded, vinyl case designed to carry a Libec RT-30 tripod with an RH-30 tripod head attached. It is carried by the handle or the attached, adjustable shoulder strap.
- Non-padded vinyl
- Zipper closure
- Carry handle
- Attached, adjustable shoulder strap
Compatible with Libec RT-30 tripod with an RH-30 tripod head
In the Box
- Libec H35 75mm Ball and Flat Base Video Head with Pan Handle (17.6 lb Payload)
- Long Sliding Plate
- Spare 1/4"-20 and 3/8"-16 Screws
- Libec RT30B 2-Stage Aluminum Tripod Legs
- Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
- Libec FP-2B Large Rubber Feet (Set of 3)
- Libec Carrying Case
Table of Contents
- Description
- Libec H35 75mm Ball and Flat Base Video Head with Pan Handle (17.6 lb Payload)
- Libec RT30B 2-Stage Aluminum Tripod Legs
- Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods
- Libec FP-2B Large Rubber Feet (Set of 3)
- Libec Carrying Case
Libec H35 75mm Ball and Flat Base Video Head with Pan Handle (17.6 lb Payload) Specs
Camera Plate
| Camera Plate Features |
Sliding Balance Plate |
| Camera Mounting Screw |
1 x 1/4"-20 Male with Locating Pin
1 x 1/4"-20 Male
1 x 3/8"-16 Male |
| Balance Plate Sliding Range |
1.2" / 30 mm |
Head
| Base Mount |
75 mm Half Ball
Flat Base |
| Counter Balance |
Continuous / 3 to 7.5 kg |
| Center of Gravity |
3.9" / 100 mm |
| Included Pan Handle Length |
10.8" / 275 mm |
| Bubble Level |
1 x Illuminated |
| Accessory Mounting |
1/4"-20 Female Thread
3/8"-16 Female Thread |
Pan & Tilt
| Drag Control |
Tilt: Stepped 3-Step
Pan: Stepped 3-Step |
| Drag Type |
Fluid |
| Vertical Tilt |
+90° to -70° |
| Independent Pan Lock |
Yes |
| Independent Tilt Lock |
Yes |
General
| Load Capacity |
17.6 lb / 8 kg |
| Operating Temperature |
-8 to 92°F / -40 to 60°C |
| Weight |
6.2 lb / 2.8 kg |
Packaging Info
| Package Weight |
9.3 lb |
| Box Dimensions (LxWxH) |
20.2 x 11.2 x 8.4" |
Libec RT30B 2-Stage Aluminum Tripod Legs Specs
General
| Head Mount Type |
75 mm Bowl |
| Maximum Working Height |
59.5" / 150.5 cm |
| Minimum Working Height |
16" / 40.6 cm |
| Closed Length |
Not Specified by Manufacturer |
| Materials |
Aluminum |
| Weight |
5.7 lb / 2.6 kg |
Legs
| Leg Lock Type |
Rotating Locking Lever |
| Independent Leg Spread |
Yes |
| Leg Sections |
3 |
| Feet Features |
Spiked |
Packaging Info
| Package Weight |
7.7 lb |
| Box Dimensions (LxWxH) |
32 x 9 x 9" |
Libec BR-2B Mid-Level Spreader for RT20C and RT30B Tripods Specs
| Type |
Mid-Level |
| Adjustable |
Yes |
| Weight |
7.1 oz / 200 g |
Packaging Info
| Package Weight |
0.85 lb |
| Box Dimensions (LxWxH) |
13.35 x 5.3 x 4.9" |
Libec FP-2B Large Rubber Feet (Set of 3) Specs
Packaging Info
| Package Weight |
1.315 lb |
| Box Dimensions (LxWxH) |
13.3 x 5.35 x 4.9" |
Libec Carrying Case Specs
| Carrying/Transport Options |
Connecting Handles, Shoulder Strap |
| Type of Closure |
Zipper |
| Exterior Material |
Vinyl, Nylon |
| Padded |
No |
Packaging Info
| Package Weight |
1.95 lb |
| Box Dimensions (LxWxH) |
21.1 x 15.2 x 2.5" |
